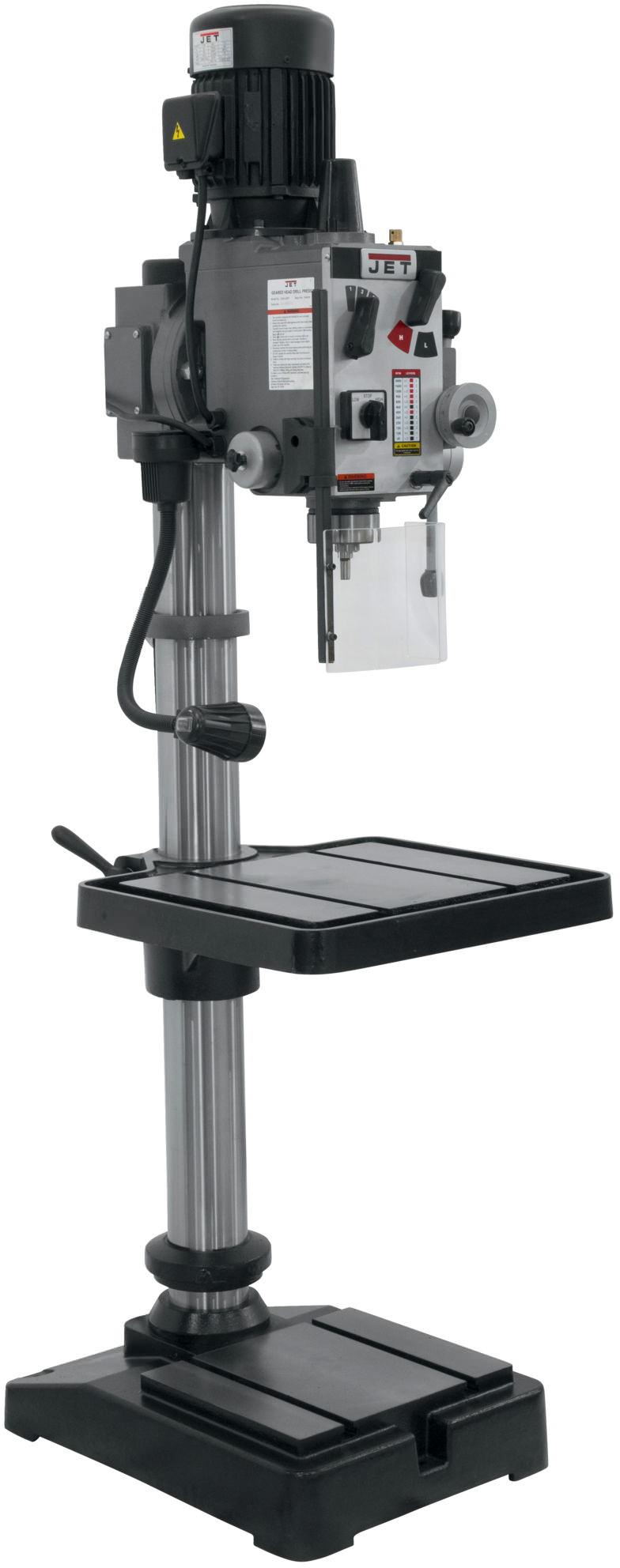

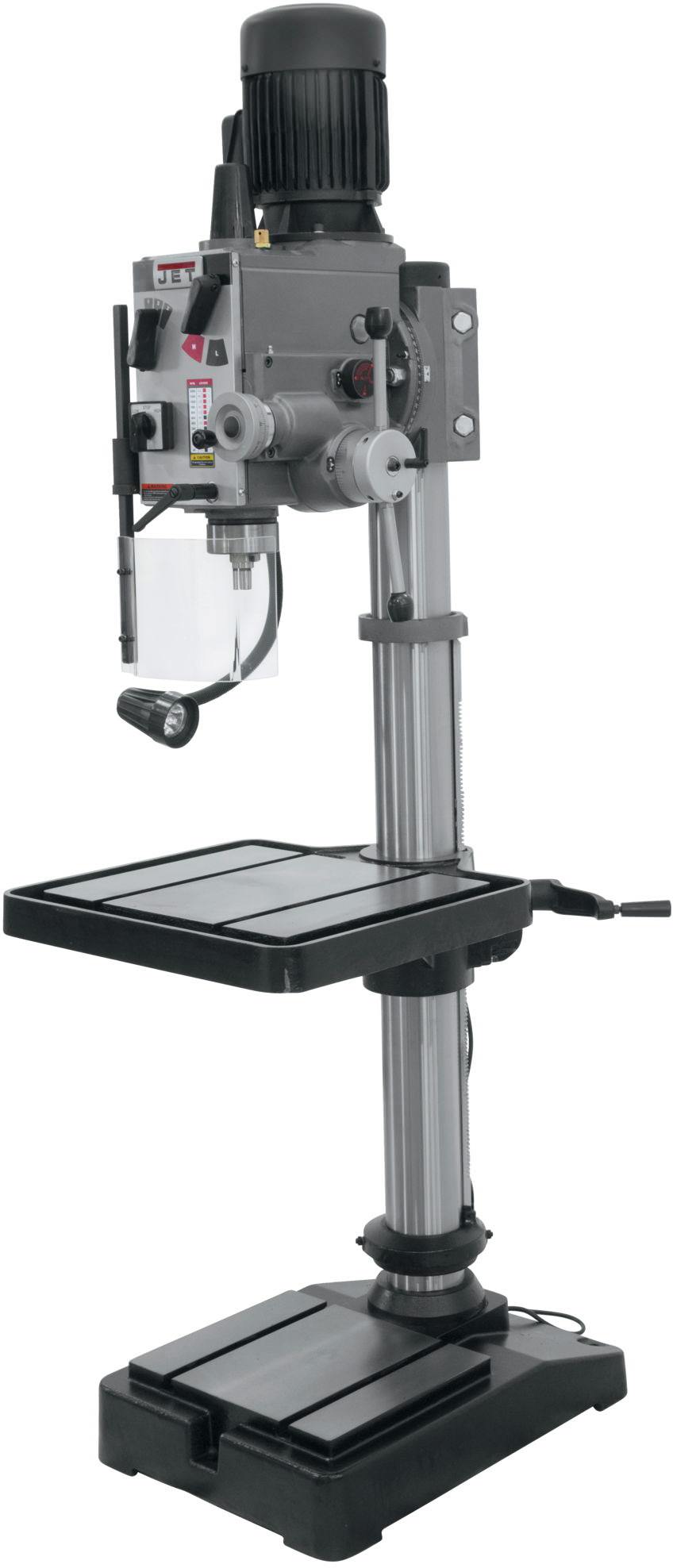

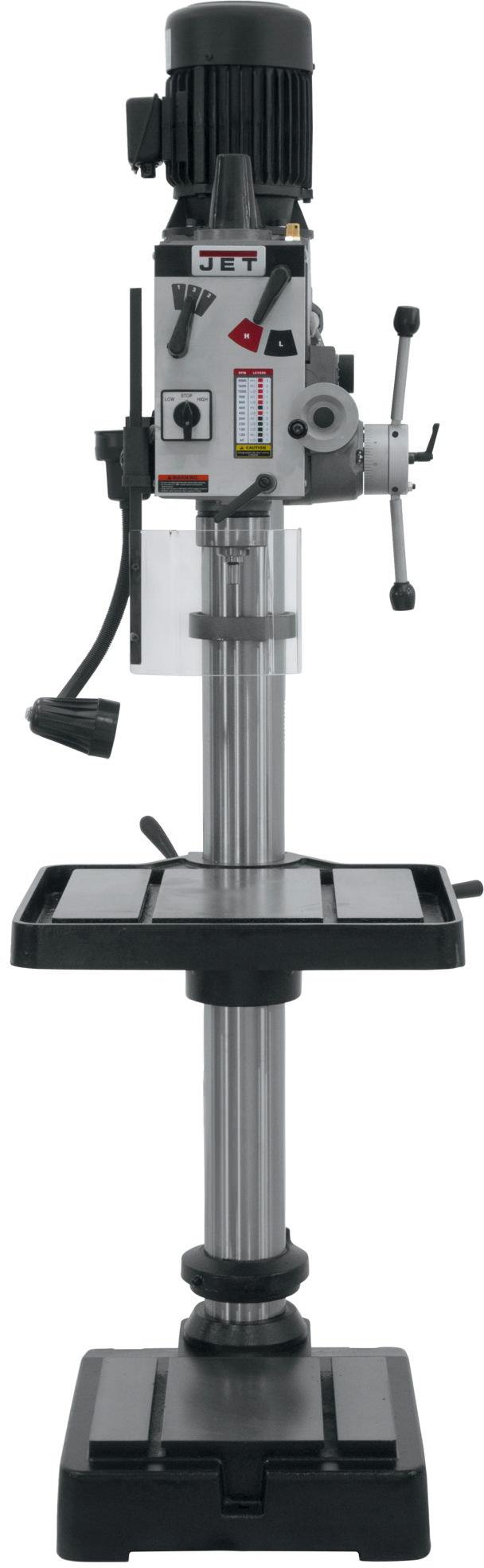

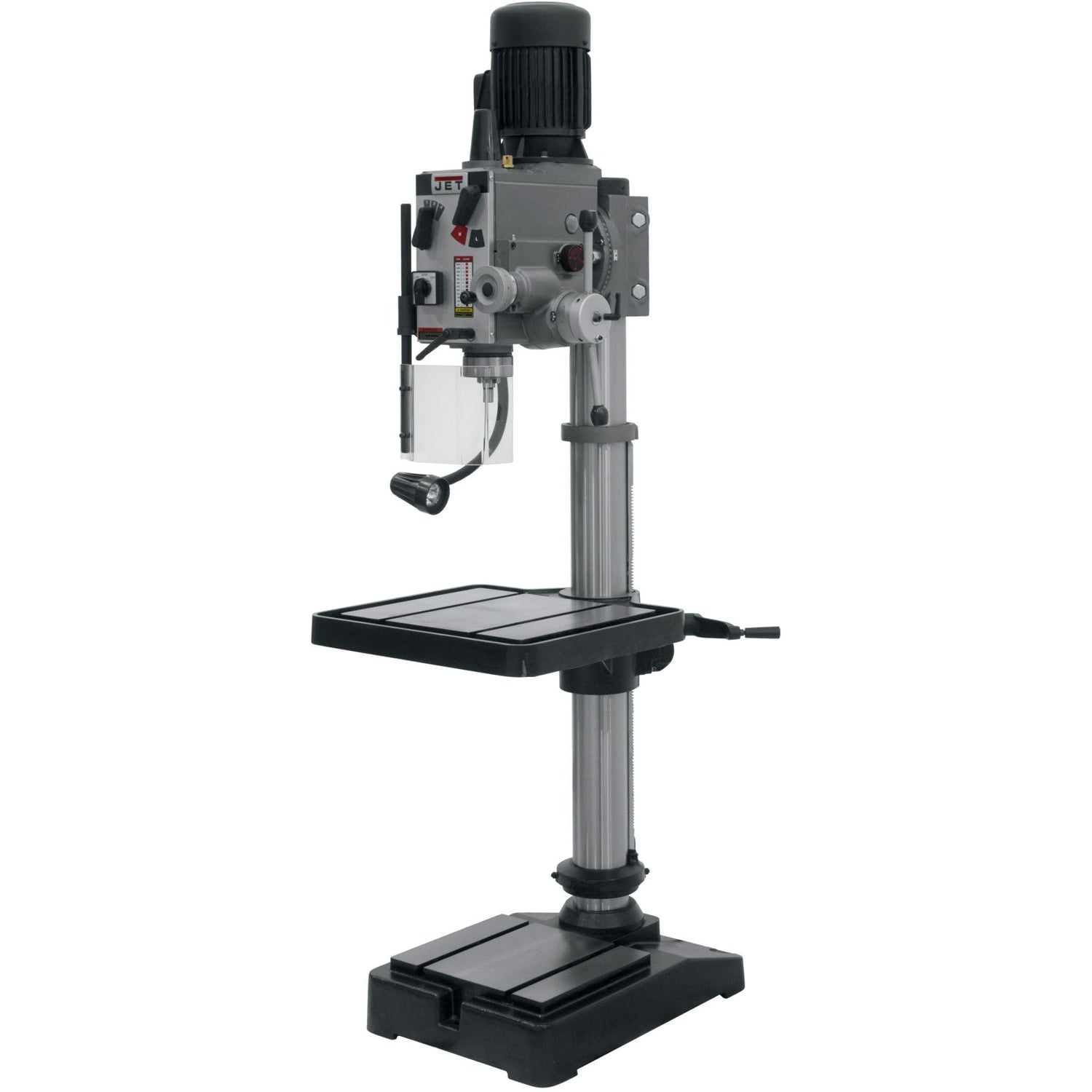

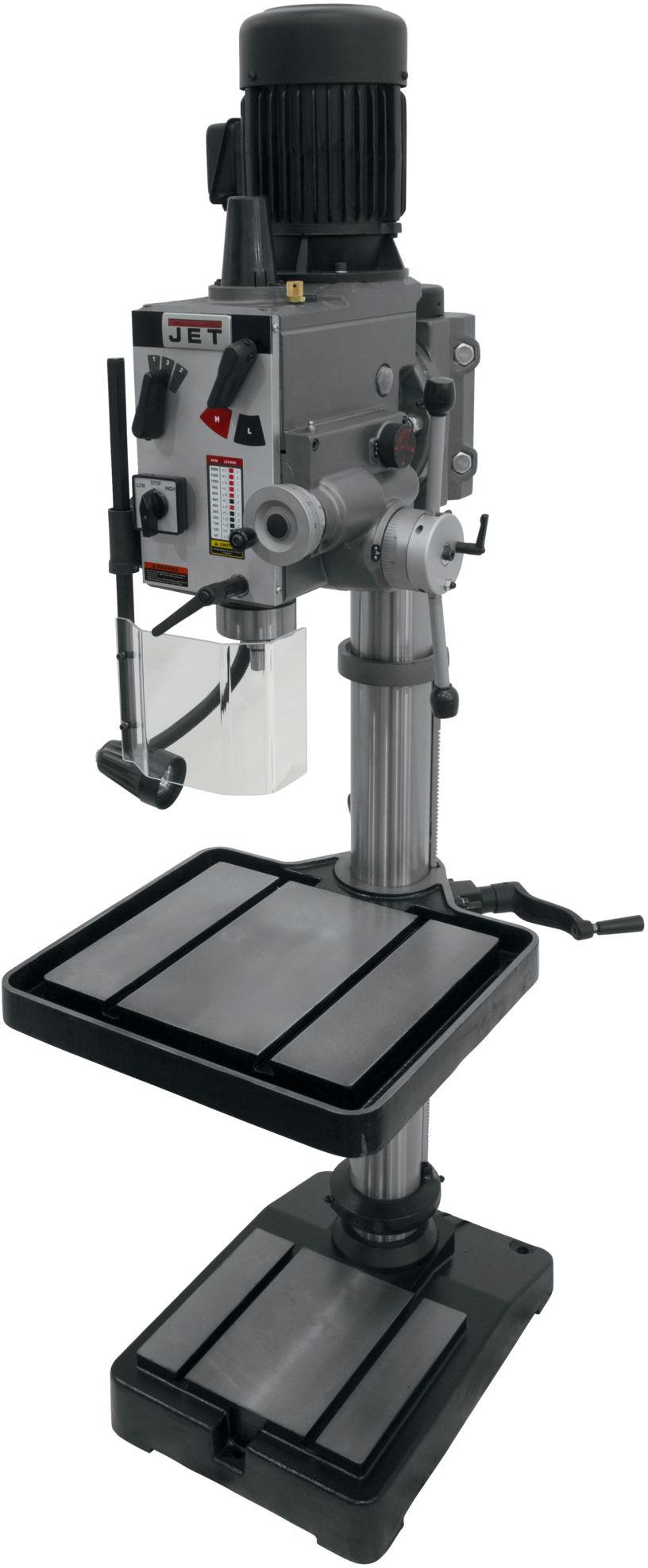

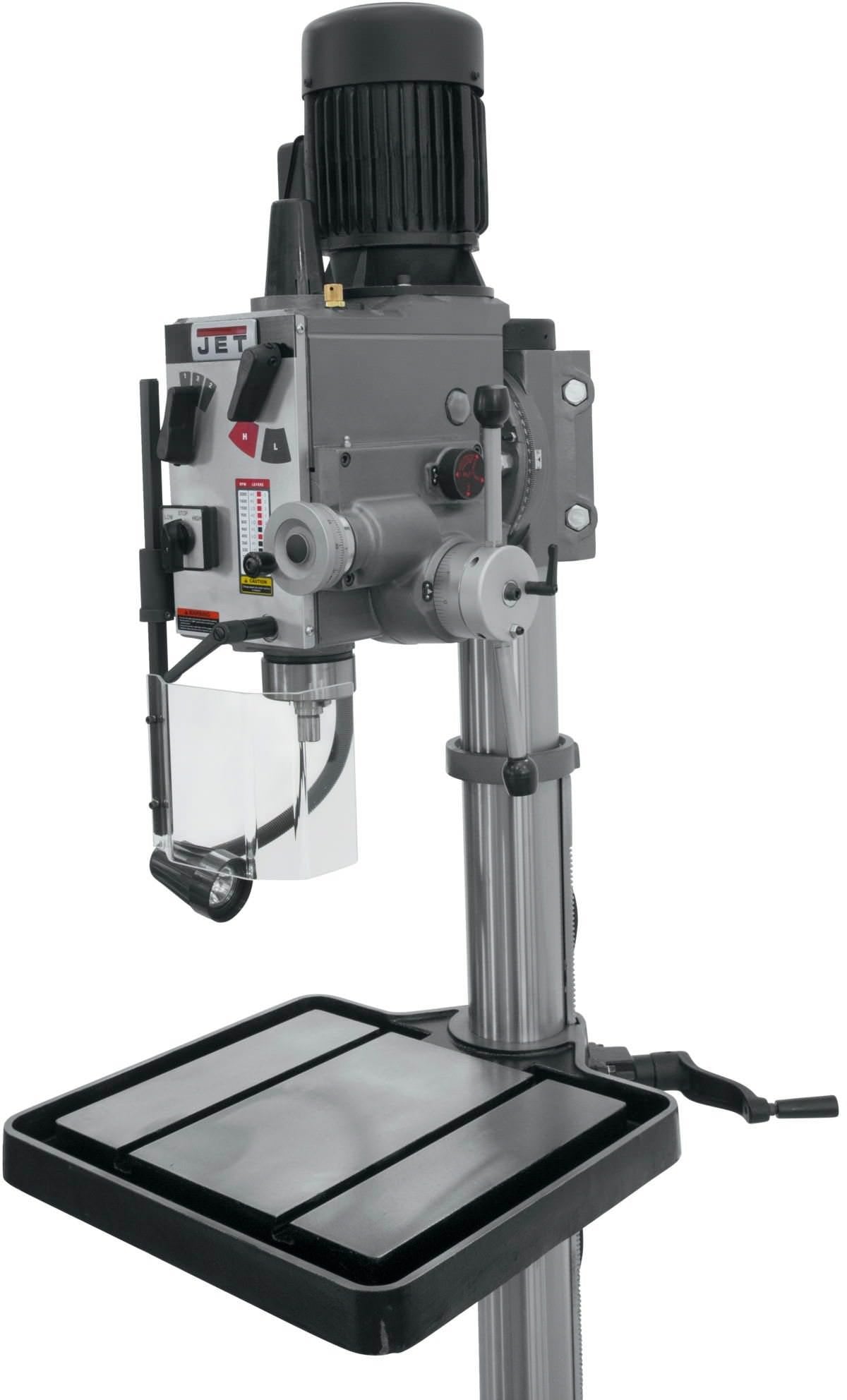

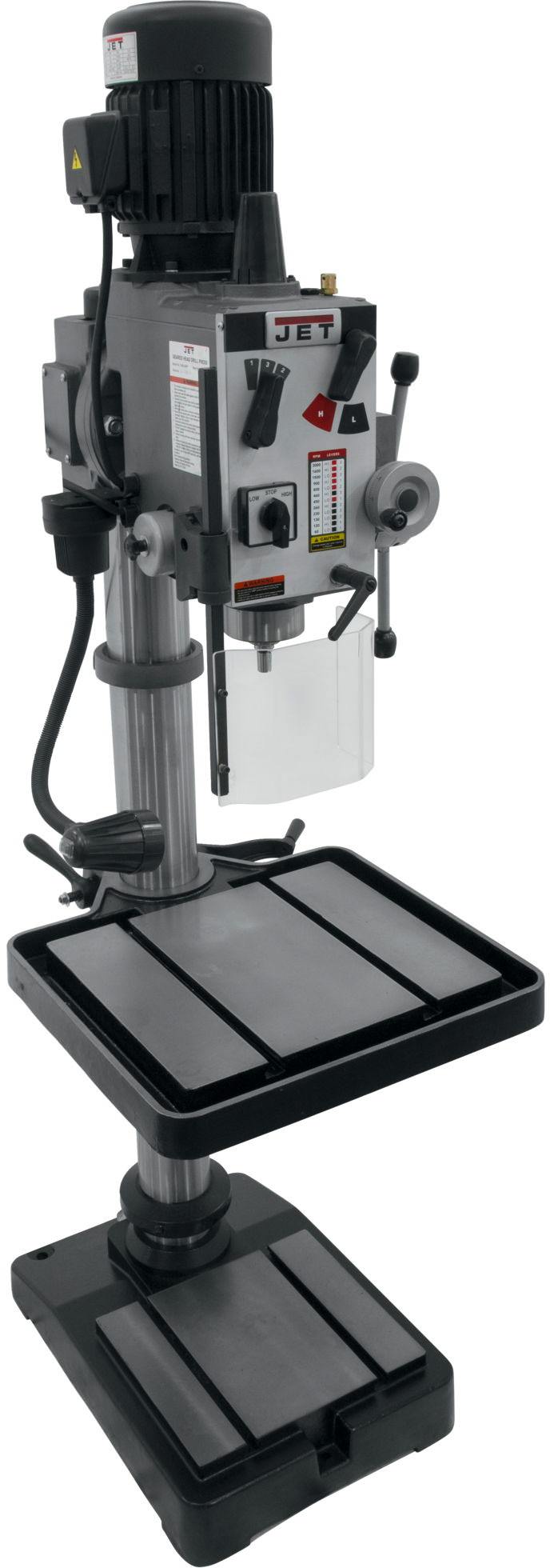

Jet 354024 GHD-20PF, 20" Gear Head Drill Press With Power Down feed 230V, 3Ph

354024
$4,299.00
+ -

Jet 354024 GHD-20PF, 20" Gear Head Drill Press With Power Down feed 230V, 3Ph  -  $4,299.00

OR
Description
Full details

Achieve precision drilling and tapping from a design that includes an easy-to-read internal depth gauge, three power down feeds, built-in spindle lock and calibrated fine down feed. JET backs this reliable combination drilling and tapping press with a Two Year Warranty.

  • Heavy-duty design allows a variety of precision drilling applications
  • Large production table and T-slotted base

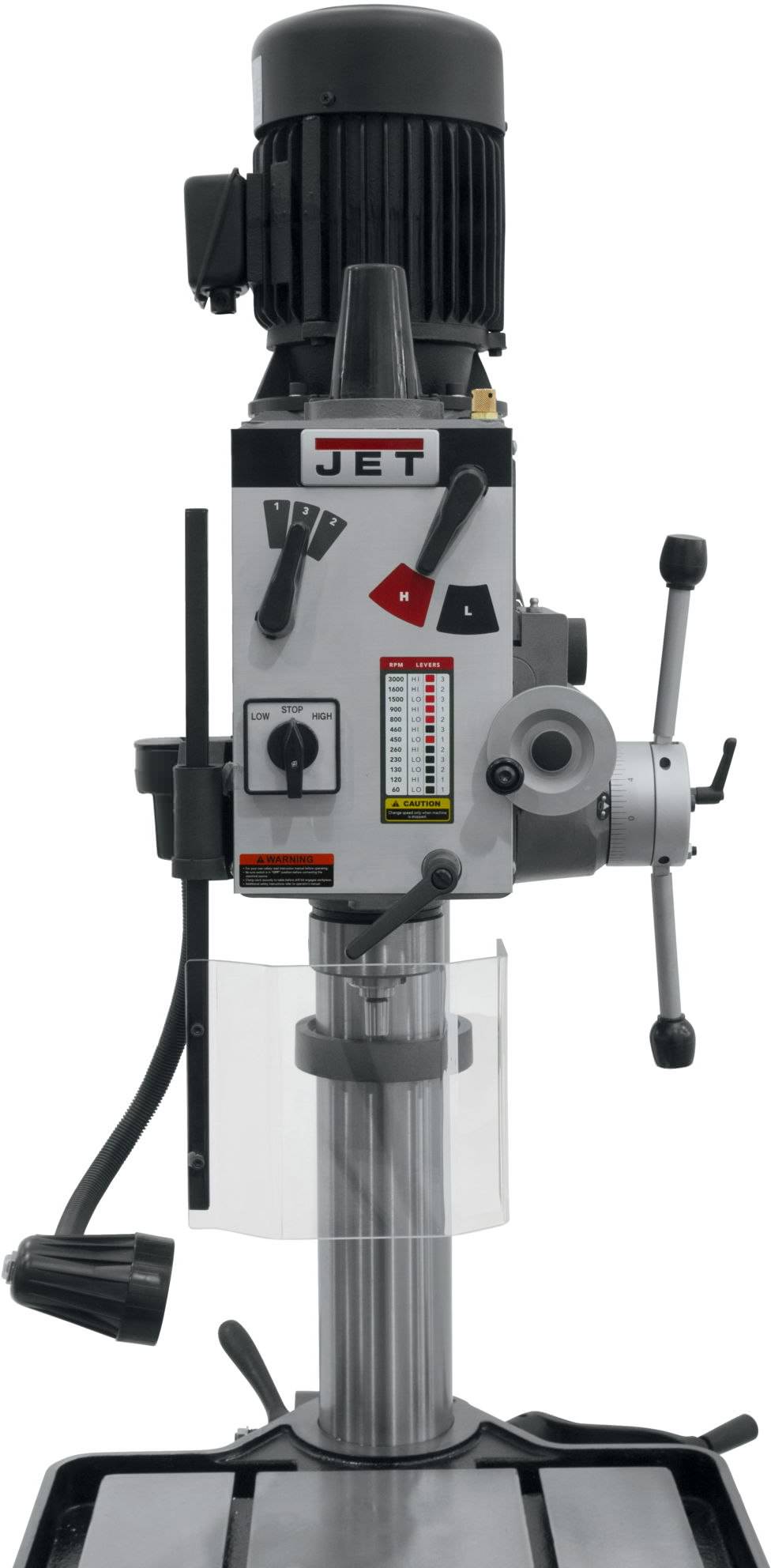

  • Easy-to-read internal depth gauge
  • Three power downfeed rates
  • Calibrated fine downfeed built in
  • TEFC motor
  • Built-in spindle lock

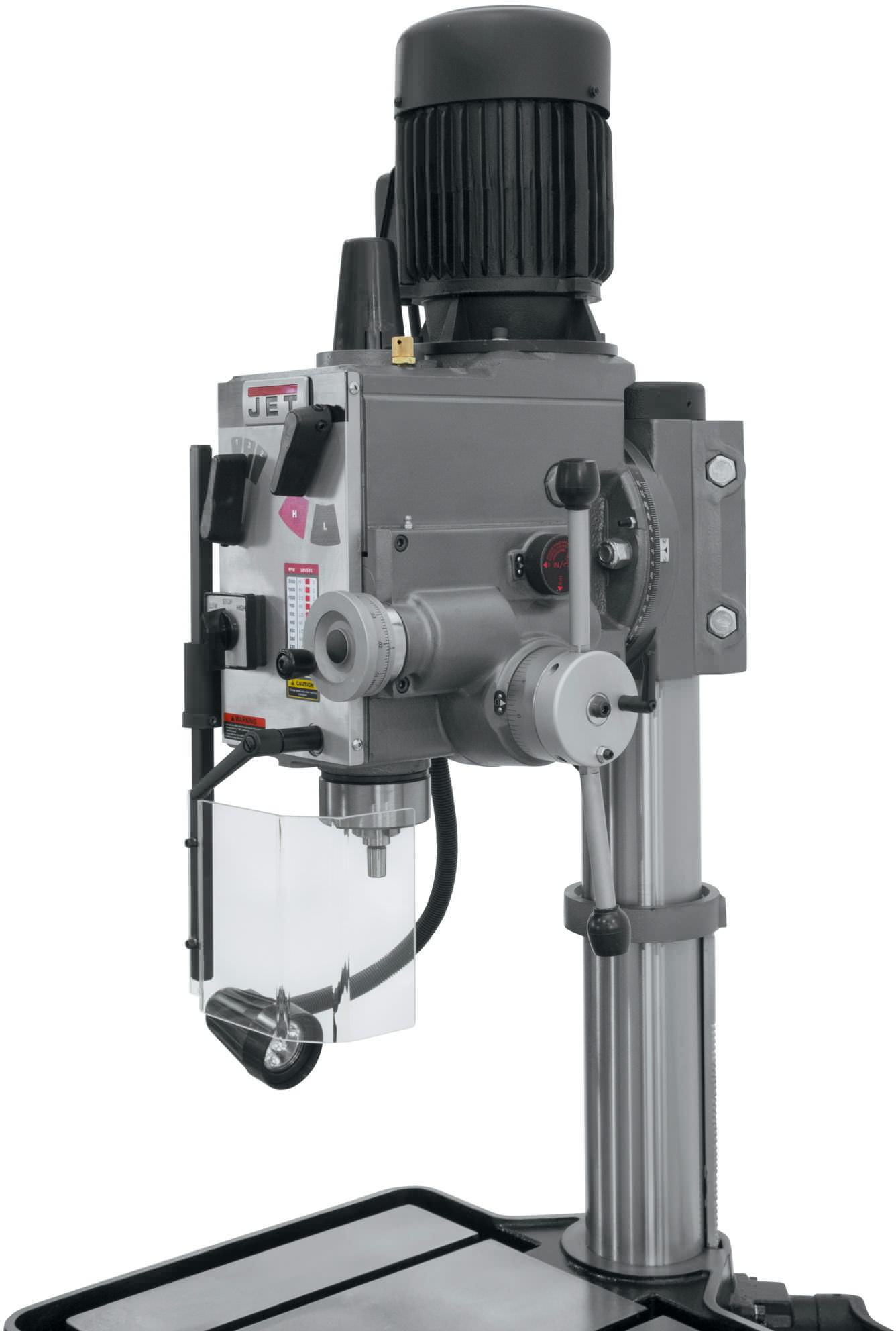

  • Head tilts left or right
  • Easily accessible table raiser
  • Drill chuck arbor
  • Draw bar
Specifications
Style (Type) Geared Head
Drills to Center of Circle (In.) 20
Drilling Capacity Cast Iron (In.) 1-1/2
Drilling Capacity Mild Steel (In.) 1-1/4
Column Diameter (In.) 4-1/2
Distance Column to Spindle (In.) 10
Range of Spindle Speeds (RPM) Low - 60, 130, 230, 450, 800, 1500; High - 120, 260, 460, 900, 1600, 3000
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 4-1/2
Spindle Distance to Base (In.) 44-15/16
Spindle Distance to Table (Max.) (In.) 30-1/2
Table Size (L x W) (In.) 21-3/4 x 19-1/2
Table Travel (In.) 25-1/2
T-Slots Number and Size (In.) 2 & 5/8
T-Slot Centers (In.) 9
Work Table Weight Capacity (Lbs.) 275
Base Dimensions (In.) 26 x 18
Base Work Table (In.) 15-1/4 x 13
Base Slots Number & Size (In.) 2 & 5/8
Motor (HP) 2 HP (2 Speed) , 230V, 3Ph
Prewired (V.) 230
Overall Dimensions (L x W x H) (In.) 32 x 24 x 71
Weight (Lbs.) 660
Height 76.0000
Length 33.0000
Weight 700.0000
Width 29.0000
Power Source Electric
Batteries Included N/A
Battery Voltage N/A
Motor Power 2 HP
Motor Voltage 230 V
Product Type Drill Press
Specifications
Style (Type) Geared Head
Drills to Center of Circle (In.) 20
Drilling Capacity Cast Iron (In.) 1-1/2
Drilling Capacity Mild Steel (In.) 1-1/4
Column Diameter (In.) 4-1/2
Distance Column to Spindle (In.) 10
Range of Spindle Speeds (RPM) Low - 60, 130, 230, 450, 800, 1500; High - 120, 260, 460, 900, 1600, 3000
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 4-1/2
Spindle Distance to Base (In.) 44-15/16
Spindle Distance to Table (Max.) (In.) 30-1/2
Table Size (L x W) (In.) 21-3/4 x 19-1/2
Table Travel (In.) 25-1/2
T-Slots Number and Size (In.) 2 & 5/8
T-Slot Centers (In.) 9
Work Table Weight Capacity (Lbs.) 275
Base Dimensions (In.) 26 x 18
Base Work Table (In.) 15-1/4 x 13
Base Slots Number & Size (In.) 2 & 5/8
Motor (HP) 2 HP (2 Speed) , 230V, 3Ph
Prewired (V.) 230
Overall Dimensions (L x W x H) (In.) 32 x 24 x 71
Weight (Lbs.) 660
Height 76.0000
Length 33.0000
Weight 700.0000
Width 29.0000
Preorder Date N/A
Warranty

Woodworking Machinery: 5-Year Warranty
Metalworking Machinery: 2-Year Warranty

For detailed warranty information, please visit the Jet website.
