Jet 414473 HBS-1018W, 10" x 18" Horizontal Bandsaw

414473
$4,599.00
+ -

Jet 414473 HBS-1018W, 10" x 18" Horizontal Bandsaw  -  $4,599.00

OR
Description
Full details

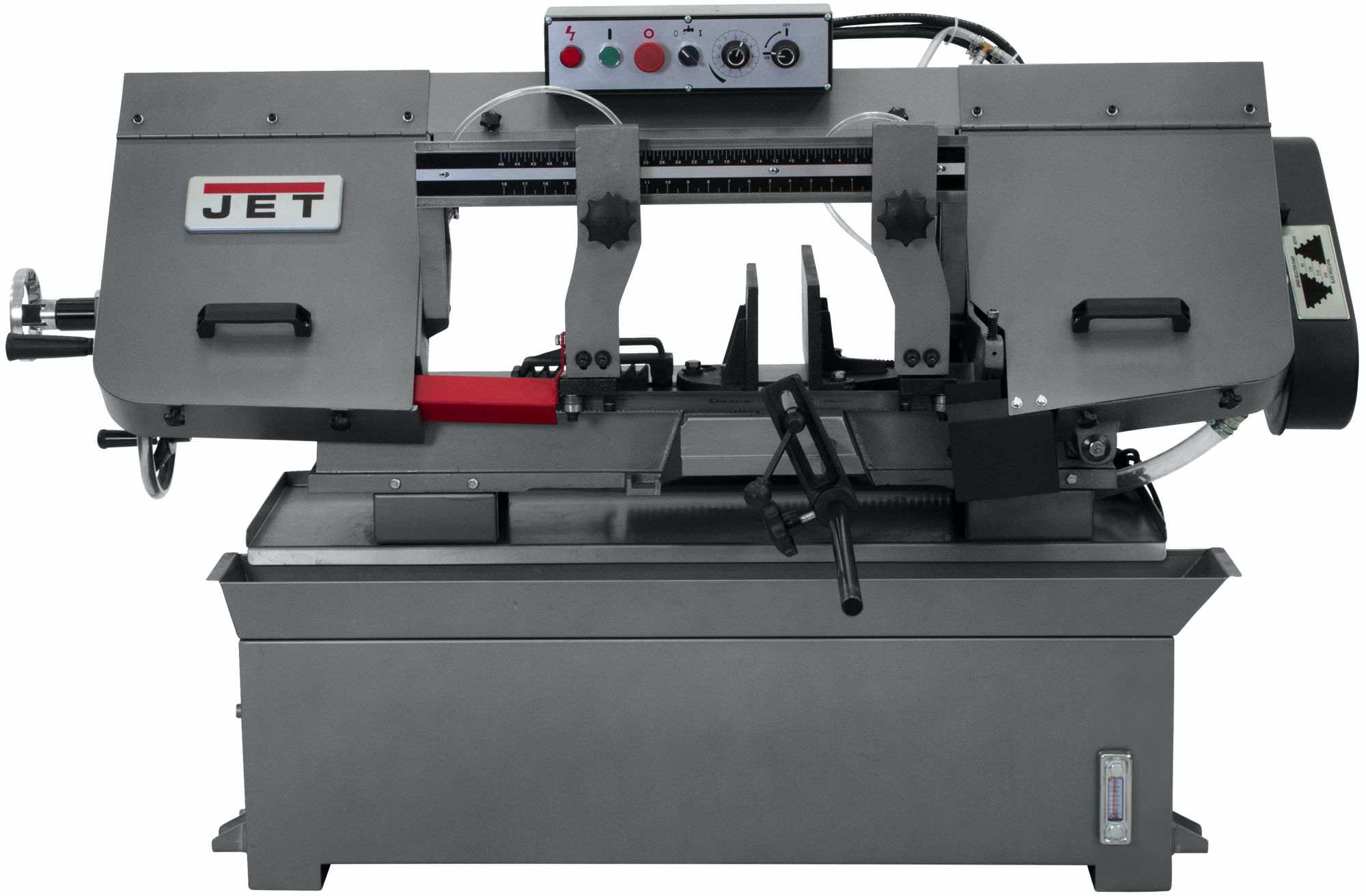

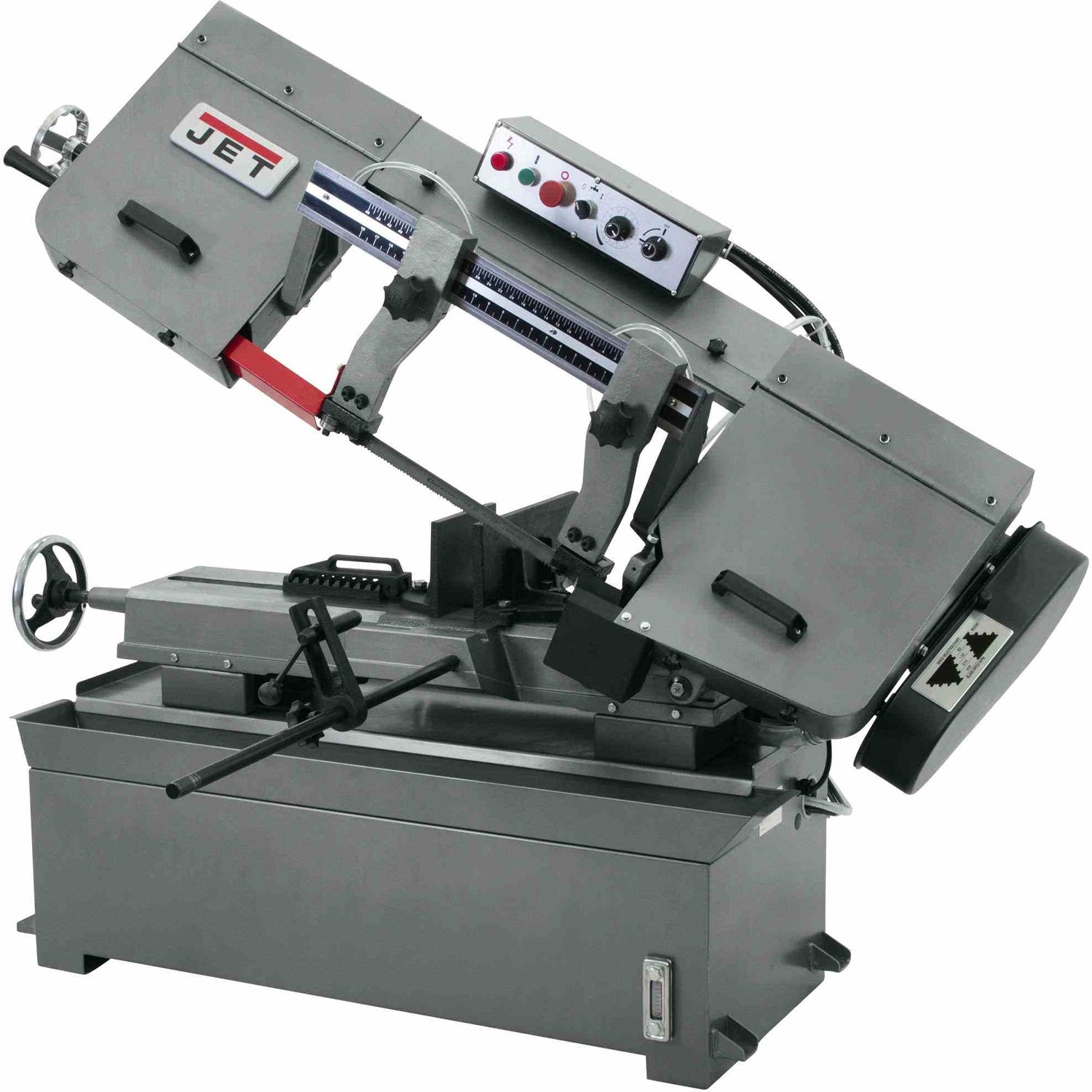

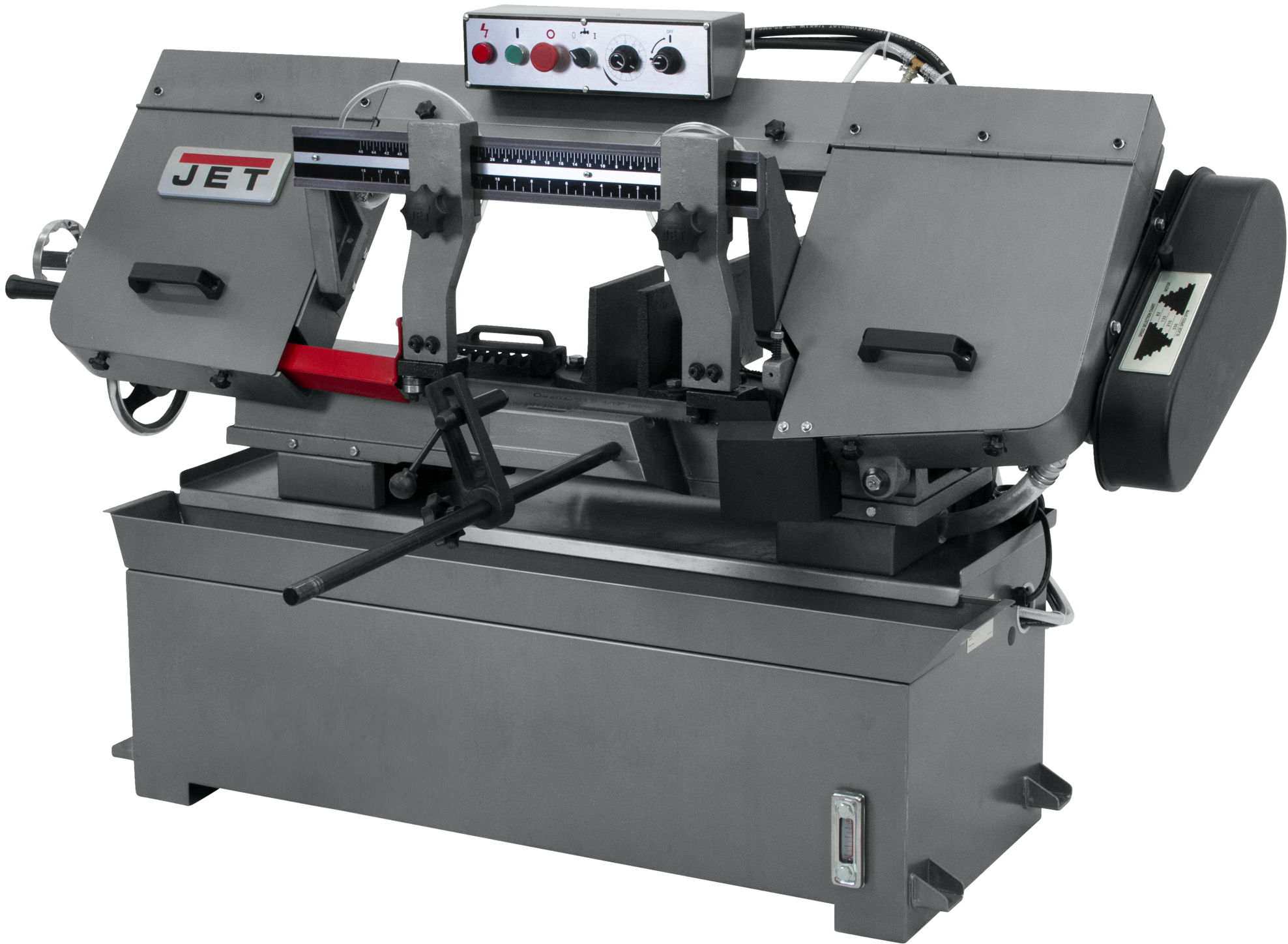

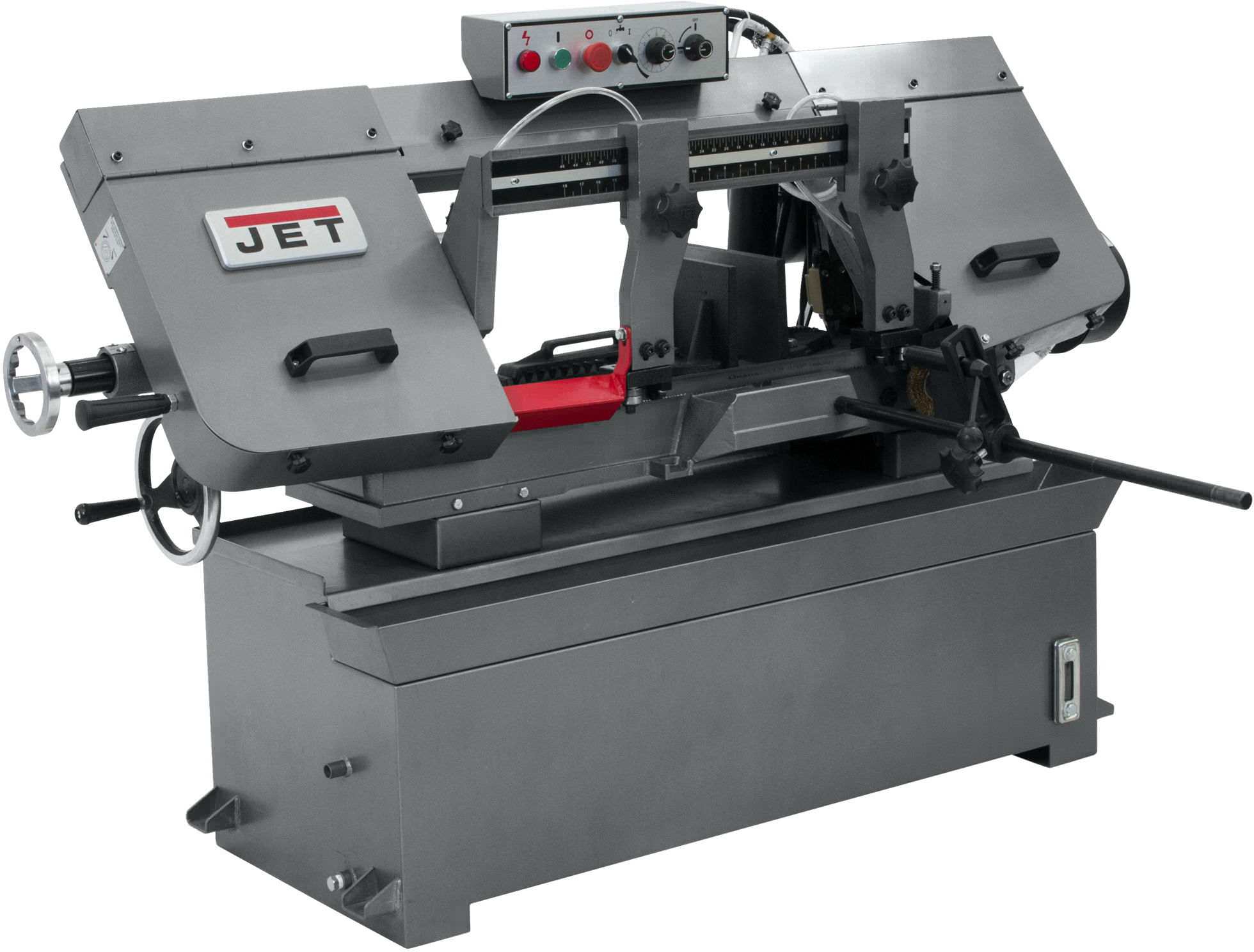

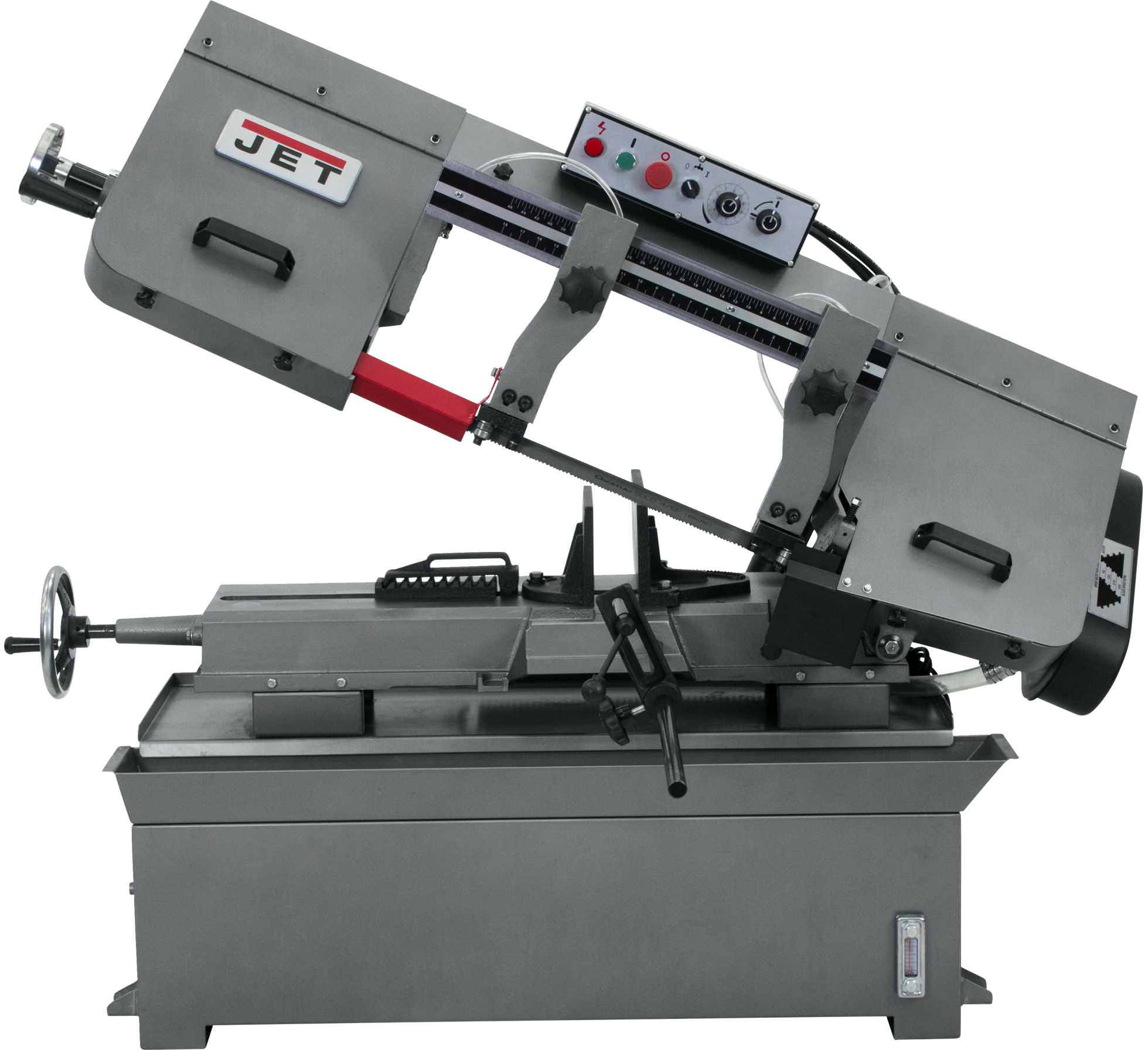

Set on a heavy-duty machined tabled bed to eliminate vibration, the JET 10" x 18" Horizontal Bandsaw delivers a precision cut time after time. Multiple operational features make this a highly desired piece of machinery for any shop.

  • Carbide blade guides feature parallel double-row ball bearing support
  • Coolant is distributed through the blade guides
  • Easy access chip tray allows quick cleanup
  • Blade is guarded, regardless of blade guide position
  • Large hand wheel and built-in gauge provides easy blade tensioning
  • Built-in, self propelled blade brush extends blade life
  • Quick-positioning vise with fully adjustable jaws, swivels to 45 degree

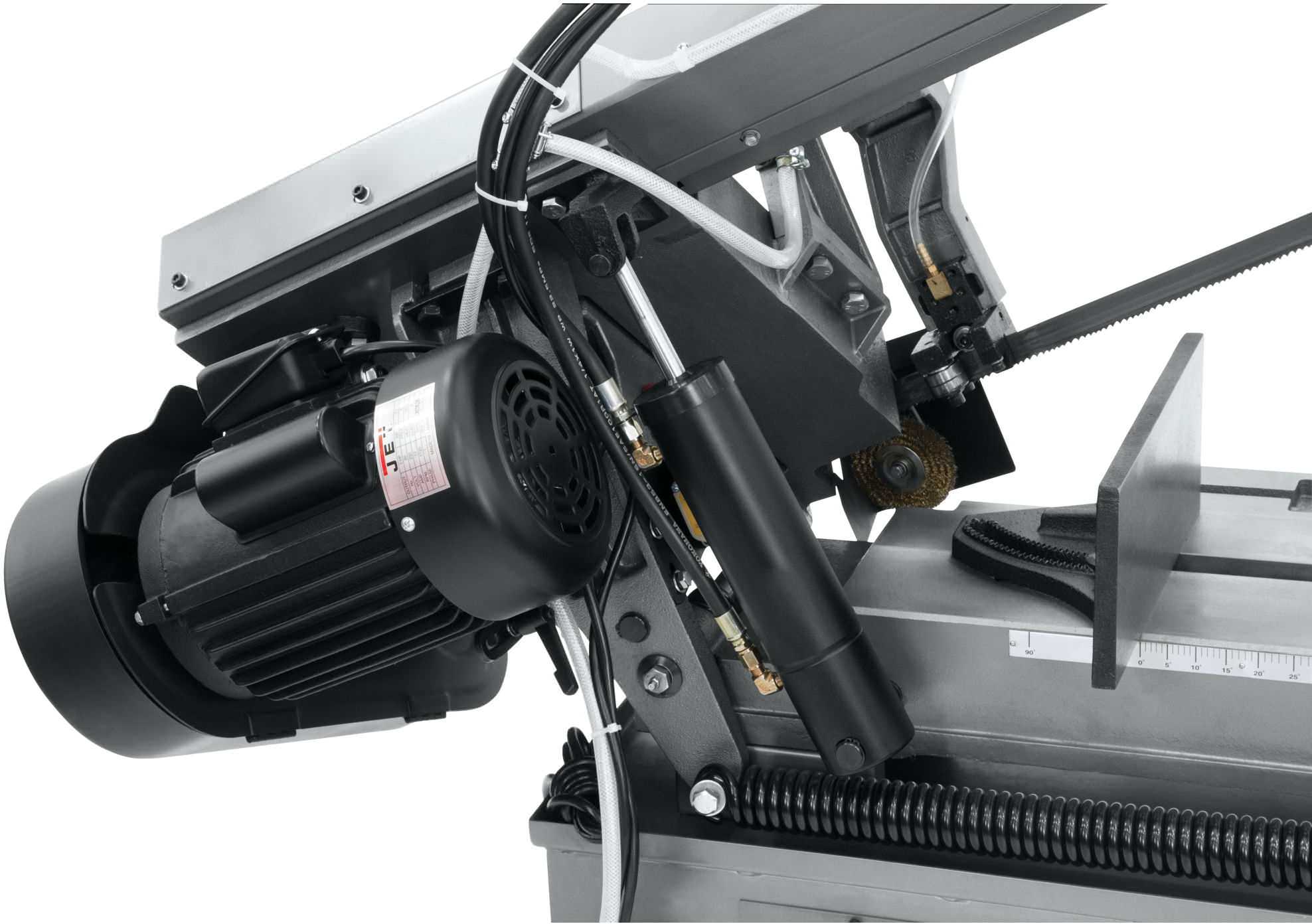

  • Fully adjustable hydraulic downfeed with separate on/off control valve
  • Automatic shut-off after cut
  • Coolant system
  • Adjustable material stop
  • 4/6 VT Bi-Metal blade
Specifications
Cutting Capacity (W x D) (In.) 10 x 18
Round at 90 Degrees (In.) 10
Round at 45 Degrees (In.) 7-3/4
Rectangle at 90 Degrees (In.) 10 x 16 and 6-1/2 x 18
Rectangle at 45 Degrees (In.) 10 x 7-1/2
Vise Swivels (Deg.) 45 degree
Blade Speeds (SFPM) 82, 132, 210, 330

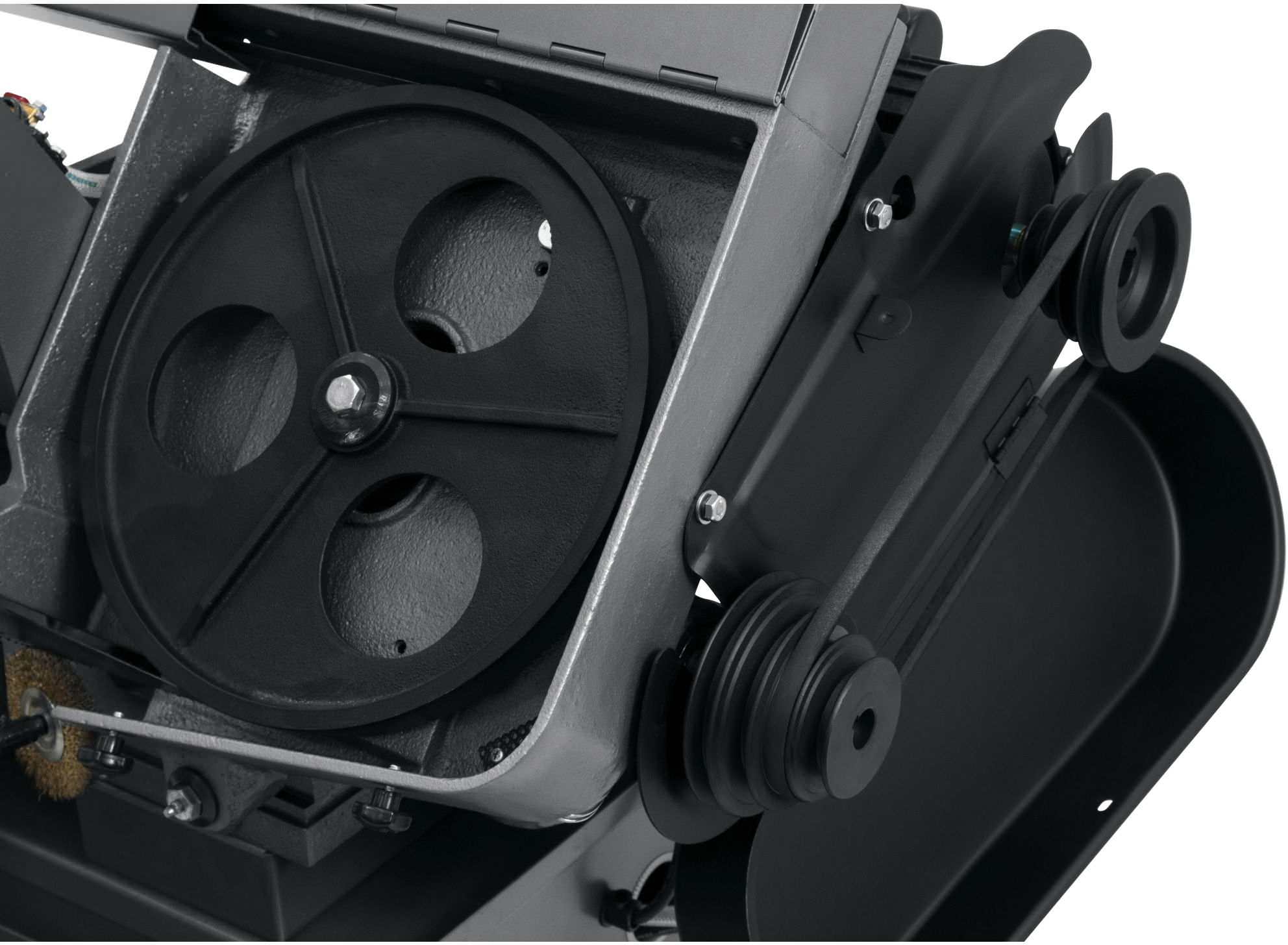

Blade Wheel Diameter (In.) 14
Blade Length (In.) 130-1/2
Blade Size (In.) 1 x .035 x 130-1/2
Bed Height (In.) 23-1/2
Motor (HP) 2 HP, 230V Only, 1Ph
Weight (Lbs.) 776
Overall Dimensions (L x W x H) (In.) 69 x 28 x 42-3/4
Height 43.0000
Length 68.0000
Weight 801.0000
Width 22.0000
Power Source Electric
Batteries Included No
Battery Voltage No
Form Factor Stationary
Product Type Band Saw
Specifications
Cutting Capacity (W x D) (In.) 10 x 18
Round at 90 Degrees (In.) 10
Round at 45 Degrees (In.) 7-3/4
Rectangle at 90 Degrees (In.) 10 x 16 and 6-1/2 x 18
Rectangle at 45 Degrees (In.) 10 x 7-1/2
Vise Swivels (Deg.) 45 degree
Blade Speeds (SFPM) 82, 132, 210, 330
Blade Wheel Diameter (In.) 14
Blade Length (In.) 130-1/2
Blade Size (In.) 1 x .035 x 130-1/2
Bed Height (In.) 23-1/2
Motor (HP) 2 HP, 230V Only, 1Ph
Weight (Lbs.) 776
Overall Dimensions (L x W x H) (In.) 69 x 28 x 42-3/4
Height 43.0000
Length 68.0000
Weight 801.0000
Width 22.0000
Preorder Date No
Warranty

Woodworking Machinery: 5-Year Warranty
Metalworking Machinery: 2-Year Warranty

For detailed warranty information, please visit the Jet website.
