Product Highlights

Includes

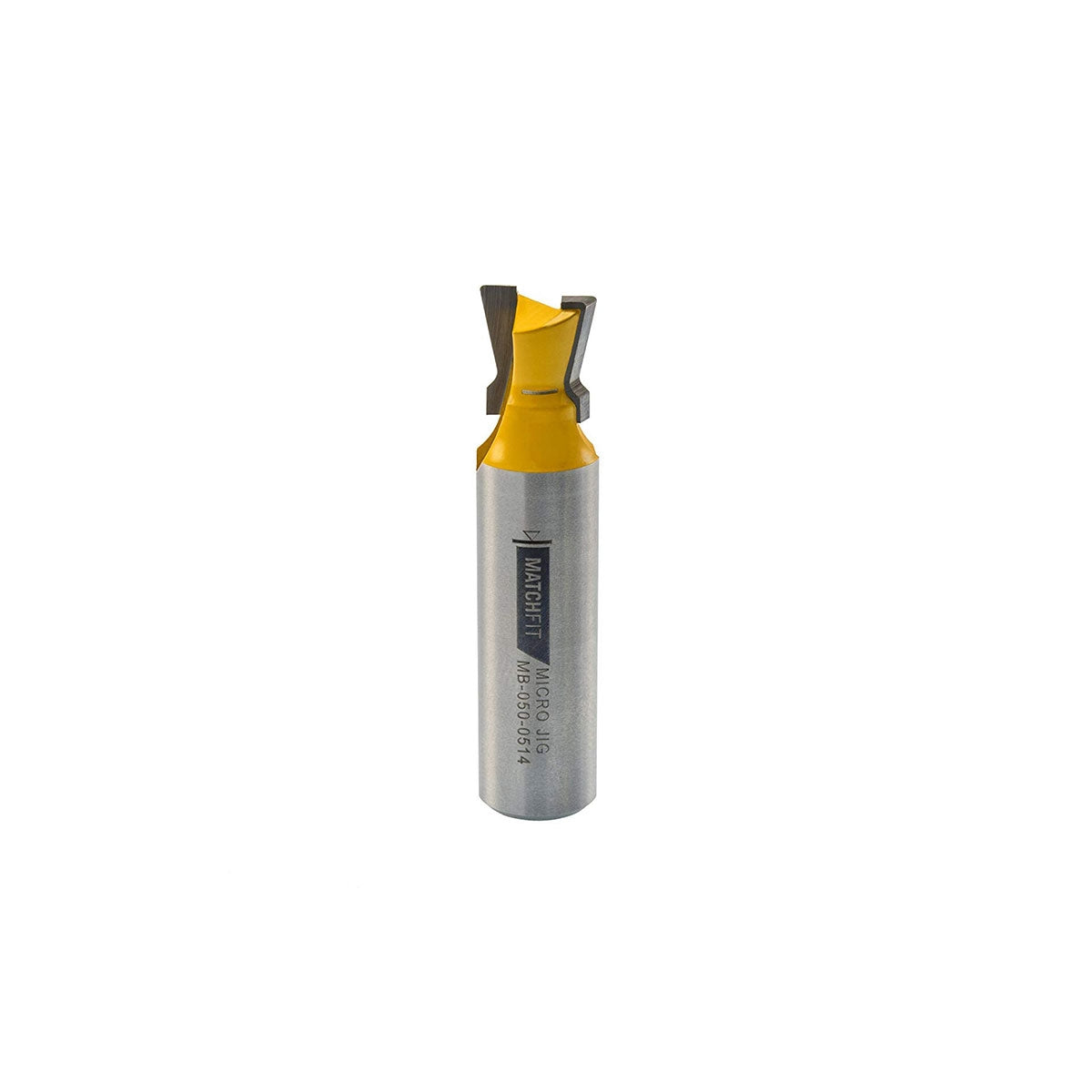

• (1) 1/2" 14° Dovetail Router Bit, 1/4" Shank

Product Summary

Route silky smooth dovetail tracks in a single pass.

Specially designed to route tracks for MATCHFIT Dovetail Clamps and Dovetail Hardware. The Dovetail Bit's built-in roundovers cut clean dovetail grooves in a single pass. Less time sanding, more time building. Available in 1/2", 1/4", 12mm, and 8mm shank sizes.

One dovetail bit. One pass.

• Router collet safety line prevents bit from bottoming out in the router
• Laser etched depth guide allows you to dial in cutting depth in a snap
• The built-in 1/16" roundover smooths out the top shoulders of the groove to prevent material from binding
• The built-in 1/32" roundover strengthens the groove walls and helps clamps and hardware move more smoothly

Features

• For use with the MATCHFIT Dovetail Router Bit
• 1/2" 14° dovetail profileLaser etched depth guide to quickly set cutting depth
• Laser etched depth guide to quickly set cutting depth. Depth tolerance: .365-.395"
• Built in roundovers for smoother cuts and less sanding
• Extra wide shoulder reduces vibration and noise
• 8° downshear carbide reduces splintering and contains dust
