Klein CL800 Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), Auto Off

$129.97
Inventory currently unavailable - Usually ships in 15 - 20 days
Fast Free Shipping

Earn Tool Nut points on this item!

Product Details

  • Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
  • Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
  • Thermocouple probe measures temperature
  • Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
  • Built to withstand a 6.6-Foot (2m) drop
  • Low battery indicator and easily accessible battery compartment
  • Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C)
  • Operating altitude to 6562-Foot (2000m)

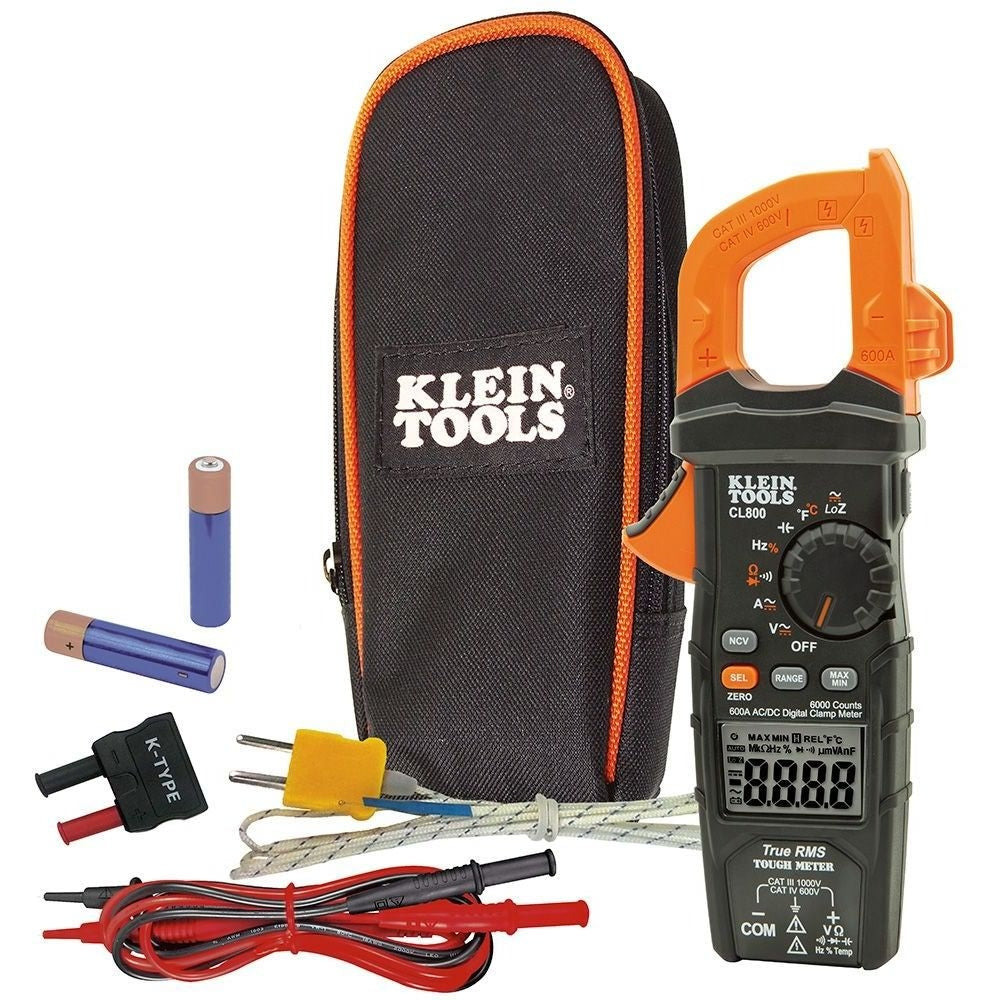

  • Includes carrying pouch, test leads, thermocouple with adapter and batteries

Klein Tools CL800 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital Clamp meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

Specifications
SKU #: CL800-KLE
Overall Height1.55" (3.9 cm)
Drop Protection6.6' (2 m)
Frequency1Hz - 500 KHz
StandardCAT IV 600V; CE Certified
FunctionsTest leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes. Thermocouple probe measures temperature.
Voltage1000V AC; 1000V DC
IncludedCarrying Case, 41" (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries
Capacitance6000F
Temperature Range-14° - 1000°F (-26° - 538°C)
ApplicationMeasures Current
Ingress ProtectionIP40
Weight12.5 oz (354 g)
Overall Width3.81" (9.7 cm)
Batteries2 x AAA
Current600A AC; 600A DC
Display6000 Count LCD
Overall Length9.09" (23.1 cm)
Jaw Size1.38" (3.5 cm)
Special FeaturesFeatures Low Battery Indicator and Auto Shut Off
Ohms (Resistance)60MO
Style_Name600A AC/DC, LoZ
