Makita GPS01M1J 40V max XGT Brushless 6-1/2" AWS Plunge Track Saw 4.0Ah Kit
Makita GPS01M1J 40V max XGT Brushless 6-1/2" AWS Plunge Track Saw 4.0Ah Kit
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

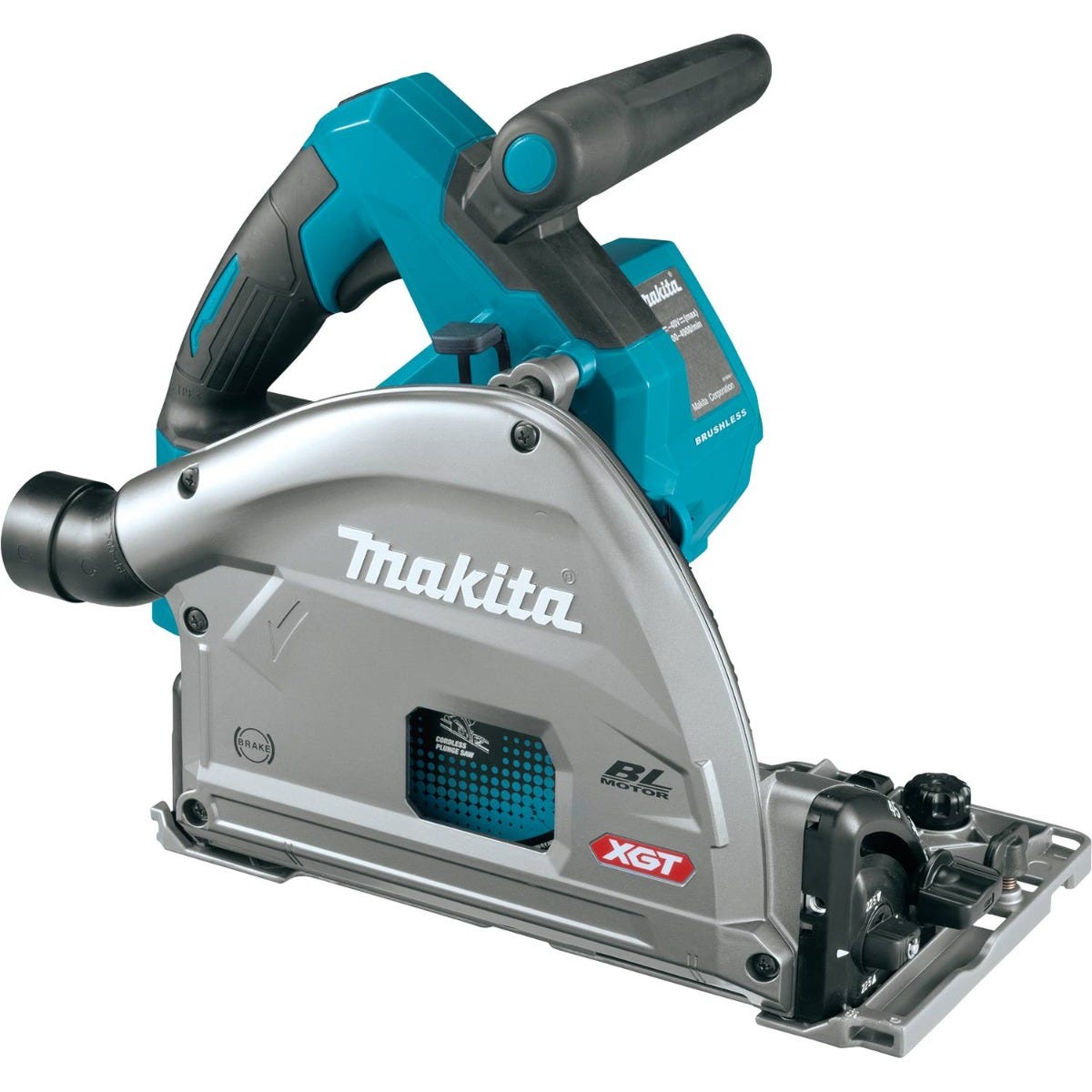

The Makita GPS01M1J 40V max XGT Brushless Cordless 6-1/2" Plunge Circular Saw Kit is a cordless plunge saw built for accurate sheet-good cutting, finish work, and controlled straight-line cuts when used with an optional guide rail. This is a plunge circular saw designed for precision cutting in wood panels, melamine, MDF, laminate, aluminum, and solid surface materials with the proper blade. Model Number: GPS01M1J. If you need cleaner cuts than a standard circular saw typically delivers, this is the setup Makita built for that job.

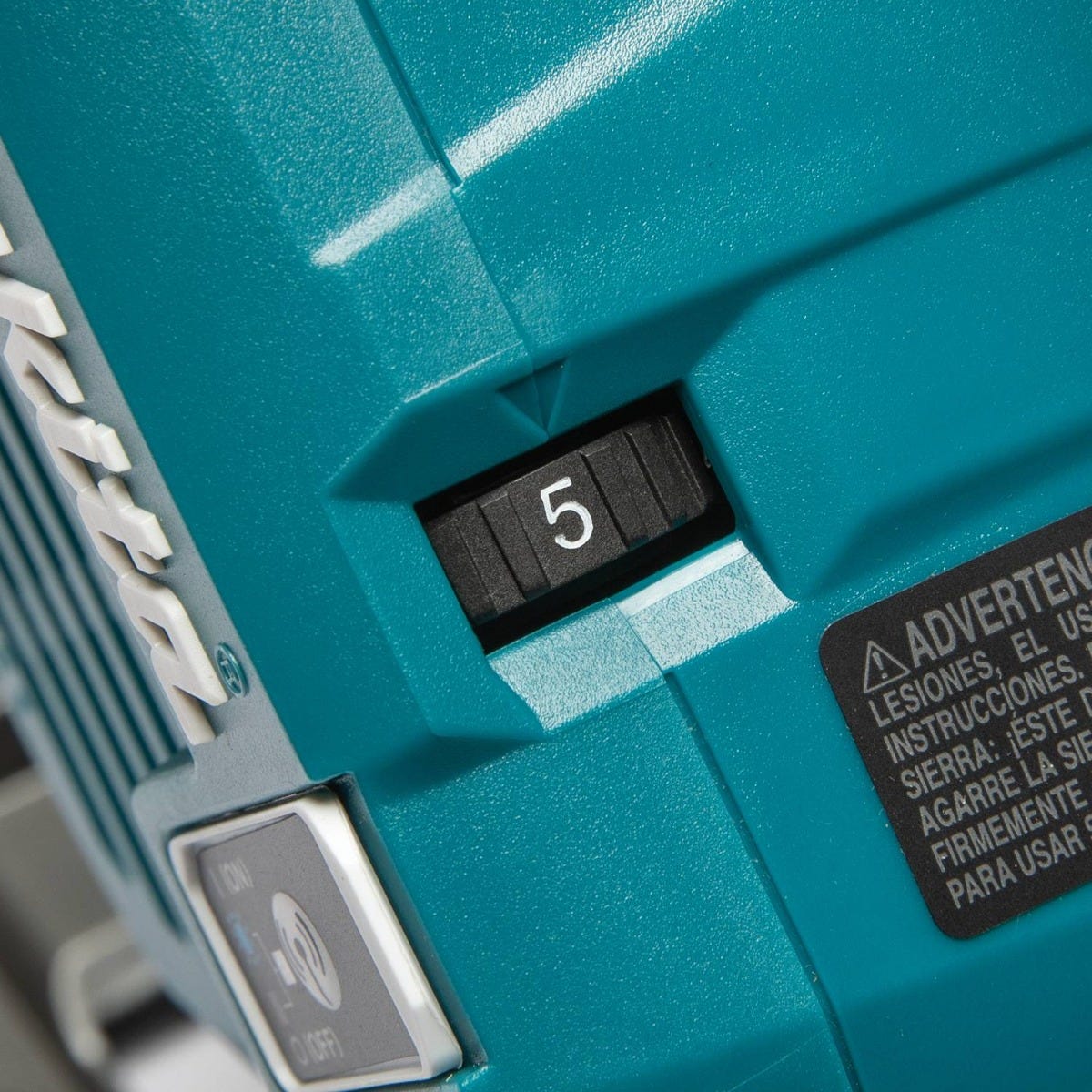

The big story here is control. Makita gives this saw a variable speed control dial from 2,500 to 4,900 RPM, so you can slow it down for material that chips easily or speed it up for production cutting. Automatic Speed Change technology adjusts speed and torque during the cut, which helps the saw stay consistent under load. Constant speed control also matters on a plunge saw like this because smooth, even blade speed is what helps produce a cleaner edge instead of a rough, burn-prone cut.

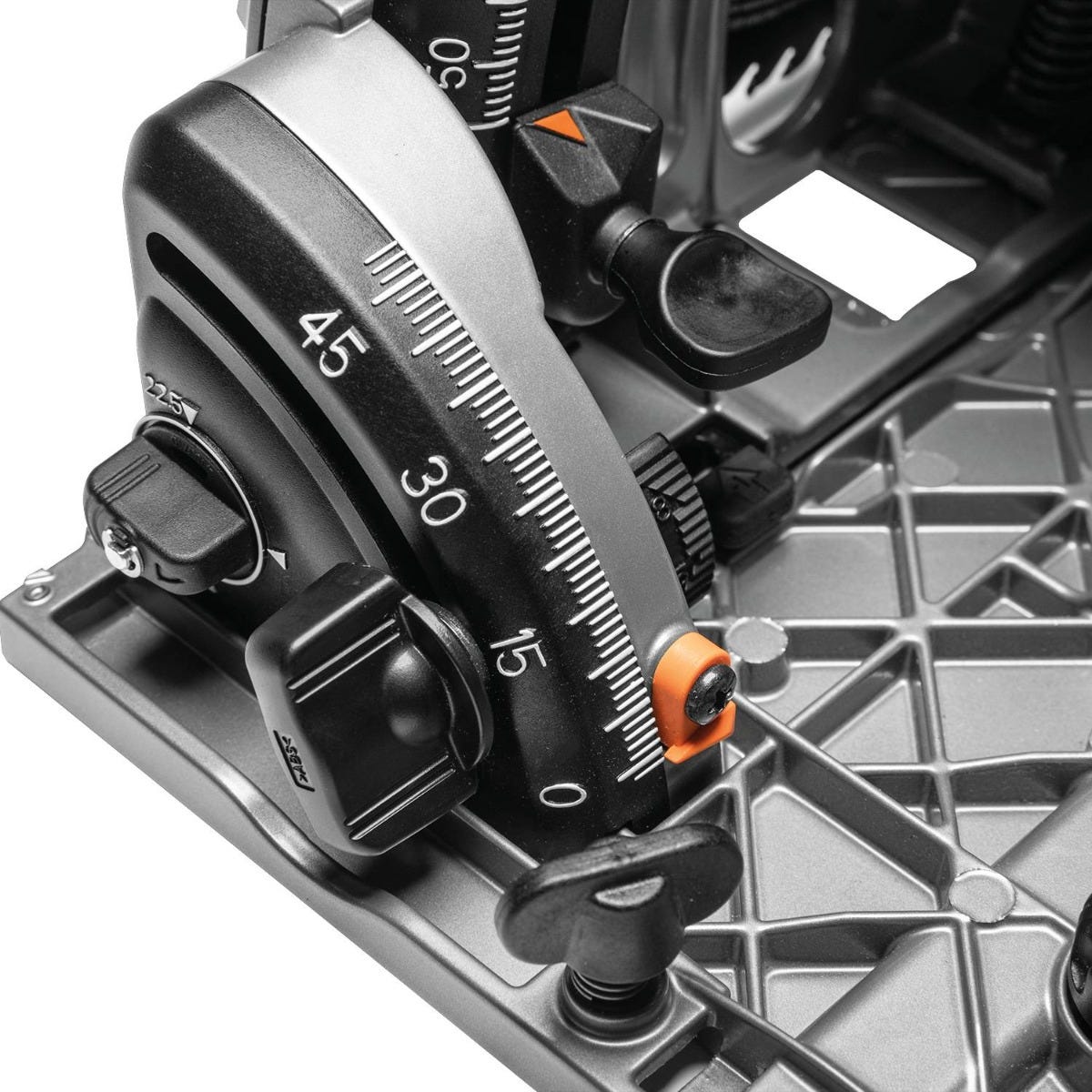

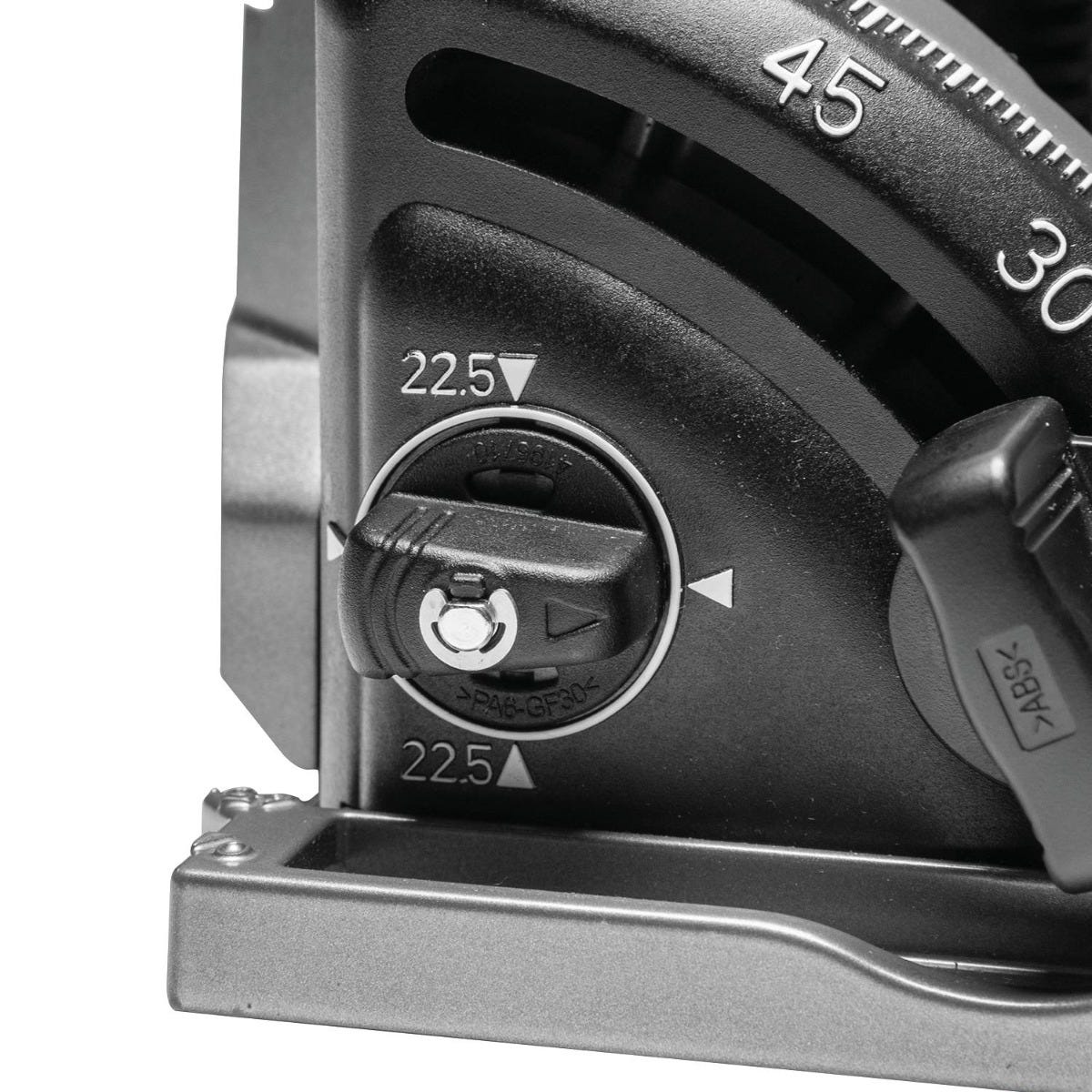

Capacity is strong for a 6-1/2 inch plunge track saw. You get a maximum cutting capacity of 2-3/16 inches at 90 degrees and 1-9/16 inches at 45 degrees, plus bevel capability from -1 degree to 48 degrees with positive stops at 22.5 degrees and 45 degrees. That gives you enough range for straight sizing cuts, bevel work, and trim fitting without jumping to a larger saw. Makita also built in dual front and rear bevel supports for added rigidity, which is the kind of detail that matters when you're trying to keep bevel cuts true instead of fighting flex in the base.

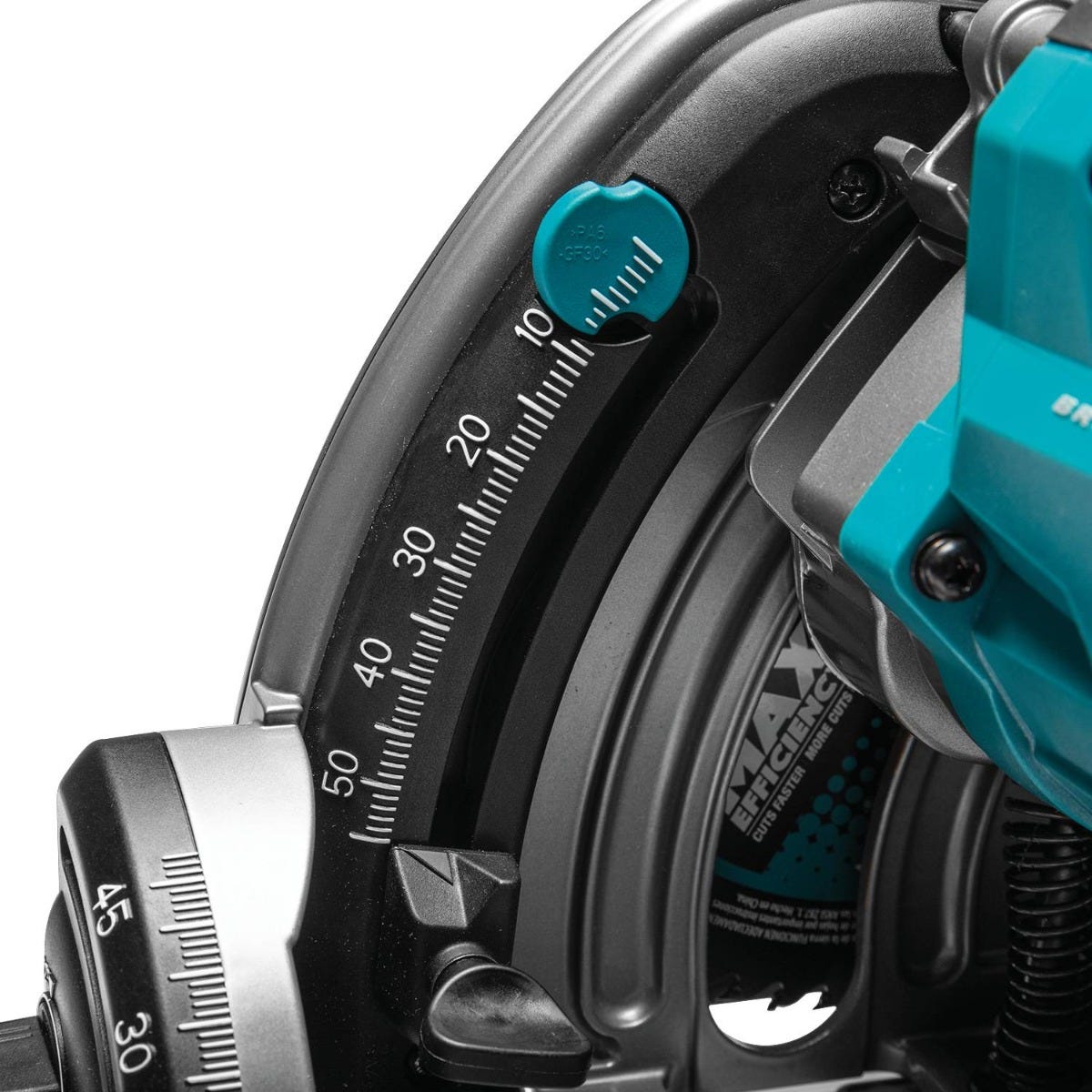

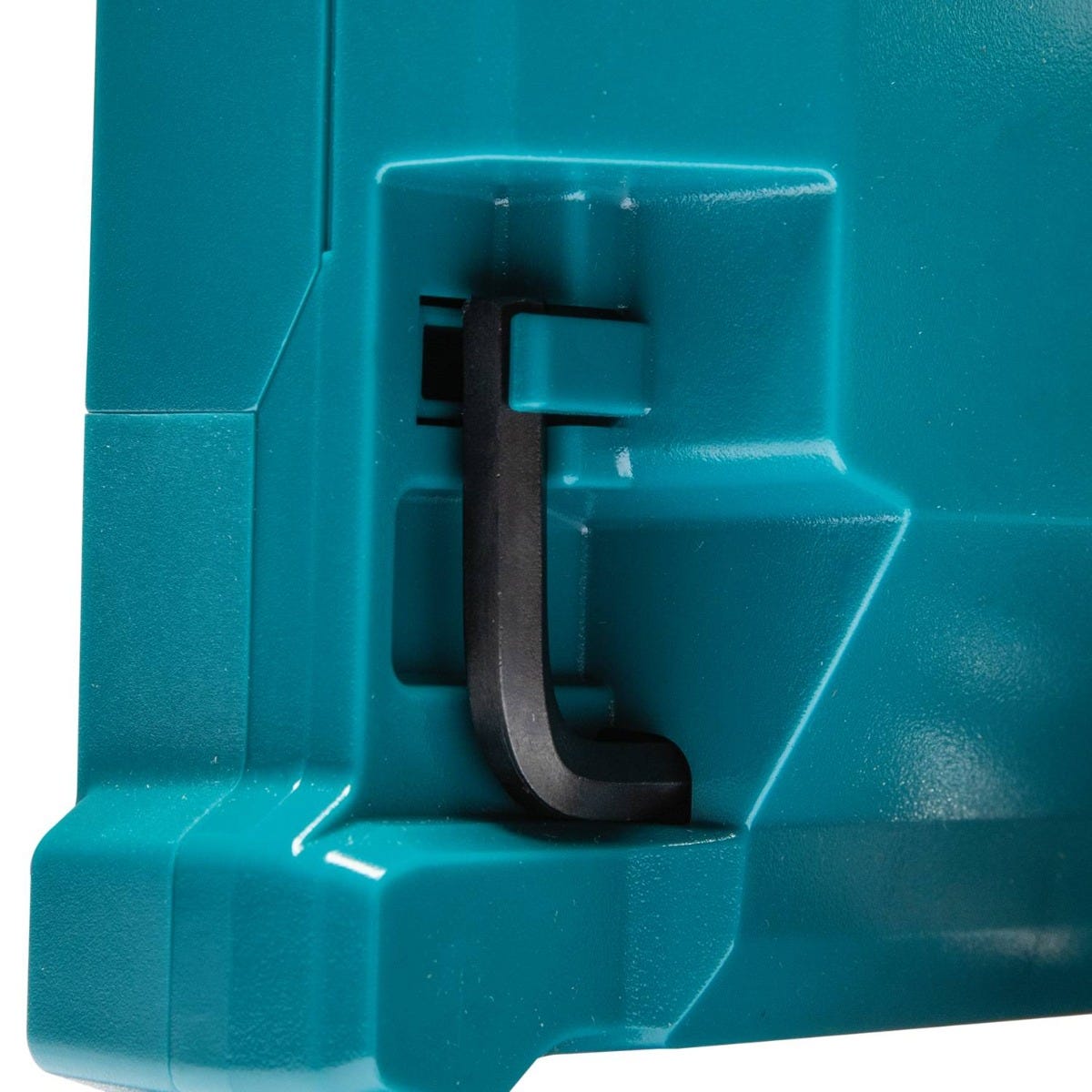

Makita also paid attention to setup and repeatability. The built-in depth stop allows a shallow preliminary scoring cut before a full-depth pass, which is useful for splinter-free cuts in veneer plywood, melamine, MDF, and laminate. The locking lever that holds the blade in position makes blade changes less awkward, and the on-board hex wrench means you're not digging through the truck to swap blades. Close-to-wall cutting down to 11/16 inch expands where you can use it, especially on built-ins, cabinet scribe work, and other jobs where a standard saw body gets in the way.

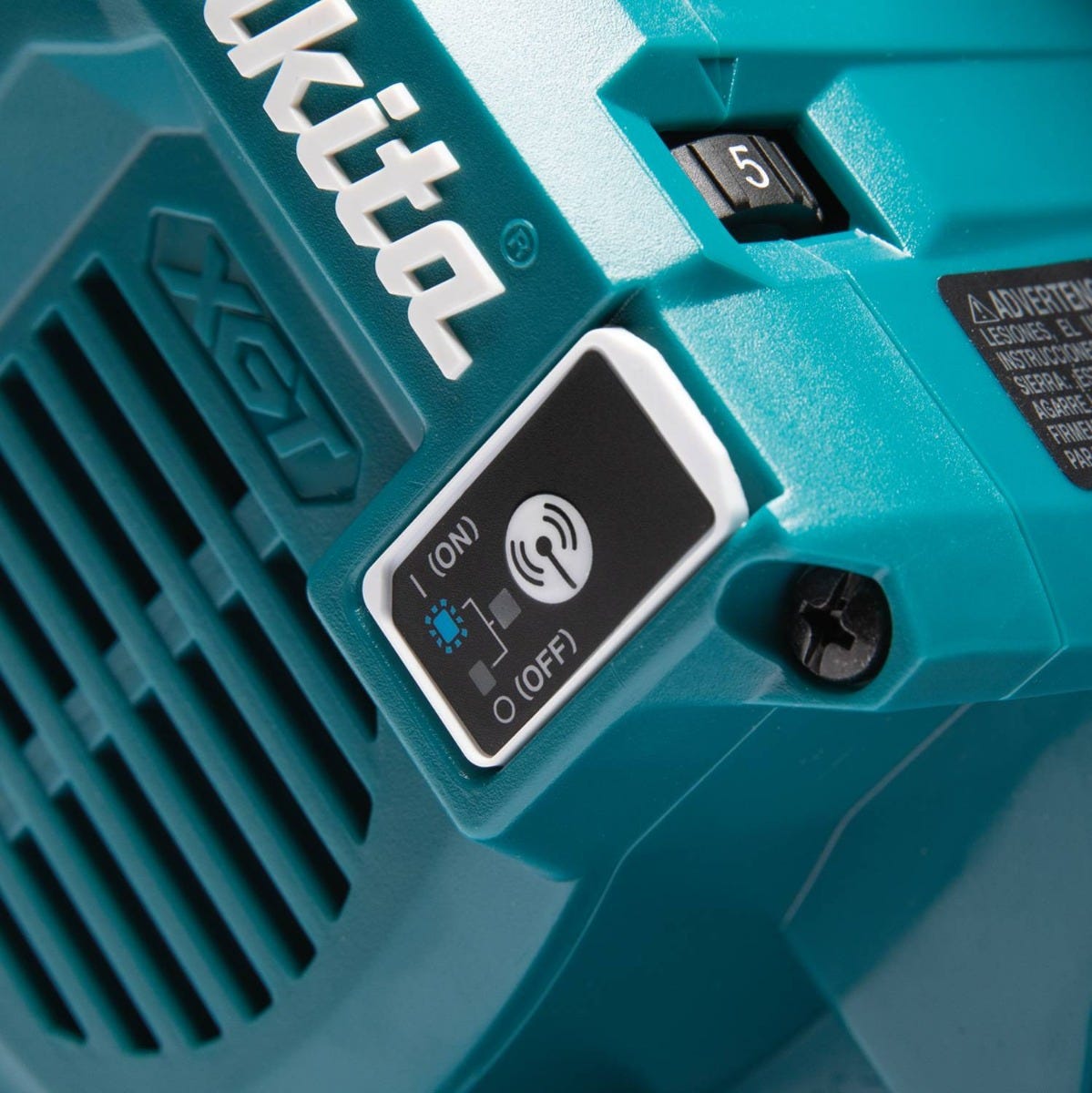

On the jobsite, the convenience features are not filler. Soft start keeps the saw from jumping at startup, and the electric brake shortens the wait between cuts. The large 1-7/16 inch rear dust port is built to direct debris away from the operator and connect to a vacuum system. For cleaner indoor work, the saw is AWS capable, which means it can wirelessly trigger a compatible Makita dust extractor using Bluetooth communication. The AWS transmitter is sold separately, but if you already run dust collection on finish work, shop installs, or occupied remodels, that system makes a real difference.
Because this is part of Makita's 40V max XGT platform, it is aimed at users who want cordless mobility without stepping down much in performance. The XGT system uses digital communication between the tool and battery to monitor load, heat, and discharge, and Makita designed the battery interface for more constant power delivery in demanding applications. In plain terms, this is not a light-duty homeowner saw with a premium price tag. It is a serious cordless cutting tool meant to earn its keep on repeat work.

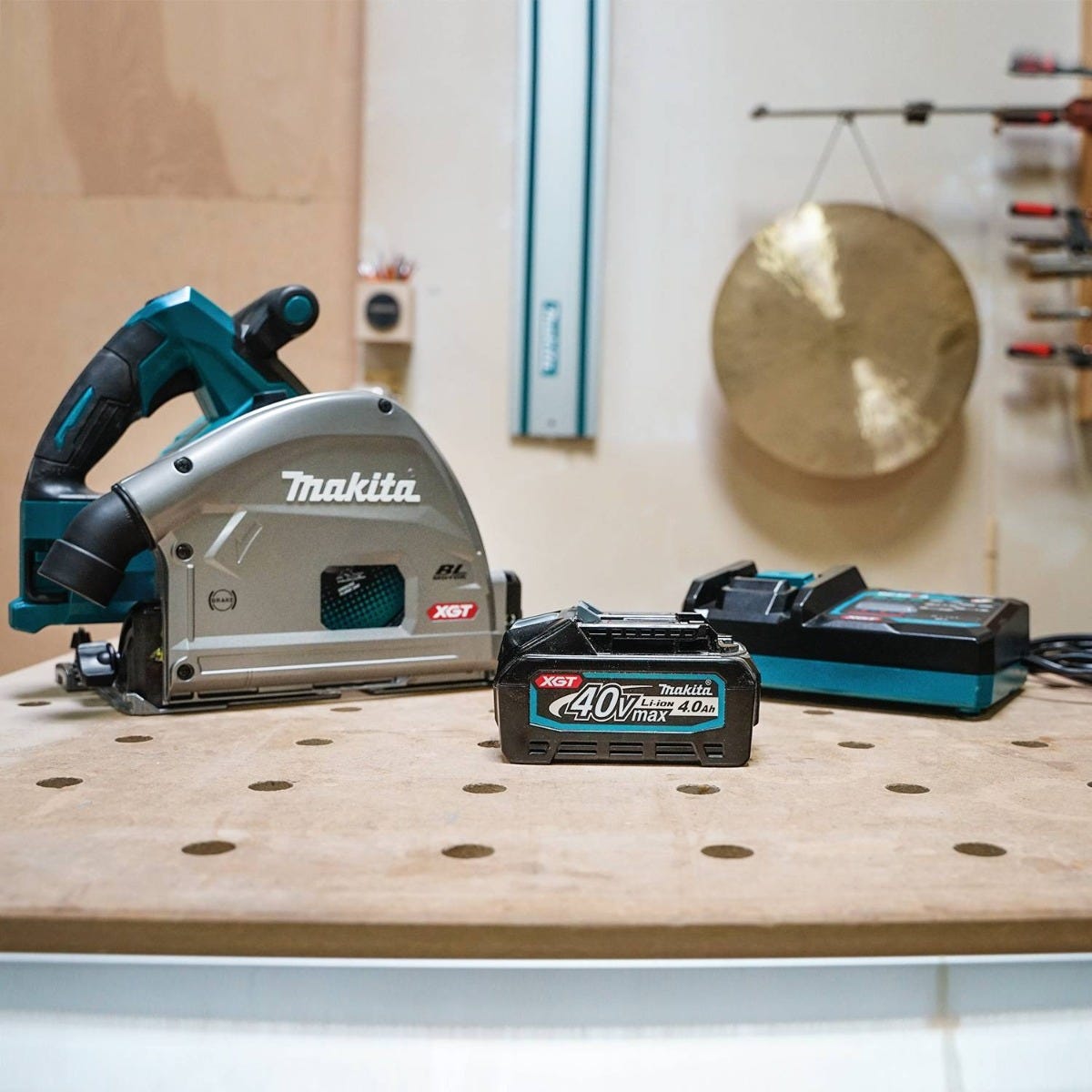

The kit format matters too. The GPS01M1J includes a 4.0Ah XGT battery, rapid charger, blade, wrench, and MAKPAC cases, so you're not starting from scratch. That makes it a practical entry point for someone buying into XGT for finish carpentry, cabinet installation, remodeling, or mobile shop work. If you already own XGT batteries and just need the saw, there are bare-tool options elsewhere, but this kit is the cleaner buy for getting up and running right away.
Who should buy it? Cabinet installers, finish carpenters, remodelers, built-in guys, millwork crews, and serious woodworkers are the right fit. If most of your work is rough framing, a standard sidewinder may still be the faster choice. But if your priority is straight cuts, cleaner edges, better dust control, and cordless freedom on sheet goods or finished materials, the Makita GPS01M1J 40V max XGT Brushless Cordless 6-1/2" Plunge Circular Saw Kit makes a lot of sense.
Makita GPS01M1J Plunge Saw Control Where It Counts

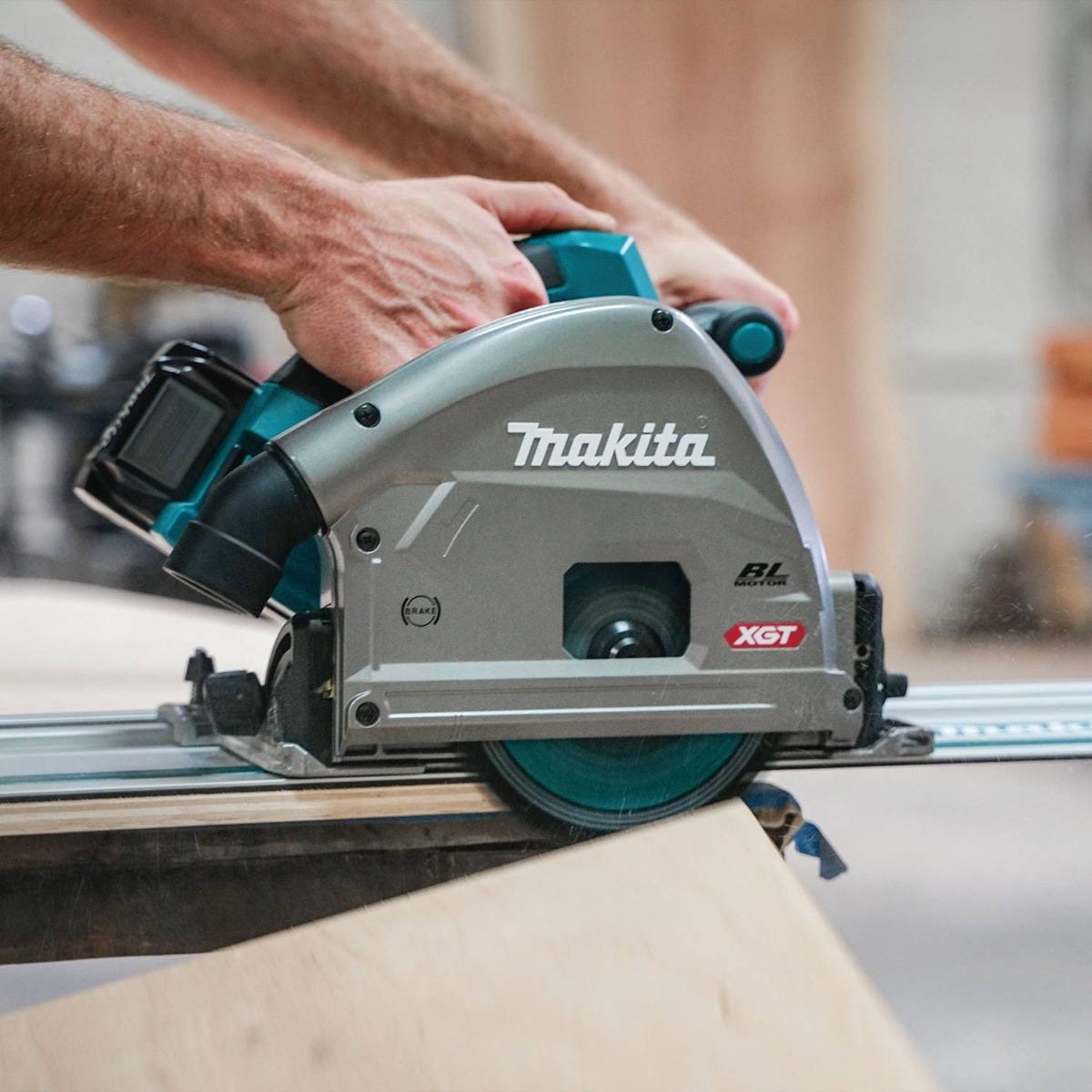

This saw is built around smooth plunge action, clean line tracking, and precise depth control. That is exactly what you want when you're sizing cabinets, trimming doors, or breaking down sheet goods without hauling out a table saw.
- 6-1/2 inch blade with 20 mm arbor
- Built-in depth stop supports shallow scoring cuts for splinter-free results
- Close-to-wall cutting down to 11/16 inch helps in tight install work
Complete Kit for the XGT Platform
Buying the kit means you get a ready-to-run setup instead of a bare tool that still needs power and storage. For contractors getting into XGT, this package covers the essentials without piecing together separate components.
- Includes one 40V max XGT 4.0Ah battery and a rapid optimum charger
- Includes blade, hex wrench, and two MAKPAC interlocking cases
- Net tool weight with battery is 11 lbs
Cleaner Cuts and Better Dust Management
Precision cutting is not only about the blade. Good dust collection helps you see the line, protect finished spaces, and reduce cleanup. Makita built this saw to work with a vacuum and added wireless capability for crews already using an extractor setup.

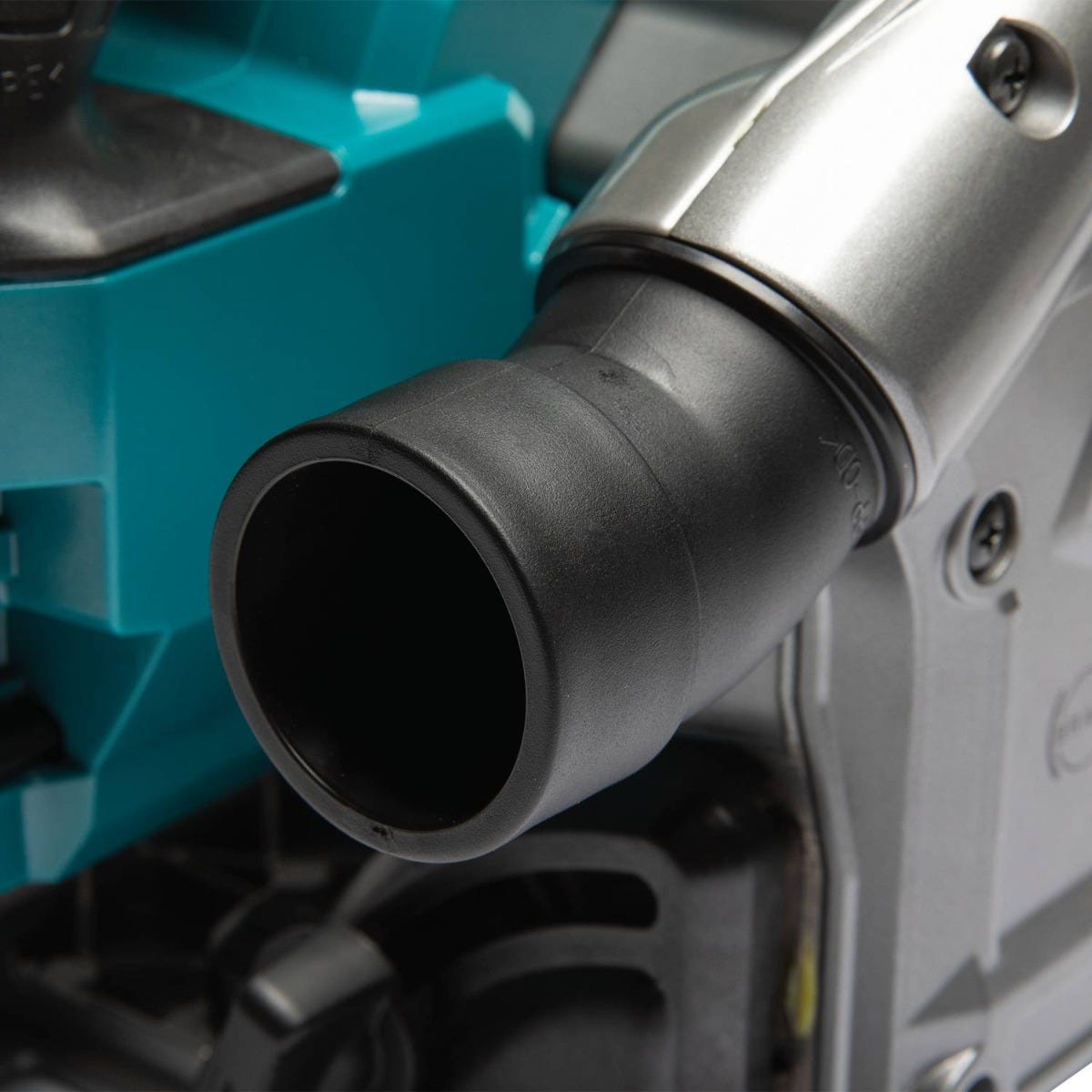

- Large 1-7/16 inch rear dust port connects to a vacuum system
- AWS capable for wireless on-off communication with a compatible dust extractor
- AWS transmitter part number 198901-5 is sold separately

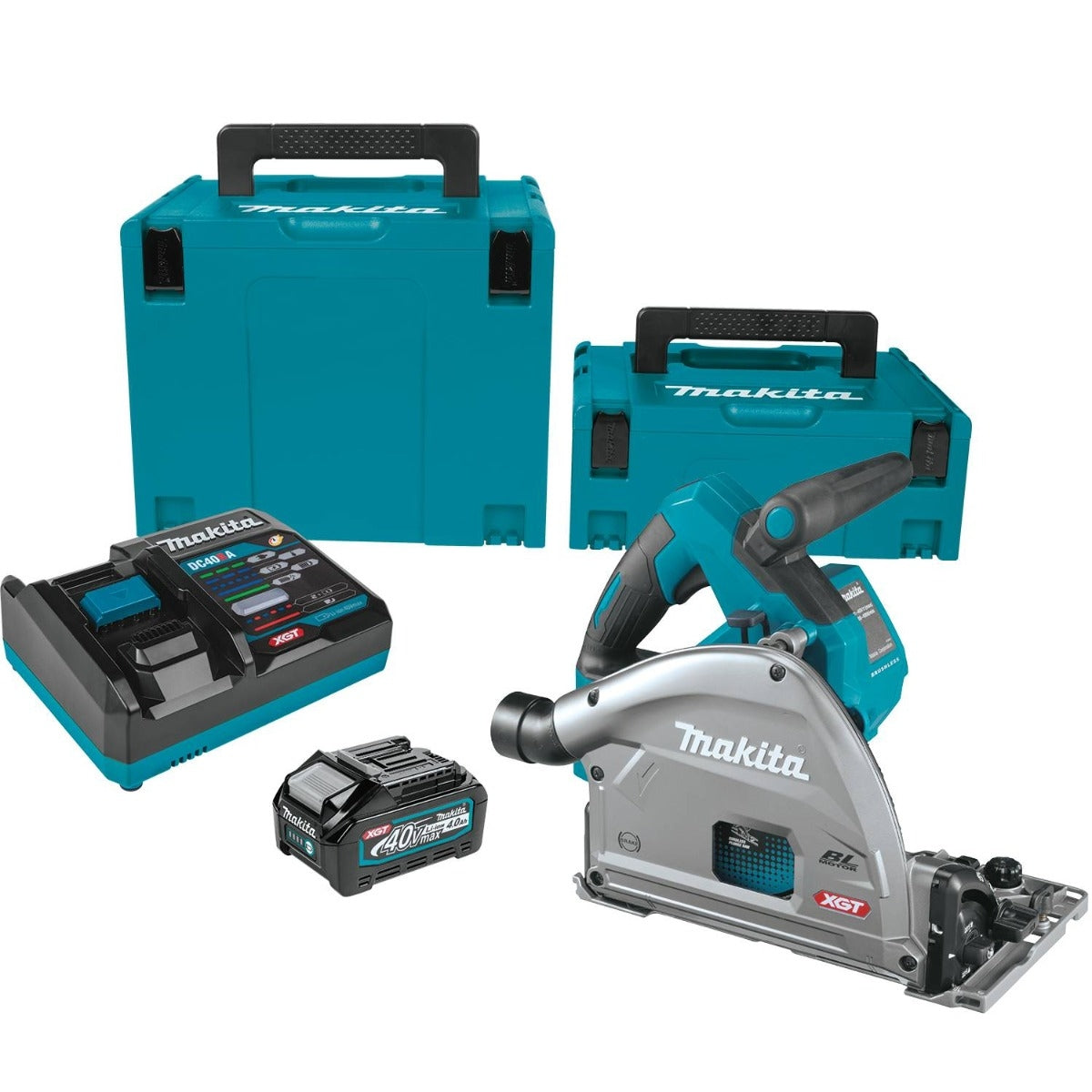

What's in the Box
- (1) Makita GPS01Z 40V max XGT Brushless 6-1/2" Plunge Circular Saw, AWS Capable
- (1) 40V max XGT 4.0Ah Battery (BL4040)
- (1) 40V max XGT Rapid Optimum Charger (DC40RA)
- (1) 6-1/2" 56T C.T. Cordless Plunge Saw Blade for wood, MDF, and laminate (B-57342)
- (1) Hex Wrench (783203-8)
- (1) MAKPAC Interlocking Case, Small (197210-9)
- (1) MAKPAC Interlocking Case, X-Large (197213-3)
Guide rail and AWS transmitter are sold separately.
Key Specifications
| Blade Diameter | 6-1/2 in |
|---|---|
| Arbor Size | 20 mm |
| Voltage | 40V max |
| No-Load Speed (RPM) | 2,500 - 4,900 RPM |
| Cutting Capacity at 90° | 2-3/16 in |
| Cutting Capacity at 45° | 1-9/16 in |
| Bevel Range | -1° to 48° |
| Weight (lbs) | 11 lbs |
Compatibility
Built For
Pro Tip
Use the built-in depth stop to make a light scoring pass first when you're cutting melamine, laminate, or veneered panels. It takes a little more time, but it is the move that helps this saw deliver the clean edge people buy a plunge saw for in the first place.
Warranty & Support
Tool Nut's Take
Serious cordless plunge saw for clean work
The Makita GPS01M1J 40V max XGT Brushless Cordless 6-1/2" Plunge Circular Saw Kit is the kind of saw you buy when cut quality matters more than brute-force framing speed.
- Who it's for: Cabinet installers, finish carpenters, remodelers, and woodworkers who need accurate panel cuts, bevel cuts, and better dust control on site.
- Why it stands out: You get XGT cordless power, variable speed, strong cut capacity, AWS dust extractor capability, and the scoring-depth feature that helps on chip-prone materials.
- Worth knowing: The guide rail and AWS transmitter are not included, so if you want the full track saw and wireless dust-collection experience, plan for those add-ons.
Common Questions
- Is this a regular circular saw or a plunge circular saw? This is a plunge circular saw designed for precision cutting, especially on panels and sheet goods.

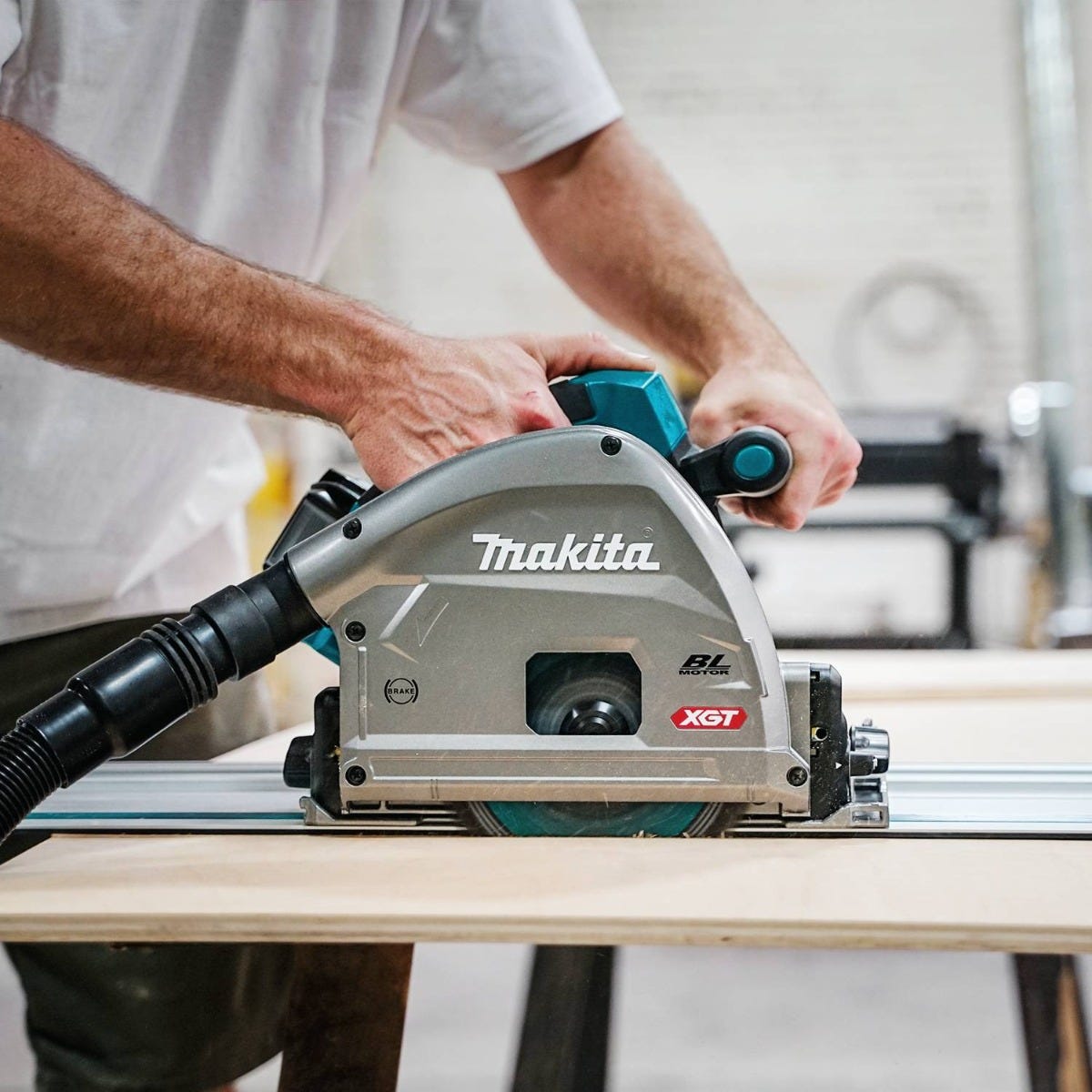

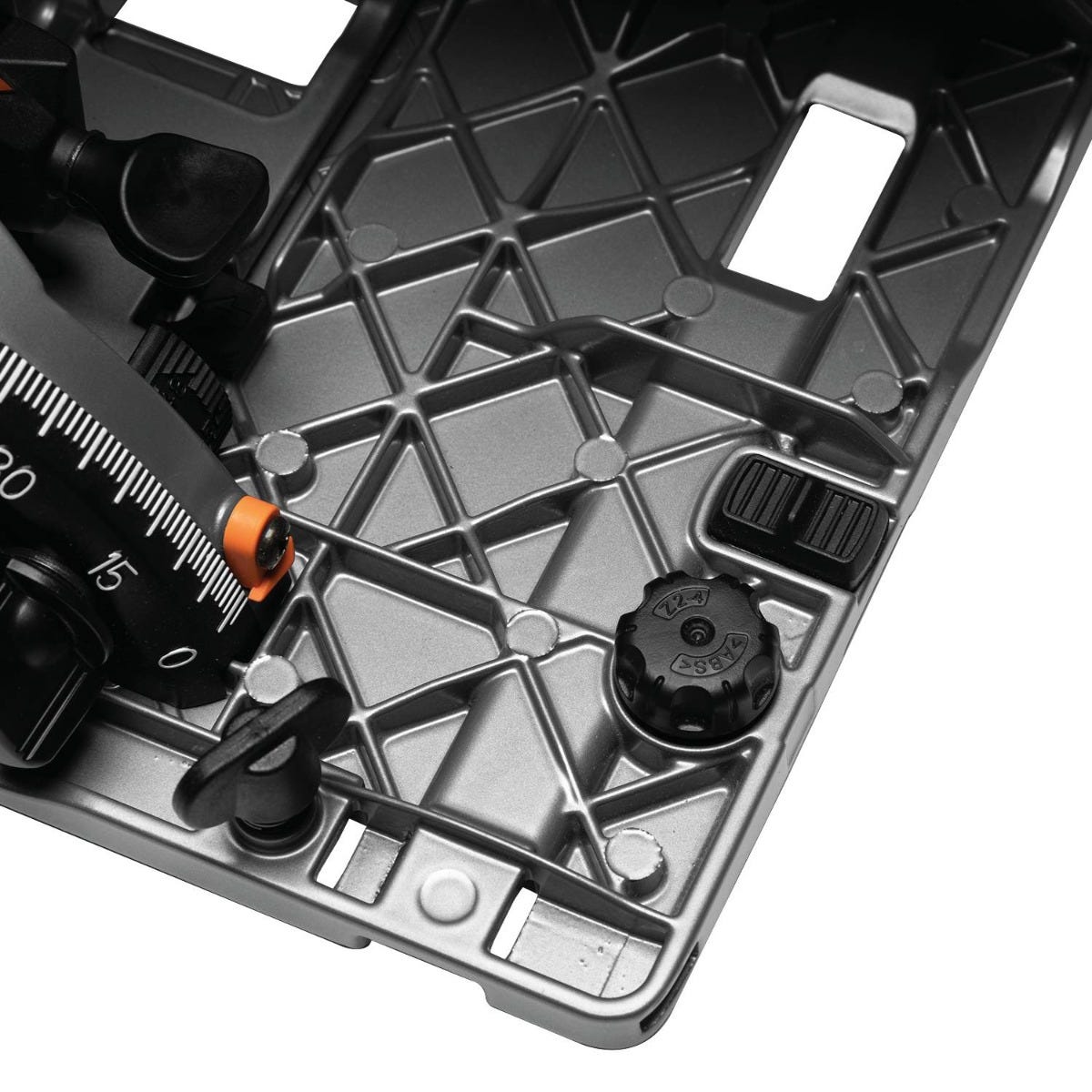

- Can it be used with a guide rail? Yes. It is designed to deliver more accurate cutting when paired with an optional guide rail system sold separately.
- Does it support dust extraction? Yes. It has a rear dust port for vacuum connection and is AWS capable for wireless communication with a compatible dust extractor.
- What battery platform does it use? It uses Makita 40V max XGT lithium-ion batteries.
