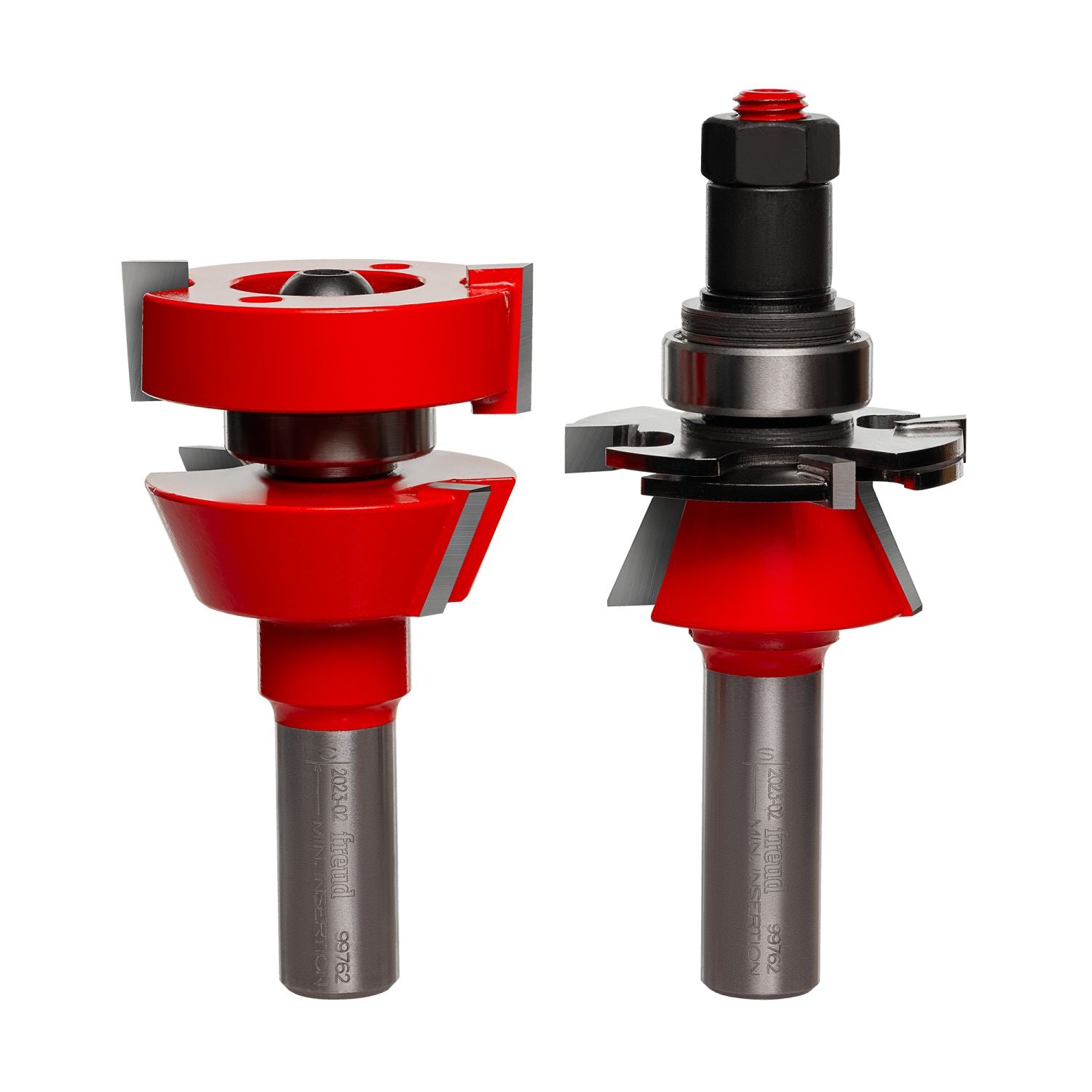

The Freud 99-762 Premier Adjustable Rail & Stile Router Bit is a table-mounted router bit set for making matched rail and stile door parts. This is a router bit designed for building cabinet and furniture doors with matched profiles and strong joinery. Model Number: 99-762. If you build shaker-style or profile doors and want one cutter system that handles different stock thicknesses without buying separate sets, this is the kind of bit that earns its space in the drawer.

What makes this bit matter is its adjustment range. It is built to make doors in material from 5/8 inch to 1-1/4 inch thick, which gives you room to work across lighter cabinet doors, heavier furniture doors, and different panel styles. Freud also includes adjustable shims so you can set the panel groove from 7/32 inch for thinner plywood panels up to 3/8 inch for larger solid wood raised panels. In real shop use, that means less compromise when switching between veneered plywood center panels and thicker solid wood work.

The other standout feature is Freud's patented extended tenon capability. That matters because longer tenons generally mean stronger rail-to-stile joints, especially on larger doors that see more stress over time. According to the product data, the top portion of the cutter, including the bearing and spindle, can be removed to produce the front of the long tenon profile. That gives serious woodworkers a practical way to build stronger joints without moving to a completely different cutter system.

Freud also put real thought into cut quality and bit life. The cutter geometry is designed to reduce tearout, which is a big deal when you are working with veneered plywood where one bad pass can ruin a panel edge. The carbide is Freud TiCo high-density carbide, intended to improve edge life and leave a better finish. On top of that, the Perma-SHIELD coating helps reduce heat, pitch buildup, and rust. Those are not throwaway features. Less heat and less buildup usually mean smoother cuts, easier feeding, and less time spent cleaning the bit.

On the hardware side, this bit uses a 1/2 inch shank, has a 1-11/16 inch cutting diameter, and an overall length of 3-3/4 inches. Freud rates it for a maximum 16,000 RPM. It is intended for use in table-mounted routers, which is exactly where a rail and stile profile bit like this belongs. That setup gives you the control and fence support needed for accurate coping cuts and long edge passes on door parts.

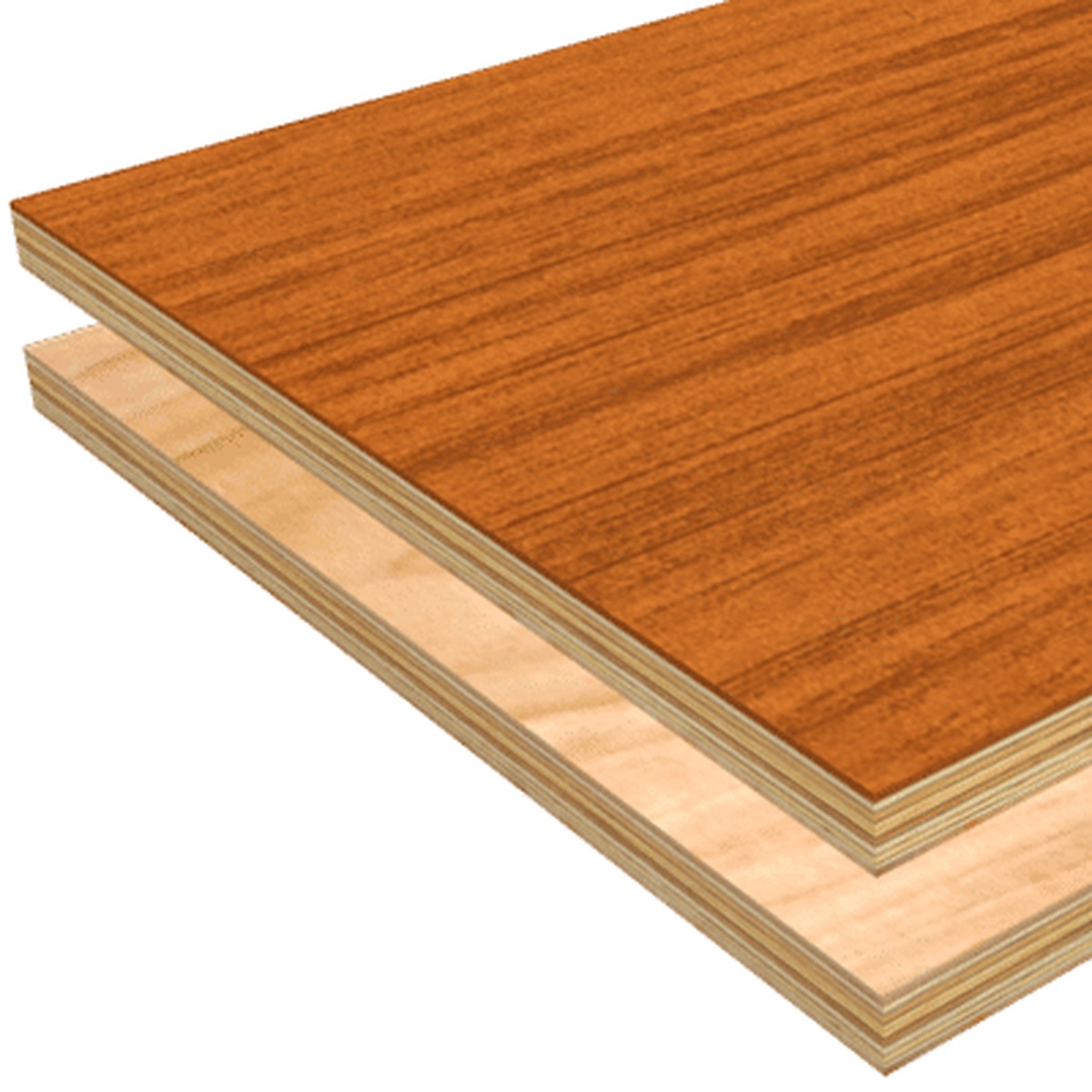

Material compatibility is broad. Freud calls out hardwood, softwood, and veneered plywood, so this bit covers the common materials used in cabinet shops, trim shops, and serious home woodworking setups. It is also part of Freud's Premier Adjustable Rail & Stile System, with optional cutters available for double-sided doors and for glass and screen door construction. That system flexibility matters if you want to expand what you build without starting over with a whole new door-making setup.

Who should buy it? This is for woodworkers, cabinetmakers, and serious DIY users who want more than a basic one-size rail and stile set. If you only make a door once in a while, a simpler fixed profile bit may be enough. But if you regularly build doors in different thicknesses, switch between plywood and solid wood panels, or want the option for long tenon joinery, the Freud 99-762 gives you a more versatile setup with shop-grade flexibility.

Freud 99-762 Premier Adjustable Rail & Stile Router Bit for door makers who want one setup to do more

This is a smart pick for woodworkers who build doors often enough to appreciate adjustability, stronger joinery, and cleaner cuts without bouncing between multiple bit sets.

• Who it's for: Cabinet shops, furniture builders, and serious DIY woodworkers making matched rail and stile doors in different stock thicknesses.
• Why it stands out: The adjustable groove setup, extended tenon capability, and tearout-focused cutter design make it more versatile than a basic fixed-profile set.
• Worth knowing: This bit is meant for a router table setup and uses a 1/2 inch shank, so make sure your machine and collet are set up for proper door-making work.

• What thickness material can this bit handle? It is designed for stock from 5/8 inch to 1-1/4 inch thick.
• What size shank does it use? This router bit uses a 1/2 inch shank.
• What is the maximum rated speed? Freud lists a maximum speed of 16,000 RPM.
• Can it be used for plywood and solid wood panels? Yes. The adjustable shims let you set the panel groove from 7/32 inch for thinner plywood panels up to 3/8 inch for larger solid wood raised panels.
• Is this intended for handheld router use? The product data specifies use in table-mounted routers.
