The JET JWDS-1632 Drum Sander with Stand, model JWDS-1632, item 723520K, is a benchtop-style stationary sander mounted on a dedicated stand for small shops and serious woodworking setups that need cleaner, more consistent surface prep. This is a drum sander designed for flattening and finish-sanding wood panels, tabletops, cutting boards, and glued-up stock. If you are trying to save time after glue-ups or want more control than hand sanding can give you, this machine is built for exactly that job.

What makes this machine matter is how it handles feed control and repeatability. SandSmart continuously monitors the load on the drum motor and automatically regulates conveyor speed to maintain the highest feed rate without overload. In plain terms, that helps the machine keep cutting steadily instead of bogging down when the wood gets harder or the pass gets a little heavier. The infinitely variable conveyor speed up to 10 feet per minute gives you another level of control, so you can slow it down for finish passes or speed it up when you are removing more material.

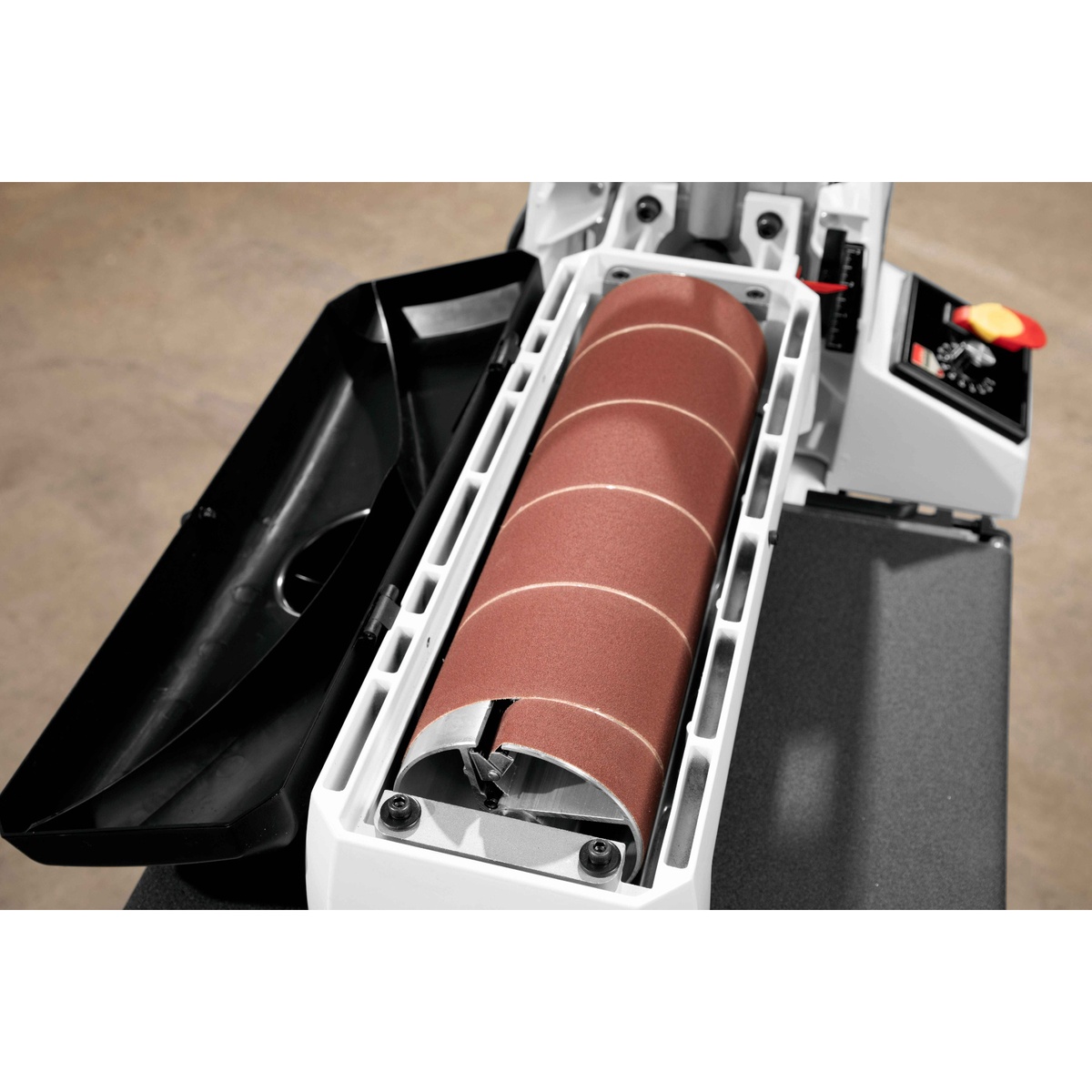

The sanding setup itself is built around a precision-machined, dynamically balanced 5 inch extruded aluminum drum. JET uses that aluminum drum design to dissipate heat, which is a real advantage on longer sanding sessions where excess heat can mark the workpiece or load up the abrasive. The drum is also removable, and the abrasive take-up clips are toolless, so changing paper does not turn into a project of its own. Sealed, permanently lubricated ball bearings are there for the long haul and cut down on maintenance compared to components that need regular attention.

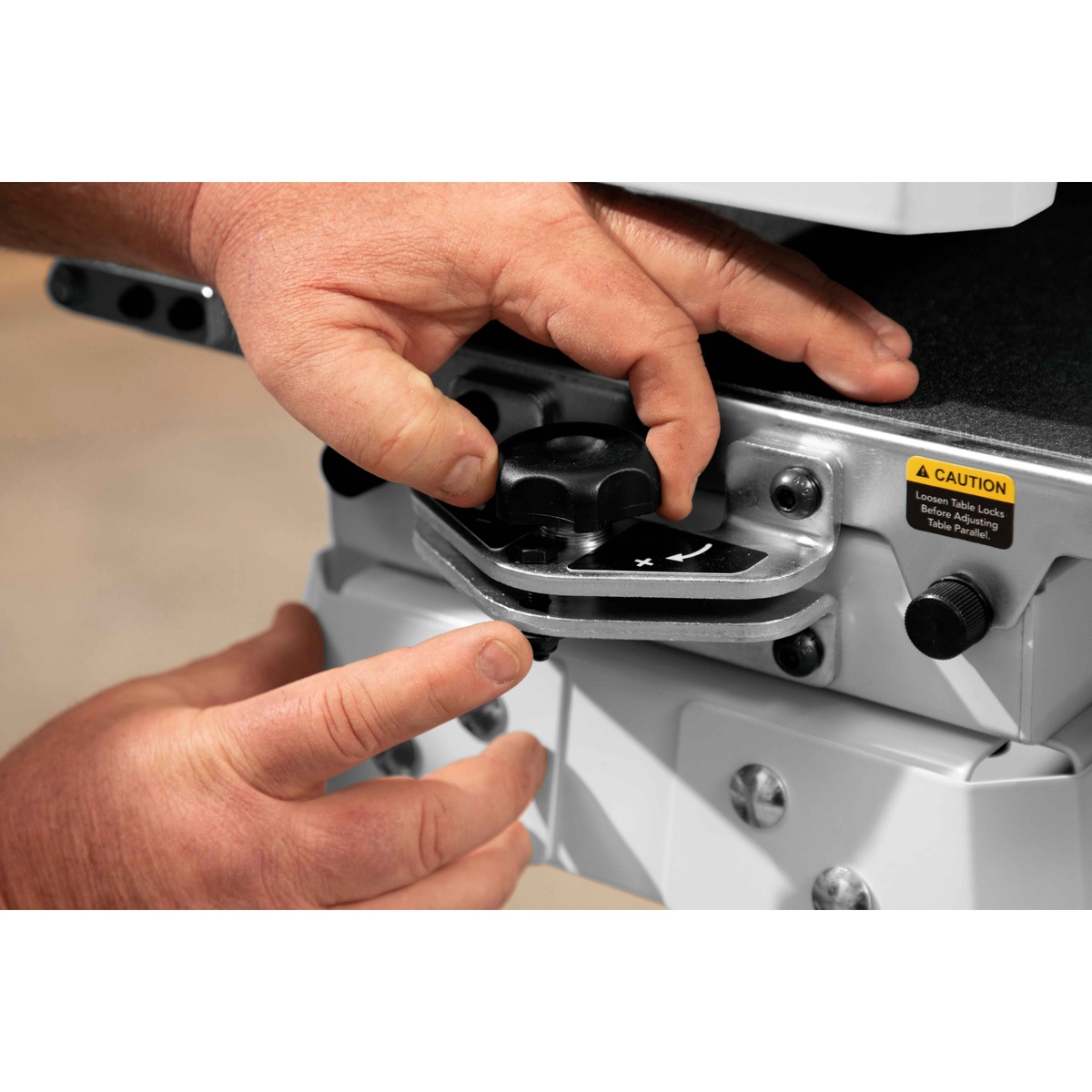

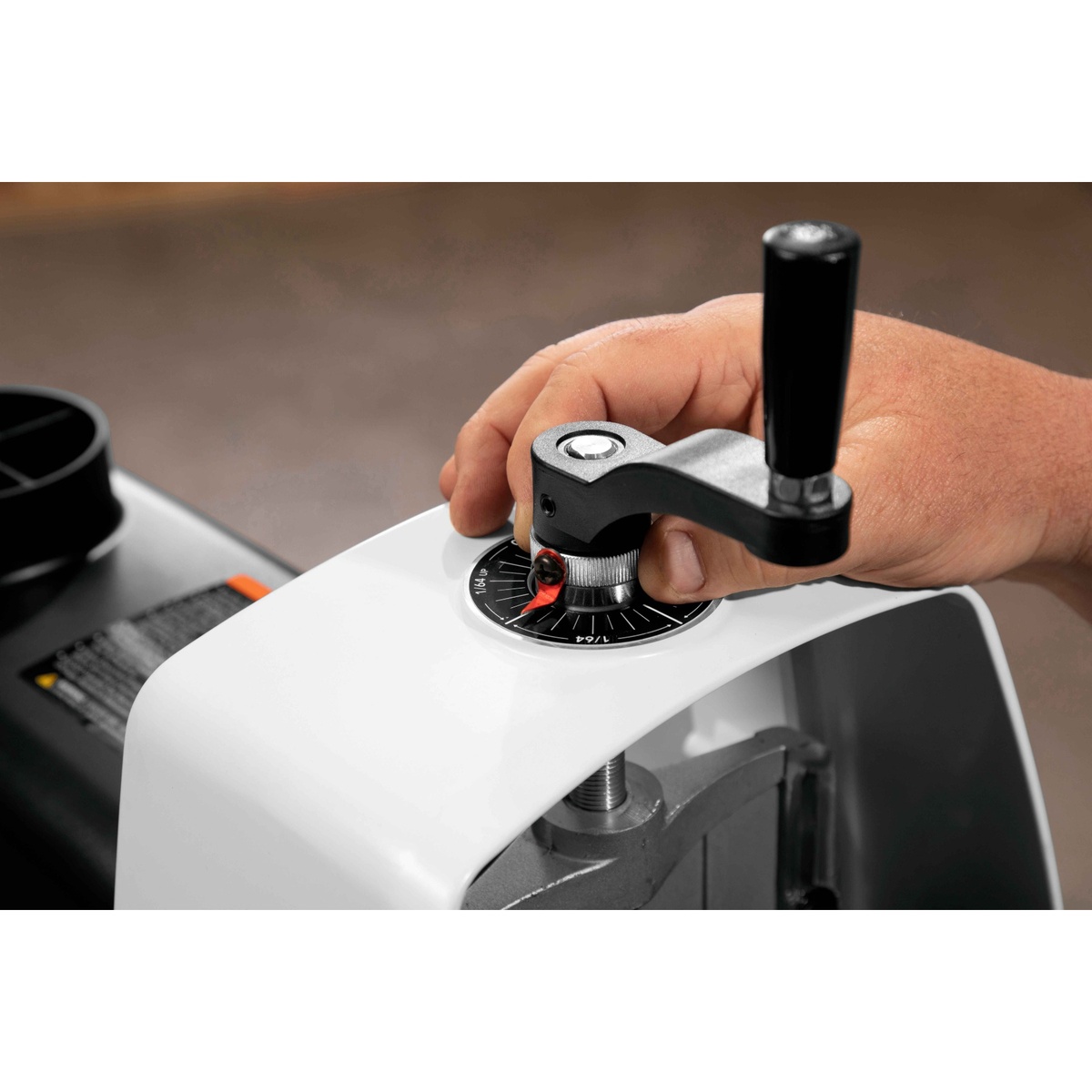

Accuracy and setup are where this unit separates itself from lighter-duty options. The reinforced steel conveyor bed is precision flattened, giving the stock a stable path through the machine. The conveyor bed parallelism can be adjusted without tools by turning the dial on the outside of the bed, and the dial includes a stop so you can quickly return the bed to a flat position. On top, one full rotation of the handwheel changes drum height by 1/16 inch, and the relative depth scale lets you reset and track sanding depth from project to project. That all adds up to less trial and error when you are sneaking up on final thickness or cleaning up a panel evenly.

On the practical side, JET gave this machine separate feed and drum motors for more independent control, and the redesigned conveyor system pulls the workpiece through the sander instead of pushing it. Adjustable tension rollers help reduce snipe by applying downward pressure where it matters, while conveyor belt trackers reduce the need for constant manual belt correction. The integrated on and off switch and variable-speed control knob are also placed where you can reach them easily instead of hunting around the machine mid-job.

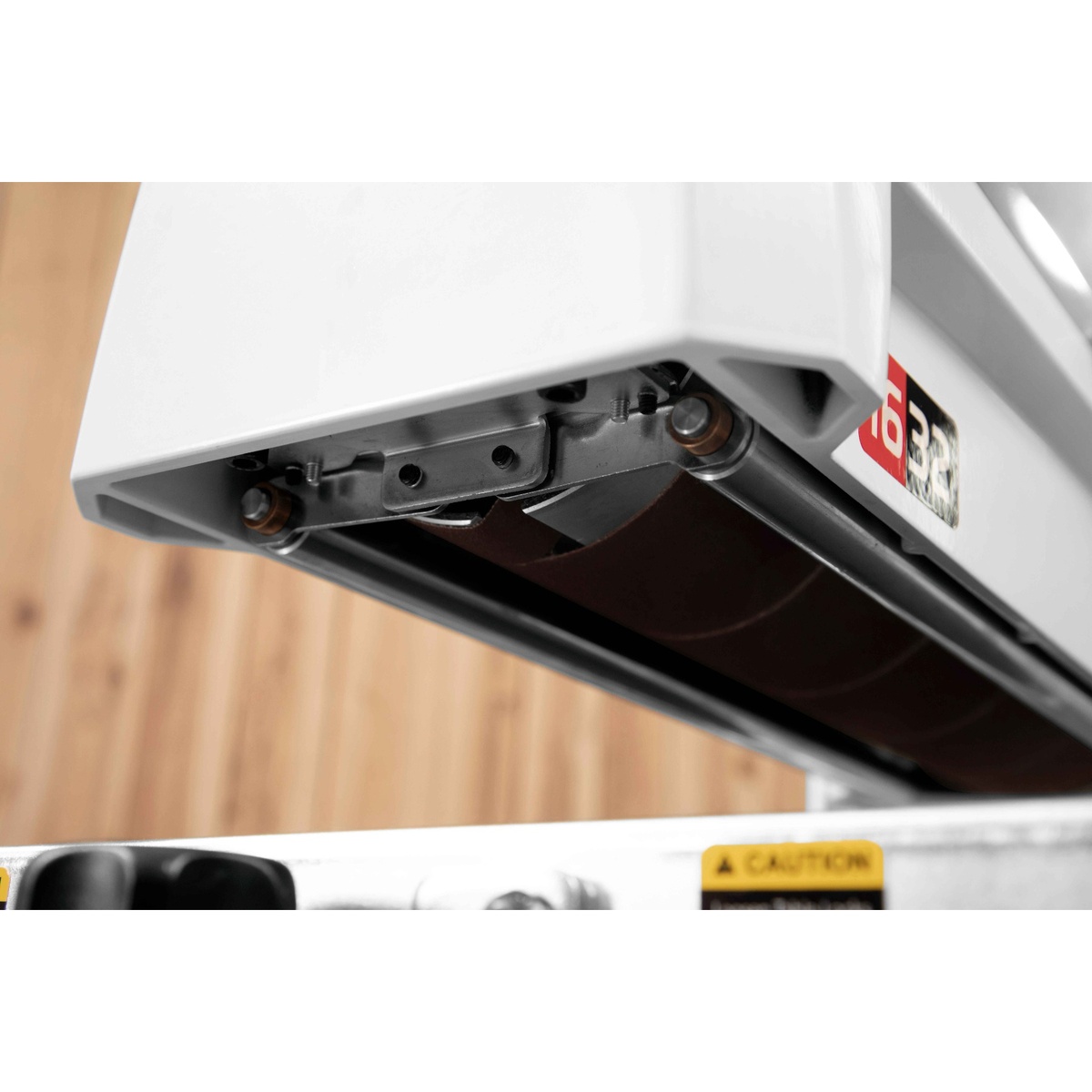

Dust collection is not optional on a machine like this, and JET makes that clear with a 4 inch dust port and a minimum dust collection requirement of 400 CFM. The dust hood includes an integrated channel shaped to mirror the drum, helping direct chips and dust toward the port instead of letting debris ride between the abrasive and the workpiece. If you are chasing a cleaner finish and longer abrasive life, that airflow setup is a big part of the equation.

The included stand is more than just a place to set the machine. Its 20 inch by 37 inch footprint adds stability, the lower shelf gives you useful storage, and the pre-drilled holes make caster installation easier if you want to keep the sander mobile in a tighter shop. With a 115V motor, 14 amp draw, and recommended 20 amp circuit, this is approachable for a well-equipped home shop or small professional workspace without stepping into full industrial power requirements.

The JET JWDS-1632 Drum Sander with Stand is a smart fit for furniture builders, cabinet shops, trim carpenters, and serious DIY woodworkers who need better panel sanding, more uniform thicknessing, and fewer finishing headaches. If you regularly work with wide glued-up panels or want a dedicated woodworking sander that is easier to tune than many older drum sanders, this one checks the right boxes.

JET JWDS-1632 Drum Sander with Stand Gets the Important Stuff Right

This is the kind of drum sander that makes sense for woodworkers who are tired of fighting inconsistent panels and wasting time on cleanup sanding.

• Who it's for: Woodworkers, cabinet builders, furniture makers, and committed home-shop users who need dependable wide-panel sanding without jumping to a much larger industrial machine.
• Why it stands out: SandSmart load control, quick parallelism adjustment, a self-cooling aluminum drum, and a well-thought-out dust hood all work together to make this machine easier to tune and easier to live with.
• Worth knowing: This is still a real stationary woodworking machine, not a casual benchtop toy. Give it the recommended 20 amp circuit and a dust collector that can deliver the required 400 CFM if you want it to perform the way it should.

• What kind of tool is this? This is a drum sander designed for flattening and finish-sanding wood panels, boards, and glued-up assemblies.
• What is the maximum sanding width? The maximum board width is 32 inches in two passes.
• Does it need dust collection? Yes. It uses a 4 inch dust port and requires a minimum of 400 CFM dust collection.
• What power does it run on? The JWDS-1632 runs on 115V, draws 14 amps, and JET recommends a 20 amp circuit.
