Digital Readout
ACU-RITE 200S
Number of Axis
2
Powerfeed
X and Y-Axis
Power Draw Bar
Pneumatic
Spindle Taper (In. x TPI)
R-8
Table Size (L x W) (In.)
9 x 49
Quill Diameter (In.)
3-3/8
Number of Spindle Speeds
Variable

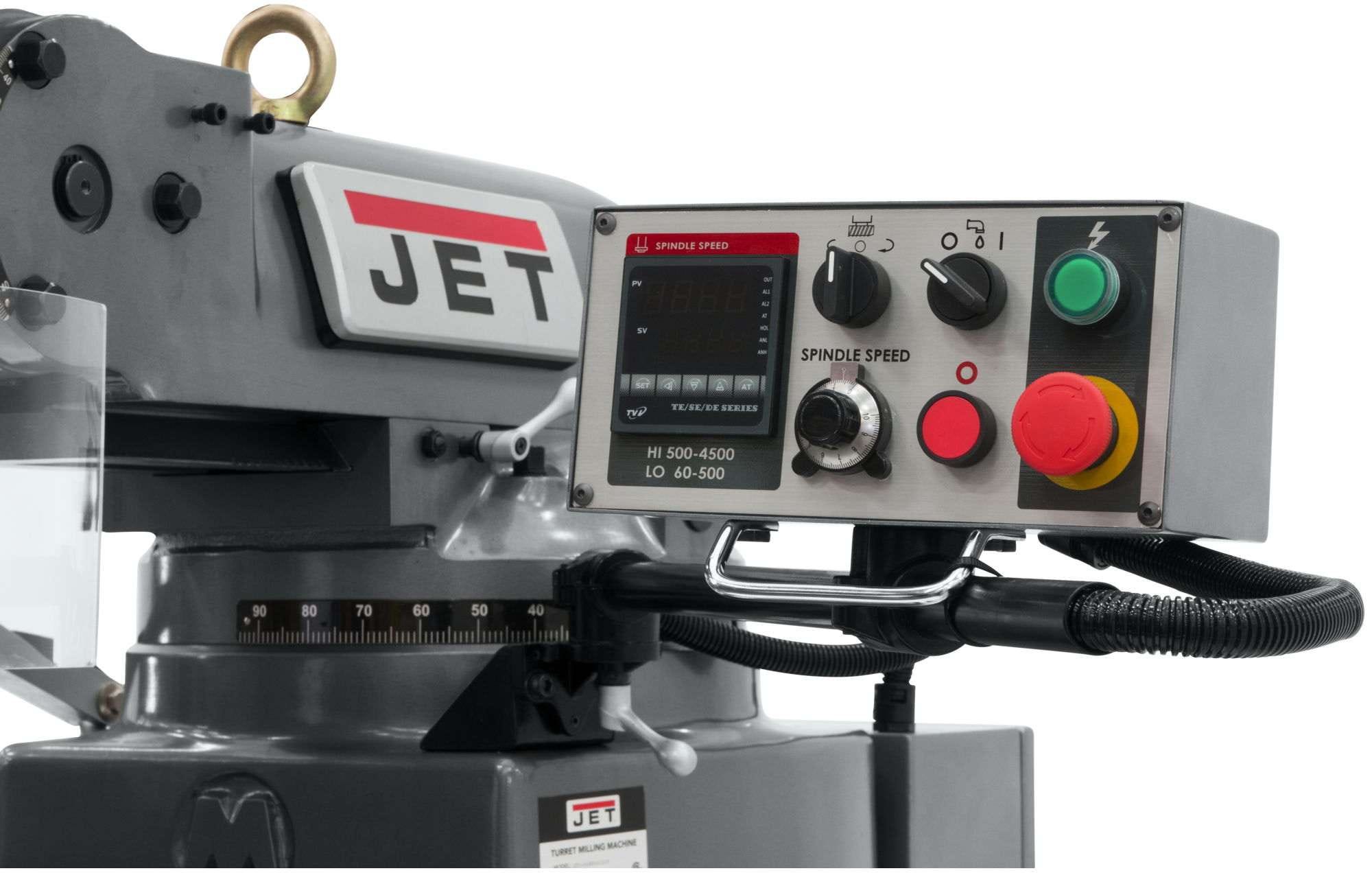

Range of Spindle Speeds (RPM)
60 - 4,500
Quill Down Feed Rates (IPR)
.0015 - .003 - .006
Spindle Travel (In.)
5
Head Movement (Deg.)
90° R & L, 45° F & B
Max Distance Spindle to Table (In.)
20-3/4
Distance Spindle to Column (Max.) (In.)
18-1/8
Distance Spindle to Column (Min.) (In.)
4-3/4
Collet Capacity
1/8 - 7/8
Table Longitudinal Travel (In.)
36
Table Longitudinal Travel With Powerfeed (In.)
30-3/4
Table Cross Travel (In.)
12-5/8
T-Slots Number and Size (In.)
3 and 5/8
T-Slot Centers (In.)
2-1/2
Work Table Weight Capacity (Lbs.)
720
Travel of Knee (In.)
15-3/4
Travel of Ram (In.)
15-1/4
Saddle Width (In.)
11-1/2
Column Width (In.)
18
Inverter Type
Delta, B
Motor (HP)
3HP, 230V, 3Ph
Overall Dimensions (L x W x H) (In.)
67 x 64 x 86
Weight (Lbs.)
2,420
