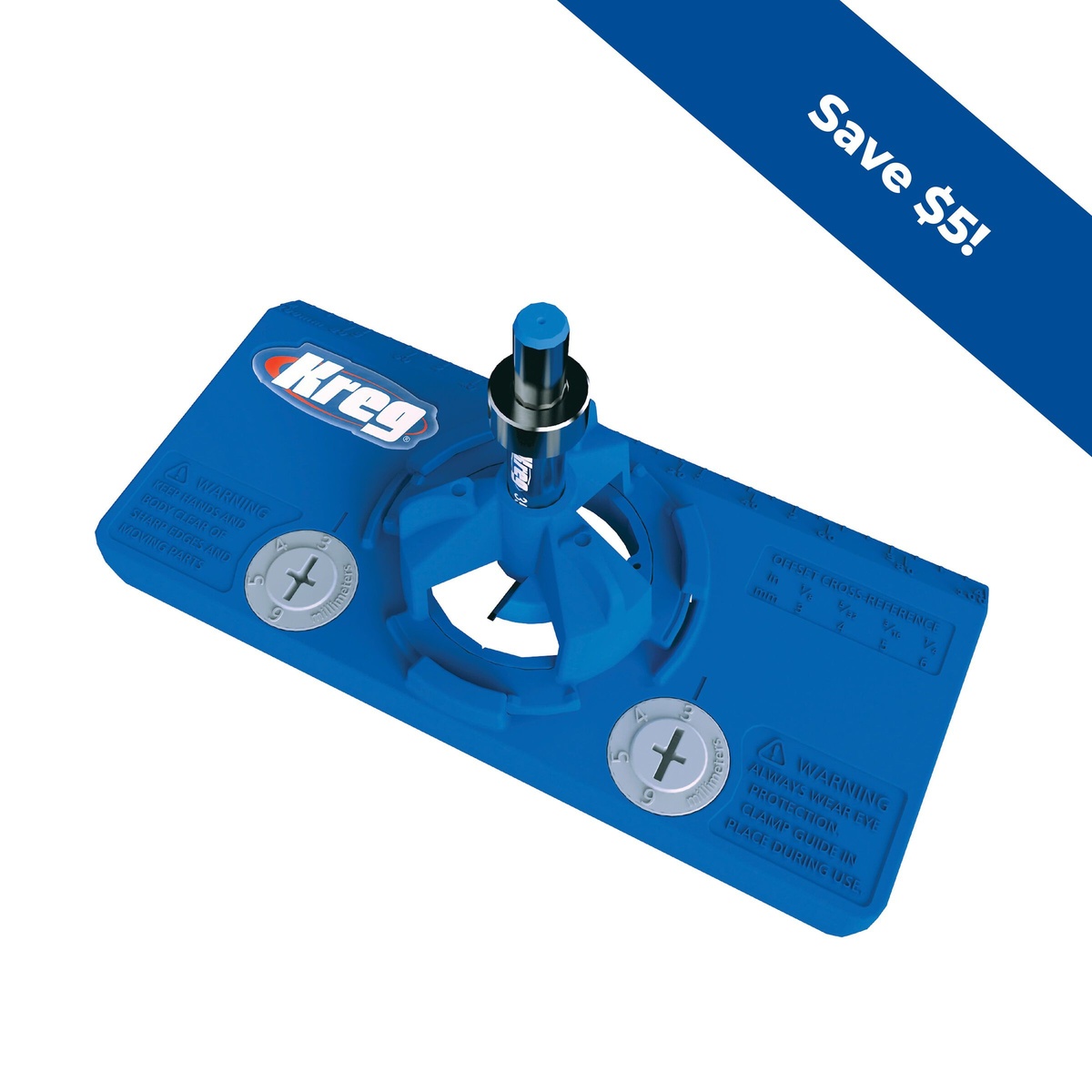

The Kreg Tool KHI-HINGE Concealed Hinge Jig (Model KHI-HINGE) is a drilling jig designed for drilling concealed cabinet door hinge cup holes with a hand drill. If you install cabinet doors and want the hinge cups to land in the same spot every time, this jig takes the measuring and guesswork out of it.

Concealed hinges (often called Euro hinges) work great because they are adjustable and hidden when the door is closed, but they demand a large cup hole drilled at a very specific position and depth. The Kreg jig uses built-in indexing tabs, measuring scales, and adjustable cams to dial in the hinge offset based on your hinge instructions, then guides the bit so each door matches the last one.

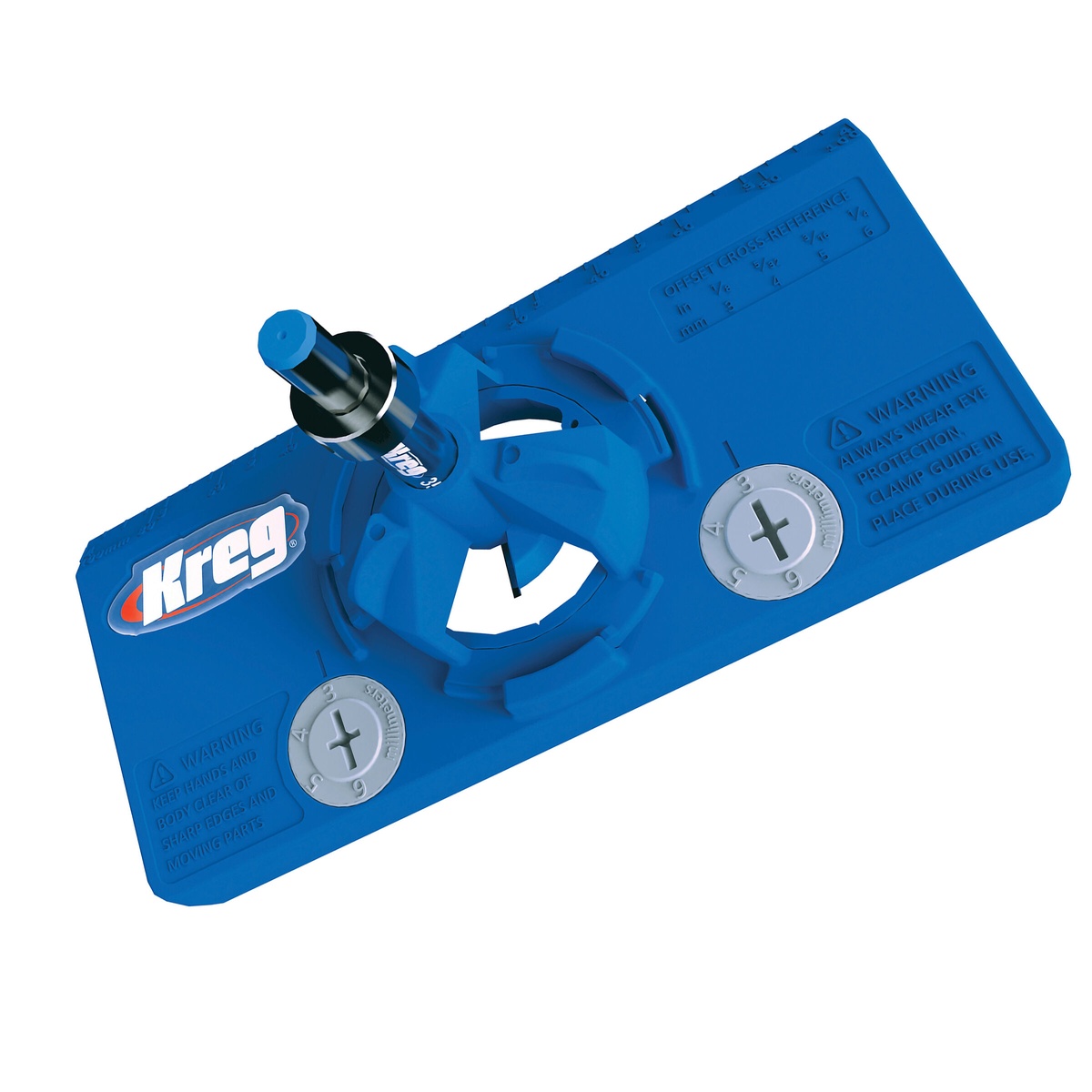

For drilling, the jig uses a drill guide and a depth stop collar to help keep the hole straight and control cup depth. That is the difference between doors that close clean and doors that bind or sit proud because the cup depth wandered. A carbide-tipped drill bit is included for reliable cutting when you are doing multiple doors.

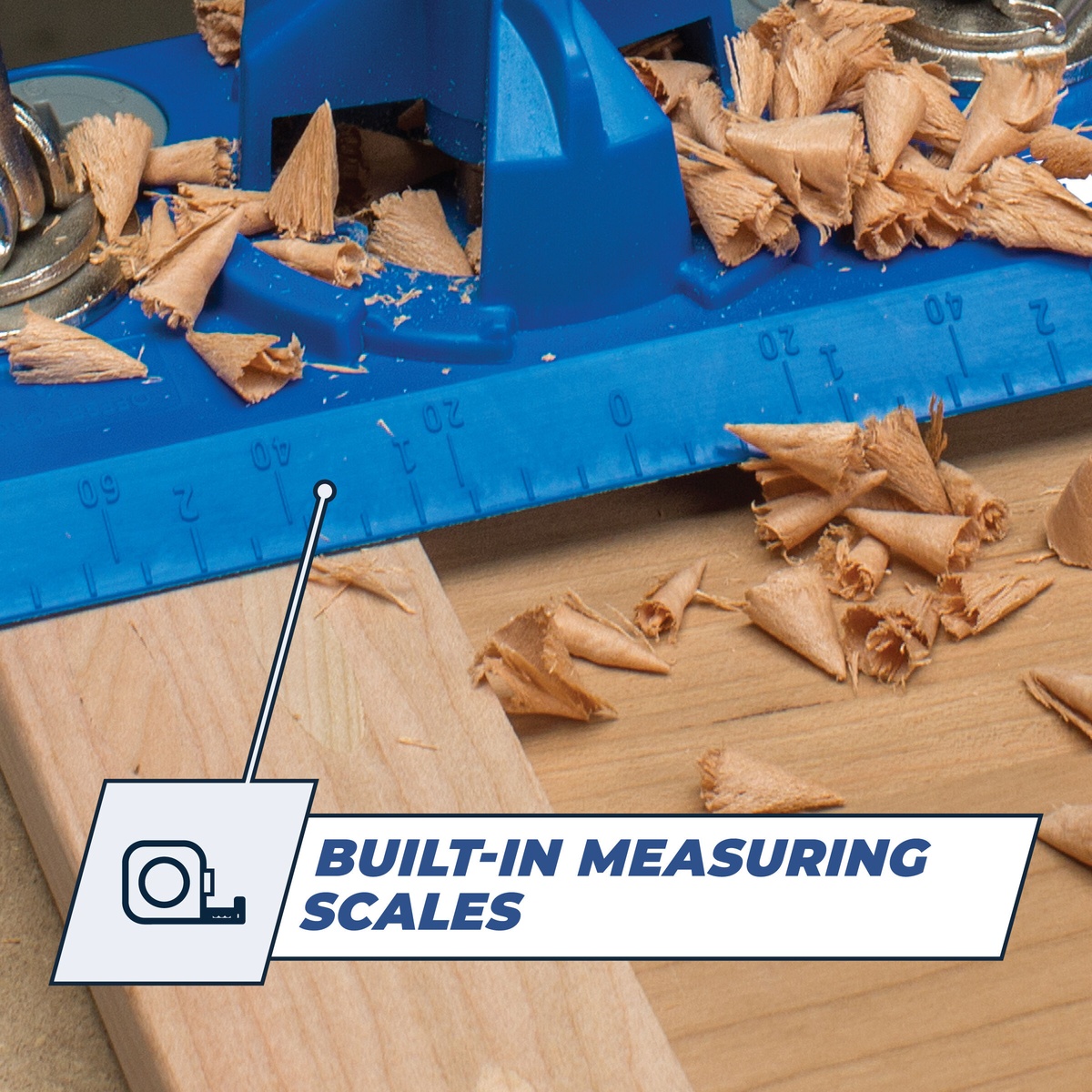

The base is made from glass-filled nylon, which is a practical choice for a jig like this: it is rigid enough to hold alignment but light enough to move from door to door without feeling clunky. Built-in measuring scales support repeatable placement when you are matching hinges across a kitchen or a run of built-ins.

This jig is intended to be simple for first-timers but consistent enough for pros. Set the cams for your hinge offset, register the jig using the indexing features, and drill the cup holes with a standard drill. It also provides guide holes for drilling hinge screw holes, but you will need to supply the proper small bit for that step.

If you are a cabinet installer, remodeler, trim carpenter, or DIYer building doors, the KHI-HINGE is for you. It is a straightforward way to get clean, repeatable concealed hinge cup holes without dragging out a drill press.

Kreg Tool KHI-HINGE Concealed Hinge Jig: the clean way to drill hinge cups without a drill press

When you want cabinet doors to hang right the first time, this jig gives you repeatable placement and controlled drilling with the drill you already own.

• Who it's for: Anyone installing concealed cabinet hinges, from a one-off vanity door to a full kitchen.
• Why it stands out: Indexing plus adjustable cams for offset, and a guided bit with a stop collar for consistent depth.
• Worth knowing: You will need a 1/16 in bit for hinge-mounting screw holes, and it is not included.

• Do I need a drill press? No. This jig is designed to deliver drill press accuracy using a standard hand drill.
• What hinge type is it for? It is designed for concealed cabinet door hinges (Euro-style concealed hinges).
• Does it include the drilling bit? Yes, a carbide-tipped drill bit is included, but a 1/16 in bit for hinge-mounting screws is required and not included.
