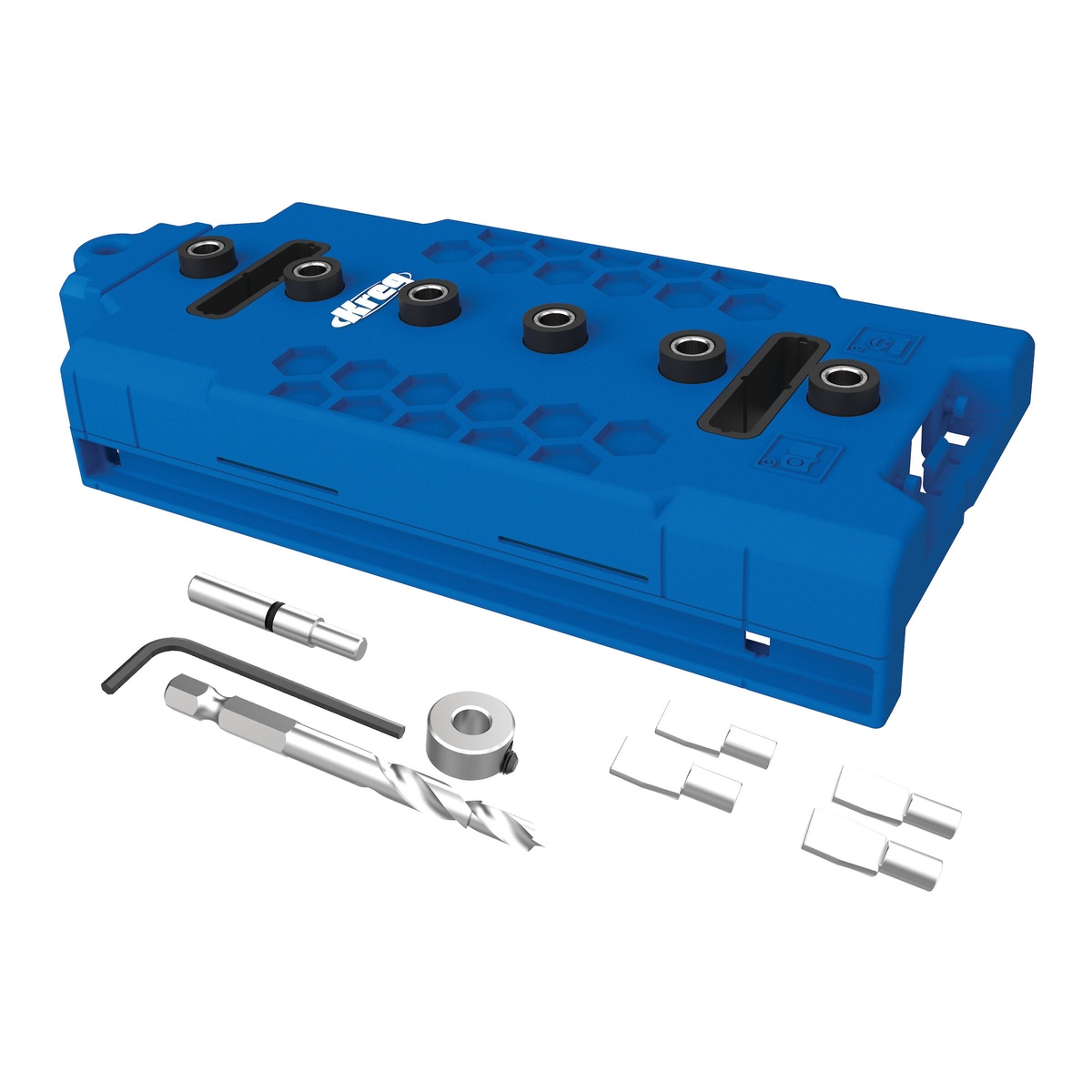

The Kreg KMA3232 Shelf Pin Jig - 5 mm is a shelf pin drilling jig kit for cabinet and furniture work where shelf holes need to be straight, evenly spaced, and repeatable. This is a shelf pin drilling jig designed for drilling adjustable shelf pin holes on a 32 mm cabinet system layout. Model Number: KMA3232.

The whole point of this jig is spacing and alignment. The drill guides are centered on standard 32 mm increments, so you can add adjustable shelves that match existing cabinetry or build new boxes that follow the same system. That saves you from laying out every hole with a tape and square and hoping your rows match side-to-side.

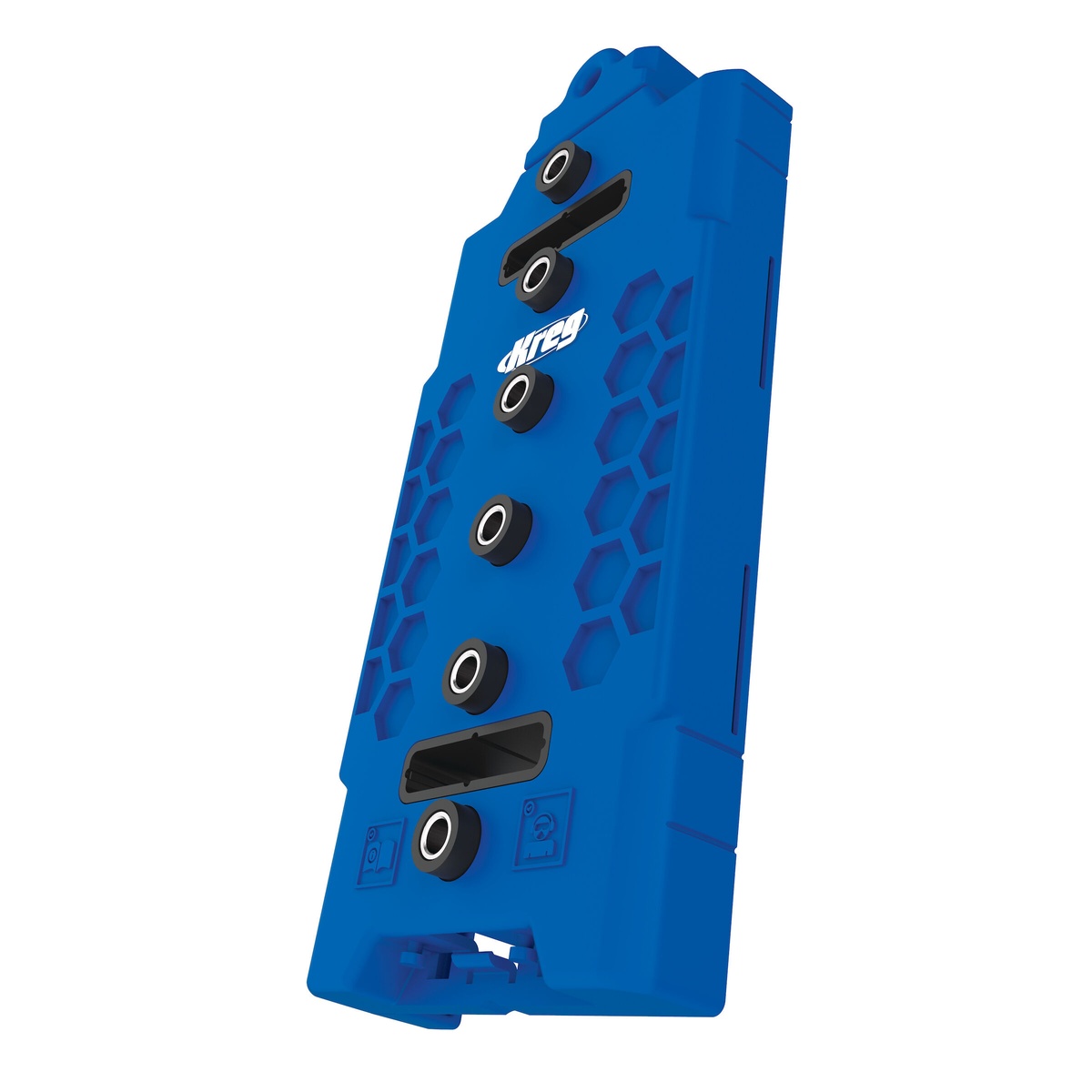

Accuracy comes from the hardened-steel drill guides. On cabinet sides, a hand drill will try to walk, especially on veneered panels. The guides keep the bit tracking straight so the holes stay round and consistent, which matters when you want shelves that do not rock or sit crooked.

Setup is straightforward: use the fence to register the jig to the workpiece edge, then drill the hole pattern. You can drill six holes in one setup for common shelf ranges, and when you need more, you can connect a second jig to keep the same spacing without restarting your layout.

Kreg also built in alignment features that make it useful beyond shelf pins. The jig includes molded-in alignment marks and an indicator window for locating mounting screws for concealed cabinet hinge plates and for helping locate the front hole for drawer slide installation in frameless cabinets that follow the 32 mm system.

If you build or modify cabinets, closets, built-ins, or furniture, this is the kind of jig you keep in the truck because it turns a time-consuming measuring job into a repeatable process you can trust.

The no-drama way to add adjustable shelves

The Kreg KMA3232 Shelf Pin Jig - 5 mm is built for repeatable cabinet hole patterns when measuring by hand is too slow and too easy to mess up.

• Who it's for: Cabinet builders, remodelers, and anyone adding adjustable shelves to boxes, built-ins, and furniture.
• Why it stands out: Hardened drill guides plus true 32 mm spacing gives you cleaner holes and rows that actually line up.
• Worth knowing: It is purpose-built around 5 mm pins and 32 mm layout, so make sure that matches the hardware standard you are working with.

• What spacing does this jig drill? The drill guides are centered on 32 mm (1-1/4 in) increments.
• What size shelf pin holes is it designed for? This version is for 5 mm shelf pin holes.
• Can it help with frameless cabinet hardware layout? Yes. It includes alignment marks and an indicator window intended to help locate hinge plates and drawer slide mounting locations for a 32 mm cabinet system.
