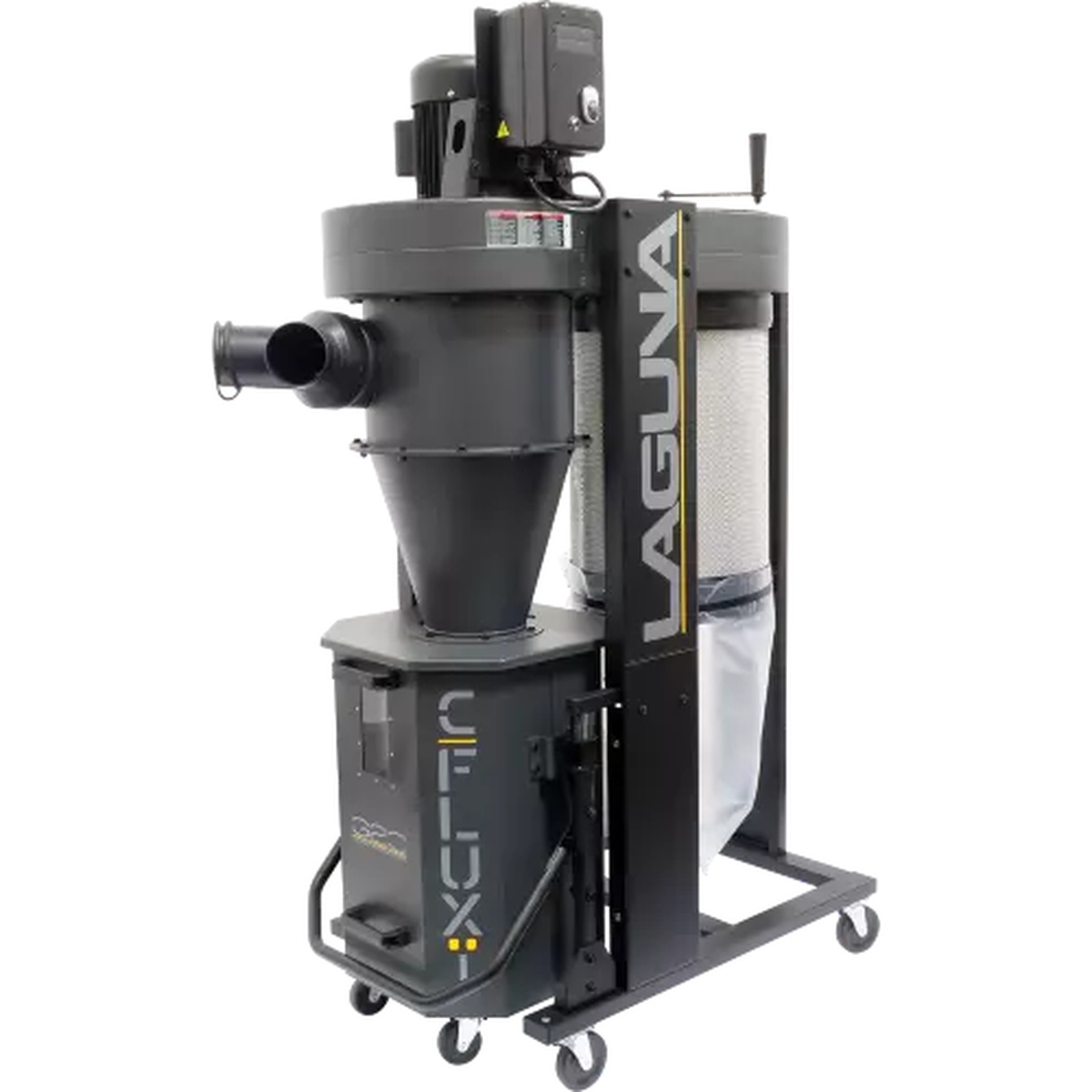

The Laguna MDCCF15110 C|Flux: 1 Dust Collector is a 1.5 horsepower cyclone dust collector built for woodworking dust and chip collection in small to mid-size shops. This is a dust collector designed for capturing chips and fine dust from stationary woodworking machines. Model Number: MDCCF15110. If you need stronger separation and cleaner air than a basic bag-style setup can usually deliver, this is the kind of machine you look at next.

On paper, the numbers tell you why it matters. The motor runs at 3450 RPM and delivers up to 1314 CFM maximum airflow, with a listed 900 CFM shop setting airflow. In practical terms, that means this unit is meant to support real machine hookups, not just light cleanup duty. The cyclone design helps separate heavier chips before they reach the filter, which helps airflow stay more consistent and keeps the filter from loading up as quickly.

Laguna also put effort into the day-to-day details that make a dust collector less annoying to own. The dual paddle cleaning design gives you a simpler way to clean the cartridge filter, and the max level indicator helps you avoid overfilling the drum and stressing the filter system. Those are the kinds of features that matter after the first week, when the machine stops being new and starts being part of the routine.

The collection side is built around a 25 gallon octagon drum, and the updated 3-piece clamshell dust bin design cuts down on extra joints and fasteners compared to older multi-piece setups. That matters for assembly and service. Less fiddling around with the bin means less time dealing with the collector and more time actually running your jointer, planer, table saw, or sander.

For shop setup, Laguna gives you flexibility with one 6 inch inlet or two 4 inch ports. That gives you options depending on whether you are running a main line, splitting to smaller machines, or adapting the collector to an existing duct layout. The variable port positioning also helps when the collector has to fit the shop you already have, not the ideal one in your head. That is especially useful in tighter garages and one-man shops where every foot counts.

Filtration is another strong point. The cartridge filter offers 1 micron filtration with a listed 48.4 square feet of filtering area. That is the kind of spec you want to see if fine dust is the concern, not just big chips. With a listed sound level of 82 dB at 9.8 feet, it is still a machine you will hear, but Laguna clearly built it as a serious shop collector rather than a lightweight portable dust extractor.

The unit runs on 110V or 220V, 60Hz, single phase, with running amperage listed at 18.8A at 110V and 9.4A at 220V using the 6 inch inlet. That dual-voltage flexibility matters because it gives buyers more ways to fit the machine into an existing shop electrical setup. If you are upgrading from a smaller collector and not ready to rework the whole shop immediately, that flexibility is a real advantage.

This Laguna dust collector makes the most sense for woodworkers, cabinet shops, furniture builders, and serious DIY users who want better airflow, better separation, and better filter maintenance than entry-level collectors usually offer. If your machines are producing enough chips that a basic collector is starting to feel like the weak link, the C|Flux: 1 is the right kind of step up.

Laguna MDCCF15110 C|Flux: 1 Dust Collector is the right upgrade when a basic collector starts holding your shop back

This is the kind of cyclone collector that makes sense when you want stronger airflow, better chip separation, and less filter babysitting without jumping straight into a much bigger machine.

• Who it's for: Woodworkers, cabinet makers, and serious home shop users running stationary machines that create enough chips and fine dust to overwhelm an entry-level collector.
• Why it stands out: The combination of 1.5 HP power, up to 1314 CFM airflow, dual paddle filter cleaning, and a 25 gallon drum gives it real shop capability with smarter maintenance features.
• Worth knowing: This is a substantial machine at 232 pounds, so you want to think through placement, duct routing, and power before it lands in the shop. The locking casters help, but this is still a serious piece of equipment, not a grab-and-go vacuum.

• Is this a single-phase dust collector? Yes. The Laguna MDCCF15110 C|Flux: 1 Dust Collector is listed as 60Hz, 1PH, single phase.
• Can it run on either 110V or 220V? Yes. It is listed for 110V or 220V operation.
• What inlet options does it have? The collector is listed with one 6 inch inlet or two 4 inch ports.
• How fine is the filtration? It uses a 1 micron cartridge filter with 48.4 square feet of filtering area.
