Milwaukee M18 FUEL Compact Router model 2723-20 is a cordless trim router built for edge profiling, laminate trimming, light dado work, and detail routing where mobility matters. This is a compact router designed for precision edge work and trim routing. If you want corded-style performance without dragging out a cord, this is the kind of tool that makes sense for punch work, install crews, cabinet jobs, and shop tasks that move around a lot.

The big selling point here is the combination of speed and control. Milwaukee rates this router at up to 31,000 RPM, with a variable speed range from 10,000 to 31,000 RPM. That gives you the top-end speed needed for clean cuts in hardwoods and the slower settings you want when a bit or material calls for more control. Milwaukee also claims corded 1.25 horsepower trim router performance, which puts this tool in serious company for a cordless palm router.

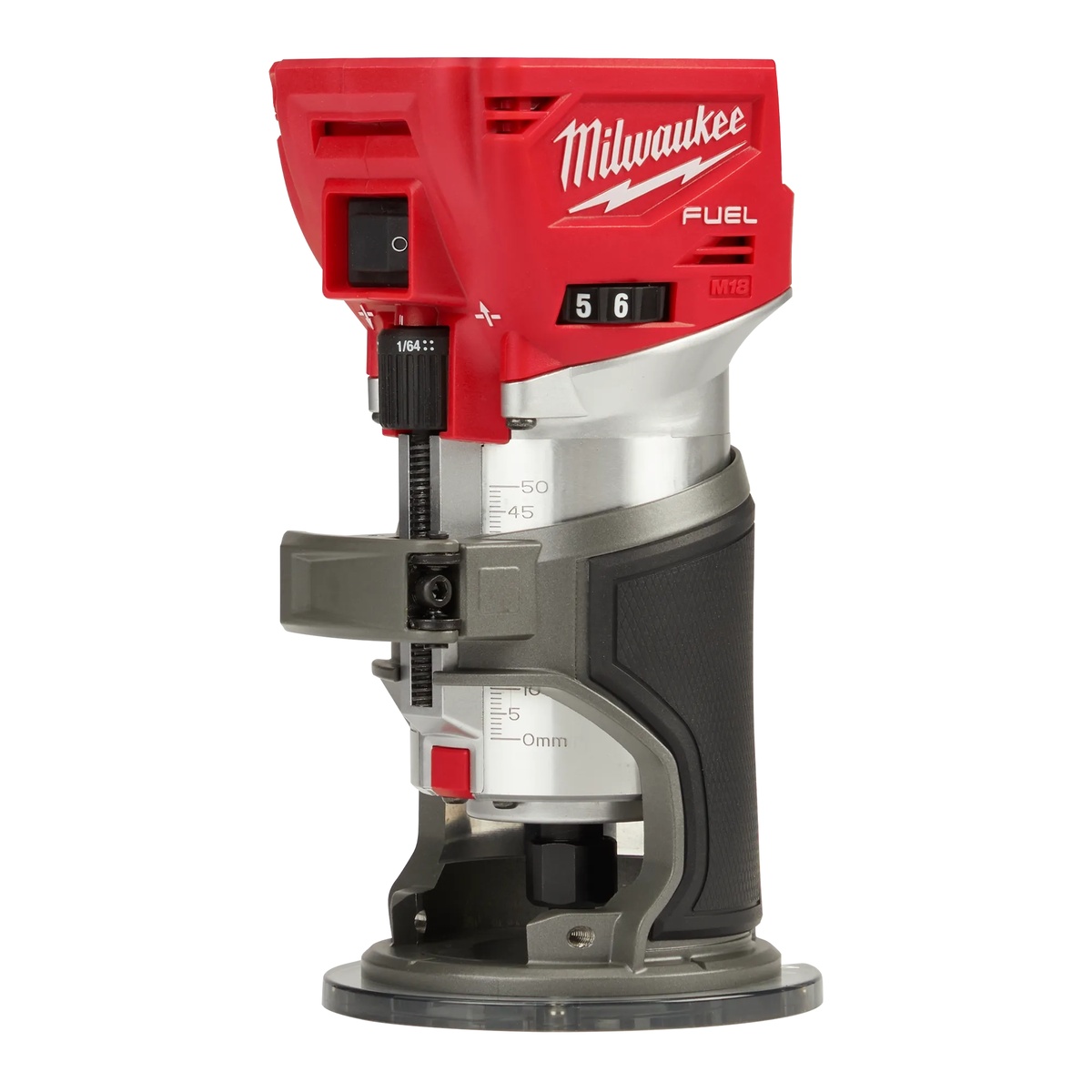

Depth adjustment is where a good router separates itself from a frustrating one, and Milwaukee clearly paid attention here. The macro-adjust button handles fast changes, while the micro-adjust dial lets you sneak up on your final setting. Acme also lists a 1.5 inch adjustable range and fine adjustment beyond 1/64 inch increments. In plain terms, that means less fiddling when you're switching from a quick roundover to detail work that actually needs repeatable accuracy.

On the design side, this router stays compact at 4.79 inches long, 3.23 inches wide, and just 2.95 pounds bare tool weight. That smaller footprint matters when you're routing cabinet edges, working on installed trim, or making controlled passes with one hand. The 4 inch round sub-base plate adds stability, and the included fixed base keeps the setup straightforward for most trim router work.

Milwaukee built this unit around a POWERSTATE brushless motor and REDLINK PLUS electronics. Those names matter because they point to what the tool is trying to do on the job: keep power consistent, protect the motor and electronics from overload and heat, and get more useful work out of the battery system. Milwaukee specifically states that with an M18 REDLITHIUM XC5.0 battery, the router can cut up to 250 feet of 3/8 inch roundovers in red oak. That is the kind of runtime claim that tells you this tool is meant to work, not just handle a few test cuts.

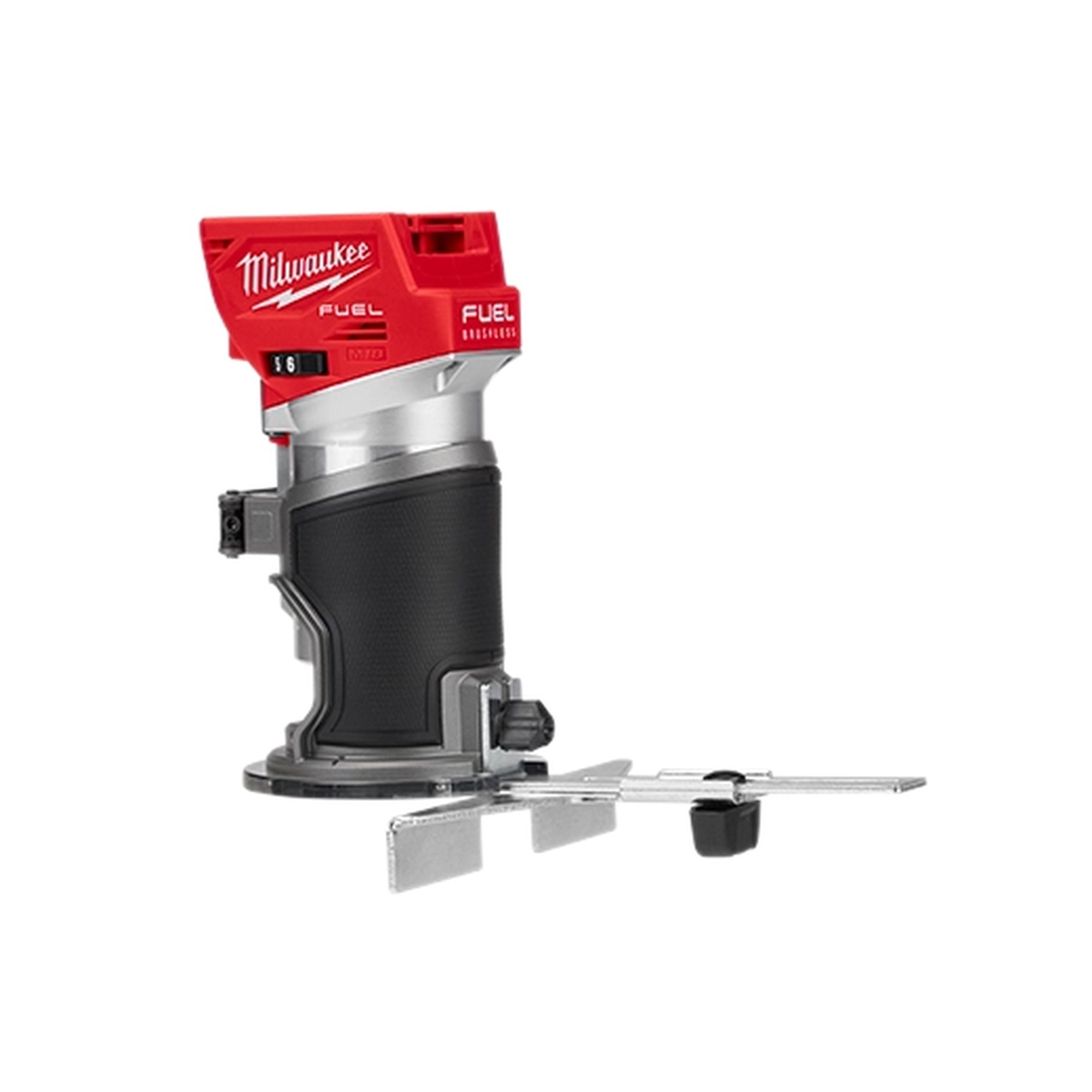

Jobsite practicality is solid. The router accepts 1/4 inch shank router bits, has a tool-free spindle lock for easier bit changes, includes dual LED lights to light the cut line, and comes with a dust shroud plus a straight edge guide. Those are the details you notice after a few days of use, especially when you are trimming in dim rooms, trying to keep chips under control, or running straight passes without building a custom jig.

System compatibility is another reason this tool stands out. It runs on the Milwaukee M18 battery platform and is compatible with Milwaukee plunge base and offset base attachments sold separately. That gives the router more room to grow if you need added reach, alternate handling, or more specialized routing setups later on. For current M18 users, that is a lot easier than buying into a separate cordless woodworking platform just for one tool.

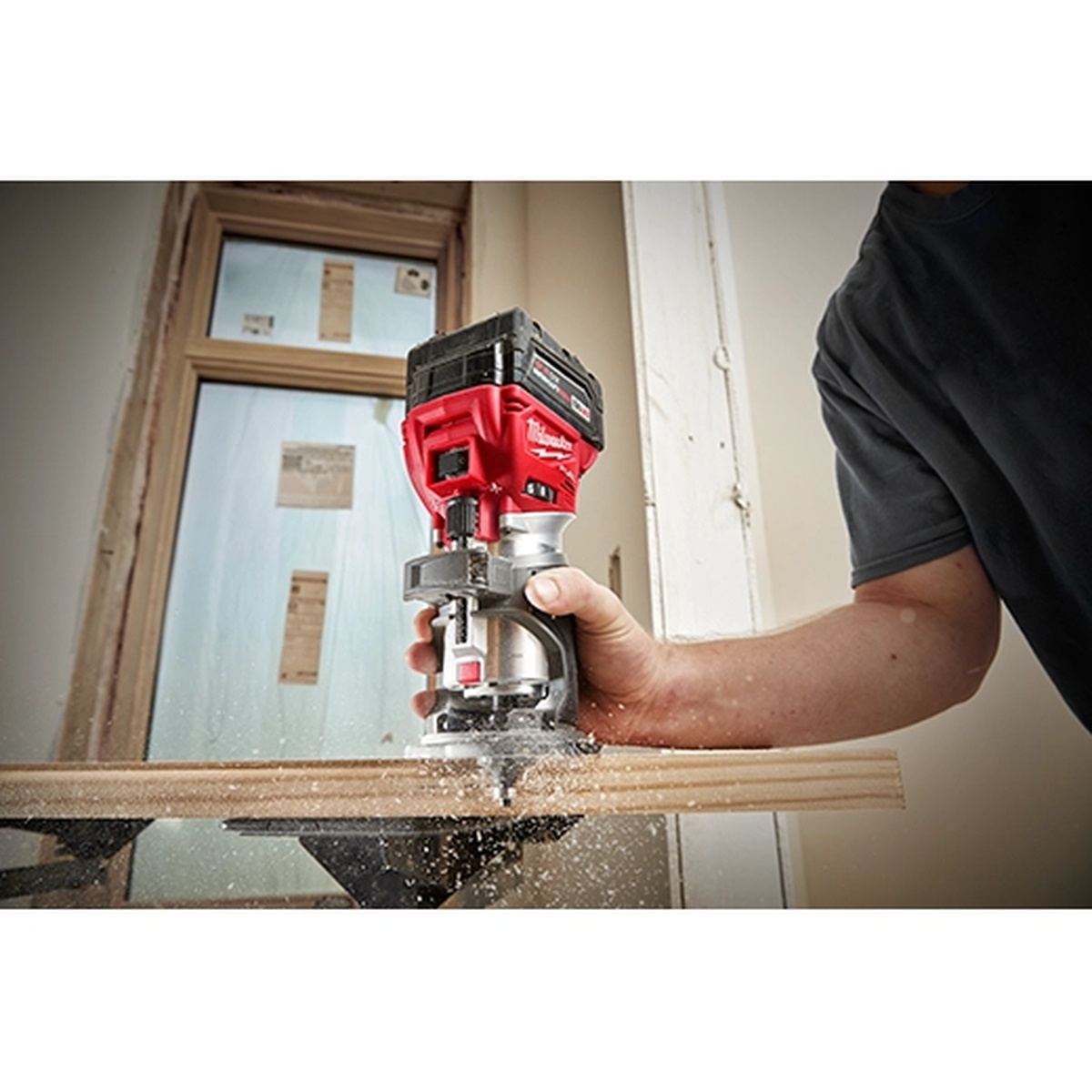

This router is a strong fit for trim carpenters, cabinet installers, remodelers, finish crews, and serious DIY users who need a cordless router for edge treatment and detail work. If you mostly work at a bench all day and already have a dialed-in corded setup, the value is convenience and portability. If you move room to room, go from shop to site, or want a trim router that can keep up without hunting for an outlet, this one makes a lot of sense.

Milwaukee M18 FUEL Compact Router Is Built for Guys Who Actually Move Around

The Milwaukee M18 FUEL Compact Router gives you real trim router speed and control in a cordless package that makes a lot of sense for install work and on-site finish jobs.

• Who it's for: Trim carpenters, cabinet installers, remodelers, and woodworkers who want a cordless router that can handle edge work and detail cuts without feeling like a compromise.
• Why it stands out: The 31,000 RPM top speed, solid depth adjustment system, 1/4 inch bit compatibility, and included guide and dust shroud make it more job-ready than a lot of compact routers.
• Worth knowing: This is the bare tool, so plan on an M18 battery and charger if you are not already in the platform. If you want plunge or offset capability, those bases are separate add-ons.

• What kind of tool is this? This is a cordless compact router, also commonly used as a trim router for edge profiling, trimming, and detail routing.
• What bit shank size does it accept? It accepts 1/4 inch shank router bits.
• What battery platform does it use? It runs on the Milwaukee M18 battery system.
• Can it use plunge or offset bases? Yes. It is compatible with Milwaukee plunge base and offset base attachments sold separately.
• Does this bare tool include a battery or charger? No. The 2723-20 is a bare tool and does not include a battery or charger.
