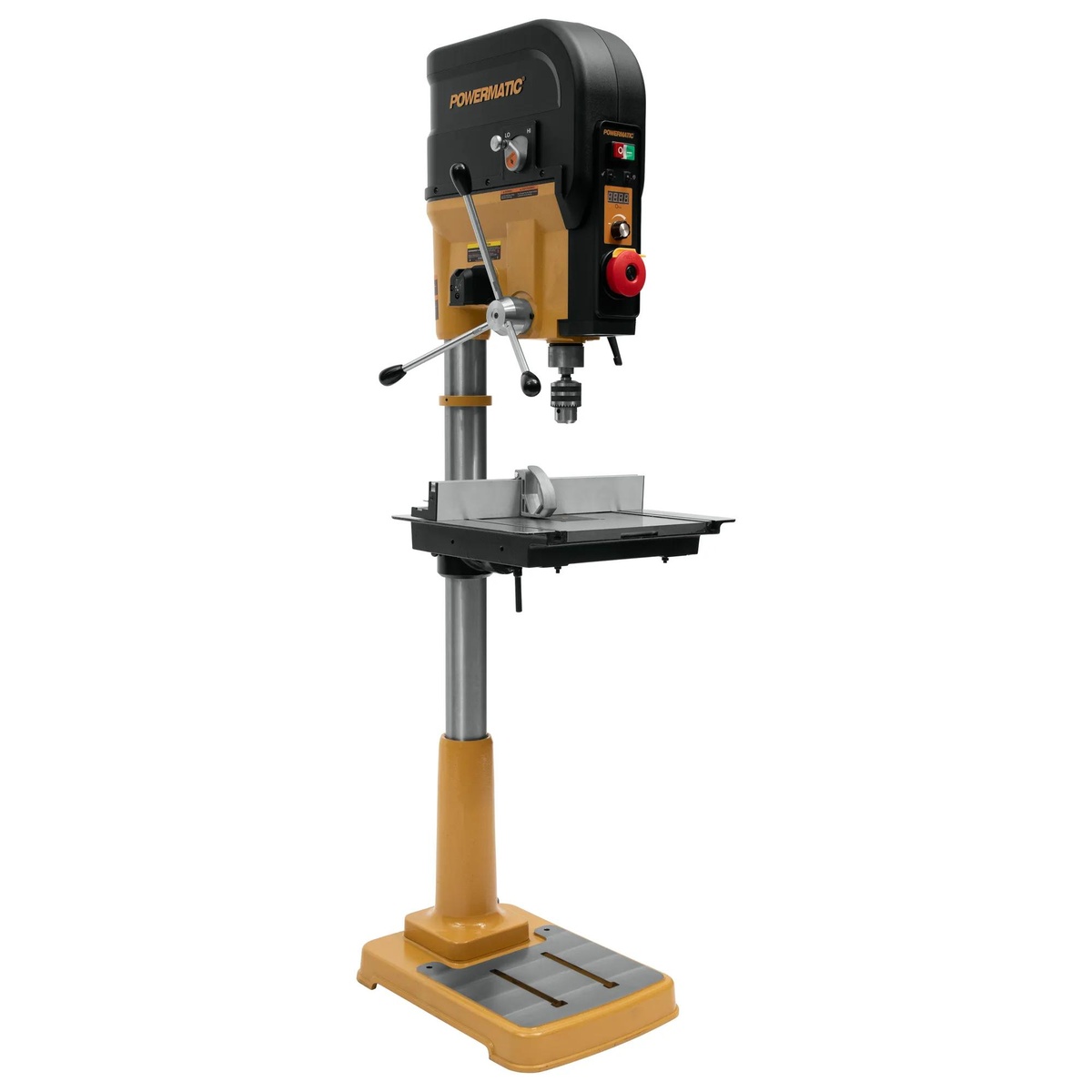

The Powermatic PM2820EVS Drill Press, model PM2820EVS and stock number 1792820, is a 20-inch floor-standing drill press built for controlled, accurate drilling in a serious shop environment. This is a drill press designed for precision drilling across a wide range of materials and bit sizes. With a 1 HP single-phase motor, 120V input power, 20-inch swing, and a heavy floor model layout, it is aimed at woodworkers, fabrication shops, and serious users who need more capacity and more control than a bench-top machine can deliver.

The big selling point here is the variable speed setup. Powermatic lists two speed ranges: 150 to 870 RPM and 600 to 3,600 RPM. That gives you the flexibility to slow down for larger holes and harder work, then step up speed for smaller bits and cleaner drilling in lighter-duty applications. Powermatic also calls out gear-driven power transfer, which is important because it helps the machine keep torque more consistently across the working range instead of feeling weak when you move into lower-speed work.

Accuracy features are not an afterthought on this machine. The cross hair laser gives you a clear point-of-drill reference, the digital readout makes speed changes easier to track, and the integrated depth stop helps with repeatable hole depths and countersinking work. If you do production runs, jig work, or anything where hole placement and depth need to stay consistent from piece to piece, those features are the difference between a drill press that just spins a bit and one that actually helps your workflow.

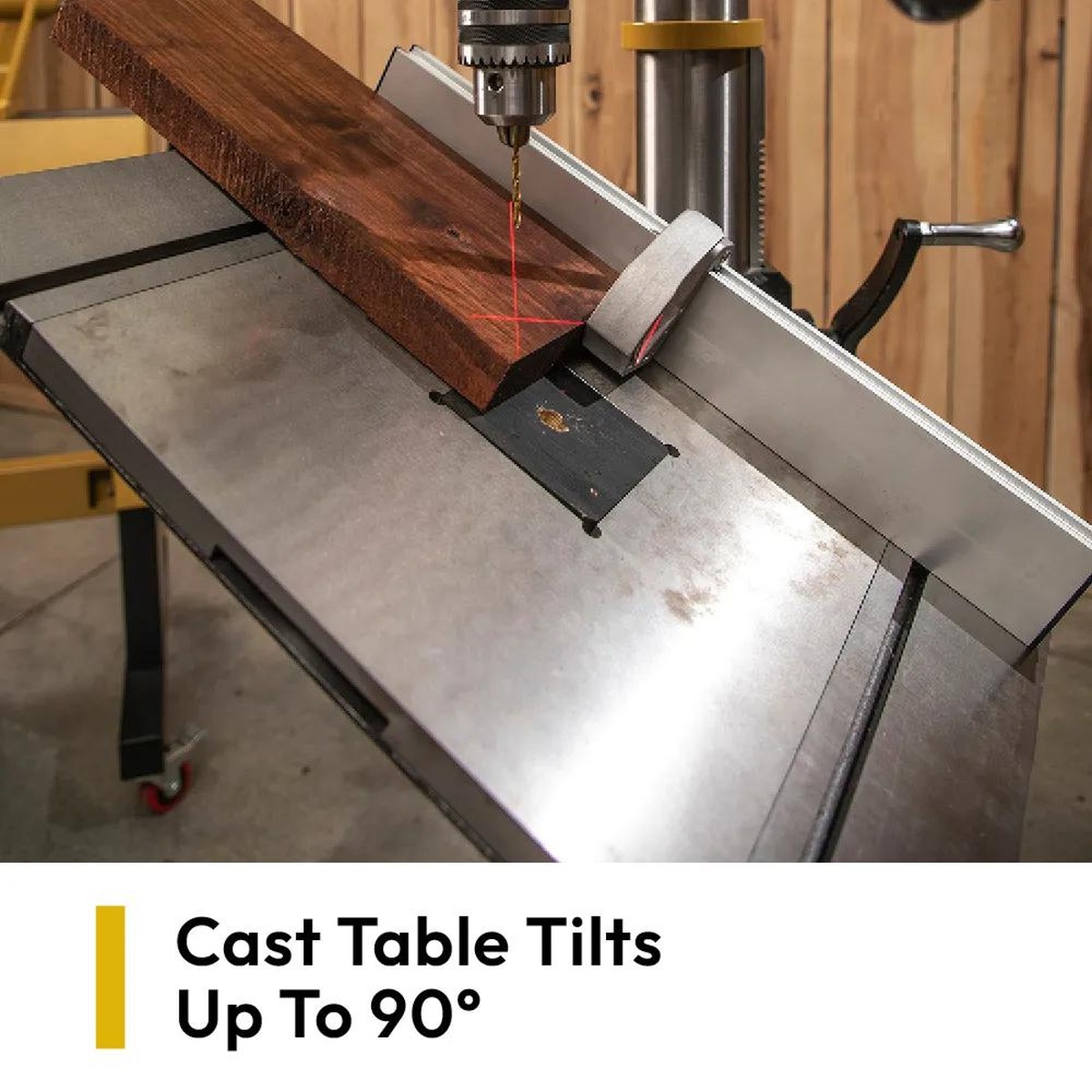

The work support setup is another reason this machine stands out. The cast table measures about 20-1/2 inches by 15-1/2 inches and tilts up to 90 degrees left and right, which opens the door for angled drilling and awkward setups that smaller fixed tables fight you on. The removable insert improves access for oversized material, while the included fence and stop help with repeat drilling and keeping stock aligned. That matters in cabinet work, furniture work, and any shop where consistency matters more than improvising every setup.

From a design standpoint, this is a heavy machine in the best sense of the word. The oversized cast iron base and 336.6 lb net weight are there for stability, not decoration. A floor drill press only earns its keep if it stays planted, tracks straight, and inspires confidence when the material is large or the bit is doing real work. The reversible downfeed handles are also a practical touch, especially if your shop layout or preferred operating position makes one side more comfortable than the other.

Capacity is strong across the board. You get 6 inches of spindle travel, a 5/8 inch chuck, MT2 spindle taper, 41-1/4 inches from chuck to base, and 19-1/4 inches from chuck to table. In plain terms, that means this machine has the room and reach for taller workpieces, deeper drilling travel, and a broad range of shop tasks without constantly running into the limits of the machine.

The Powermatic PM2820EVS Drill Press is best suited for users who want a full-size floor drill press with real capacity, repeatability, and better visibility at the point of cut. It makes sense for woodworking shops, pro makers, school or training shops, and serious DIY users who are done fighting light-duty machines. If your work includes furniture parts, jigs, repetitive drilling, angled holes, or larger stock that needs solid table support, this is the kind of machine you buy once and keep in service for a long time.

Powermatic PM2820EVS Drill Press for Shops That Need Real Control

This is the kind of floor drill press you buy when accuracy, capacity, and repeatability matter more than just owning the biggest machine on the floor.

• Who it's for: Woodworkers, furniture builders, school shops, and serious users who need a full-size drill press for repeat drilling, angled work, and larger stock.
• Why it stands out: The two-range variable speed system, digital readout, laser alignment, integrated depth stop, and heavy cast platform make it a lot more usable than basic floor models.
• Worth knowing: At over 336 lbs net, this machine is built for a dedicated shop spot, not for rolling around every weekend. The upside is the stability you want from a serious drill press.

• Is this a bench-top or floor-standing drill press? This is a floor-standing drill press.
• What speed range does it cover? Powermatic lists two electronic variable speed ranges: 150 to 870 RPM and 600 to 3,600 RPM.
• How much spindle travel does it have? The spindle travel is 6 inches.
• Does it include accuracy aids for repeat drilling? Yes. It includes a cross hair laser system, digital readout, integrated depth stop, fence, and stop for more repeatable drilling work.
