The Shop Fox W1826 Wall Dust Collector is a wall-mounted dust collector built for small to mid-size woodworking shops that need better dust control without giving up valuable floor space. This is a wall-mounted dust collector designed for collecting sawdust and fine wood dust at the source. Model Number: W1826. If you are running a table saw, jointer, planer, band saw, or sander in a tighter shop, this unit gives you a practical way to improve cleanup and air quality with a simple single-machine setup.

The big number here is the 537 CFM air suction capacity. In plain terms, that is enough airflow for many common woodworking machines when you want short, direct hose runs instead of a full ducted system. Shop Fox built this unit around the idea that less ducting means less efficiency loss. For a lot of garage shops and basement shops, that matters more than chasing a bigger collector that is harder to fit and more expensive to install.

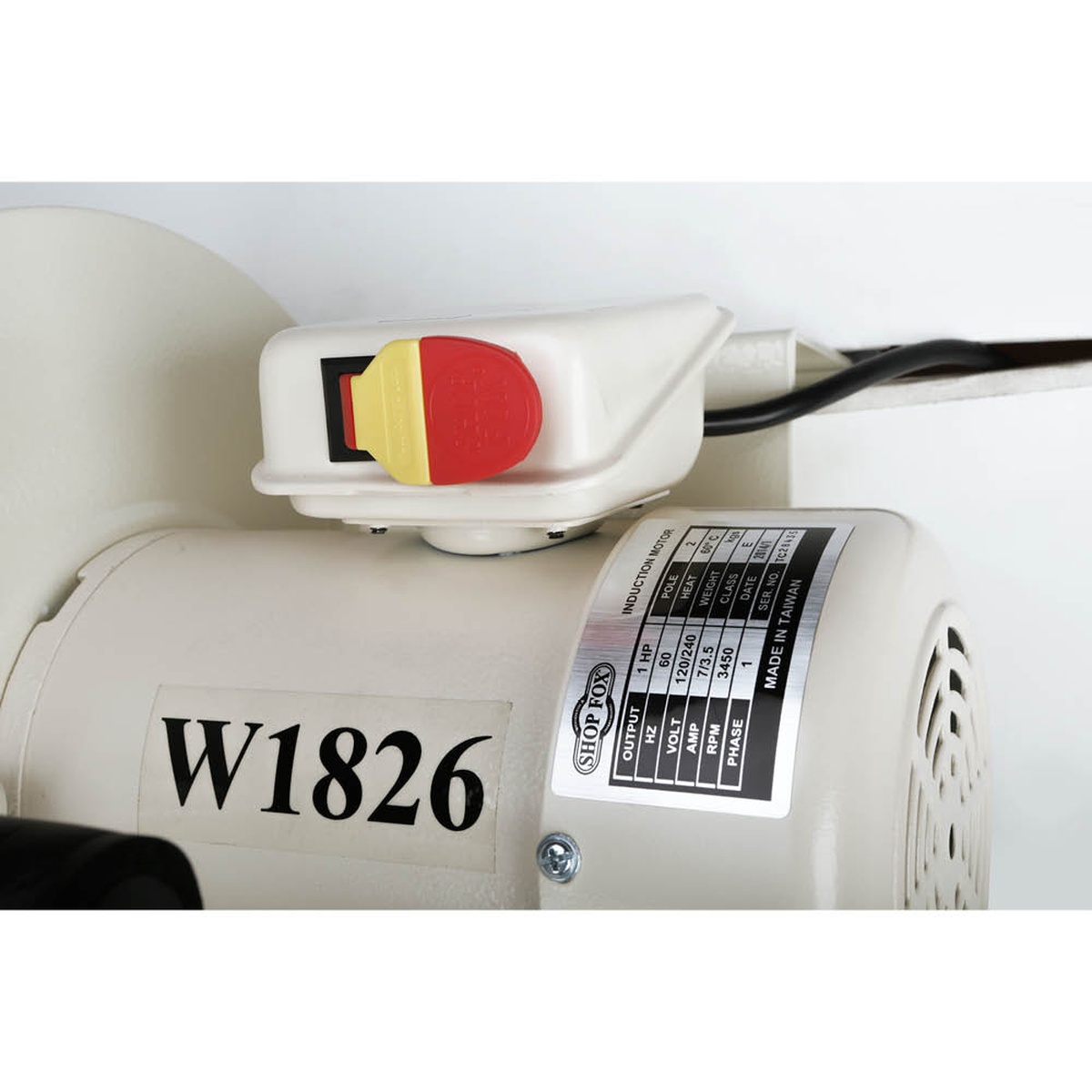

Power comes from a 1 HP single-phase motor that can run on 110V or 220V, and it comes prewired for 110V. That makes the W1826 easier to put into service for most users right out of the box. The listed amp draw is 7A at 110V or 3.5A at 220V, so you have some flexibility if your shop wiring changes later. The 10 inch balanced cast-aluminum impeller is another meaningful detail because balanced metal impellers help with smoother operation and consistent airflow.

From a design standpoint, the wall-mount bracket and locking screw system are a big part of the appeal. This is not a roll-around collector that eats up space beside every tool. You mount it once, keep the footprint off the floor, and run a short hose to the machine you are using. The powder-coated finish also matters more than it sounds. Dust collectors live in dirty environments, and a durable coated housing holds up better over time than bare metal.

Filtration and cleanup are handled by a bag system rated to 2.5 microns with a 2 cubic foot bag capacity. The bag itself measures 13-1/2 inches by 24 inches, and the unit stands 44 inches high with the bag inflated. The viewing window in the bag is a useful real-world feature because you can check dust level without opening anything up. The bottom zipper makes dumping easier than dealing with a fully clamped bag every time it fills.

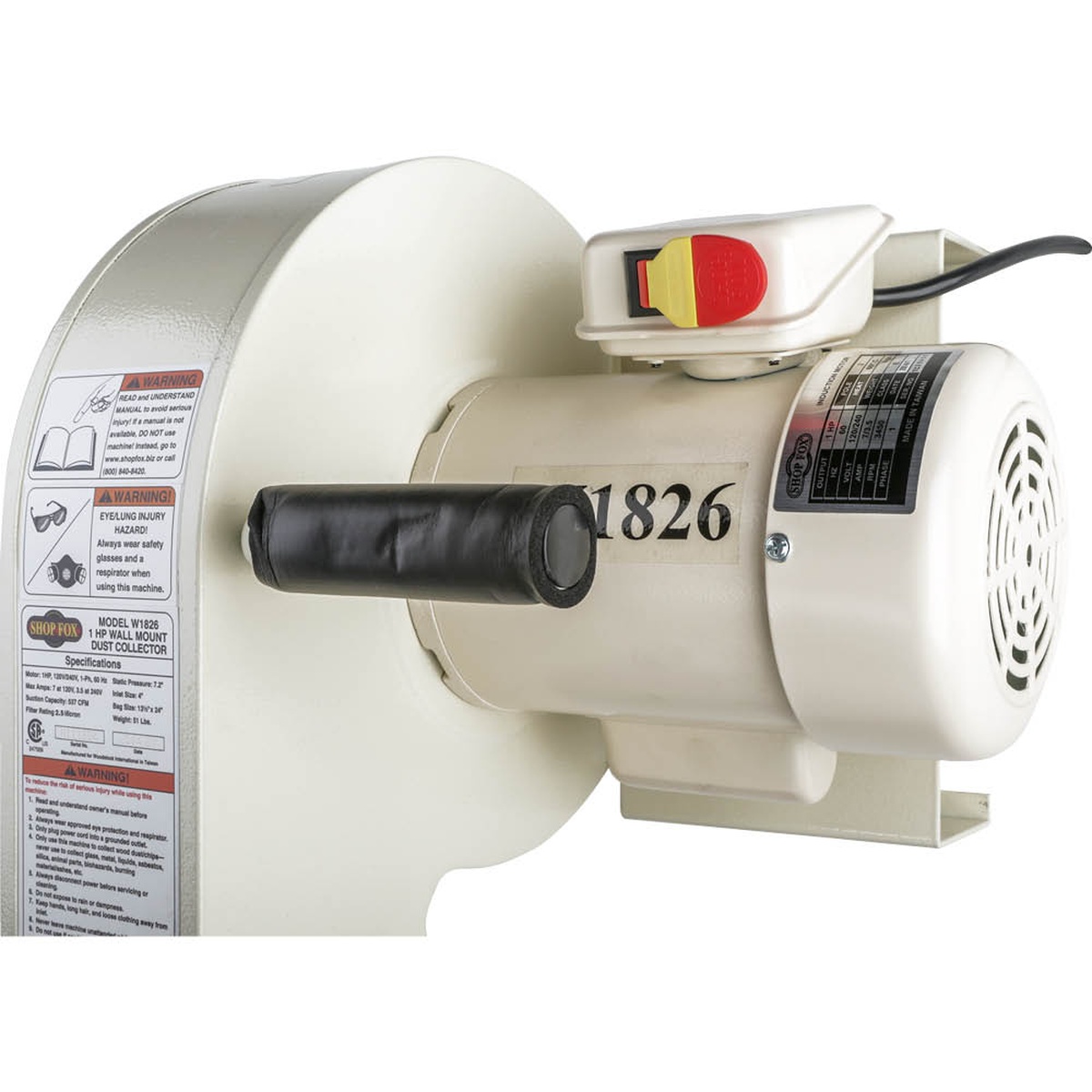

The 4 inch intake is the key connection point, and that size lines up with a lot of common woodworking dust ports and hose setups. This is best used as a direct-connect dust collector, not as the center of a full multi-branch duct network. That is the honest use case. Keep the hose run short, connect it to one machine at a time, and the performance makes sense for the size and horsepower.

For shop safety and compliance, the unit is listed as CSA certified and meets CSA C22.2 #243-M91 and UL 1017 standards. That does not replace good dust collection planning, but it does tell you the machine was built to recognized electrical and vacuum equipment standards.

Who should buy it? Woodworkers, cabinet guys, hobby furniture builders, and serious DIY users who want cleaner operation from individual machines without stepping up to a larger stationary collector. If your shop is short on space and long on sawdust, the Shop Fox W1826 Wall Dust Collector is the kind of practical upgrade that makes daily work cleaner and less annoying.

Shop Fox W1826 Wall Dust Collector for the shop that needs clean air without a big footprint

This is a smart buy for woodworkers who want real dust collection at one machine without dedicating half the shop to a larger collector.

• Who it's for: Small-shop woodworkers, cabinet builders, and serious DIY users running one machine at a time with short hose connections.
• Why it stands out: You get 537 CFM, dual-voltage flexibility, a wall-mounted design, and easier bag maintenance than a lot of bare-bones entry collectors.
• Worth knowing: This is not the machine to build a whole-house duct network around. Use it the way it was intended, direct and simple, and it is a solid setup.

• Is the motor wired for 110V or 220V out of the box? It runs on either 110V or 220V single-phase power, and it comes prewired for 110V.
• What size hose connection does it use? The intake size is 4 inches.
• How fine is the filtration? The standard bag filtration is rated at 2.5 microns.
• What kind of airflow does it produce? The listed air suction capacity is 537 CFM.
