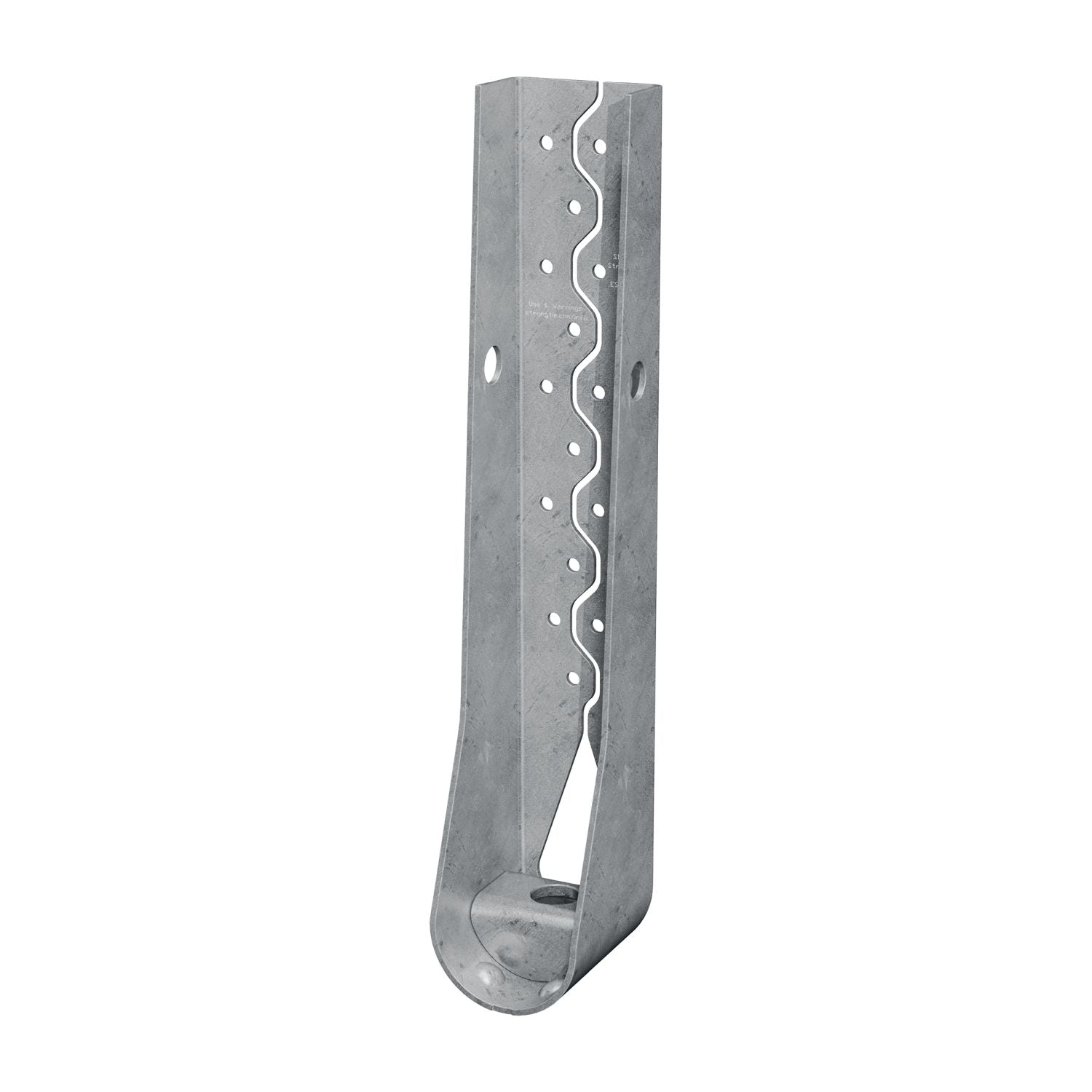

The Simpson Strong-Tie HDU8-SDS2.5 Predeflected Holdown is a heavy-duty holdown for wood construction, built to reinforce critical tie-down connections in shearwalls, braced-wall panels, and other lateral load applications. This is a holdown designed for resisting uplift and overturning forces in wood framing assemblies. Model Number: HDU8-SDS2.5.

What makes this model worth a hard look is how it gets strength on the job without the usual bolt-related hassle. Instead of relying on stud bolts that need countersinking at openings, the HDU design uses Simpson Strong-Tie Strong-Drive SDS heavy-duty connector screws. Those screws are supplied with the holdown, which helps ensure the connection is installed with the proper fasteners from the start. In practical terms, that means faster setup, less guesswork, and less chance of a field substitution that can compromise the connection.

The predeflected body is the big story here. Simpson builds the HDU so the body is already predeflected, which virtually eliminates deflection under load due to material stretch. For framers, builders, and engineers, that is not a throwaway detail. It helps the connection engage more directly when the wall system is loaded, instead of wasting movement in the hardware before the load is fully transferred.

This specific HDU8-SDS2.5 version is made from 10-gauge steel with a Zinc Galvanized, G90 finish. It has a 3 inch width, 16-5/8 inch height, and 3-1/2 inch base dimension. That puts it in the range for serious structural tie-down work where a compact footprint still needs to deliver real holding power. The steel thickness and formed shape are there for one reason: keep the load path direct from the wood member down to the anchorage.

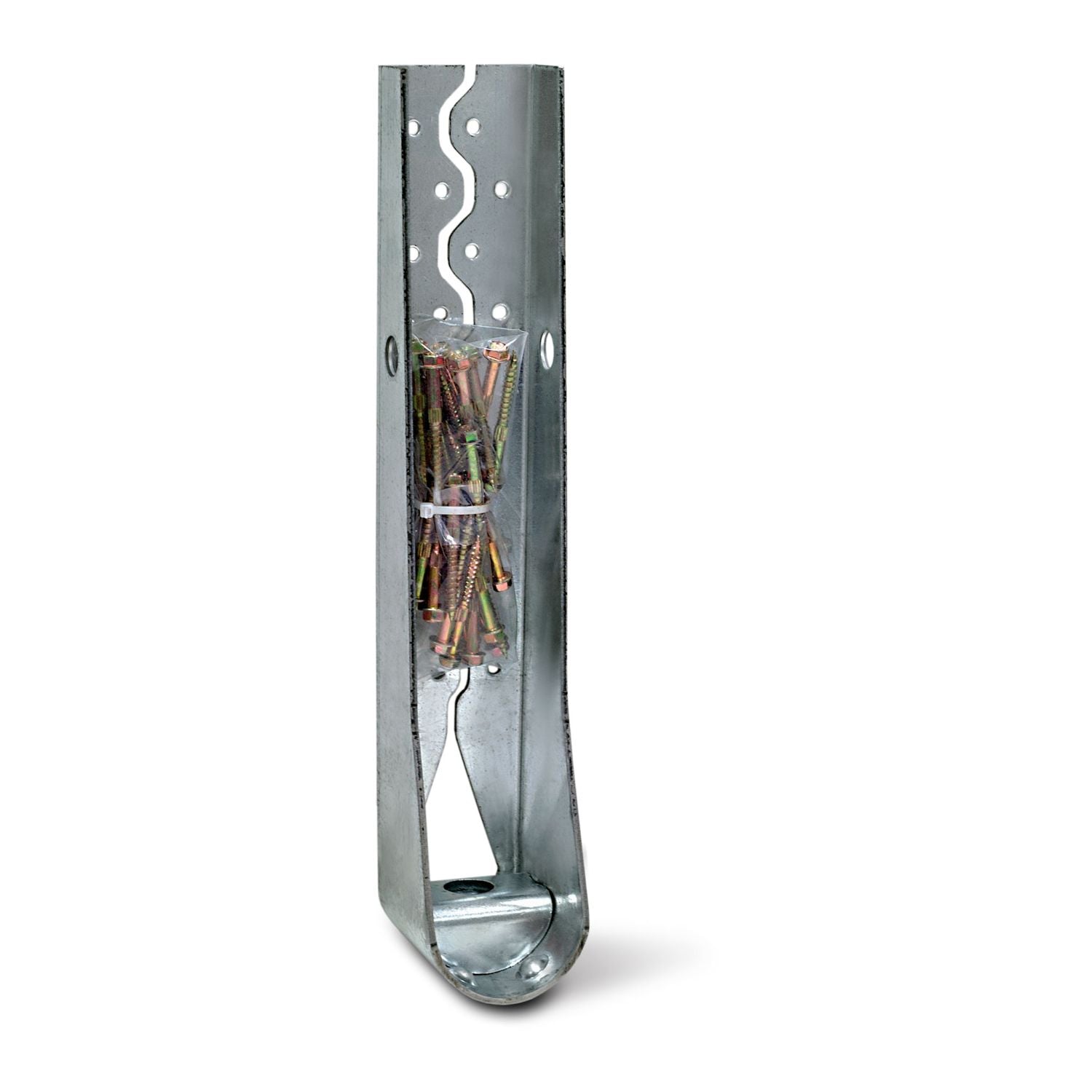

Jobsite practicality is another plus. The HDU requires no additional washer, and the included hardware package for this model contains (20) 1/4 inch x 2-1/2 inch Strong-Drive SDS Heavy-Duty Connector screws plus (1) crescent washer. That is the kind of detail that saves real time when crews are moving fast. You open the box and have the main connection hardware in hand instead of piecing it together from separate bins.

For installation, Simpson notes that the SDS screws install best with a low-speed, high-torque drill equipped with a 3/8 inch hex-head driver. Lowe's also lists installation with a 7/8 inch anchor bolt and the included 1/4 inch x 2-1/2 inch SDS screws. That makes the intended use pretty clear: this is not general hardware for light fastening. It is a purpose-built structural connector for wood-to-wood tie-down assemblies where the anchorage and fastener package are part of a tested system approach.

The galvanized G90 finish adds corrosion resistance for standard applications, and Simpson also notes the HDU family is available in versions with additional corrosion protection. For this SKU, the finish is zinc galvanized, which is the right fit when you need coated steel hardware for typical protected framing conditions and want the standard factory configuration listed for the HDU8-SDS2.5.

If you are a framing contractor, builder, structural repair crew, or serious remodeler working on high-wind construction or other lateral-force details, this holdown makes sense. It is especially useful when you want a cleaner installation than a bolted holdown, when you care about reduced slip, and when you need supplied fasteners that match the connector. If you are just looking for a generic bracket, this is overkill. If you need a real structural holdown for code-driven wood construction details, this is the right category of hardware.

Simpson Strong-Tie HDU8-SDS2.5 Predeflected Holdown Keeps Structural Tie-Down Work Simple

This is a purpose-built structural connector that earns its keep by giving you the right screws in the box, a cleaner installation than old-school bolt-heavy setups, and less connection movement when the load shows up.

• Who it's for: Framers, builders, and remodelers handling shearwall, braced-wall, and high-wind wood framing details.
• Why it stands out: The predeflected body and included SDS screws make this holdown faster to install and more practical than connections that depend on extra bolt work and field improvising.
• Worth knowing: This is structural hardware, not a generic bracket. Make sure your anchor and framing detail match the engineered application you are building.

• What is this product used for? It is used in shearwalls, braced-wall panels, and other lateral wood construction applications where uplift and overturning resistance are required.

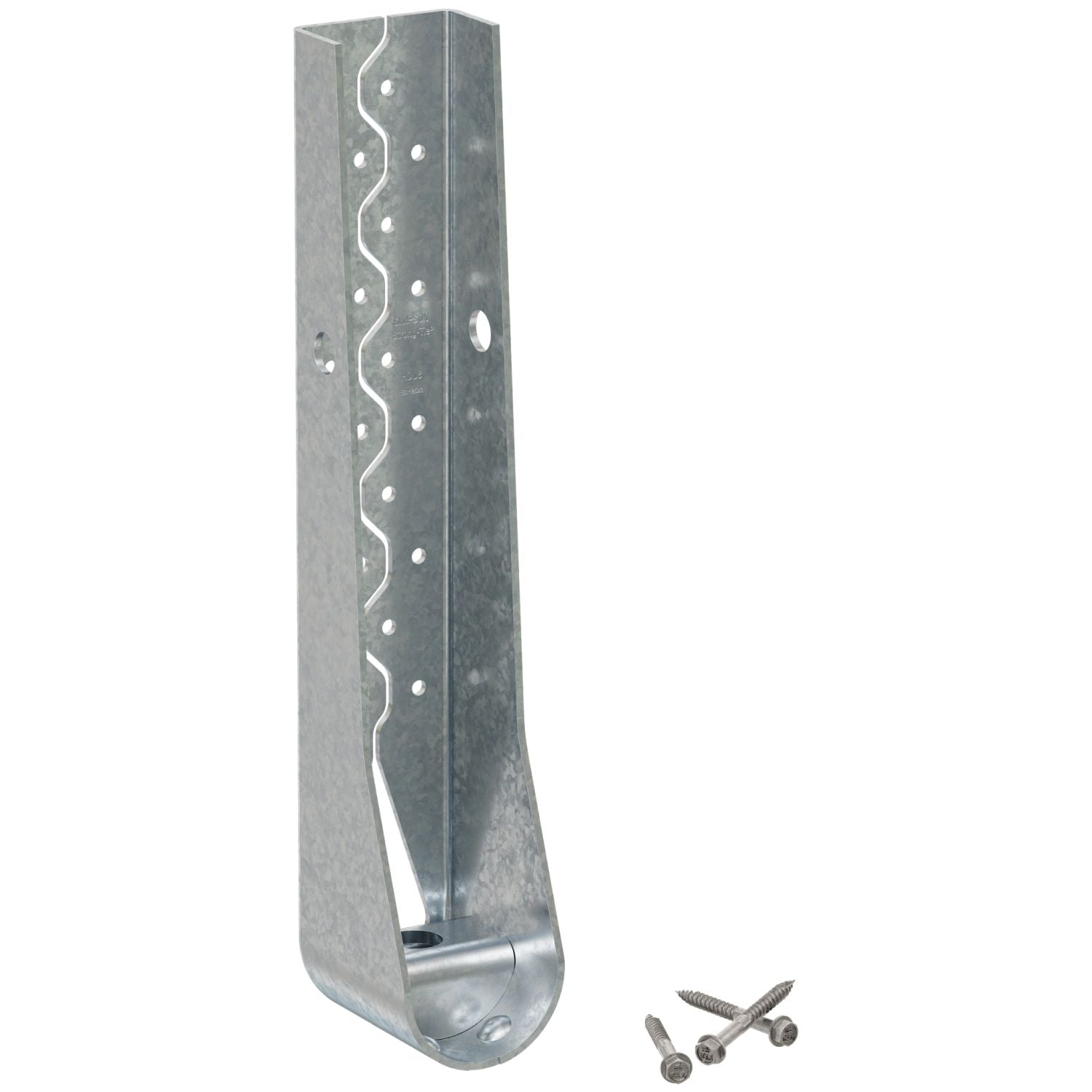

• Are the SDS screws included? Yes. This HDU8-SDS2.5 includes (20) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws and (1) crescent washer.
• Does this holdown need an additional washer? No. Simpson states the HDU requires no additional washer.
• What finish does this model have? This SKU uses a Zinc Galvanized, G90 finish.
