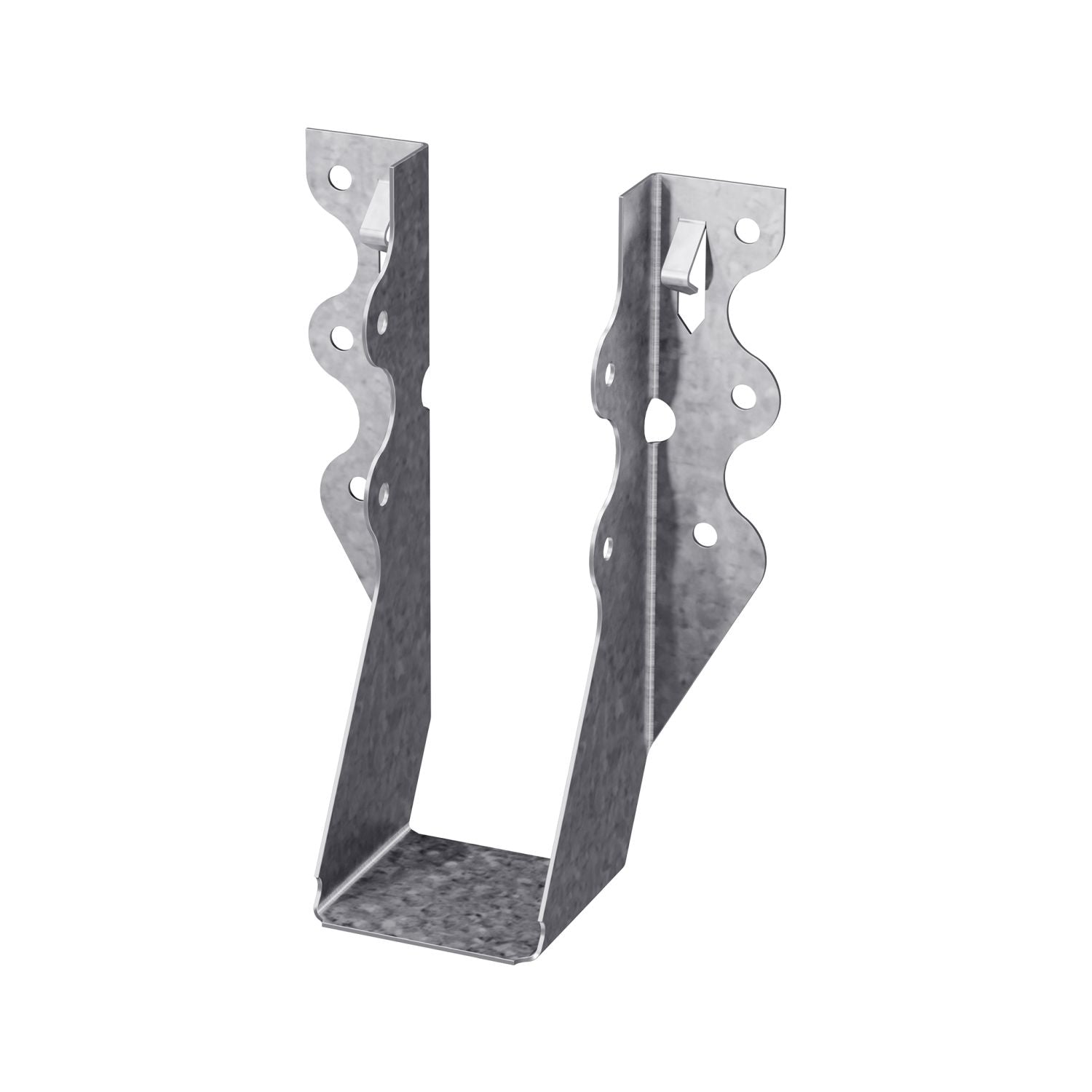

Simpson Strong-Tie LU26 Face-Mount Joist Hanger is a light face-mount connector for joist-to-header installation in wood-framed construction. This is a joist hanger designed for securing wood joists to wood headers in floor and light framing applications. Model Number: LU26. It is built for common 2x6 and 2x8 joist sizes and gives builders a tested, code-compliant way to make a strong connection without slowing down installation.

What separates the LU series from a basic bent bracket is that it is engineered around real published load data, not guesswork. Simpson Strong-Tie states the LU-series hangers are tested, load rated, and code compliant, and the LU26 can be installed with specified fastener selections that have tested allowable loads. For buyers, that means you are not just getting a piece of shaped steel. You are getting a connector with known performance values that can be matched to the framing job.

The LU26 uses a face-mount layout, so it attaches to the supporting member and cradles the joist at the seat. The 1 9/16 in. width is sized around standard 1 1/2 in. nominal lumber thickness, while the 4 3/4 in. height gives enough body for the required fastener pattern. In plain terms, it is made to fit the lumber it is supposed to fit, without forcing the installer to fight the connector or modify the framing to make it work.

One of the most useful design details here is the built-in speed prong. That small feature matters on the job because it helps temporarily position and secure the hanger before full fastening. If you are laying out a run of joists, that little bit of hold makes the work cleaner and faster, especially when you are working alone or moving quickly through repetitive connections.

The LU26 is made from 20-gauge steel with a zinc galvanized G90 coating. The galvanized finish is there for corrosion resistance in standard interior dry-use framing conditions. It is a practical finish for typical residential and light construction work where the hanger is going into protected wood framing. If your application calls for a more aggressive corrosion solution, you would want to verify the required connector finish for that environment, but for normal interior framing this standard galvanized version is the right starting point.

Published fastener information is another reason this connector earns its keep. For the LU26, the load table lists 6 SD9112 fasteners in the face and 4 SD9112 fasteners in the joist. That gives installers a clear fastening path and helps designers, builders, and inspectors stay on the same page. Simpson also notes that all specified fasteners should be used, and that if you are nailing into the end grain of a solid sawn carrying member, allowable load is adjusted by a factor of 0.67. That is the kind of detail that matters in the field.

Load capacity is where the LU26 becomes more than just a convenience part. Based on the published table, allowable download values are listed at 1025 lb for Douglas Fir/Southern Pine floor loading and 1030 lb for SPF/HF floor loading, with additional values published for snow, roof, and uplift cases. Those numbers give contractors and framers a real basis for selecting the connector instead of just matching shape to lumber size and hoping for the best.

The best fit for this Simpson Strong-Tie LU26 Face-Mount Joist Hanger is anyone doing wood framing where joists need a secure connection to a header or beam. That includes residential framing crews, remodelers tying new floor framing into existing structures, deck and porch builders working in approved conditions, and serious DIY users who want the right connector instead of improvising. If you need a compact, tested hanger for 2x6 or 2x8 framing members, this is the straightforward, jobsite-proven option.

Simpson Strong-Tie LU26 Face-Mount Joist Hanger Keeps Framing Simple

If you are framing with 2x6 or 2x8 members and want a connector with published numbers instead of guesswork, this is the kind of part you buy once and use without second-guessing.

• Who it's for: Framers, remodelers, deck and floor builders, and serious DIY users making joist-to-header connections in wood framing.
• Why it stands out: The speed prongs make installation easier, and the tested load data gives this hanger real credibility beyond just fit and finish.
• Worth knowing: This is a standard galvanized interior-use style connector, so always match the finish and the specified fasteners to the job conditions before you start hanging joists.

• What lumber sizes does the LU26 fit? The LU26 is listed for 2x6 and 2x8 joist sizes.
• Is this a face-mount or top-flange hanger? It is a face-mount joist hanger designed for joist-to-header installation.
• What fasteners are used for the published LU26 loads? The load table lists 6 SD9112 fasteners in the face and 4 SD9112 fasteners in the joist.
• Is the LU26 code compliant? Simpson Strong-Tie states that LU-series hangers are tested, load rated, and code compliant.
