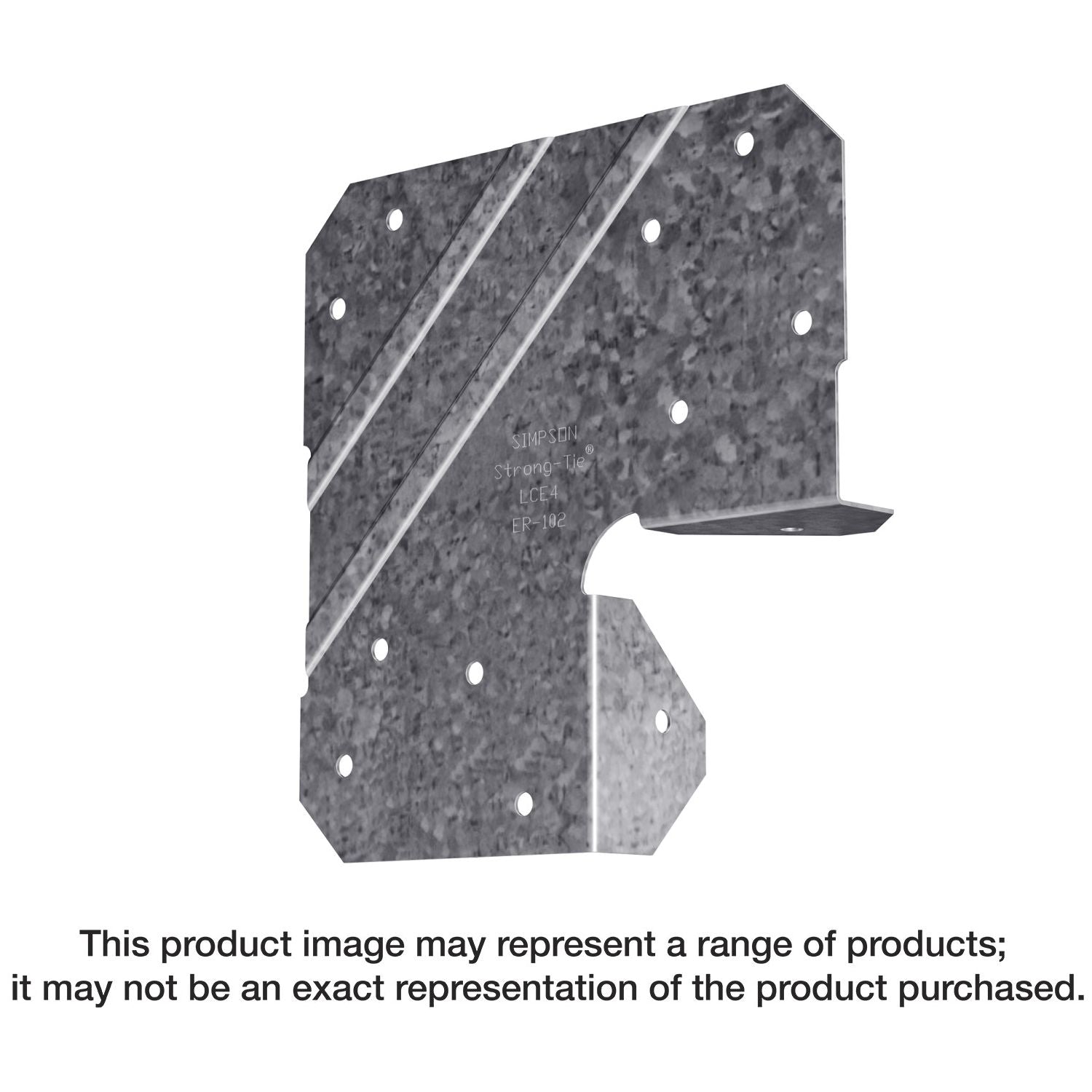

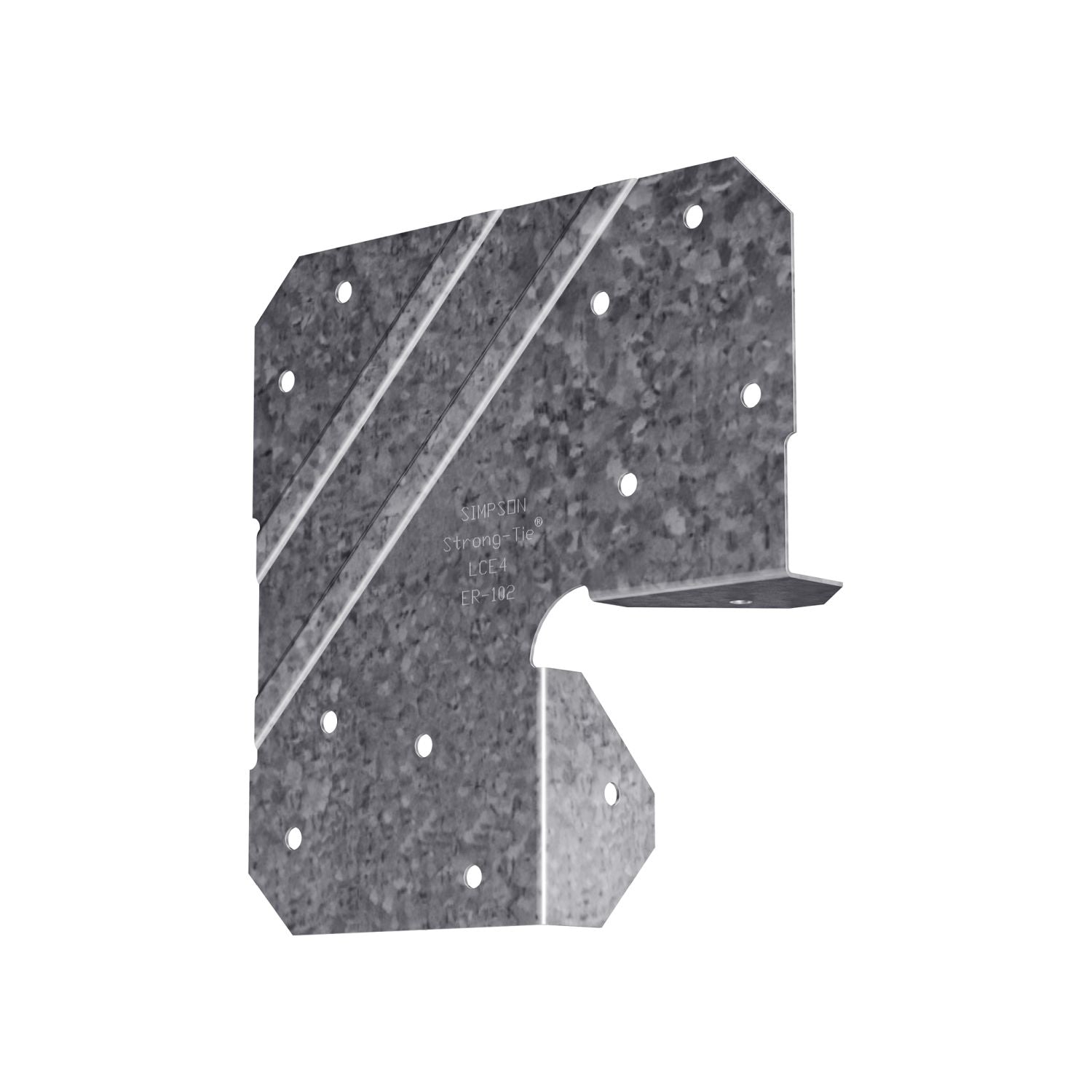

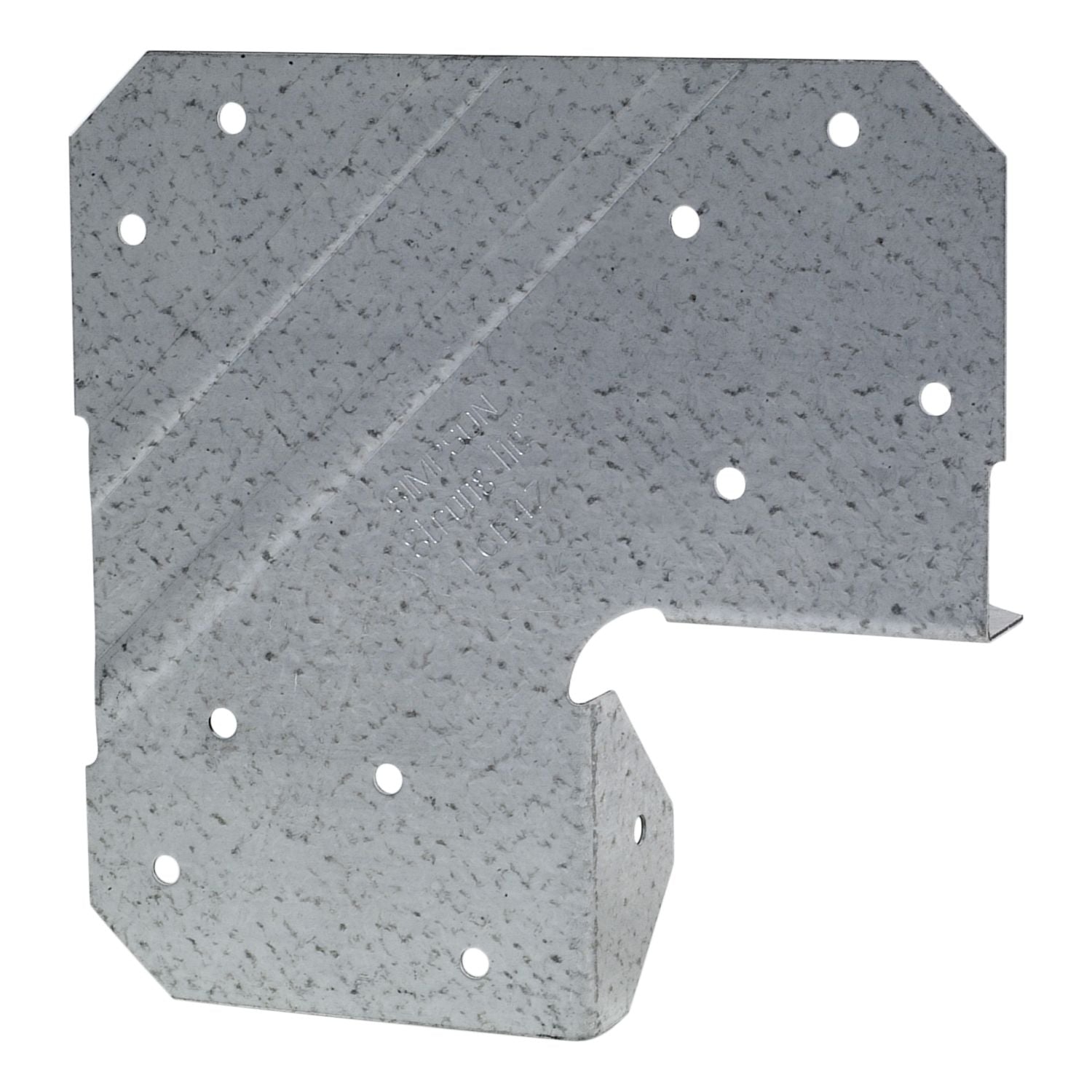

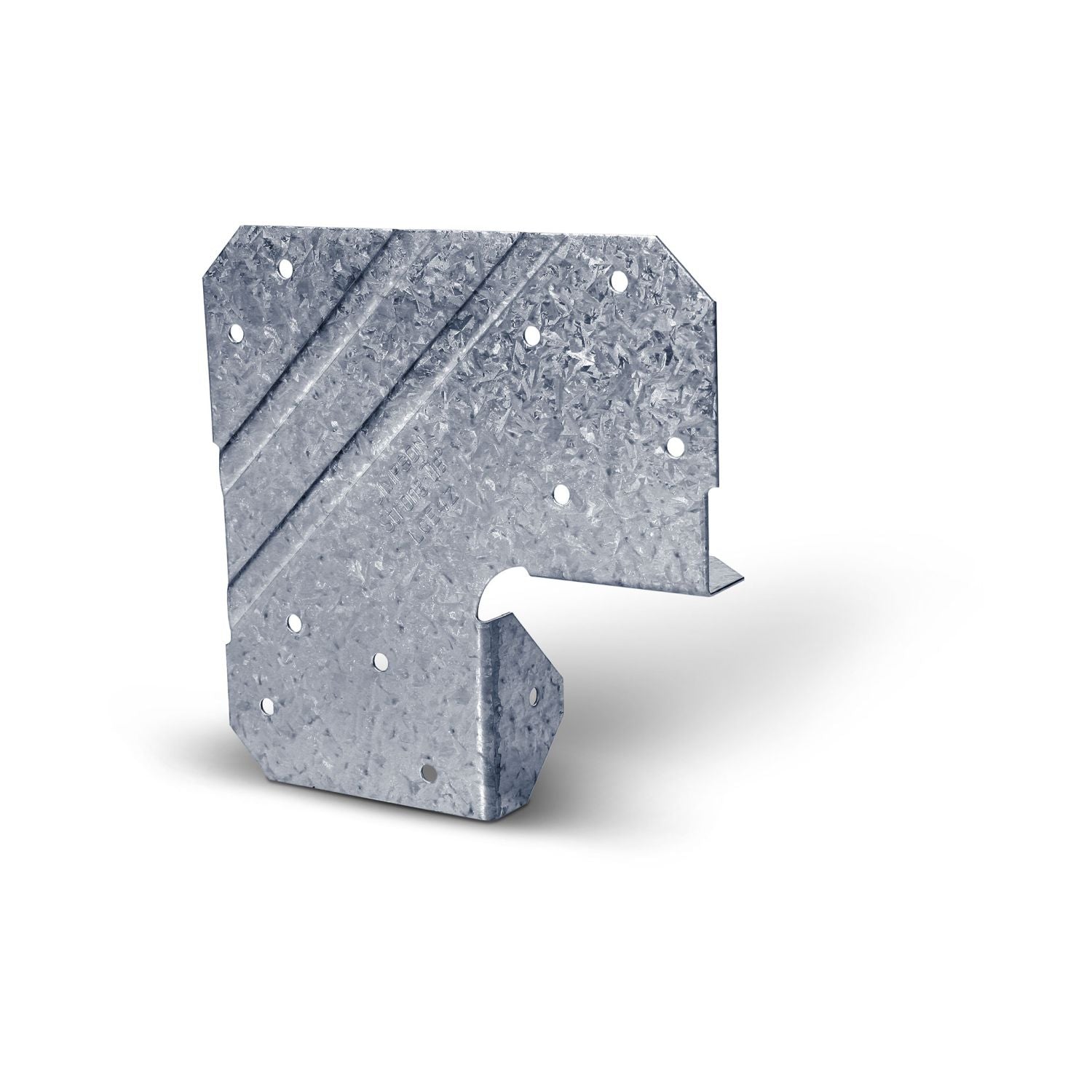

Simpson Strong-Tie LCE4 LCE Galvanized End Post Cap for 4x
Simpson Strong-Tie LCE4 LCE Galvanized End Post Cap for 4x
Out of Stock - Available to Order - Usually ships in 5-7 days
Product Details
Product Details
- Always install in pairs; universal design eliminates need for rights and lefts
- Stronger than angled nailing or screw fastening; eliminates nailing into end grain
- Tested and approved for mitered end conditions
- For use with nominal 4x or 6x lumber
- Height: 5-3/8 in.
- Made from 20-gauge steel
- Galvanized (G90) for extra corrosion resistance
Post caps secure a wood beam to the top of a wood post. They transfer the load into the post and eventually into the foundation. Simpson Strong-Tie post caps are available in a variety of sizes to accommodate various beam and post configurations. The LCE is designed to provide a connection when the end of a beam bears on a post. The versatile, two-piece design of this light post cap for end conditions can accommodate 4x and 6x lumber. The LCE is ideal for both new and retrofit construction and is load rated when installed in pairs.
- Always install in pairs; universal design eliminates need for rights and lefts
- Stronger than angled nailing or screw fastening; eliminates nailing into end grain
- Tested and approved for mitered end conditions
- For use with nominal 4x or 6x lumber
- Height: 5-3/8 in.
- Made from 20-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: (12) 0.162 in. 3-1/2 in. nails or (12) #10 x 1-1/2 in. Strong-Drive SD Connector screws for each LCE4 part
