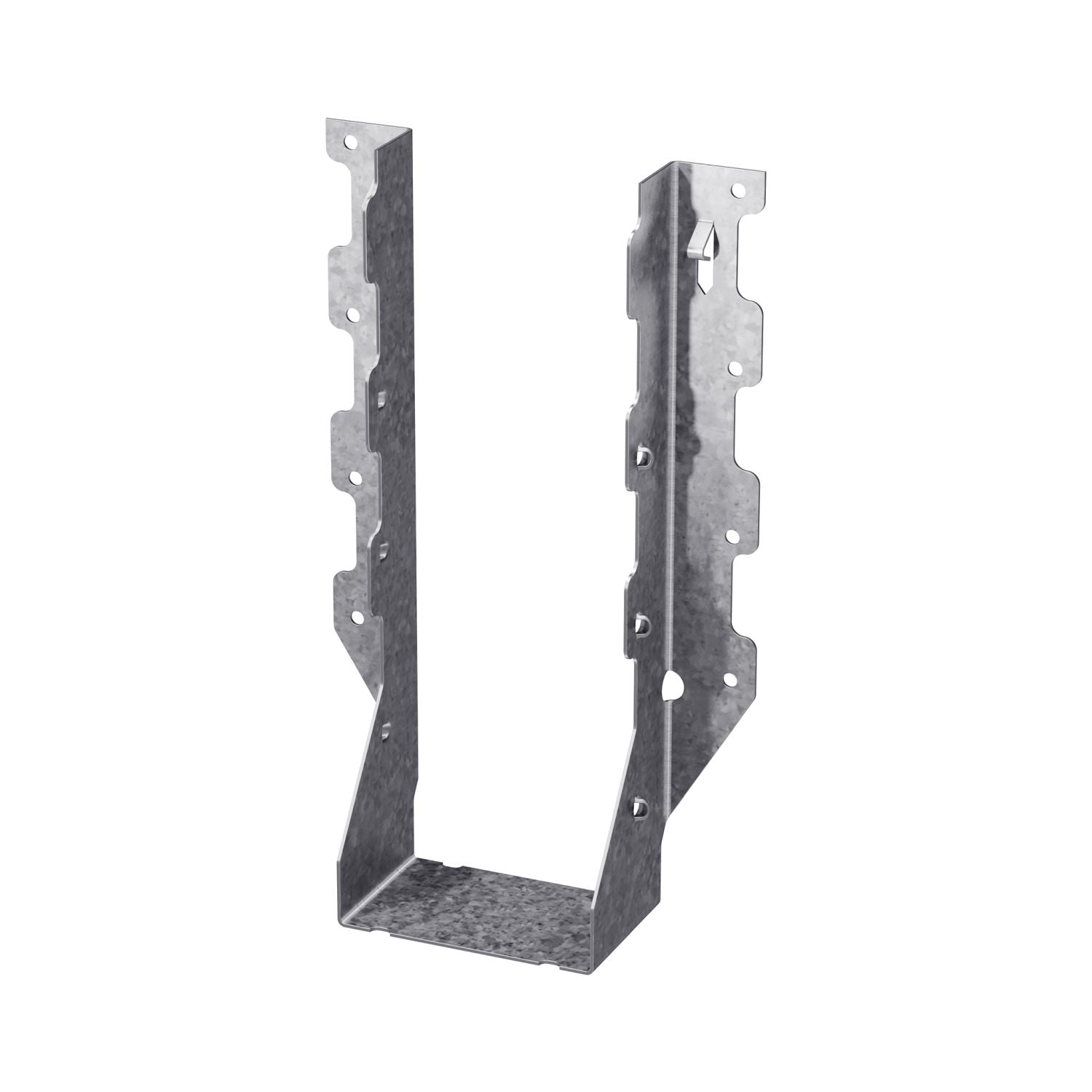

The Simpson Strong-Tie LUS210-2Z face mount joist hanger is a double 2x10 light double-shear hanger built for wood-to-wood framing connections. This is a face mount joist hanger designed for supporting double 2x10 and double 2x12 members in structural wood framing. Model Number: LUS210-2Z. If you need a hanger that installs quickly, fits common lumber sizes, and gives you a strong connection without overcomplicating the job, this is the right style of hardware.

What makes the LUS series popular is that it solves a real jobsite problem: getting a rated connection without burning extra time on awkward nailing. The patented double-shear nailing pattern gives greater strength with fewer nails, and the angled joist nailing is easier to drive in tight spaces. Simpson also adds speed prongs, so you can temporarily position and secure the connector before finishing the install. For anyone laying out multiple hangers, that saves time and helps keep parts from shifting.

This specific LUS210-2Z version is sized for double 2x10 members and is also listed for a maximum size of double 2x12. It is made from 18-gauge steel and uses a ZMAX galvanized coating. In practical terms, that means you get a lighter-duty face-mount hanger format that still gives you the corrosion resistance needed for many exterior builds and treated-wood applications where a basic zinc finish is not the best choice.

The hanger is part of Simpson Strong-Tie's LUS family, which is tested, load rated, and code compliant. It is an economical connector, but not a flimsy one. The design is meant for common lumber sizes, which is why contractors, deck builders, framers, and serious DIY users reach for it over and over. The formed seat supports the carried member from below, while the side flanges and double-shear nail pattern help transfer load back into the header.

On the installation side, there are a few things worth paying attention to. Simpson specifies using all required fasteners, and the joist nails need to be driven at an angle through the joist or truss into the header to achieve listed loads. Lowe's also notes compatibility with 16d common nails or #10 x 2-1/2 inch Strong-Drive SD screws. Just as important, this connector cannot be modified. Do not bend or remove tabs, and do not use it for welded or nailer applications.

In the field, the ZMAX finish is one of the big reasons to step up to this exact model instead of a standard galvanized version. If you're tying into pressure-treated lumber, exterior framing, deck work, or other areas where corrosion matters, the coating buys you durability where it counts. That does not replace proper fastener selection, but it does give the connector itself better resistance than a standard light galvanized finish.

Who should buy it? This hanger makes the most sense for deck builders, remodelers, framers, and homeowners doing structurally sound wood framing repairs or additions. If your job calls for a face-mount hanger for double 2x10 members and you want a known, code-recognized connector from a brand inspectors see every day, the LUS210-2Z is an easy call. It is not adjustable, skewed, or slopeable, so buy it when the application matches the hanger, not when you need something field-bent or custom-fit.

A smart pick when you need a real structural hanger, not a workaround

The Simpson Strong-Tie LUS210-2Z face mount joist hanger is the kind of connector that keeps framing simple, fast, and inspector-friendly.

• Who it's for: Contractors, deck builders, remodelers, and serious DIYers installing double 2x10 framing members in wood-to-wood applications.
• Why it stands out: The double-shear design cuts down on nails, the speed prongs help during layout, and the ZMAX coating makes more sense than basic galvanized when treated wood is in the mix.
• Worth knowing: This is not a bend-it-to-fit connector. Match the hanger to the member size, use the specified fasteners, and leave the tabs alone.

• What size framing is this hanger made for? It is sized for double 2x10 members and is listed with a maximum size of double 2x12.
• Can this be used with treated lumber? Yes. The ZMAX galvanized coating is intended to provide added corrosion resistance for exterior and treated-wood applications.
• What fasteners does it use? Lowe's lists 16d common nails or #10 x 2-1/2 inch Strong-Drive SD screws for installation.
• Is this hanger adjustable or field-modifiable? No. It is not adjustable, and Simpson states the connector cannot be modified.
