Stabila 35712 7-to-12 foot Expandable Plate Spirit Level
Stabila 35712 7-to-12 foot Expandable Plate Spirit Level
In Stock - Ready to Ship from Manufacturer
Product Details
Product Details
Key Features
Overview

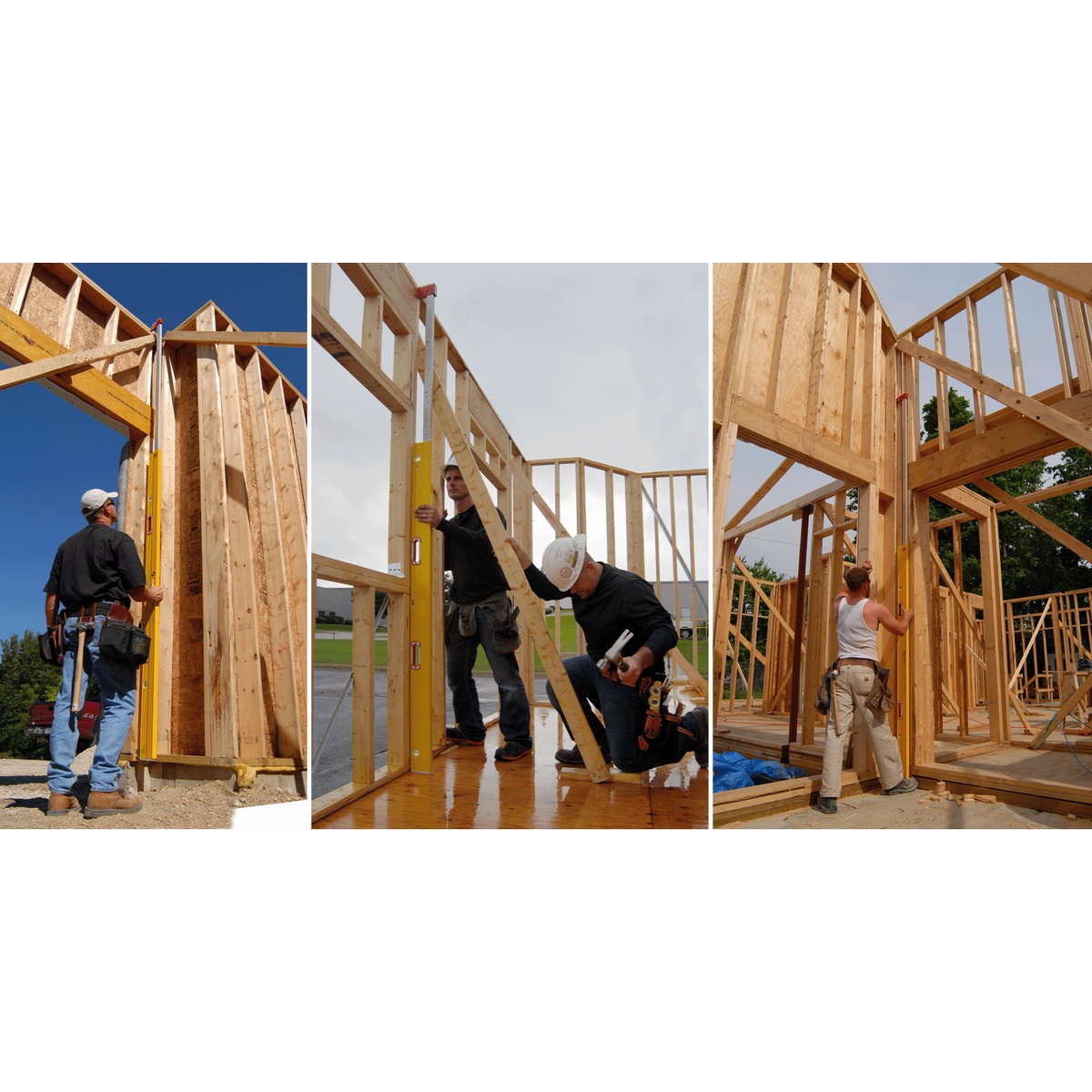

The Stabila 35712 7-to-12 foot Expandable Plate Spirit Level is a professional extendable level built for framing, layout, and installation work where standard levels come up short. This is an extendable plate spirit level designed for plumbing tall walls, tall door frames, floor-to-ceiling sliding glass window openings, and high-risk cabinet installations. Model Number 35712. If you regularly work on full-height framing or tall openings, this tool is about getting plumb faster and with fewer workarounds.
The big selling point is the telescoping range. Retracted, the level measures 84 inches. Extended, it reaches 147.75 inches. That gives you one tool that covers routine wall work and taller layouts without forcing you to swap to a different level. Stabila also prints a positioning scale on both sides of the extension pole for fast setups, so when you need a repeatable working length like 9 feet 1 inch or 10 feet 1 inch, you are not guessing.
Accuracy is where this tool earns its keep. In the retracted normal position, it is rated at 1/32 inch over 72 inches. In reverse position, it is rated at 3/64 inch over 72 inches. In the extended normal position, accuracy is 1/8 inch over 120 inches. Those numbers matter because wall and opening errors get expensive fast once trim, doors, glass, or cabinets show up. Stabila also calls out matched vials so both plumb readings stay consistent when leveling, which is exactly what you want in a long-format framing and installation level.

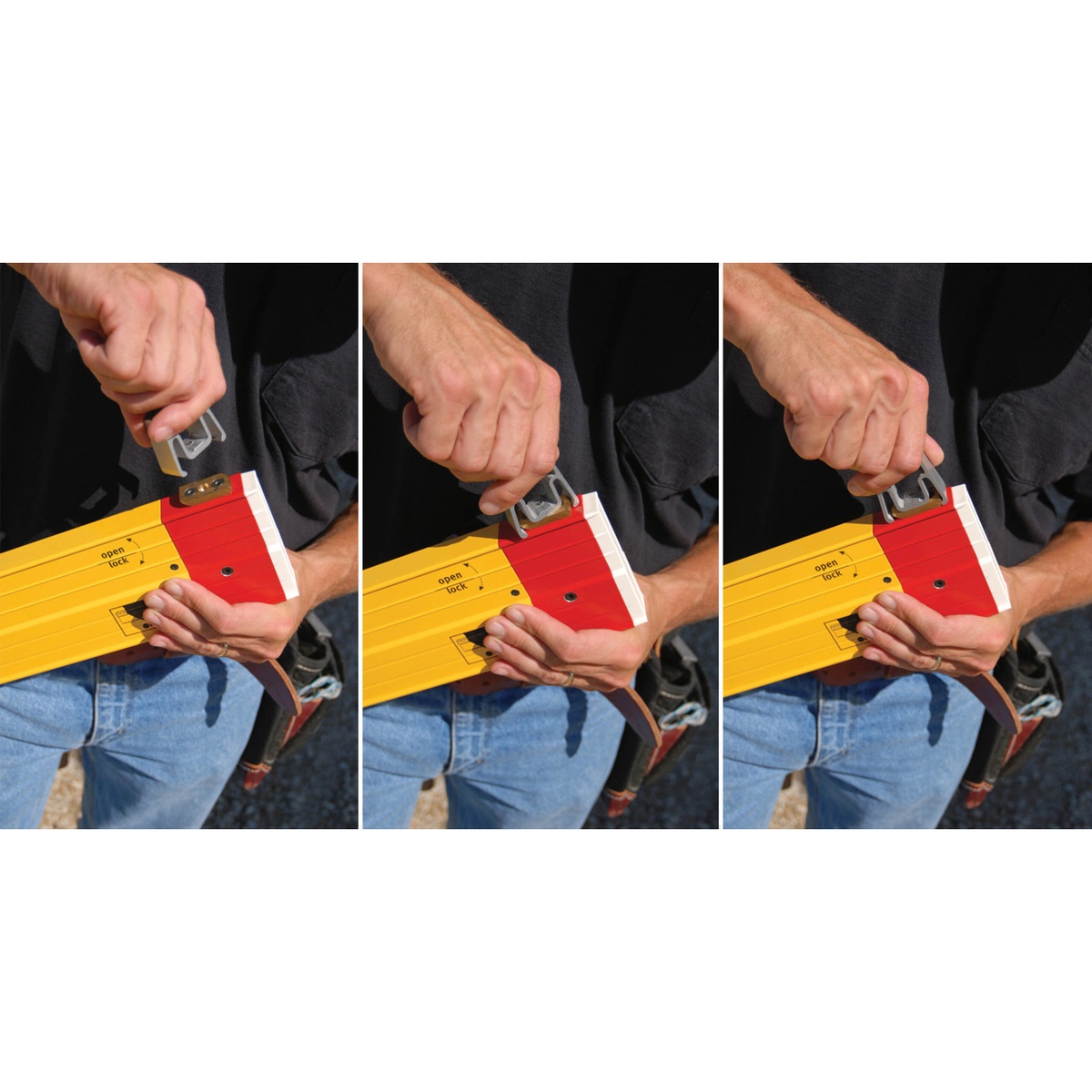

Construction is jobsite-focused. The frame uses a reinforced multi-chamber aluminum profile with reinforcing ribs, plus a continuous bridge over the horizontal vial to increase profile stability. The extension rail is fully sealed and six sided, which helps limit deflection and keeps extension movement smoother than looser telescoping designs. There are also plastic end caps to protect the profile from impact, and the body includes two finger-grip openings for easier handling when you are moving a long level around framing.
Stabila did not build this like a generic long spirit level. It has one horizontal vial, two vertical vials, and two measuring surfaces, so it is clearly aimed at wall plate alignment and tall plumb checks rather than basic punch-list work. The plumb vial is intended to stay at eye level during use, which is a practical advantage when you are checking tall sections and do not want to climb up and down just to verify the bubble.
For real-world use on framed walls, removable 1-5/8 inch stand-offs are included so you can work around diagonal wall braces and uneven contact points. Fixed spacers also help even out irregularities on the object being measured. That is a small detail until you are trying to get a clean reading on a framed opening that is not perfectly flush from top to bottom.
This Stabila level is made in Germany and weighs about 5 pounds assembled, which is reasonable for a tool this long and specialized. It is best suited for framers, carpenters, remodelers, door and window installers, and cabinet installers who need a dedicated tall-opening level instead of making do with shorter box levels. If your work rarely goes beyond standard-height checks, this is more tool than you need. If you regularly plumb tall assemblies, it makes a lot of sense.
Handle Full-Height Framing Without Chasing a Short Level
This is the kind of level you grab when the wall is too tall for a normal box level and accuracy still matters. The extendable design gives you the reach to check long vertical runs in one shot instead of stepping measurements up the wall.
- Adjusts from 84 inches to 147.75 inches
- Built for tall walls, doors, sliding glass window openings, and cabinet installations
Built to Stay Straight When Extended
Telescoping tools are only useful if they stay rigid enough to trust. Stabila uses a reinforced frame and a fully sealed six-sided extension rail to cut down on flex and keep the extension action smooth.
- Reinforced multi-chamber aluminum profile with ribs
- Fully sealed solid rail extension helps reduce deflection
Fast Setup for Repeated Layout Work

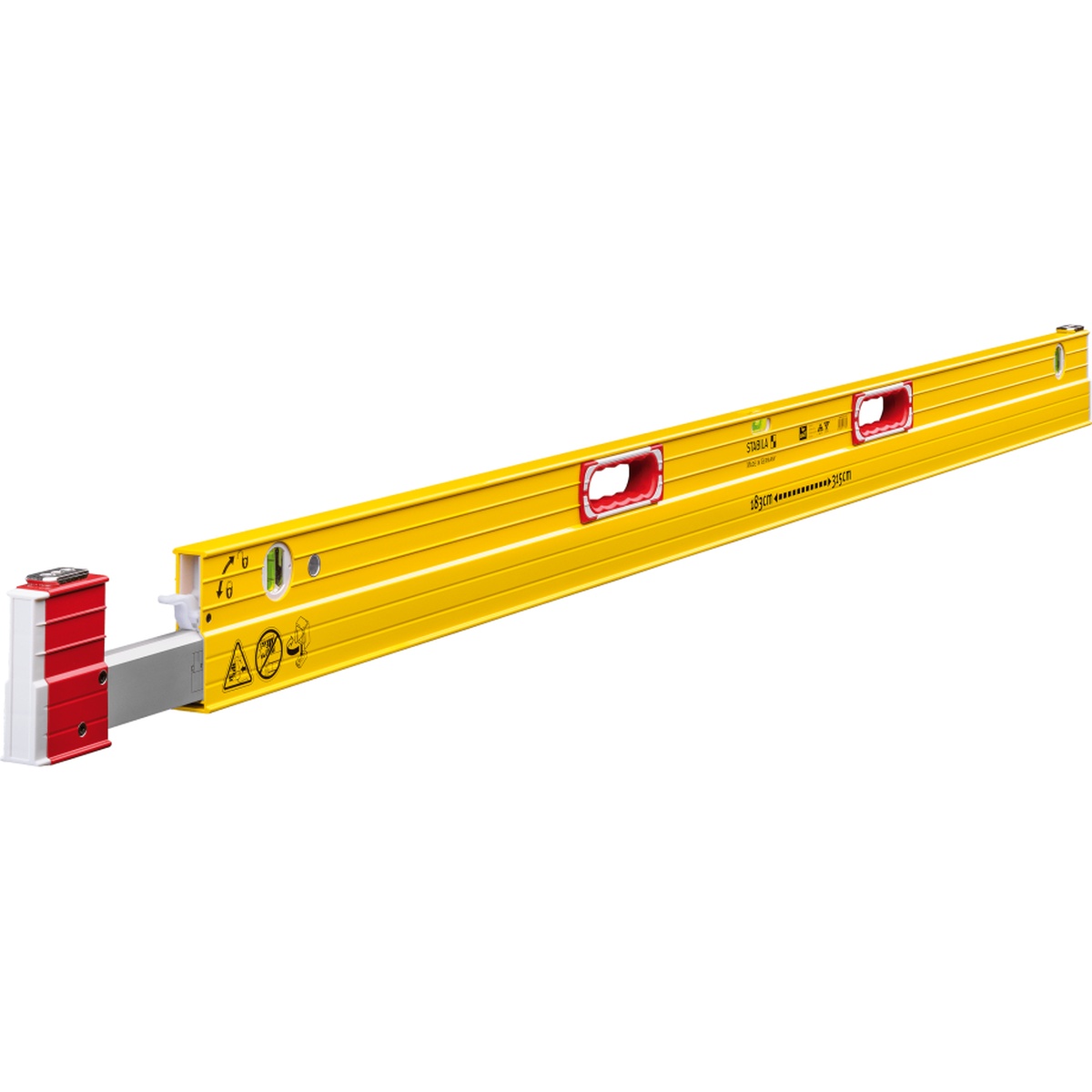

When you are repeating common opening heights, little details matter. The printed scale on both sides of the extension pole speeds up setup, and the vial layout keeps plumb checks easy to read during wall and opening installation.
- Scale markings on both sides of the extension pole for repeat lengths
- One horizontal vial, two vertical vials, and two measuring surfaces
What's in the Box
- (1) Type 106 T 7 to 12 foot plate level
- (2) Aluminum stand-offs
Key Specifications
| Retracted Length | 84 in |
|---|---|
| Extended Length | 147.75 in |
| Measurement Accuracy, Normal Position | 1/32 in @ 72 in |
| Measurement Accuracy, Reverse Position | 3/64 in @ 72 in |
| Measurement Accuracy, Extended Normal Position | 1/8 in @ 120 in |
| Number of Measuring Surfaces | 2 |
| Weight | 5 lbs |
| Made In | Germany |
Built For
Pro Tip
If you are checking repeated wall or opening heights, set the extension by the printed scale instead of measuring the level every time. And when braces get in the way, snap on the stand-offs so the frame sits clear and the reading stays honest.
Warranty & Support
Tool Nut's Take
Stabila 35712 7-to-12 foot Expandable Plate Spirit Level for crews that actually build tall openings
This is a purpose-built framing and installation level that solves a real jobsite problem: keeping tall work plumb without stacking shorter levels and hoping the error does not show up later.
- Who it's for: Framers, carpenters, remodelers, and installers working on tall walls, door units, sliding glass openings, and full-height cabinet layouts.
- Why it stands out: The long reach, rigid sealed extension rail, matched vial accuracy, and stand-offs make it more than just a long level. It is built specifically for plate and opening work.
- Worth knowing: This is a specialized tool, not an everyday grab-and-go level. If you do tall plumb work often, it earns its spot. If you do not, a standard box level may make more sense.
Common Questions
- What is the adjustment range? The level retracts to 84 inches and extends to 147.75 inches, covering roughly 7 to 12 feet.
- How accurate is it? Accuracy is rated at 1/32 inch over 72 inches in normal retracted position, 3/64 inch over 72 inches in reverse retracted position, and 1/8 inch over 120 inches in extended normal position.
- What kind of work is it made for? It is designed for plumbing tall walls and for installing tall doors, floor-to-ceiling sliding glass windows, and custom kitchen cabinets.
- Where is it made? This plate level is made in Germany.
