The Stabila 02180 LA 180L Layout Laser Level Set (Model Number: 02180) is a self-leveling multi-line laser layout station built to establish right angles and transfer layout lines indoors or outdoors. This is a multi-line laser level designed for layout and squaring work, especially when you need repeatable 90 degree reference lines without pulling diagonals all day.

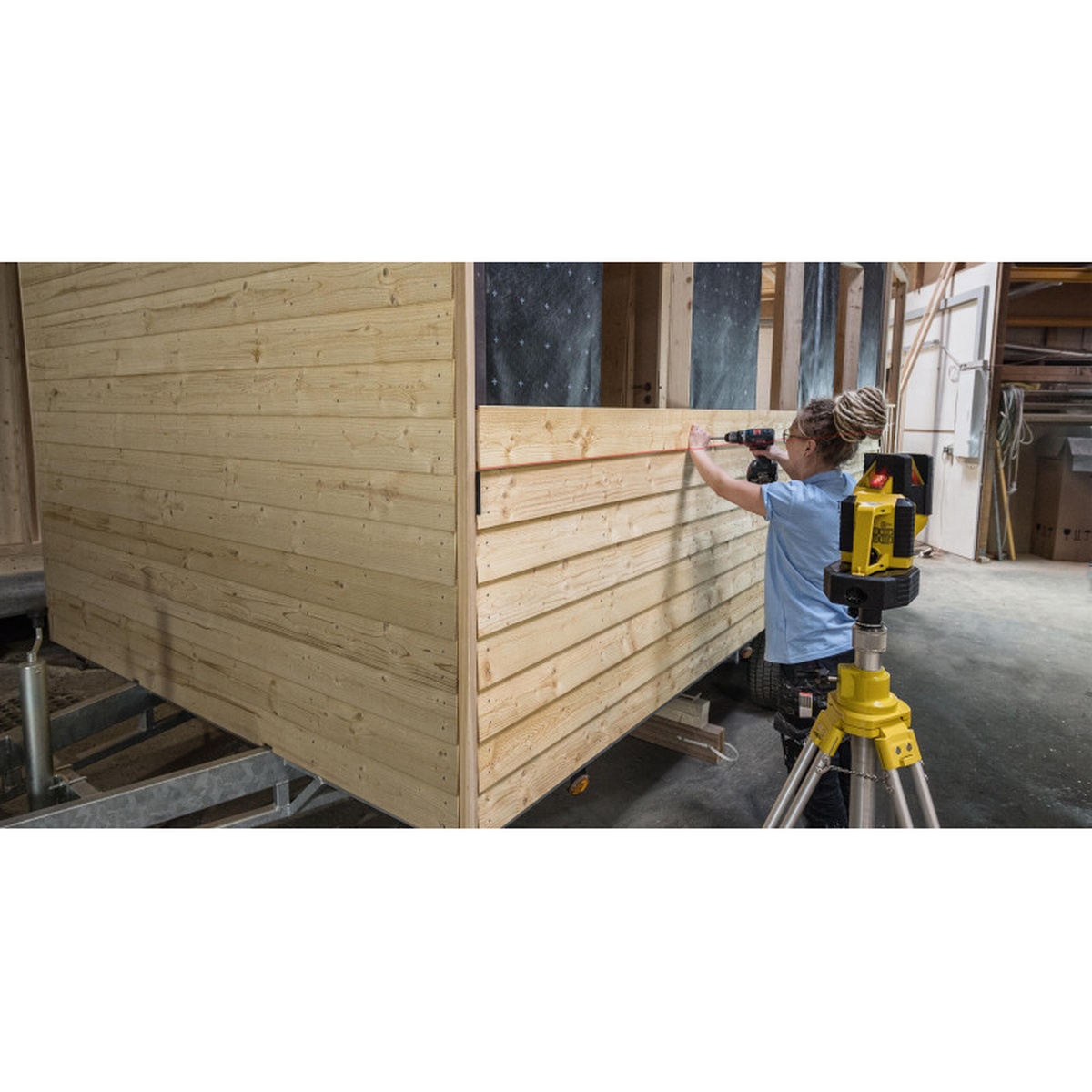

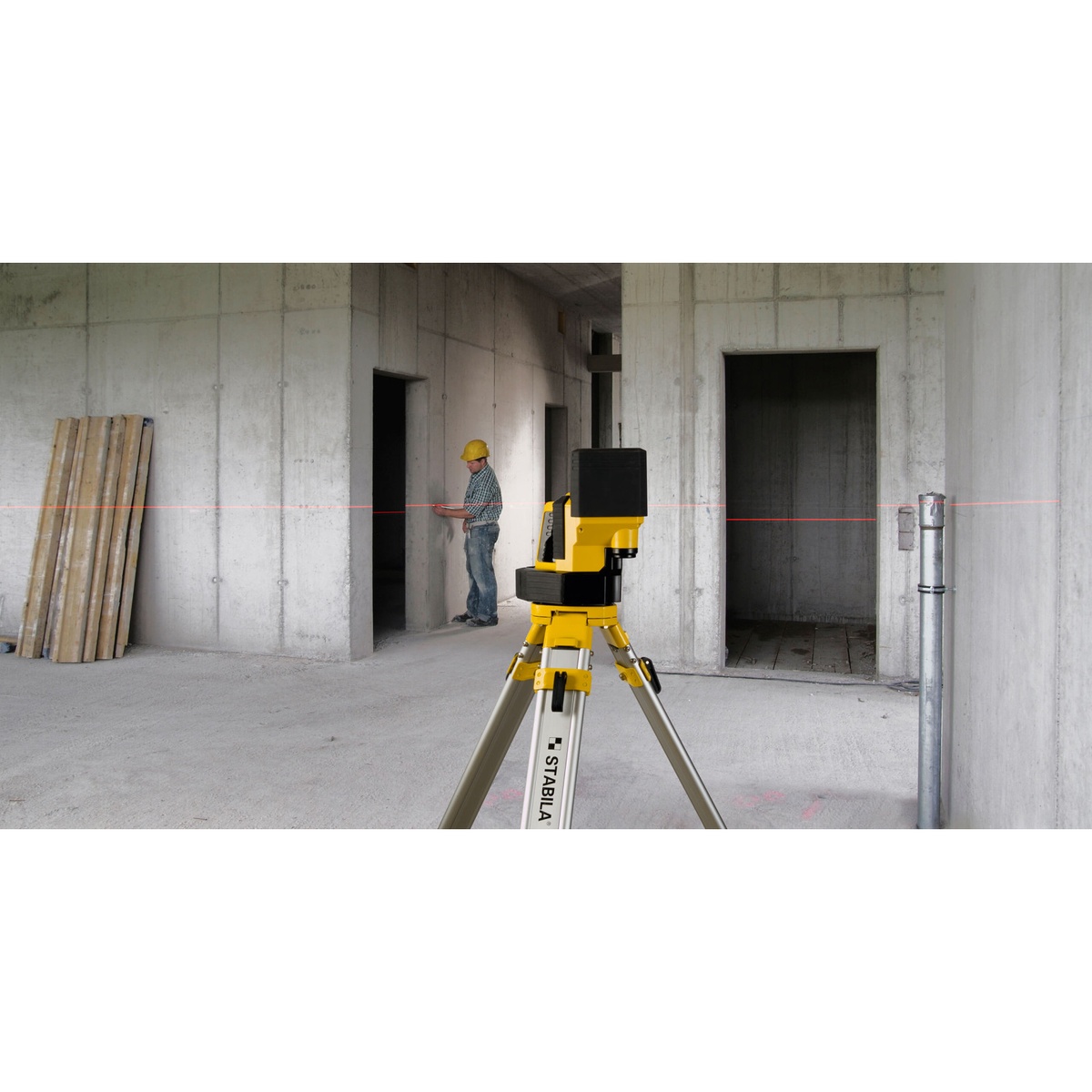

It projects three vertical lines and one horizontal level line, plus a plumb-line function, giving you a full layout reference on floors, walls, and ceilings. In real terms, that means you can set walls, build partitions, and locate anchors off clean laser lines instead of snapping and re-snapping chalk.

The big differentiator is Auto Alignment. With the included REC 410 Line RF receiver, the system can align the laser to the receiver for automatic axis transfer and right-angle creation. Stabila lists the working range with receiver at 300 ft, and the receiver-controlled positioning is specified up to 150 ft for Auto Alignment operation.

Accuracy is what makes a layout tool pay for itself. The LA 180L is rated at ± 3/32 in at 100 ft for leveling accuracy, with ± 1/8 in at 100 ft for line straightness, and ± 3/32 in at 100 ft for the downward laser beam. When you are setting right angles across a large slab or laying out multiple rooms, those numbers translate to less rework and fewer surprises when finishes show up.

It is built for jobsite use, not a delicate finish-room toy. The unit carries an IP 54 protection rating, has a ± 5 degree self-leveling range, and runs up to 20 hours on batteries. Laser specs are Class 2 with output < 1 mW at 635 nm wavelength.

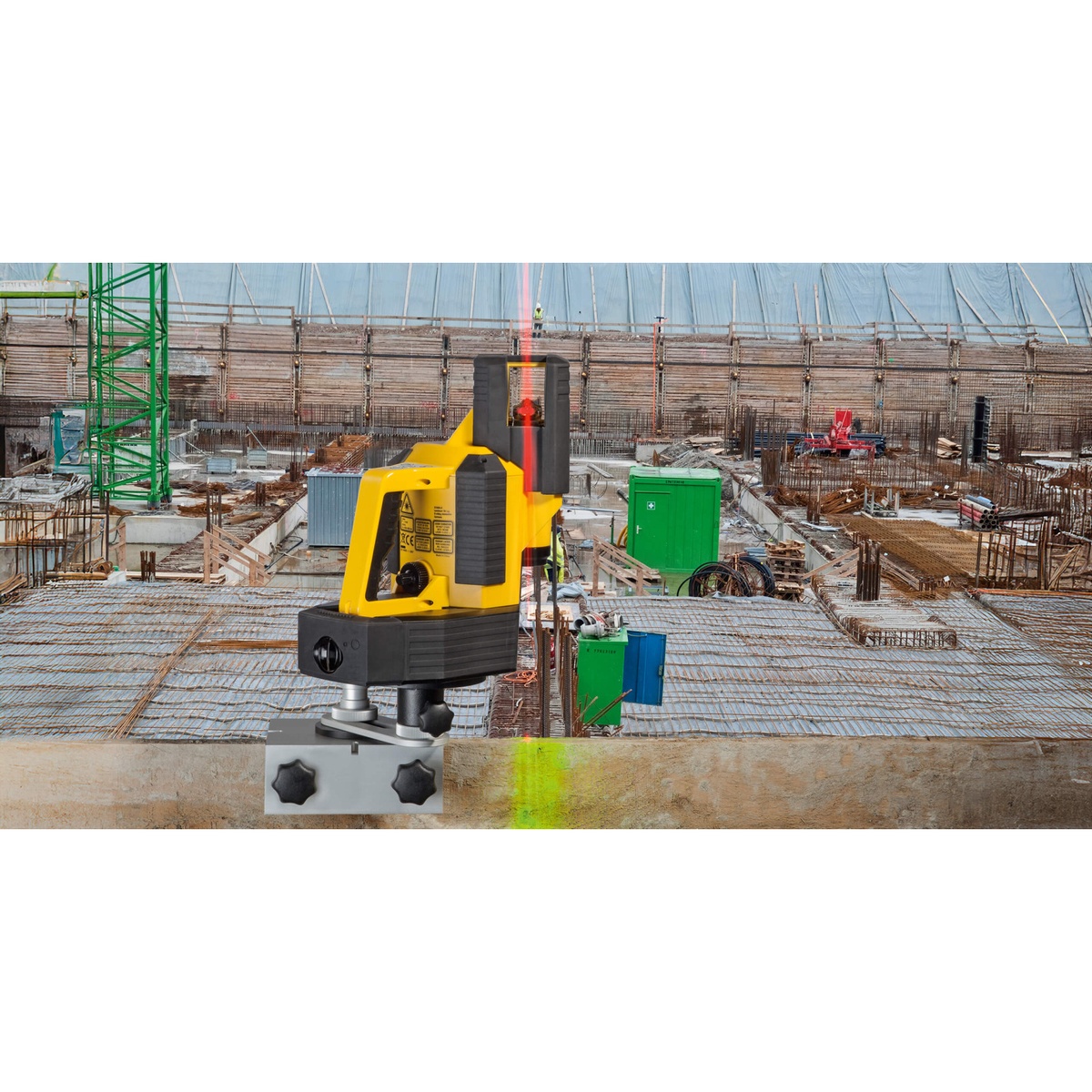

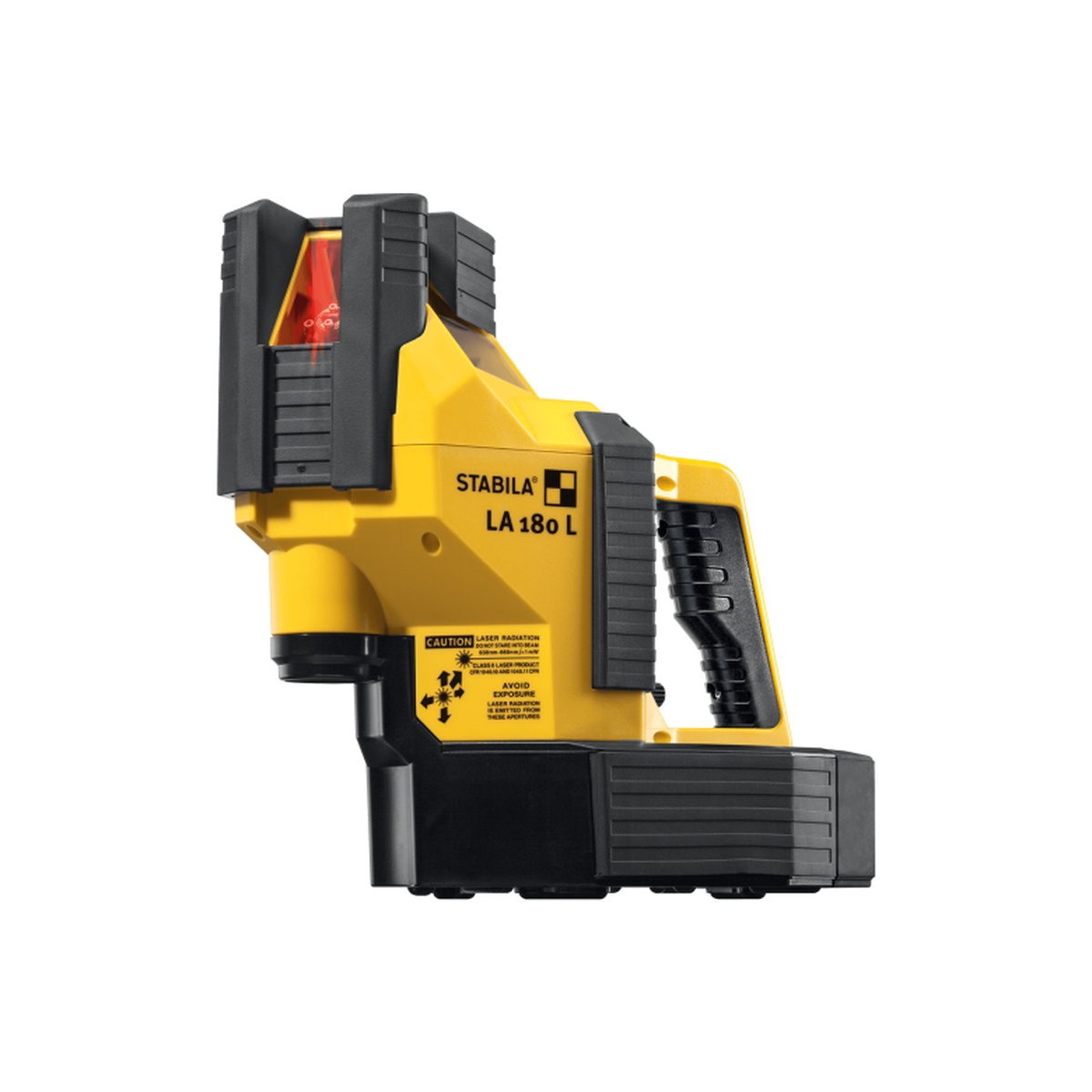

Setup is straightforward: put it where layout starts. The housing is designed for positioning over corners and over edges (like a slab edge), and it also has a 5/8 in to 11 tripod connection when you want height and full-room coverage.

If you lay out square often, this set is aimed at you. Concrete and form crews, framers, remodelers doing wall layout, and commercial interior guys will get the most out of the right-angle projection and receiver-driven alignment. If you only hang pictures, it is overkill. If you burn time fixing out-of-square layout, it is exactly the point.

Stabila 02180 LA 180L Layout Laser Level Set: Square Layout Without a Second Set of Hands

If right angles and axis lines are your bread and butter, this is the kind of layout laser level set that cuts steps and cuts rework.

• Who it's for: Pros doing frequent room, wall, and slab layout who need reliable 90 degree references over distance.
• Why it stands out: Auto Alignment with the REC 410 Line RF receiver plus a 300 ft receiver range, backed up by tight accuracy specs.
• Worth knowing: This is a purpose-built layout station, not a small cross-line laser. You buy it because squaring and axis transfer cost real time on real jobs.

• How far will it work with the receiver? The working range with receiver is rated at 300 ft, and the measuring range of the set receiver is listed at 328 ft.
• Does it self-level? Yes. It is servo controlled and fully automatic self-leveling with a ± 5 degree self-leveling range.
• What does it project? It projects two right angles, three vertical lines, and one horizontal level line, and it includes a plumb-line function.
