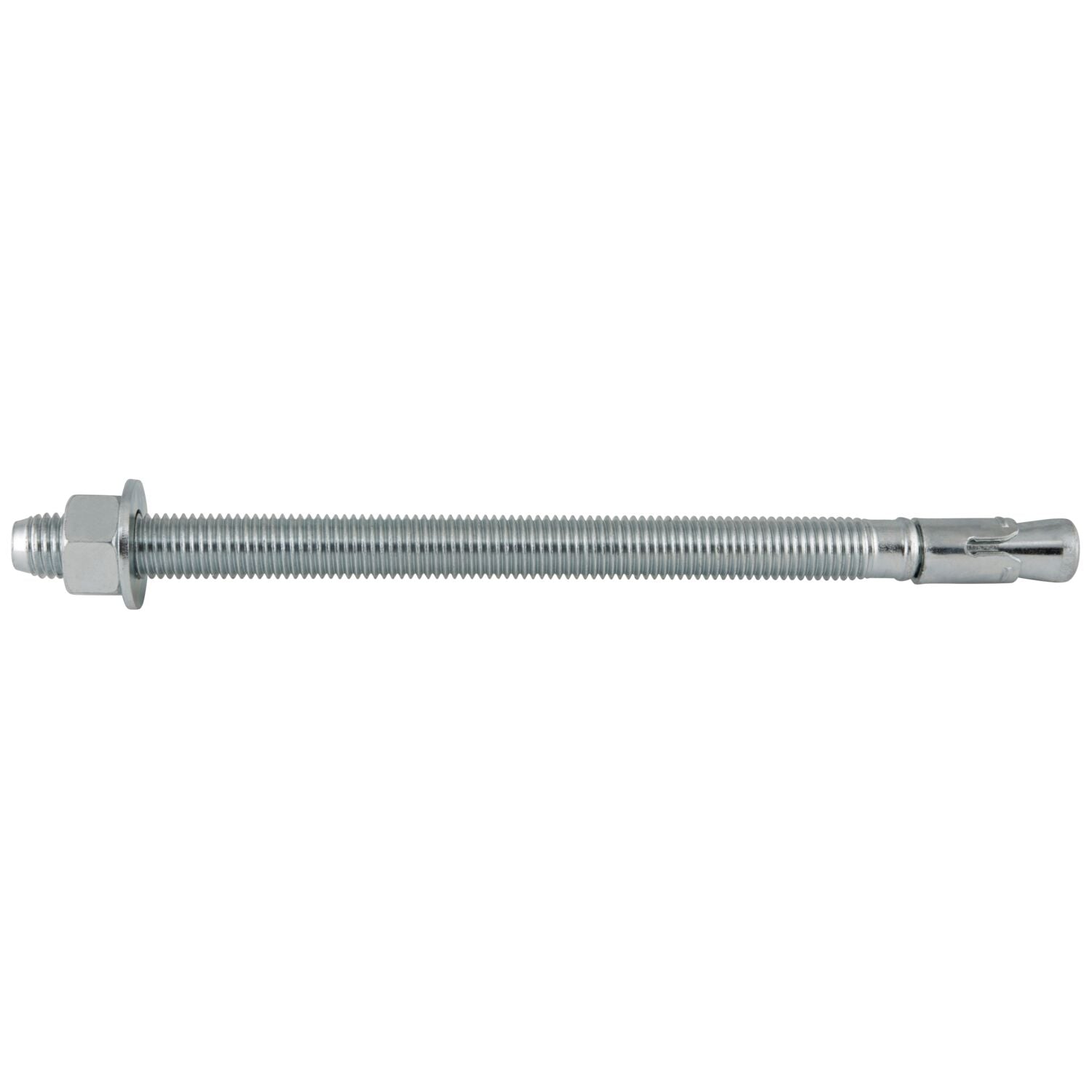

The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, lightweight concrete, concrete over steel deck and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.

General Applications & Uses

• Structural connections, i.e., beam and column anchorage
• Barriers and guards
• Mezzanines and racking
• Trapeze / overhead utilities
• Equipment anchorage
• Safety-related attachments
• Fencing and railing
• Tension zone applications, i.e., cable trays and strut, pipe supports, fire sprinklers
• Ledgers, angles and brackets
• Seismic and wind loading (SDC A - F)

Approvals & Listings

• International Code Council, Evaluation Service (ICC-ES), ESR-2818 for cracked and uncracked concrete
• Code compliant with the 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC, and 2012 IBC/IRC
• Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and uncracked concrete including seismic and wind loading (anchor Category 1)
• City of Los Angeles, LABC and LARC Supplement (within ESR-2818 and ESR-2966)
• Underwriters Laboratories (UL Listed) - File No. EX1289, see listing for sizes
• International Code Council, Evaluation Service (ICC-ES), ESR-2966 for masonry
• Tested in accordance with ACI 355.2/ASTM E488 and ICC-ES AC193 for use in structural concrete under the design provisions of ACI 318 (-19 or -14) Chapter 17 or ACI 318 Appendix D
• Tested in accordance with ASTM E488 and ICC-ES AC01 for use in masonry
• Florida Building Code, FBC Supplement including HVHZ (within ESR-2818 and ESR-2966)
• FM Approvals (Factory Mutual) - see FM Approval Guide for sizes

• Consistent performance in high and low strength concrete
• Anchor can be installed through standard fixture holes
• Anchor design allows for follow-up expansion after setting under tensile loading
• Nominal drill bit size is the same as the anchor diameter
• Length ID code and identifying marking stamped on head of each anchor
