Applications

• Structural connections, i.e., beam and column anchorage
• Tension zone applications, i.e., safety-related attachments
• Seismic and wind loading (SDC A - F)
• Utility supports and bracing attachments
• Equipment anchorage, angles, brackets and ledgers
• Barriers, guards and fencing
• Mezzanines, racking and railing

Approvals & Listings

• Knurled mandrel provides consistent performance in cracked and uncracked concrete
• Mandrel design helps prevent galling during service life
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard clearance fixture holes
• Length ID code and identifying marking stamped on head of each anchor
• Anchor design allows for follow-up expansion after setting under tensile loading
• Domestically manufactured by request (see ordering information)

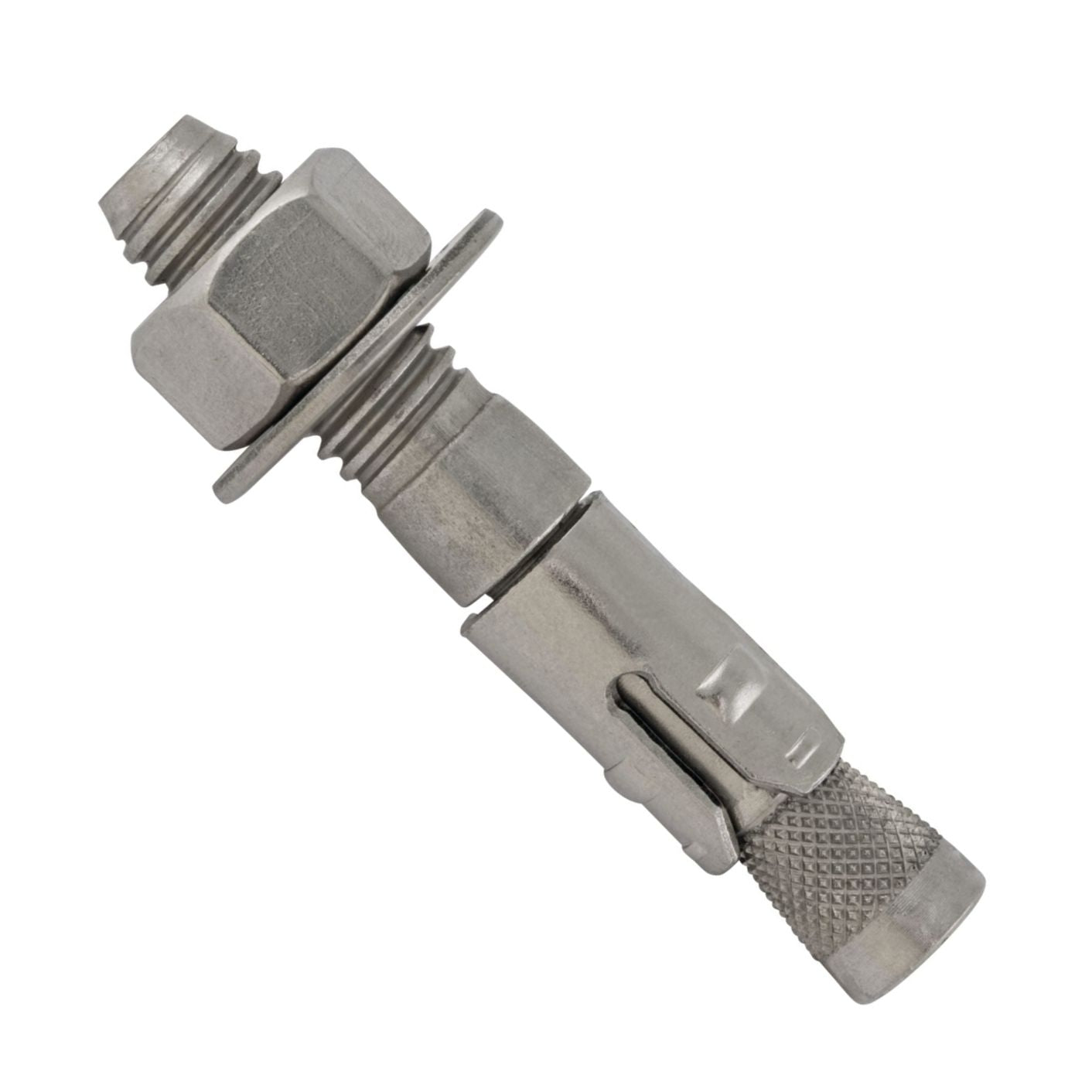

The Power-Stud+ SD4 and Power-Stud+ SD6 anchors are fully threaded, torque-controlled, stainless steel wedge expansion anchors which are designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight, lightweight concrete, and grouted concrete masonry (CMU). The anchor is manufactured with a stainless steel body and expansion clip. Nut and washer are included.

• Knurled mandrel provides consistent performance in cracked and uncracked concrete
• Mandrel design helps prevent galling during service life
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard clearance fixture holes
• Length ID code and identifying marking stamped on head of each anchor
• Anchor design allows for follow-up expansion after setting under tensile loading
• Domestically manufactured by request (see ordering information)
