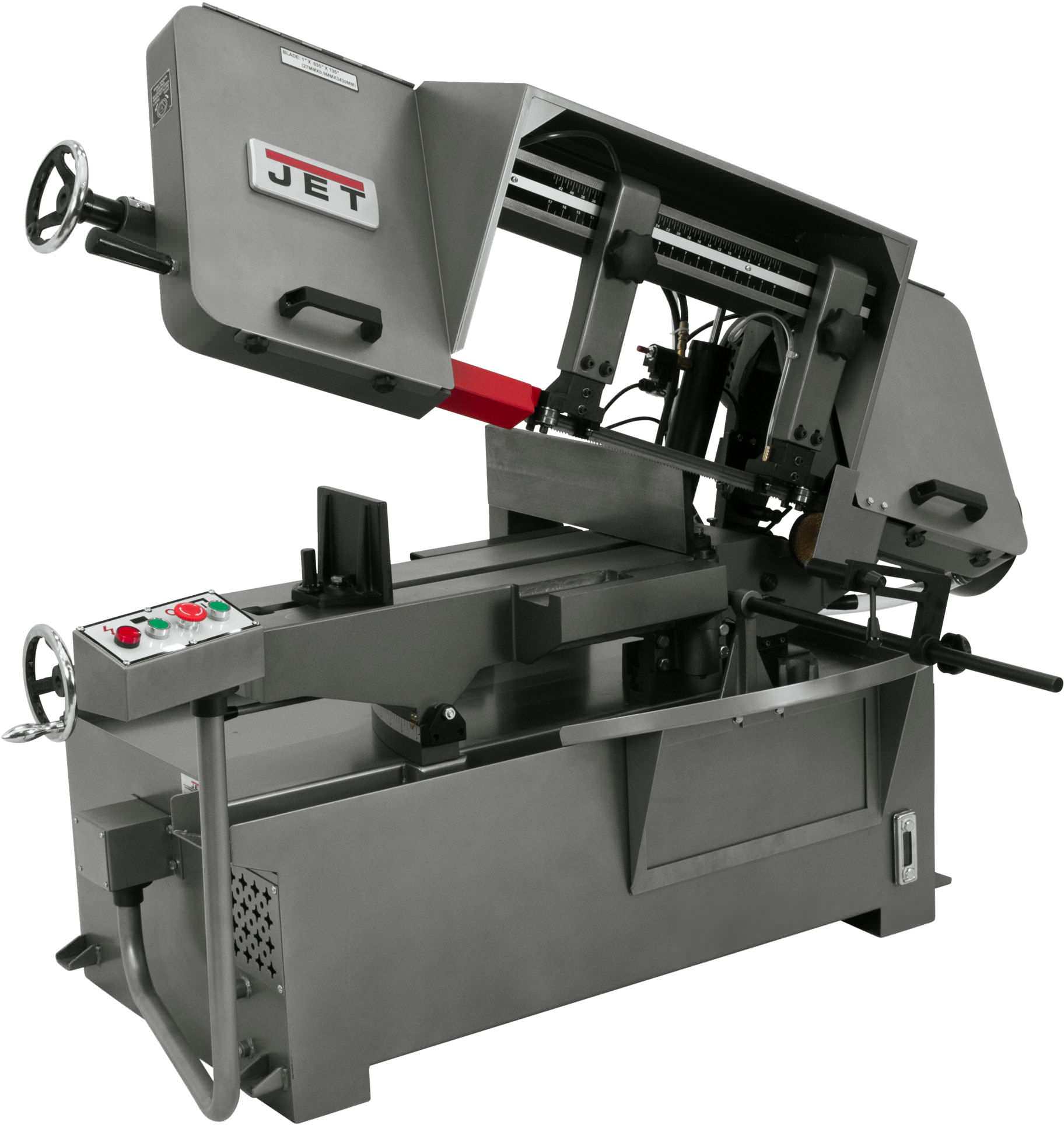

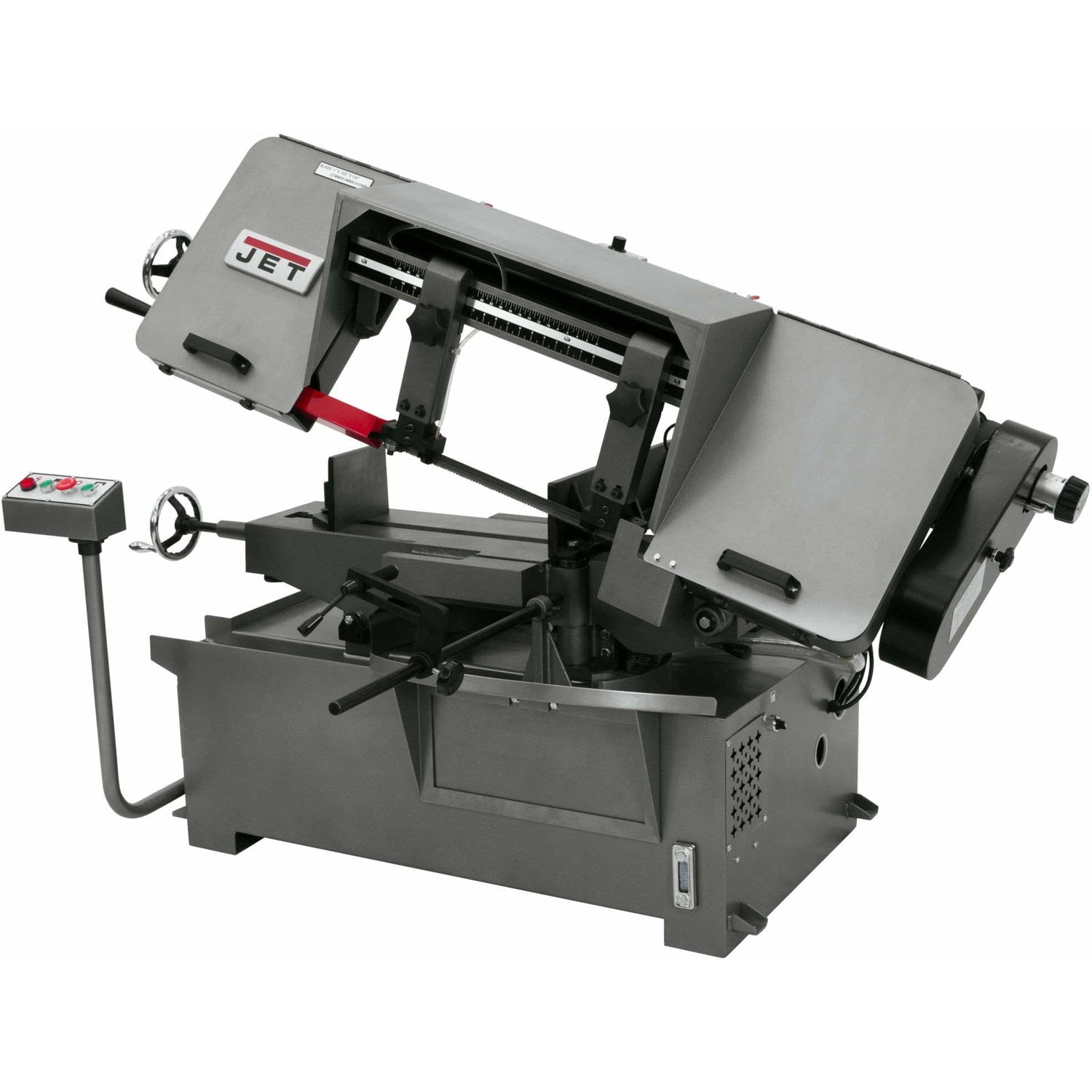

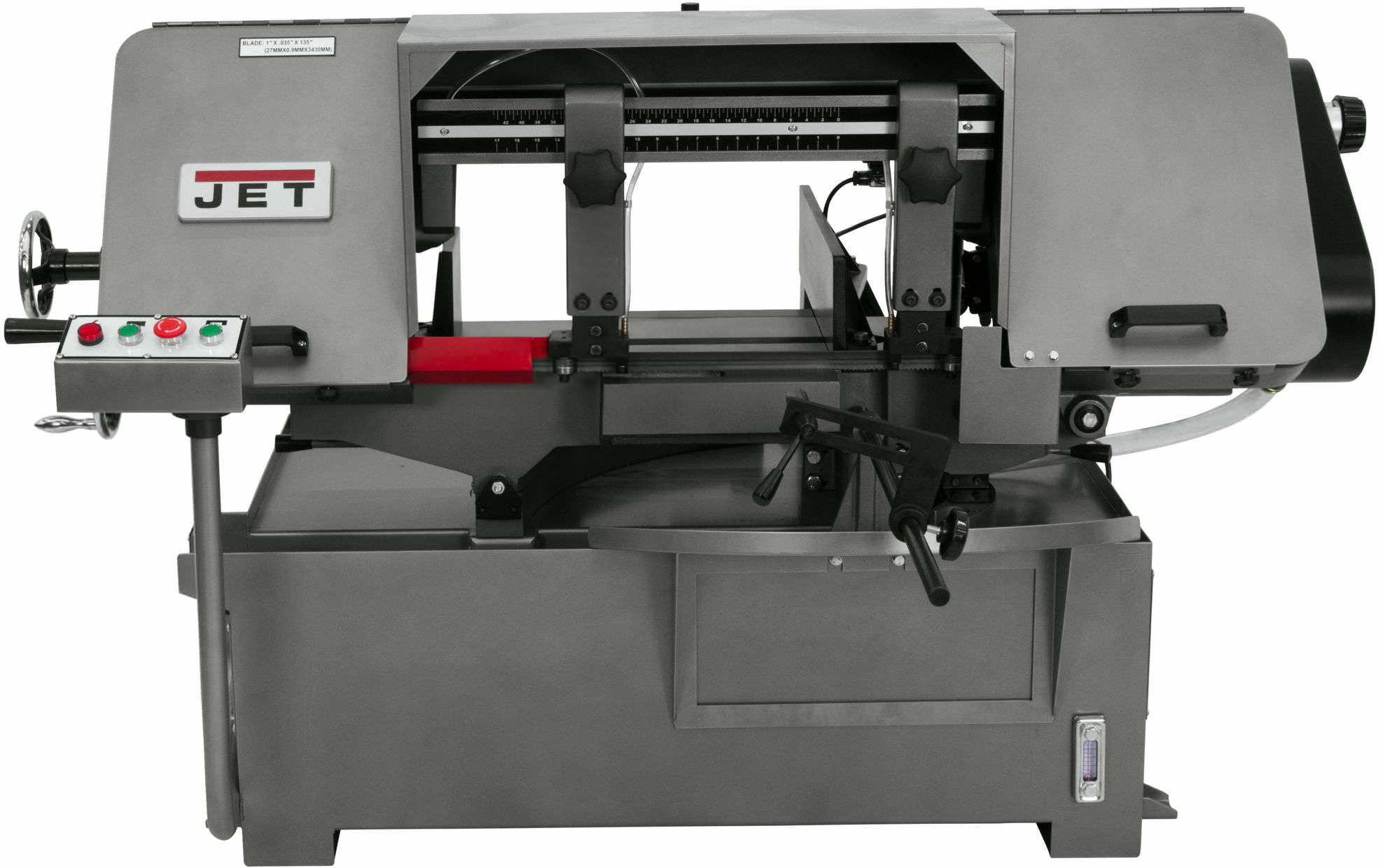

Jet 414484 J-7040M-4, 10" x 16" Horizontal Mitering Bandsaw

$9,999.00
In stock
Fast Free Shipping

Earn Tool Nut points on this item!

How can we help?

Ask our Tool Experts!

Live Chat

Buy it with

Product Details

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.

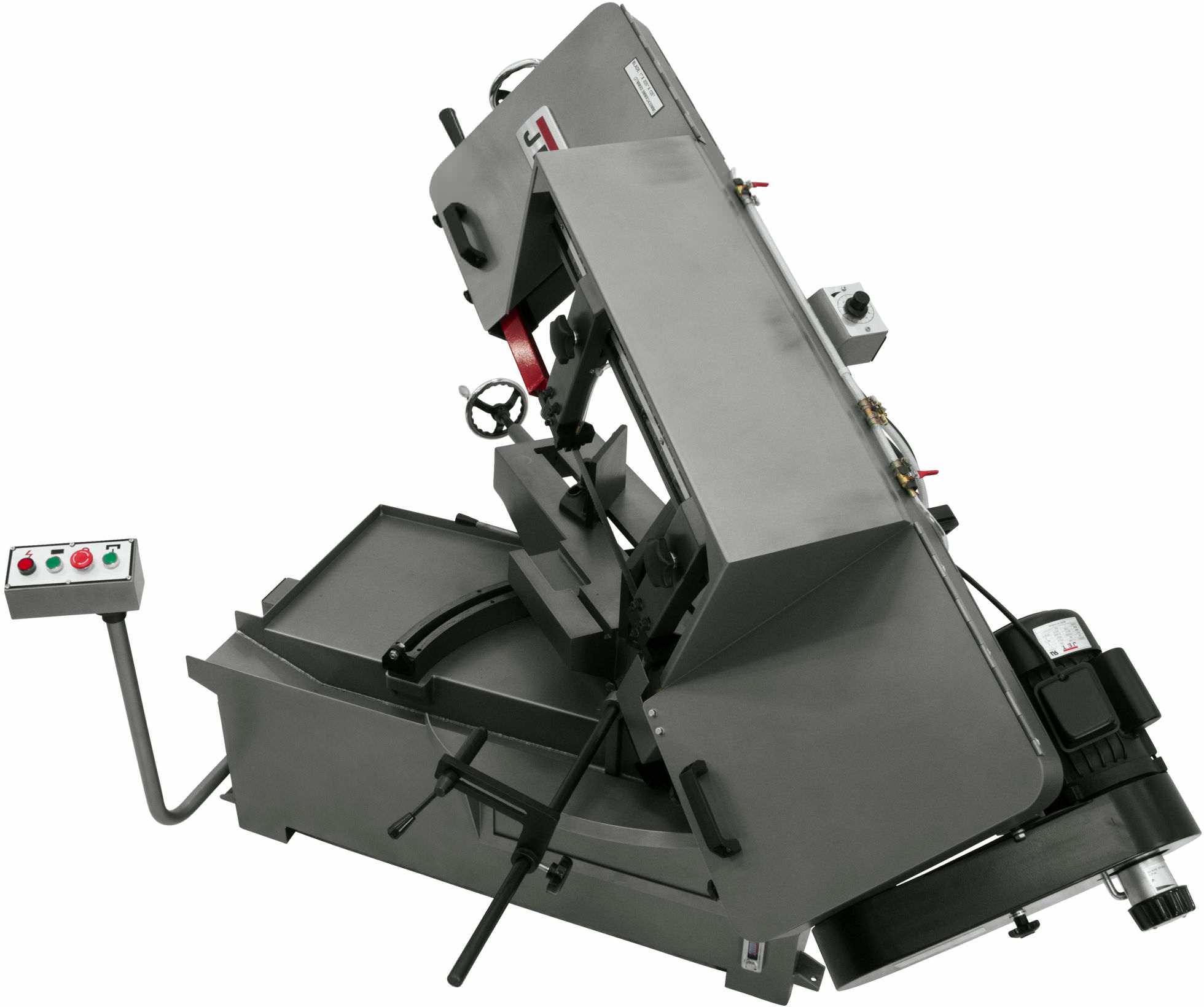

  • Mitering head swivels to cut any angle 0 degree - 45 degree while the work piece remains secured
  • Swivel control panel houses major saw controls
  • Variable speed drive system allows the operator to easily fine tune the blade speed
  • Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
  • The blade rides on two load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally
  • Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
  • Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
  • Cast Iron blade wheels
  • Coolant system
  • Adjustable material stop
  • 1" Bi-Metal blade
Specifications
SKU #: 414484
Cutting Capacity (W x D) (In.) 10 x 16
Round at 90 Degrees (In.) 10
Round at 45 Degrees (In.) 8-1/2
Rectangle at 90 Degrees (In.) 10 x 14 and 2 x 16
Rectangle at 45 Degrees (In.) 8-1/2 x 9
Vise Swivels (Deg.) 45 degree
Head Movement (Deg.) 45 degree
Blade Size (In.) 1 x .035 x 135
Blade Length (In.) 135
Blade Wheel Diameter (In.) 14
Blade Speed (SFPM) 100 - 350
Bed Height (In.) 25-1/2
Motor (HP) 2 HP, 460, 3Ph
Drive Variable Speed
Overall Dimensions (L x W x H) (In.) 76 x 30 x 48
Weight (Lbs.) 1,134
Height 48.0000
Length 76.0000
Weight 1200.0000
Width 30.0000
