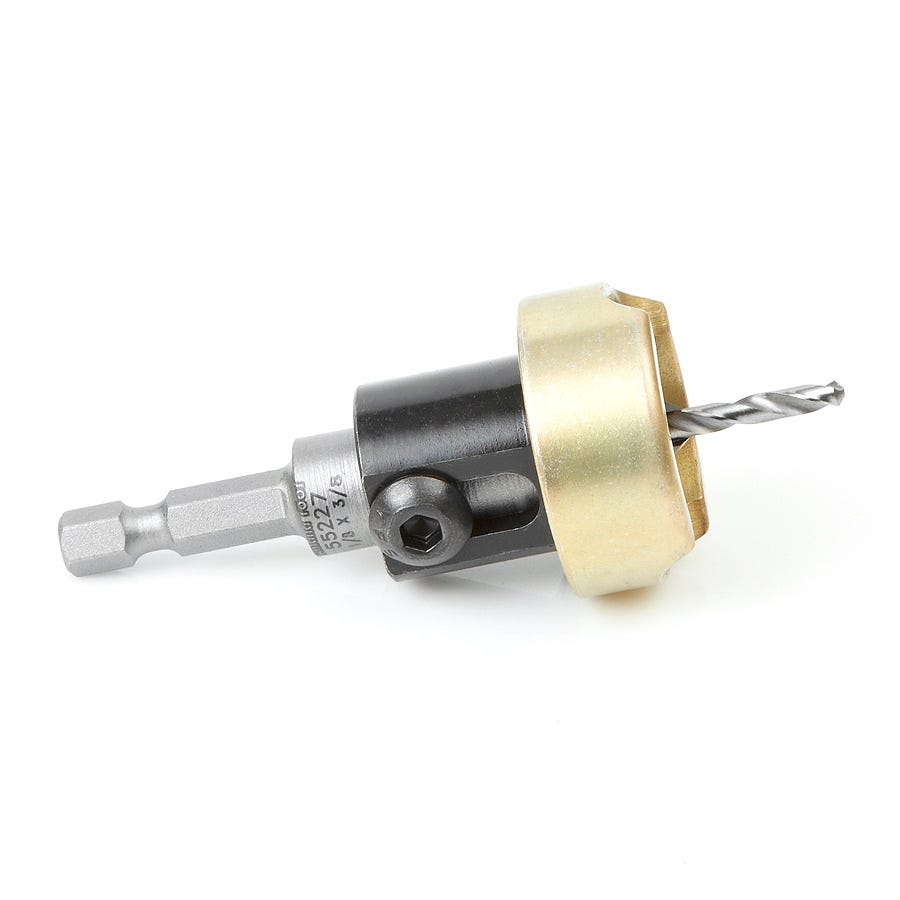

The Amana Tools 55227 Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing is built for woodworkers and finish-minded installers who want clean, repeatable screw holes without switching between multiple bits. This is a countersink drill bit designed for drilling a pilot hole and cutting an 82 degree countersink in one step. Model Number: 55227. In this version, you get a 3/8 inch countersink diameter, a 1/8 inch drill diameter, and a 1/4 inch quick release hex shank sized for wood screw #6 applications.

What makes this tool useful on the bench or on site is the adjustable revolving depth stop. Instead of creeping up on the right depth by eye, you can set the stop where you need it and keep the results consistent from hole to hole. That saves time when you are building cabinets, shelves, face frames, trim assemblies, or any project where uneven screw seating stands out fast. The no-thrust ball bearing setup is there for a reason too: it helps the stop do its job without dragging and burning the work surface.

The cutting end is carbide tipped, which is the right move for a countersink that is expected to hold its edge over repeated use. Amana also includes a slow spiral, fully ground high-speed steel M2 drill bit, so the tool handles the pilot hole and countersink as a matched system. The open area in the body helps chip evacuation, which matters because packed chips are where rough cuts, heat buildup, and surface marking usually start.

The overall design is clearly aimed at practical adjustability. Amana notes that you can control drill length and replace the drill bit without disassembling the depth stop. That is the kind of detail you appreciate after a long day of repetitive drilling. It means less downtime at the bench and less fiddling with parts when the bit eventually needs replacement.

In real material terms, this is not limited to softwood. The listed applications include natural woods, man-made boards, MDF, chipboard, plywood, composites, composite decking materials, acrylic, high density polyethylene, and aluminum or other non-ferrous materials. That broad material range makes the 55227 a good fit for shops doing mixed-material work, display fabrication, cabinetry, furniture, and light non-ferrous drilling where a clean countersink is still important.

The 1/4 inch quick release hex shank makes the tool easy to use in common drill drivers and quick-change holders. If you are already set up around hex-shank drilling and fastening, this drops right into that workflow. It is also part of a serviceable system, with Amana listing replacement parts for the drill and countersink body, plus an optional matching plug cutter for projects where you want to hide the fastener completely.

Who should buy it? If you build with screws often and care how the finished hole looks, this is the kind of countersink that earns its keep. It is especially well suited to woodworking, cabinetry, furniture building, trim, and detailed DIY projects where consistency matters more than just making a hole. If you only countersink once in a blue moon, it may be more tool than you need. If you do it regularly, the depth control, chip clearance, and one-step operation make a real difference.

Amana Tools 55227 Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing is the kind of upgrade you notice on the first project

If you are tired of sloppy countersinks, inconsistent screw depth, or collars that scar the work, this one fixes the stuff that usually makes cheaper countersinks annoying to use.

• Who it's for: Woodworkers, cabinet guys, trim carpenters, and serious DIYers who drill a lot of clean, repeatable countersunk holes.
• Why it stands out: The adjustable stop, carbide-tipped cutter, included pilot drill, and serviceable design make it more than just another countersink bit.
• Worth knowing: It is sized around #6 wood screws and an 82 degree profile, so make sure that matches the fasteners and finish you are after.

• What does this tool do? It drills a pilot hole and cuts an 82 degree countersink in one operation.
• What screw size is it designed for? This 55227 version is specified for wood screw #6.
• What shank does it use? It has a 1/4 inch quick release hex shank for common quick-change chucks and holders.
• What materials can it be used on? Amana lists natural woods, man-made boards, MDF, chipboard, plywood, composites, composite decking materials, acrylic, HDPE, and aluminum or other non-ferrous materials.
