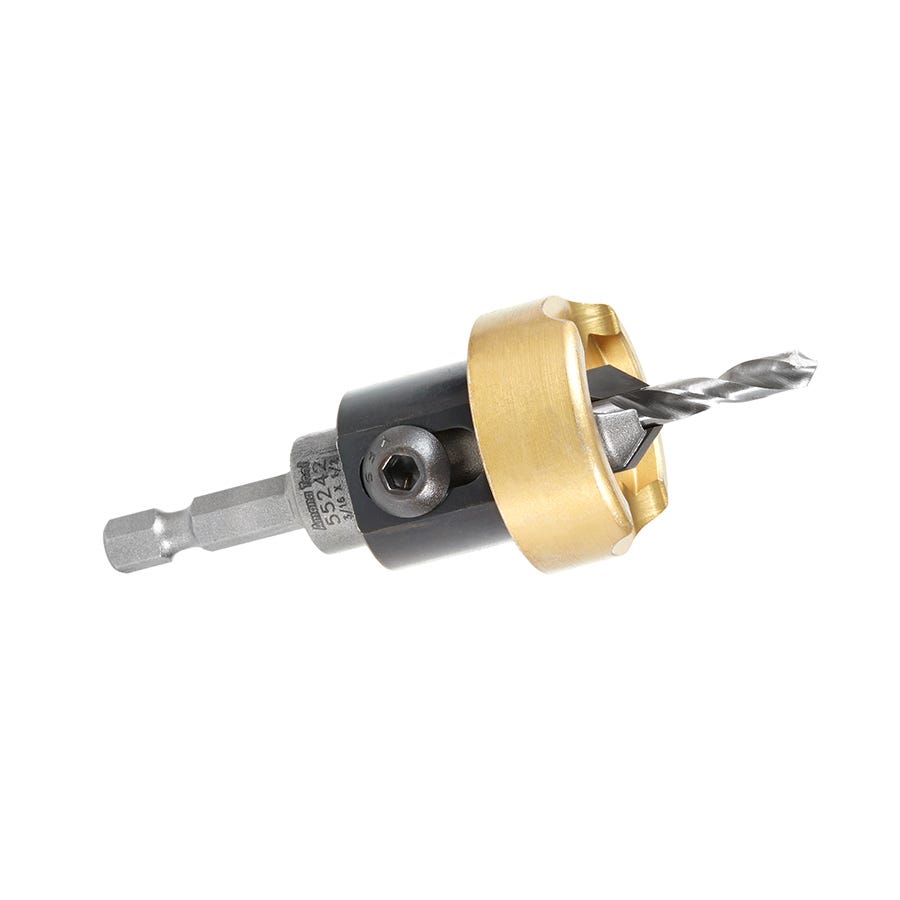

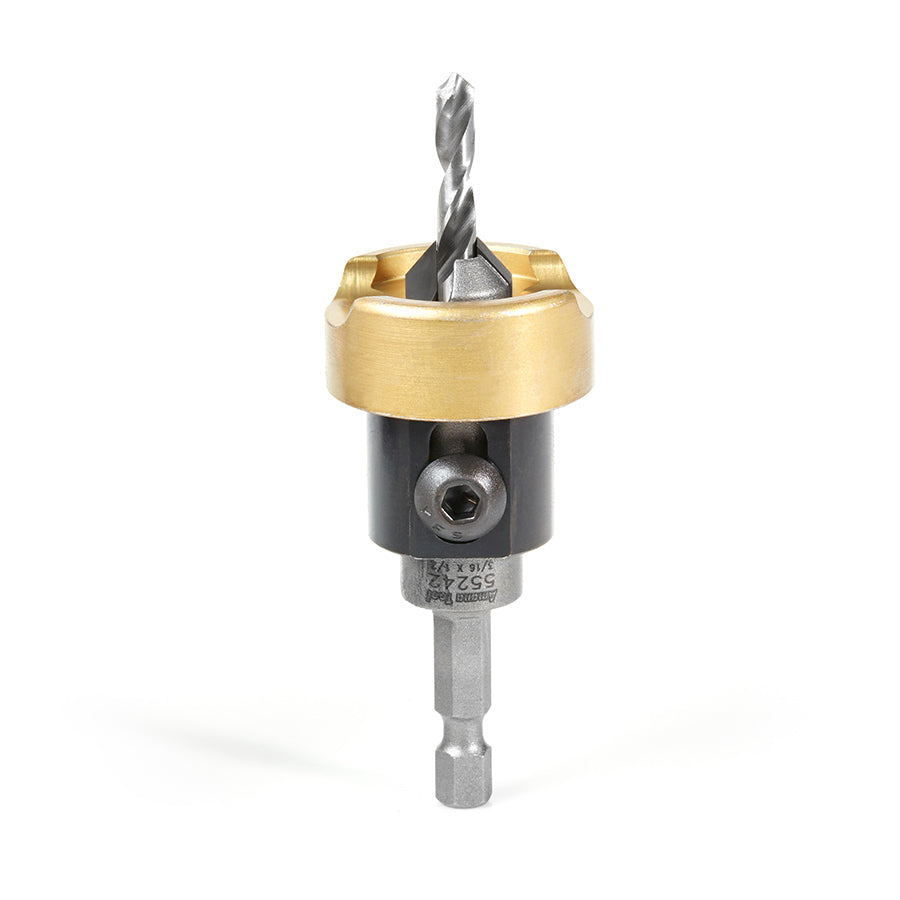

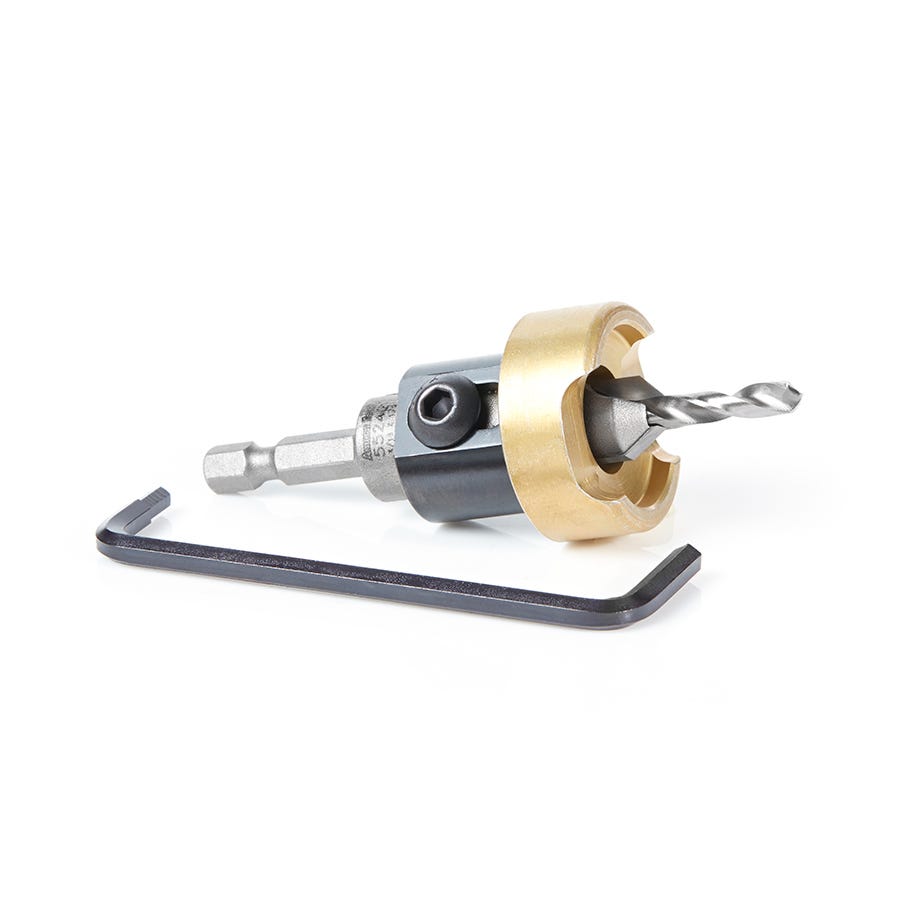

The Amana Tool 55242 Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing is built for drilling a pilot hole and cutting a tapered countersink in one step. This is a countersink bit designed for clean pilot-hole drilling and screw seating in wood, sheet goods, composites, plastics, and select non-ferrous materials. Model Number 55242. If you do cabinet work, trim, furniture, decking, or general shop assembly, this setup speeds up repetitive screw work and gives you better-looking results.

The big advantage here is control. The adjustable heavy-duty revolving depth stop lets you fine-tune how deep the countersink cuts, so you are not guessing from hole to hole. That matters when you want flush screw heads without overcutting the face. The no-thrust ball bearing is there for a reason too. It helps keep the stop from scuffing, scratching, or burning the surface as you work, which is especially useful on finished stock, veneered panels, and cleaner visible surfaces.

The cutting setup pairs a carbide tipped 2-wing countersink with a slow-spiral, fully ground HSS M2 drill bit. In plain terms, that gives you a durable countersink body with a pilot drill that is ready to work right out of the package. The 1/2 inch countersink diameter, 3/16 inch drill diameter, and 82 degree countersink profile are matched for wood screw size #16. The quick-release 1/4 inch hex shank makes it easy to drop into impact drivers and drill/drivers that accept standard hex accessories.

Amana also built this one to be easier to live with in a real shop. The design includes open space for chip evacuation, which helps clear waste instead of packing it in around the cut. The drill length can be controlled and the drill can be replaced without taking the depth stop apart, which saves time when you are setting up or doing maintenance. That is the kind of detail that makes a difference when a countersink bit is seeing regular use instead of sitting in a drawer.

Material range is broad for this type of accessory. It handles natural woods, man-made boards, MDF, chipboard, plywood, composites, composite decking materials, acrylic, high density polyethylene, and aluminum or other non-ferrous materials. That makes the Amana Tool 55242 carbide tipped countersink a good fit for woodworkers who bounce between hardwood, sheet goods, and modern trim or decking materials. For aluminum and non-ferrous work, the maker specifically recommends low RPM along with lubricant or air cooling for better results and longer tool life.

If you are the kind of user who wants repeatable countersinks, cleaner screw seating, and less trial-and-error setup, this is a strong pick. It is especially useful for woodworking, cabinetry, finish work, assembly, and production-style screw fastening where consistent hole quality matters. If you only countersink once in a while, a basic bit may get by. If you do it often and care about surface finish and repeatability, this one earns its keep.

Amana Tool 55242 Carbide Tipped Countersink for Clean, Repeatable Screw Prep

This is the kind of countersink you buy when you are tired of inconsistent holes, scorched surfaces, and wasting time with separate drilling and countersinking steps.

• Who it's for: Woodworkers, cabinet installers, trim carpenters, and serious DIY users who need cleaner pilot holes and repeatable countersinks.
• Why it stands out: The adjustable depth stop, no-thrust ball bearing, and replaceable drill setup make it a lot more practical than a basic countersink bit.
• Worth knowing: It is sized around a #16 wood screw and ships as a dedicated setup, so make sure that matches the screw and hole size you actually use most.

• What shank does this countersink use? It uses a 1/4 inch quick-release hex shank.
• What screw size is it designed around? It is made for wood screw size #16.
• Can the drill bit be replaced? Yes. The drill is replaceable, and the listed replacement drill part number is 630-236.
• What materials can it be used on? It is listed for natural woods, man-made boards, MDF, chipboard, plywood, composites, composite decking materials, acrylic, high density polyethylene, and aluminum or other non-ferrous materials.
