Bosch Expert 12-in. 15 Amp Dual-Bevel Glide Miter Saw with Compact Glide System (EXCM341-305GD)
Bosch Expert 12-in. 15 Amp Dual-Bevel Glide Miter Saw with Compact Glide System (EXCM341-305GD)
Out of Stock - Available to Order - Usually ships in 21-30 days
Product Details
Product Details
Key Features
Overview

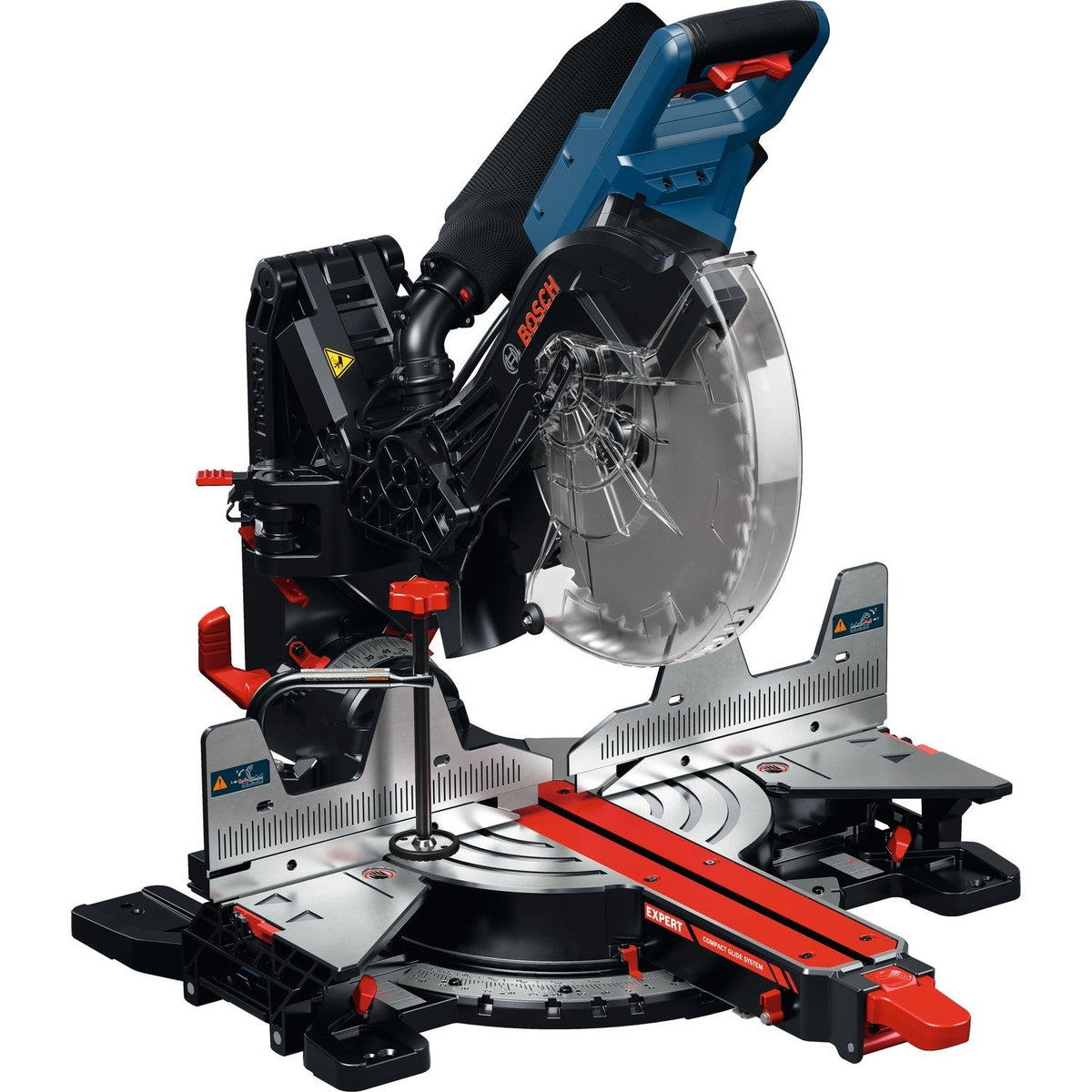

The Bosch Expert EXCM341-305GD is a 12-in. 15 amp dual-bevel glide miter saw with Bosch's Compact Glide System. This is a sliding compound miter saw designed for finish carpentry, trim and crown molding, flooring, and framing cuts on wide stock. Model Number: EXCM341-305GD.

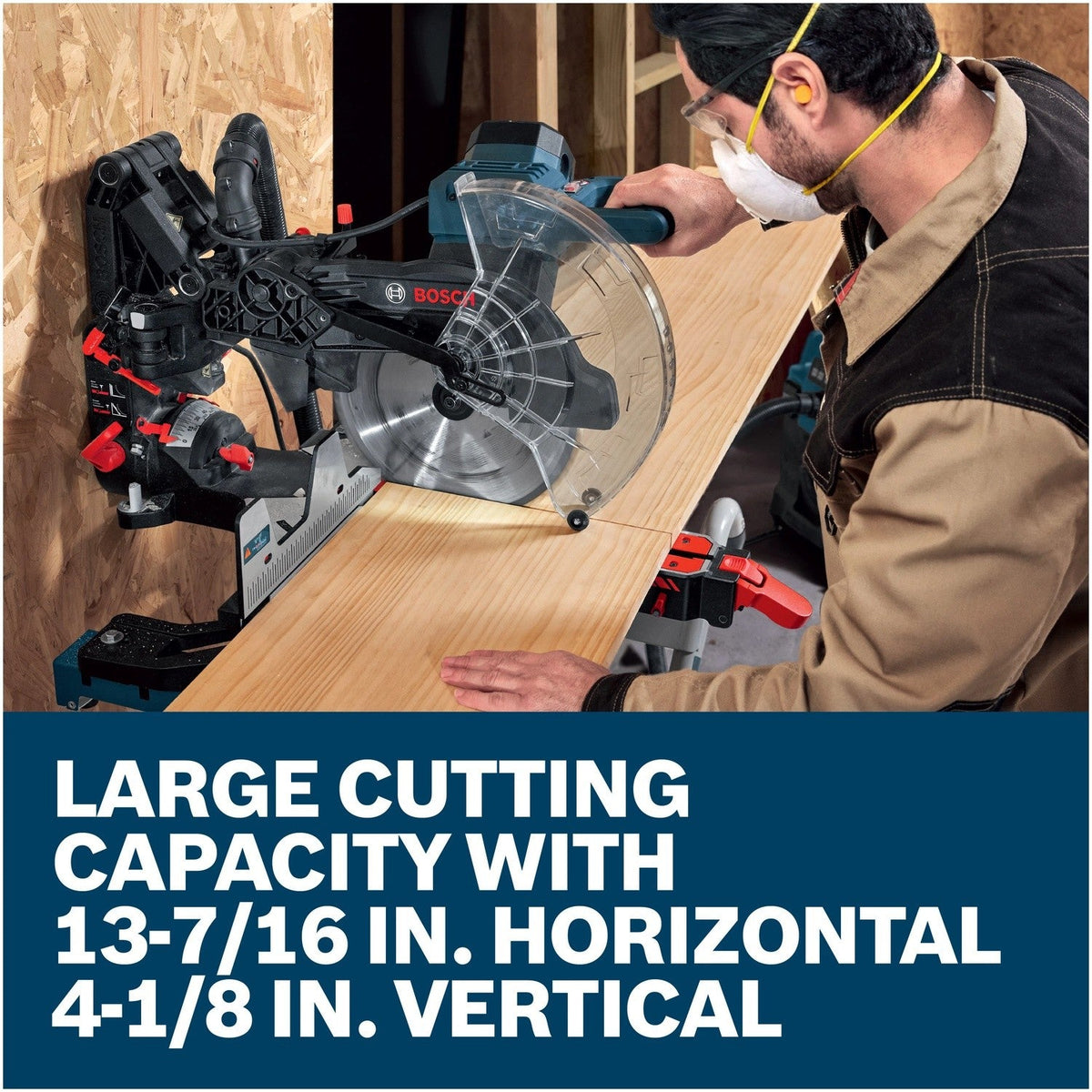

Capacity is where this saw earns its spot on the jobsite. The 12-in. blade and glide arm give you 13-7/16 in. of horizontal crosscut capacity and 4-1/8 in. of vertical capacity, enough for wide shelving, stair treads, and tall base. Bosch rates it for 7-in. base molding standing flat against the fence, crown molding up to 6-3/4 in. at 38 degrees and 7-1/2 in. at 45 degrees nested against the fence, and up to 11-in. crown laid flat on the table.

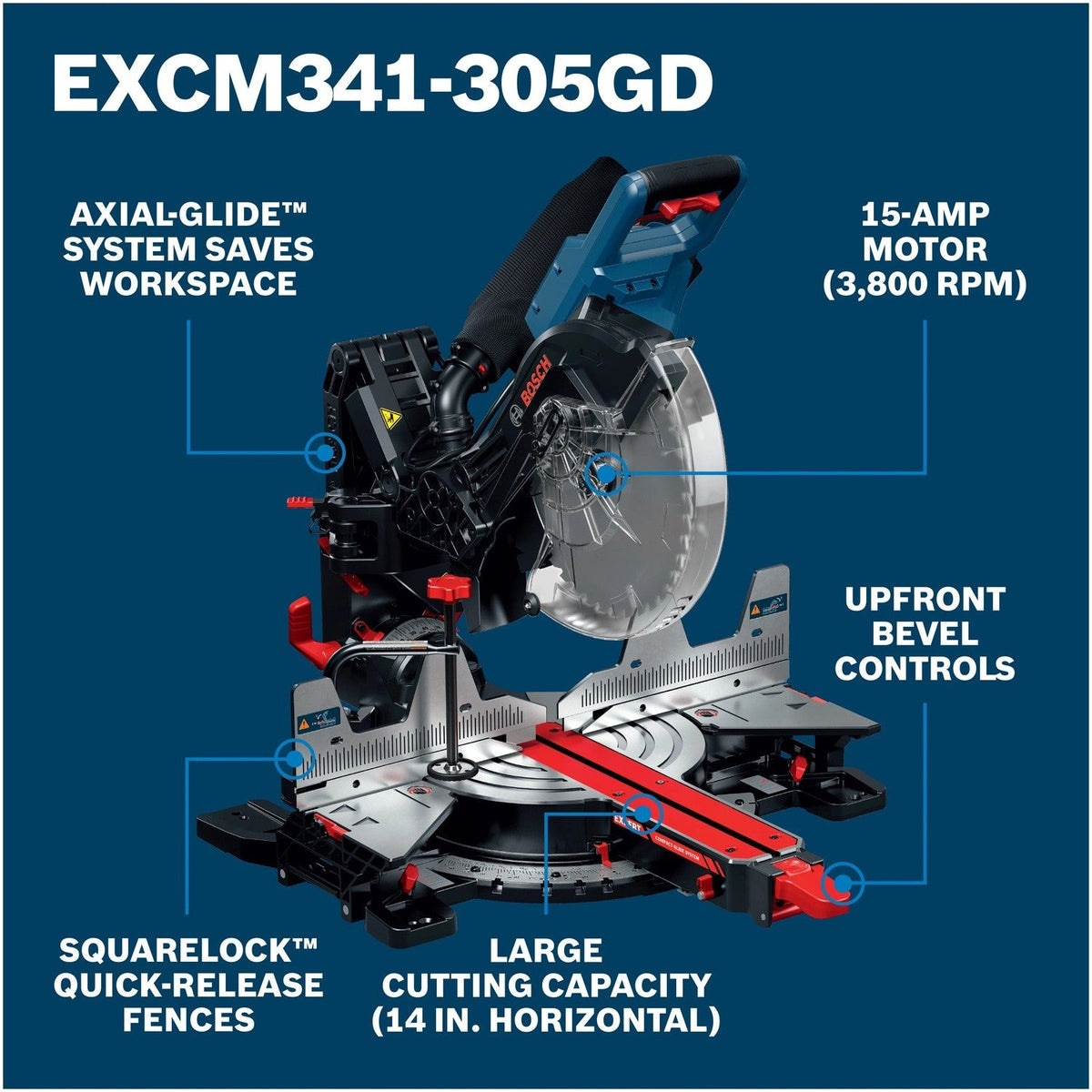

The dual-bevel head tilts 47 degrees to the left and right, with preset bevel stops at 0, 33.9, 45, and 47 degrees. Miter range is 52 degrees left and 60 degrees right. A cam-lock angle adjustment and upfront bevel controls let you set and lock angles quickly, and SquareLock quick-release fences come off fast for bevel cuts. That matters when you are cutting a room full of trim.

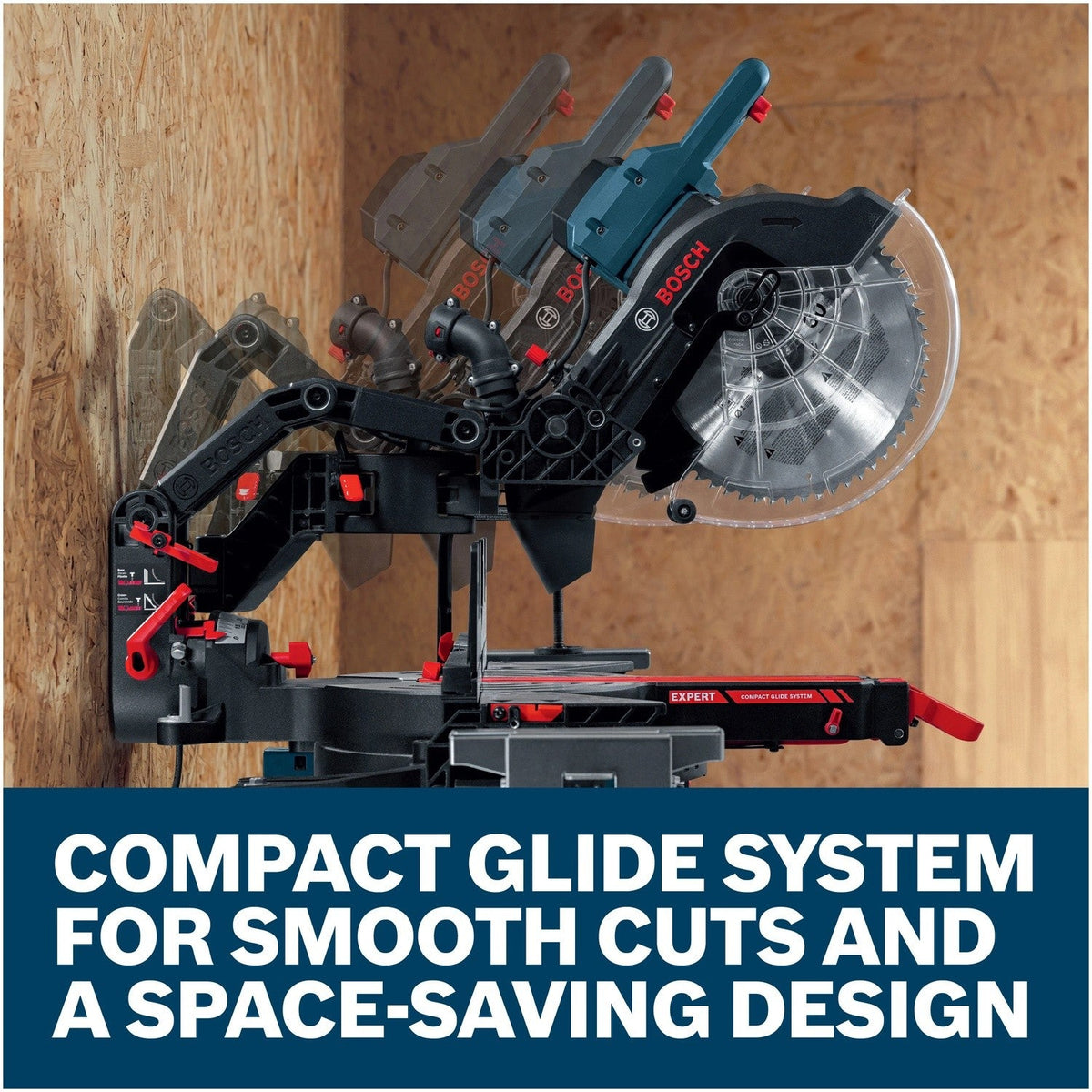

The Compact Glide System is built to save workspace. The glide arm folds forward instead of sliding back on rails, so the saw can sit close to a wall, and it measures roughly 31.18 in. long, 22.52 in. wide, and 20.87 in. tall.

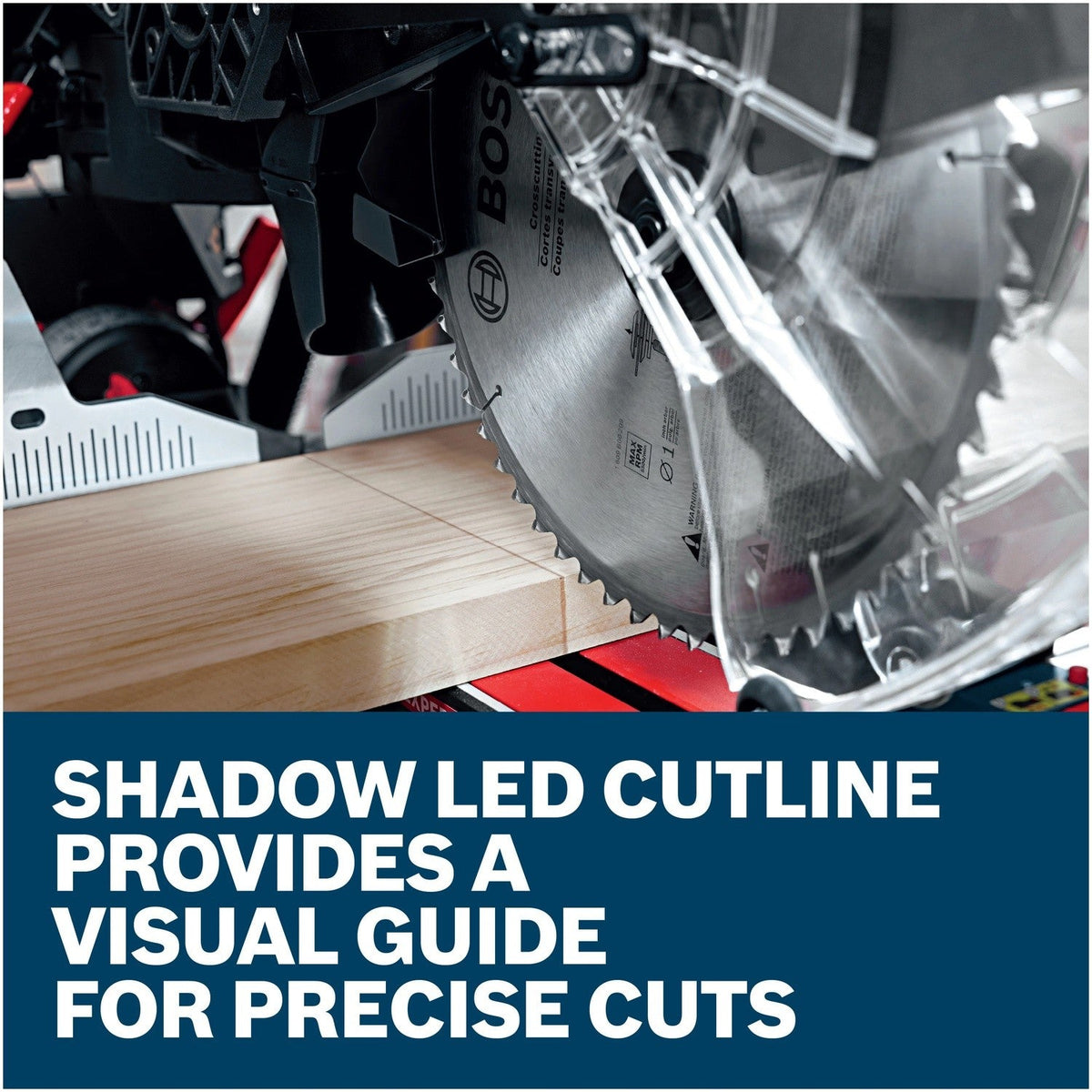

Bosch adds the jobsite details that speed up trim work: a Shadow LED cutline that shows the blade's exact path on the workpiece, integrated base extensions with built-in length stops for repeat cuts, and a large dust chute. The 15 amp, 3,800 RPM motor runs a 12-in. blade on a 1-in. arbor, and the saw ships with a premium 60-tooth carbide-tipped blade.
This saw is for trim carpenters, remodelers, flooring installers, and serious woodworkers who want 12-in. dual-bevel glide capacity in a saw with a compact footprint.
Wide Cuts in a Compact Footprint
The glide arm gives you wide crosscut capacity in a saw that stays about 31 in. long.
- 13-7/16-in. horizontal crosscut capacity
- 4-1/8-in. vertical capacity
- SquareLock quick-release fences and upfront bevel controls
What's in the Box
- (1) Bosch EXCM341-305GD 12-in. Dual-Bevel Glide Miter Saw
- (1) Premium 12-in. 60-Tooth Carbide-Tipped Blade
- (1) Wrench
- (1) Toolless Vertical Work Clamp
- (1) Dust Bag Assembly
Key Specifications
|
|
15 A |
|---|---|
|
|
3,800 RPM |
|
|
12 in |
|
|
1 in |
|
|
13-7/16 in |
|
|
4-1/8 in |
|
|
47° Left / 47° Right |
|
|
0°, 33.9°, 45°, 47° (L/R) |
|
|
52° Left / 60° Right |
|
|
7 in |
|
|
6-3/4 in / 7-1/2 in |
|
|
11 in |
|
|
6 ft |
|
|
31.18 x 22.52 x 20.87 in |
|
|
Dust Chute and Bag |
Compatibility
Built For
Tool Nut's Take
Bosch EXCM341-305GD: 12-in. Glide Capacity, Smaller Footprint
A dual-bevel 12-in. glide saw that cuts wide boards and big crown in a compact footprint.
- Who it's for: Trim carpenters and remodelers who cut a lot of crown, base, and wide stock.
- Why it stands out: Compact glide capacity, 47-degree dual bevel, Shadow LED cutline, and integrated extensions with stops.
- Worth knowing: This is a corded 15 amp saw at about 85 lb. shipping weight, so plan on a stand rather than carrying it room to room.
Common Questions
- How wide a board can it crosscut? 13-7/16 in. at 0 degrees.
- Does it have a laser? It uses a Shadow LED cutline that shows the blade's shadow on the work instead of a laser.
- What blade comes with it? A premium 12-in. 60-tooth carbide-tipped blade.
- Is it dual-bevel? Yes, 47 degrees left and right.
