Bosch Corded 7.0A Barrel-Grip Jig Saw (JS470EB)
Bosch Corded 7.0A Barrel-Grip Jig Saw (JS470EB)
Out of Stock - Available to Order - Usually ships in 21-30 days
Product Details
Product Details
Key Features
Overview

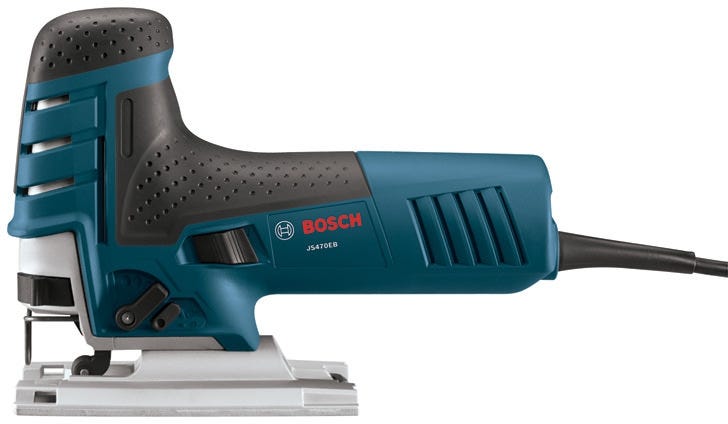

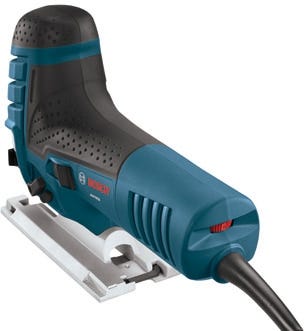

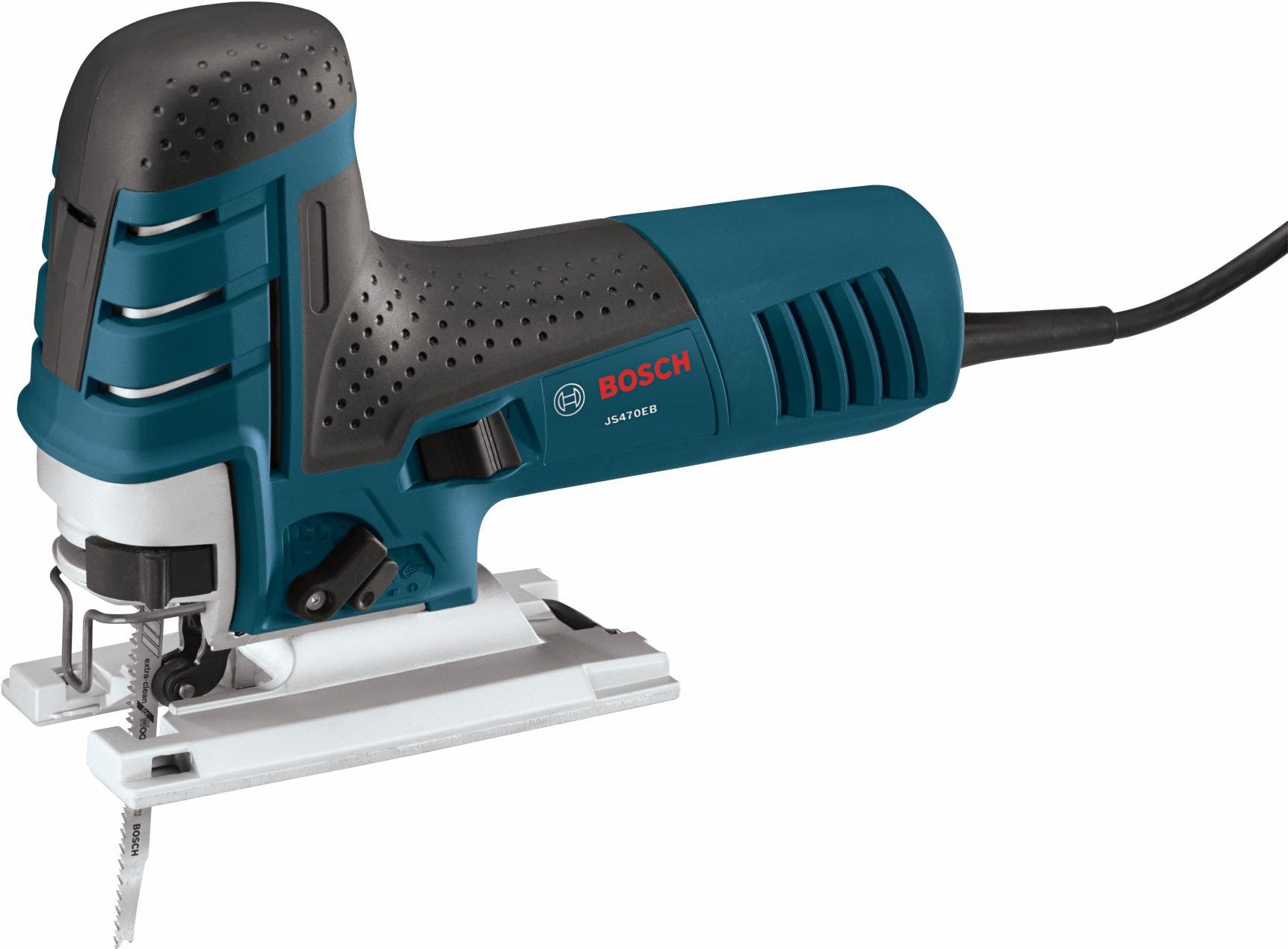

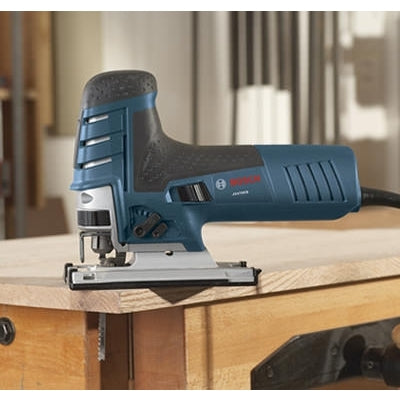

The Bosch JS470EB Barrel-Grip Jig Saw is a corded barrel-grip jig saw built for precise curved cutting, trim work, and detailed cutouts. This is a jig saw designed for controlled curve-cutting and finish work. Model Number: JS470EB. If you do cabinet installs, countertop cutouts, coping, scribing, or detailed woodwork where control matters more than brute size, this is the kind of saw that earns its keep fast.
The big reason people choose this saw is the combination of a 7.0 amp motor, 500 to 3,100 strokes per minute, and a 1 inch stroke length. On the job, that means you can slow it down for cleaner work in metal or detailed pattern cuts, then turn it up when you need to move through wood quicker. Bosch also uses Constant Response circuitry, which helps the saw hold speed when the blade starts seeing real resistance instead of just free-running in the air.

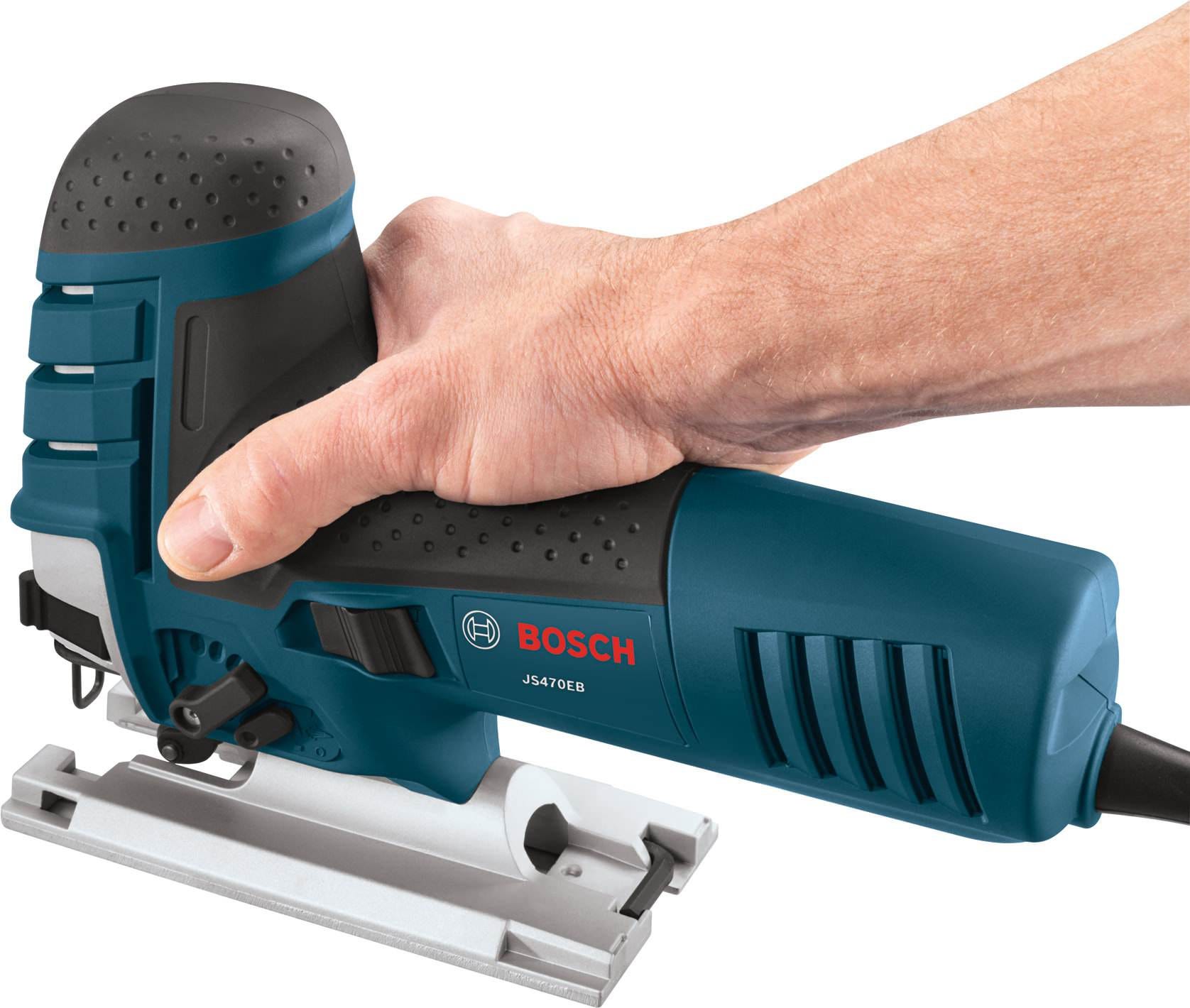

The barrel-grip layout changes how the tool feels in use. Your hand sits lower and closer to the blade path than it does on a typical top-handle jigsaw, which gives many users better feedback and more direct control in scroll cuts, scribe work, and coping. Bosch backs that up with an ergonomic body, soft-grip contact areas, and a fully counterbalanced low-vibration mechanism. That matters because less chatter usually means less fighting the saw and less cleanup on visible finished edges.
Build quality is not an afterthought here. The aluminum gearbox adds durability, and the large die-cast aluminum footplate gives the saw a more planted feel on the work surface. Bosch includes a no-mar plastic overshoe, which is useful when you are working across finished surfaces that you do not want scratched up. The footplate also bevels up to 45 degrees, giving the saw more range for angled cuts without needing a different tool.
Blade control is another strong point. The multidirectional blade clamp is designed for T-shank jig saw blades and gives them a solid hold, but it does not accept U-shank blades. That clear blade compatibility matters because it tells you exactly what to stock in the truck or shop. Bosch also includes four orbital-action settings, so you can tune the cut for smoother finish work or more aggressive material removal depending on the blade and material.
For day-to-day use, Bosch kept the practical details right where they need to be. The variable-speed dial lets you match the saw to the material, the dust blower helps keep the cut line visible, and the toolless blade-change system speeds things up when you are jumping from wood to metal or replacing a worn blade. The blade ejection lever is especially useful because it lets you dump a hot blade without touching it. When you are making repeated cuts, that small feature is not small at all.
The Bosch JS470EB Barrel-Grip Jig Saw also has dust collection capability with the optional Bosch JA1007 dust collection attachment, and it works with the Bosch JA1010 jig saw guide and JA1013 anti-splinter insert. That makes it a better fit for shop use, interior remodel work, and cleaner finished cutting where you want more guidance or less tear-out.
This saw makes the most sense for finish carpenters, kitchen and bath installers, cabinetmakers, remodelers, and serious DIY users who want a corded jig saw with real control and smoother operation. If you prefer the feel of a barrel-grip jigsaw and already use T-shank blades, this is a well-rounded, proven option. If you want a light-duty saw for occasional rough cuts only, it may be more tool than you need. But if accuracy, smoother cutting, and repeatable control are what you care about, this Bosch is built for exactly that.
Bosch JS470EB Barrel-Grip Jig Saw for Better Cut Control
Bosch JS470EB Barrel-Grip Jig Saw for Better Cut Control

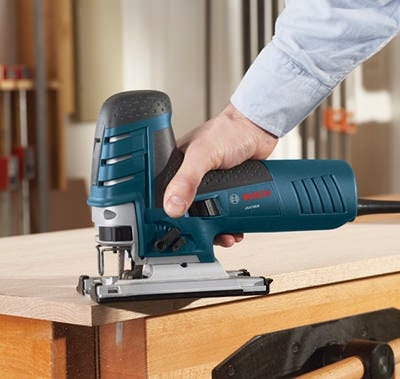

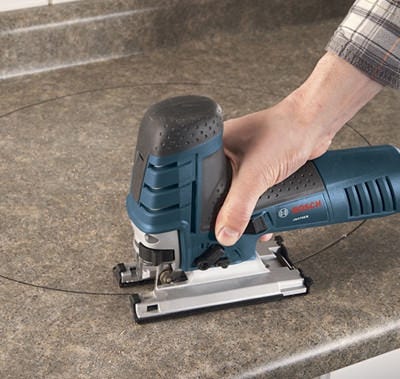

The lower barrel-grip hold gives many users a more connected feel at the blade, which is exactly what you want when the cut line matters. For coping, scroll work, sink cutouts, and trim fitting, that extra control is the difference between a clean fit and extra sanding.
- Ergonomic body with upfront soft-grip area for comfort and control
- Low-vibration, fully counterbalanced mechanism for smoother tracking
- Good fit for finish carpentry, cabinet work, and kitchen and bath installation
Power You Can Actually Use
A 7.0 amp motor is only useful if the saw stays steady when the material pushes back. Bosch pairs that motor with Constant Response circuitry and four orbital settings, so you can choose between cleaner cuts and faster cuts instead of being stuck with one feel all the time.
- 500 to 3,100 strokes per minute with variable-speed dial control
- 1 inch stroke length balances speed and control
- Four orbital-action settings help tune the cut for finish work or faster stock removal
Built for Real Jobsite Use
This is the stuff you notice after a few weeks of use: quicker blade swaps, a base that stays planted, a dust blower that keeps the line visible, and an overshoe that helps protect finished surfaces. None of it is flashy, and that is the point.
- Toolless blade-change system with ejection lever for hot blade removal
- Large die-cast aluminum footplate with no-mar plastic overshoe
- Dust blower with on/off switch and dust collection capability
What's in the Box
- (1) Bosch JS470EB 7.0 Amp Barrel-Grip Jig Saw
- (1) Non-Marring Overshoe
- (1) Anti-Splinter Insert
- (1) T-Shank Jig Saw Blade
- (1) Bevel Wrench
- (1) Carrying Case
Key Specifications
| Power Source | 120V corded electric |
|---|---|
| Amperage | 7.0 A |
| No-Load Speed | 500 to 3,100 SPM |
| Stroke Length | 1 in |
| Bevel Capacity | 45° |
| Blade Type | T-shank jig saw blades |
| Cutting Capacity in Soft Wood | 5-7/8 in |
| Cutting Capacity in Aluminum | 7/8 in |
| Cutting Capacity in Mild Steel | 3/8 in |
| Weight | 5.9 lbs |
| Length | 10.4 in |
| Height | 7 in |
Compatibility
Built For
Pro Tip
When you are cutting thicker hardwood or trying to keep a profile square, back the speed down and reduce the orbital setting before blaming the blade. This Bosch barrel-grip jig saw gives you enough control to trade a little speed for a straighter, cleaner cut.
Warranty & Support
Tool Nut's Take
One of the better corded barrel-grip jigsaws for finish-focused work
The Bosch JS470EB Barrel-Grip Jig Saw is the kind of saw you buy when you care about tracking a line cleanly, not just getting through the cut.
- Who it's for: Finish carpenters, cabinet guys, remodelers, and woodworkers who want a corded jig saw with better feel for scroll cuts, coping, and cutouts.
- Why it stands out: The barrel grip, low-vibration mechanism, strong T-shank blade clamp, and solid die-cast base all work together to make the saw feel planted and predictable.
- Worth knowing: It is T-shank only, and if you strongly prefer a top-handle saw or want a built-in light, this is probably not your pick.
Common Questions
- What type of blades does this jig saw use? It uses T-shank jig saw blades and does not accept U-shank blades.
- Can the Bosch JS470EB make bevel cuts? Yes. The footplate bevels up to 45 degrees.
- Does this saw have variable speed? Yes. It has a variable-speed dial and a speed range of 500 to 3,100 strokes per minute.
- Can it cut metal as well as wood? Yes. Bosch lists cutting capacity up to 7/8 inch in aluminum and 3/8 inch in mild steel, along with 5-7/8 inch capacity in soft wood.
