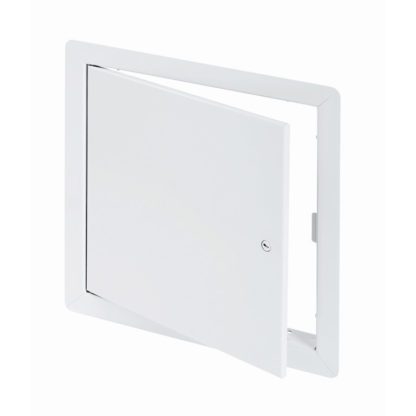

Cendrex AHD-00 Flush Universal Access Door With Exposed Flange, Pin Hinge
Cendrex AHD-00 Flush Universal Access Door With Exposed Flange, Pin Hinge
Regular price
$26.42
Sale price
$26.42
Regular price
Ships from manufacturer
Product Details
Product Details
Screwdriver operated cam latch, pin hinge. Designed for quick and easy installation on non-rated walls and ceilings made of any type of materials.
- Material : 16-gauge cold rolled steel.
- Hinge : Hot rolled and stamped steel pin hinge. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism : Screwdriver-operated cam latch in cold rolled steel.
- Flange : 1" exposed flange.
- Frame : 11/2" in depth.
- Rough opening : Door sizes + 1/4 " or + 6mm.
- Finish : High quality white powder coat primer.
- Packaging : Individually wrapped, 1 door per box.
Dimensions
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| * 6 x 6 | 152 x 152 | 2.1 | 1.0 | 1 |
| * 8 x 8 | 203 x 203 | 3.0 | 1.4 | 1 |
| * 8 x 12 | 203 x 305 | 4.1 | 1.9 | 1 |
| * 10 x 10 | 254 x 254 | 4.1 | 1.9 | 1 |
| * 12 x 12 | 305 x 305 | 5.3 | 2.4 | 1 |
| * 12 x 16 | 305 x 406 | 6.6 | 3.0 | 1 |
| * 12 x 18 | 305 x 457 | 7.5 | 3.4 | 1 |
| * 12 x 24 | 305 x 610 | 9.4 | 4.3 | 1 |
| * 14 x 14 | 356 x 356 | 6.6 | 3.0 | 1 |
| * 16 x 16 | 406 x 406 | 8.1 | 3.7 | 1 |
| * 18 x 18 | 457 x 457 | 9.9 | 4.5 | 1 |
| * 18 x 24 | 457 x 610 | 12.4 | 5.6 | 1 |
| * 20 x 20 | 508 x 508 | 11.7 | 5.3 | 1 |
| * 22 x 22 | 559 x 559 | 13.8 | 6.3 | 1 |
| * 24 x 24 | 610 x 610 | 15.8 | 7.2 | 1 |
