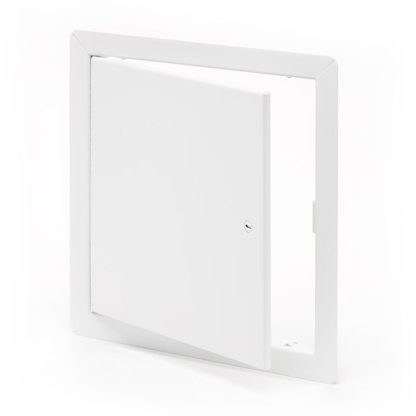

Cendrex AHD-110 Flush Universal Access Door With Exposed Flange, Piano Hinge
Cendrex AHD-110 Flush Universal Access Door With Exposed Flange, Piano Hinge
Regular price
$193.17
Sale price
$193.17
Regular price
+ Free Delivery
Out of Stock
Product Details
Product Details
Screwdriver-operated cam latch, piano hinge. Designed for quick and easy installation on non-rated walls and ceilings. The piano hinge is ideal for larger doors.
- Material : 16-gauge cold rolled steel.
- Hinge : Hot rolled and stamped steel continous piano hinge. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism : Screwdriver operated cam latch in cold rolled steel.
- Flange : 1" exposed flange, made of cold rolled steel.
- Frame : 1 1/2" in depth, made of cold rolled steel.
- Rough opening : Door sizes + 1/4 " or + 6mm.
- Finish : High quality white powder coat primer.
- Packaging : Individually wrapped, 1 door per box.
Dimensions
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| * 22 x 30 | 559 x 762 | 17.7 | 8.0 | 2 |
| * 22 x 36 | 559 x 914 | 20.8 | 9.4 | 2 |
| * 24 x 30 | 610 x 762 | 19.9 | 9.0 | 2 |
| * 24 x 36 | 610 x 914 | 22.3 | 10.1 | 2 |
| * 24 x 48 | 610 x 1219 | 28.9 | 13.1 | 2 |
| * 30 x 30 | 762 x 762 | 23.5 | 10.7 | 4 |
| * 36 x 36 | 914 x 914 | 31.7 | 14.4 | 4 |
