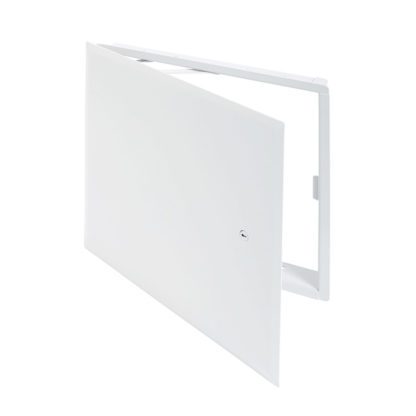

Cendrex CTR-00 Flush Universal Access Door With Hidden Flange
Cendrex CTR-00 Flush Universal Access Door With Hidden Flange
Regular price
$29.87
Sale price
$29.87
Regular price
Ships from manufacturer
Product Details
Product Details
Screwdriver operated cam latch, pantograph hinge. Designed for a more aesthetically pleasing finish, the panel, with its beveled edges, closes over the flange.
- Material : 16-gauge cold rolled steel
- Hinge : Concealed, exclusive pantograph double arm design. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism : Screwdriver operated cam latch in cold rolled steel
- Flange : 7/8" concealed flange, made of cold rolled steel
- Frame : 11/2" in depth, made of cold rolled steel
- Rough opening : Door sizes + 1/4 " or + 6mm
- Finish : High quality white powder coat primer
- Packaging : Individually wrapped, 1 door per box
Dimensions
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| * 81/4 x 81/4 | 210 x 210 | 3.8 | 1.7 | 1 |
| * 81/4 x 12 | 210 x 305 | 4.9 | 2.2 | 1 |
| * 10 x 10 | 254 x 254 | 4.8 | 2.2 | 1 |
| * 12 x 12 | 305 x 305 | 6.1 | 2.8 | 1 |
| * 12 x 18 | 305 x 457 | 8.3 | 3.8 | 1 |
| * 14 x 14 | 356 x 356 | 7.4 | 3.4 | 1 |
| * 16 x 16 | 406 x 406 | 8.9 | 4.0 | 1 |
| * 18 x 18 | 457 x 457 | 10.9 | 4.9 | 3 |
| * 18 x 24 | 457 x 610 | 13.6 | 6.2 | 4 |
| * 20 x 20 | 508 x 508 | 12.8 | 5.8 | 4 |
| * 22 x 22 | 559 x 559 | 15.0 | 6.8 | 4 |
| * 22 x 30 | 559 x 762 | 18.9 | 8.6 | 5 |
| * 22 x 36 | 559 x 914 | 22.1 | 10.0 | 5 |
| * 24 x 24 | 610 x 610 | 16.9 | 7.7 | 4 |
| * 24 x 30 | 610 x 762 | 21.1 | 9.6 | 5 |
| * 24 x 36 | 610 x 914 | 23.6 | 10.7 | 5 |
