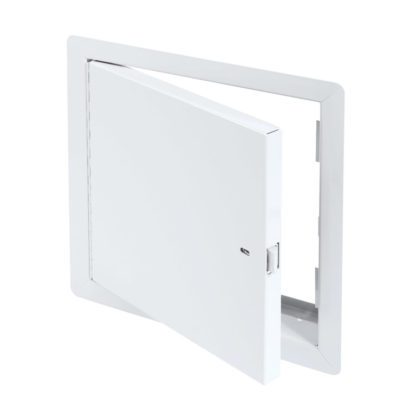

Cendrex PFN-00 Fire-Rated Uninsulated Access Door With Exposed Flange
Cendrex PFN-00 Fire-Rated Uninsulated Access Door With Exposed Flange
Regular price
$126.47
Sale price
$126.47
Regular price
Available for Backorder
Product Details
Product Details
Self-latching tool-key operated slam latch and ring operated slam latch, piano hinge. The fire rated uninsulated access door can be used on fire rated walls.
- Material : 16 gauge cold rolled steel
- Hinge : Continuous piano hinge. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism : Self-latching tool-key operated slam latch and ring operated slam latch, both included.
- Flange : 1" exposed flange
- Frame : 21/2 " in depth, made of cold rolled steel
- Rough opening : Door sizes + 1/4" or + 6mm

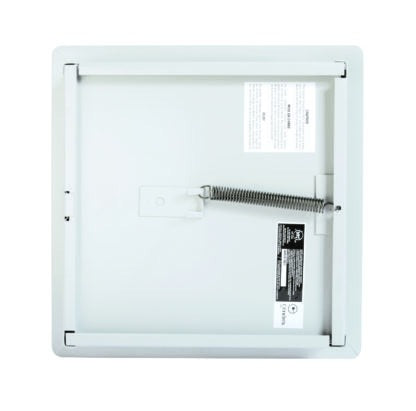

- Inside panel release : Mechanisms to allow panels to open from inside, standard on all doors over 12" X 12 inches.
- Finish : High quality white powder coat primer.
- Packaging : Individually wrapped, 1 door per box.
- Fire rated access doors, for vertical use, are subject to the following:
- Vertical wall assemblies : Fire rated access doors, for vertical use, are subject to the following:
- Certification : UL 10B (2009), NFPA 252 (2012), CAN/ULC S104 (R1985), CAN/ULC S104 (2010).
- Rating Achieved : 1-1/2 hours, neutral/negative pressure
- Maximum size : 36" x 36" (914 mm x 914 mm), maximum area of 1296 in, tolerance on height and width limitation is more or less 3" (76mm) as long as the area does not exceed 1296 in.
- Temperature rise : No rating achieved
Dimensions
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| * 8 x 8 | 203 x 203 | 6.1 | 2.8 | 1 |
| * 10 x 10 | 254 x 254 | 7.7 | 3.5 | 1 |
| * 12 x 12 | 304 x 304 | 9.3 | 4.2 | 1 |
| * 14 x 14 | 355 x 355 | 11.3 | 5.1 | 1 |
| * 16 x 16 | 406 x 406 | 13.2 | 6.0 | 1 |
| * 18 x 18 | 457 x 457 | 15.4 | 7.0 | 1 |
| * 22 x 22 | 558 x 558 | 20.4 | 9.3 | 1 |
| * 22 x 30 | 558 x 762 | 25.2 | 11.4 | 1 |
| * 22 x 36 | 558 x 914 | 29.8 | 13.5 | 2 |
| * 24 x 24 | 609 x 609 | 22.8 | 10.3 | 1 |
| * 24 x 36 | 609 x 914 | 31.5 | 14.3 | 2 |
| * 30 x 30 | 762 x 762 | 31.9 | 14.5 | 1 |
| * 32 x 32 | 812 x 812 | 35.8 | 16.2 | 2 |
| * 36 x 36 | 914 x 914 | 42.3 | 19.2 | 2 |
