Applications

• Structural connections, i.e., beam and column anchorage
• Cracked concrete / tension zone applications
• Seismic Attachments (SDC A - F)
• Conveyors and Material Handling
• Base Plates and Racking
• Guards, Bumpers and Barriers
• Mounting Machinery

Approvals & Listings

• Consistent performance in high and low strength concrete
• Anchor design allows for follow-up expansion after setting under tensile loading
• Drill bit size is the same as the nominal anchor diameter
• Anchor can be installed through standard fixture holes

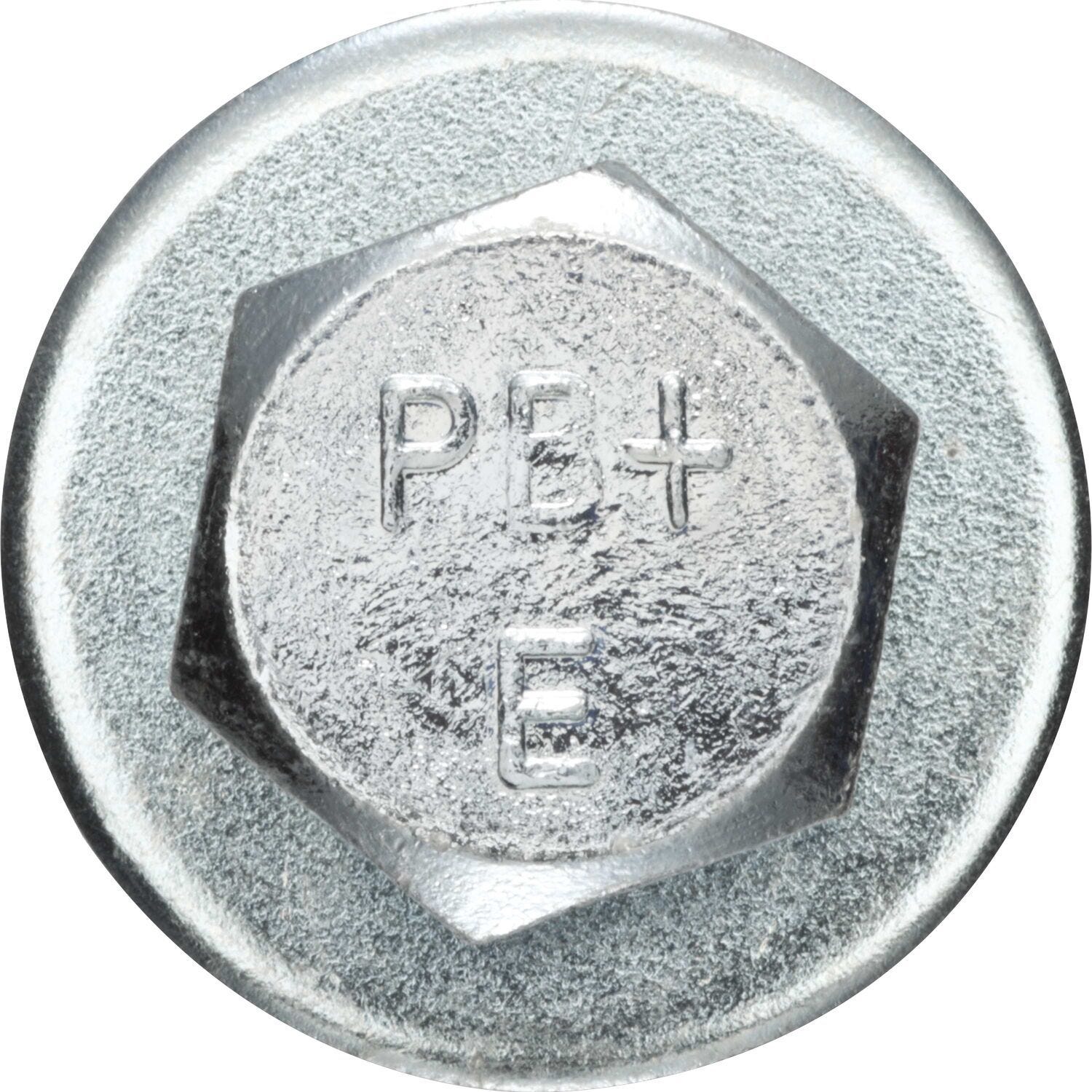

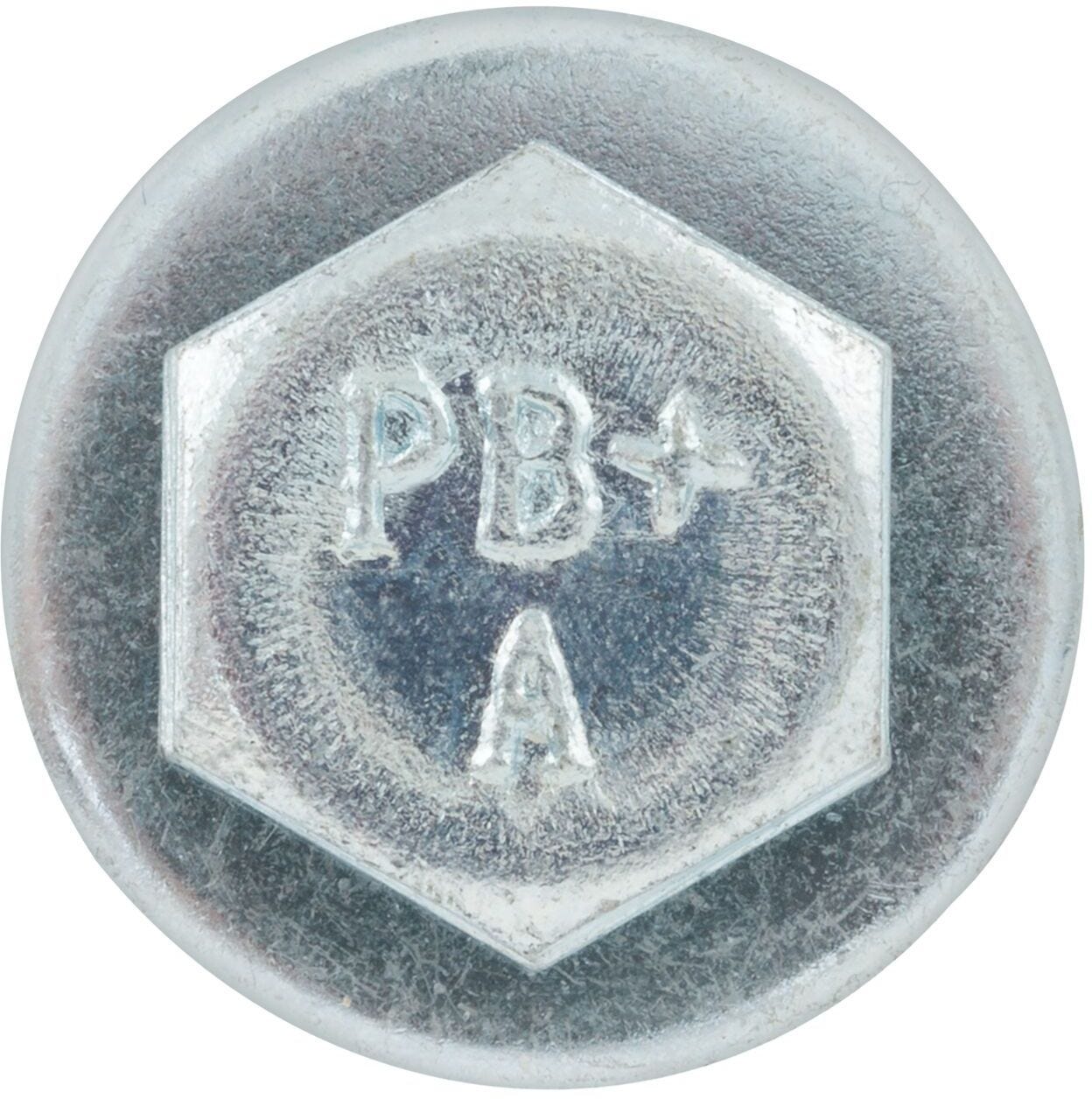

• Length ID code and identifying marking stamped on head of each anchor
• High shear load capacity
• Low profile finished hex bolt head
• DEWALT dust removal drilling system (with HEPA dust extractor) can be used for an OSHA 1926.1153 Table 1 compliant solution

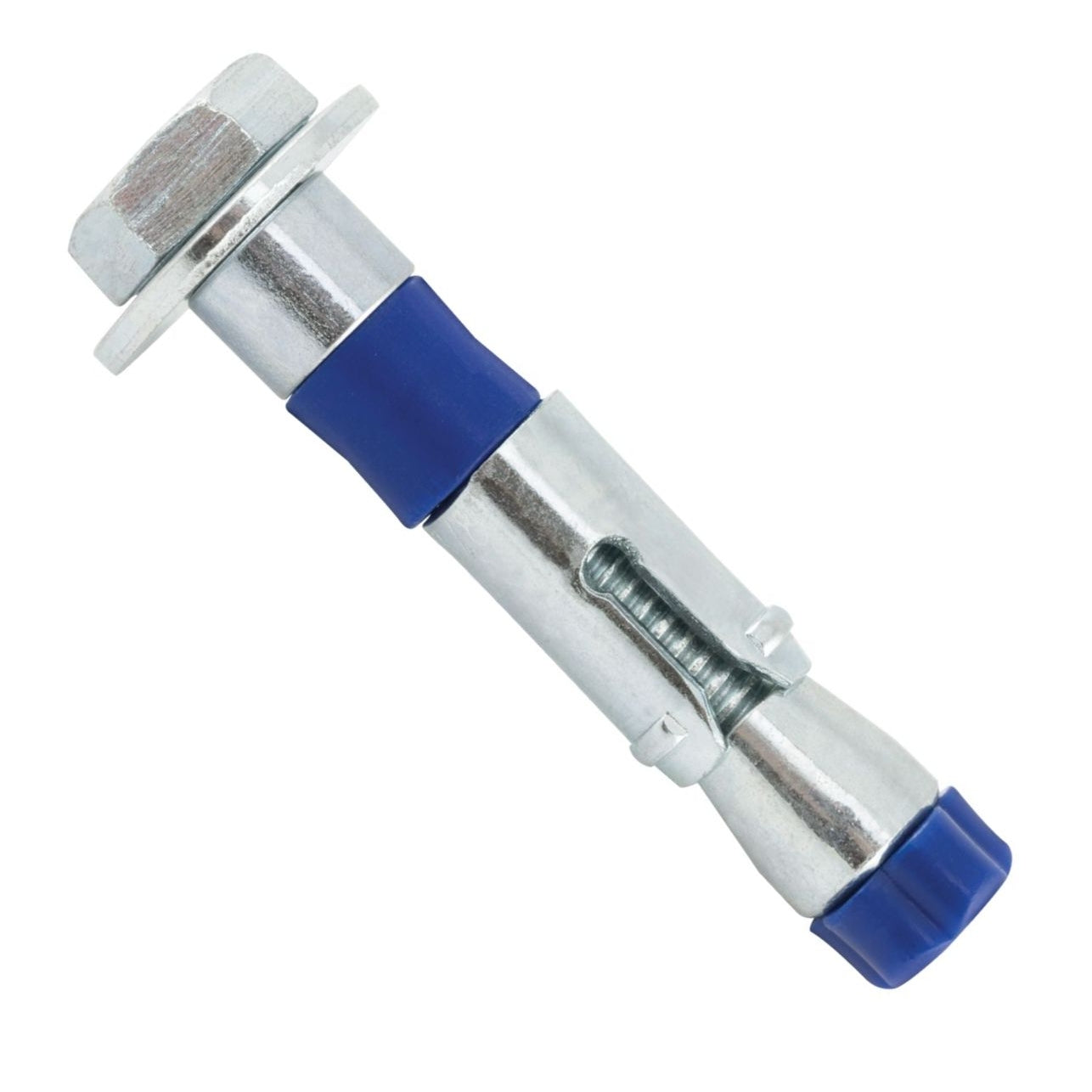

The Power-Bolt+ anchor is a torque controlled, heavy duty sleeve style anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete and lightweight concrete. The anchor is manufactured with a zinc plated carbon steel bolt, sleeve, cone and expansion clip. The Power-Bolt+ has a low profile finished hex head and a full size thick bearing sleeve to provide increased capacity in shear connections.

• Consistent performance in high and low strength concrete
• Anchor design allows for follow-up expansion after setting under tensile loading
• Drill bit size is the same as the nominal anchor diameter
• Anchor can be installed through standard fixture holes
• Length ID code and identifying marking stamped on head of each anchor
• High shear load capacity
• Low profile finished hex bolt head
• DEWALT dust removal drilling system (with HEPA dust extractor) can be used for an OSHA 1926.1153 Table 1 compliant solution
