Applications

• Structural connections, i.e., beam and column anchorage
• Safety-related attachments
• Barriers and guards
• Fencing and railing
• Mezzanines and racking
• Tension zone applications, i.e., cable trays and strut, pipe supports, fire sprinklers
• Trapeze / overhead utilities
• Ledgers, angles and brackets
• Equipment anchorage
• Seismic and wind loading (SDC A - F)

Approvals & Listings

• Consistent performance in high and low strength concrete
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard fixture holes
• Length ID code and identifying marking stamped on head of each anchor
• Anchor design allows for follow-up expansion after setting under tensile loading

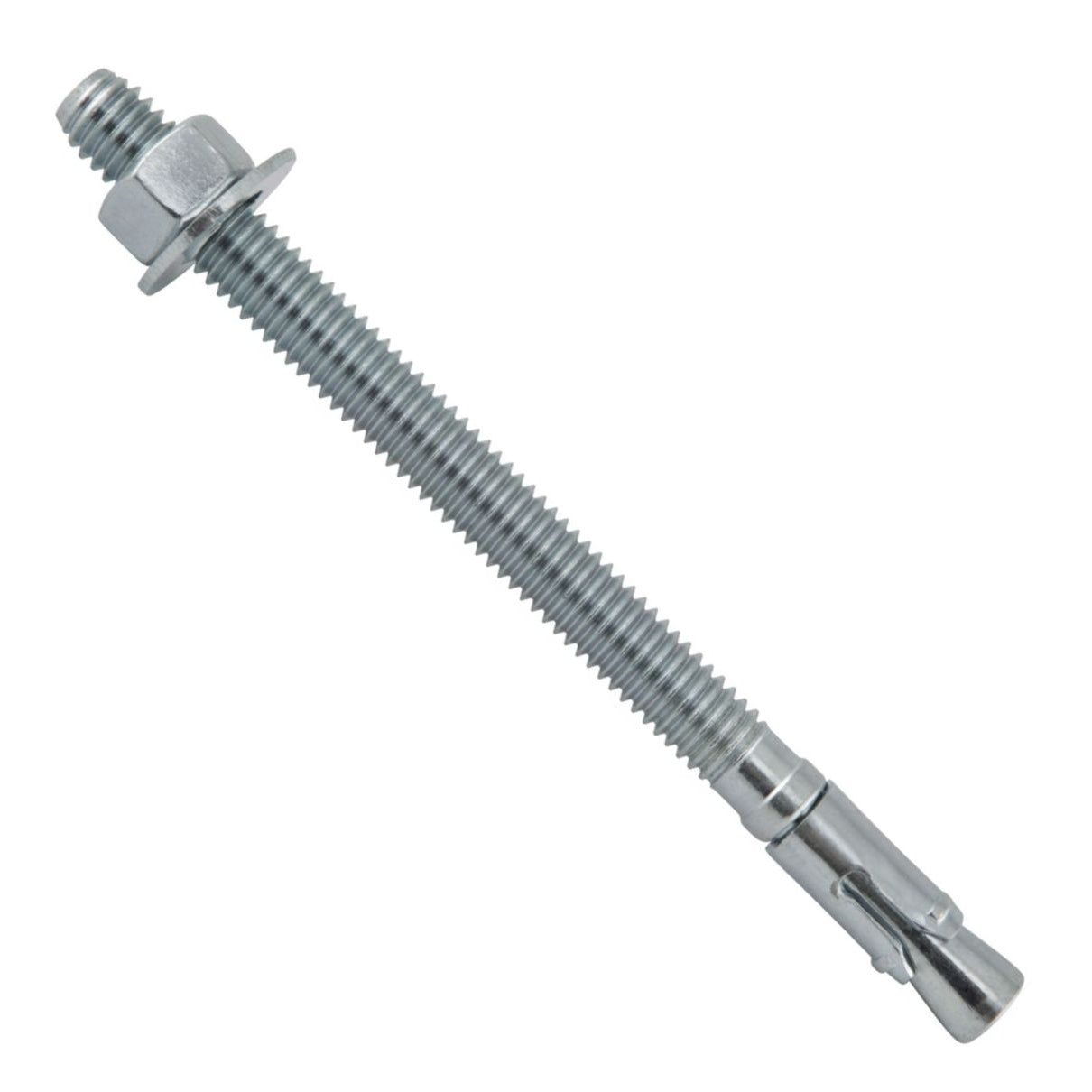

The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, lightweight concrete, concrete over steel deck and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.

• Consistent performance in high and low strength concrete
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard fixture holes
• Length ID code and identifying marking stamped on head of each anchor
• Anchor design allows for follow-up expansion after setting under tensile loading
