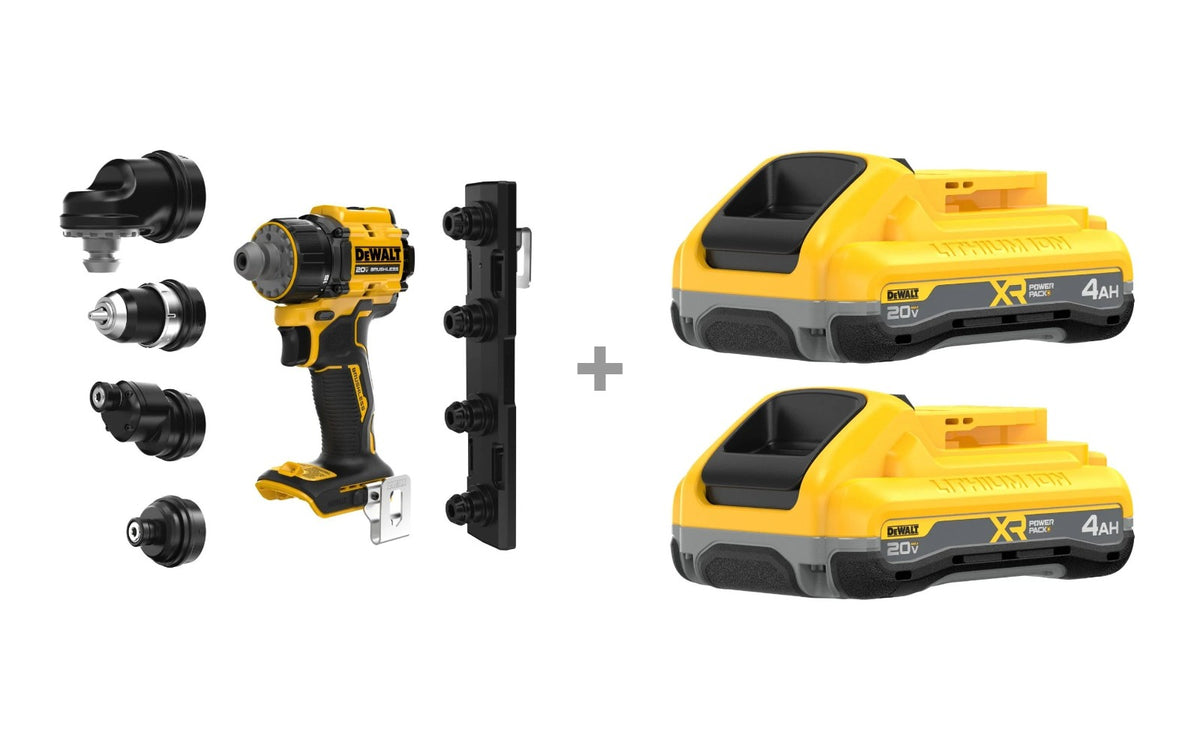

DeWALT DCD803B ATOMIC 20V MAX 5-in-1 Brushless Cordless Multi-Head Drill/Driver w/ (2) 20V MAX XR POWERPACK 4.0Ah Batteries
DeWALT DCD803B ATOMIC 20V MAX 5-in-1 Brushless Cordless Multi-Head Drill/Driver w/ (2) 20V MAX XR POWERPACK 4.0Ah Batteries
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
This bundle pairs the DeWALT ATOMIC 20V MAX 5-in-1 Brushless Cordless Multi-Head Drill/Driver with the DeWALT 20V MAX XR POWERPACK 4.0Ah Battery 2-Pack, so the bare tool arrives with two batteries to run it. Model Numbers: DCD803B (ATOMIC 20V MAX Multi-Head Drill/Driver, tool only), DCB2104-2 (20V MAX XR POWERPACK 4.0Ah Battery, 2-Pack).
The DCD803B is a compact brushless drill/driver built for drilling and fastening in hard-to-reach places. It ships with four interchangeable attachments: a 1/2" metal chuck for standard drilling and driving, a 1/4" hex quick release for fast bit changes, a 1/4" hex quick release offset for working close to edges, and a 1/4" hex right angle for spaces where a normal drill head won't fit. The drop-in load mechanism makes swaps fast, and a yellow connection indicator collar shows when an attachment is seated correctly.
DeWALT rates the DCD803B at up to 15% more power than the DCD777 (tested with a DCB205 battery). It has a 2-speed transmission, 15 clutch settings, a 1,650 RPM no-load speed, and an LED light. An included organizer keeps the heads together and can be wall-mounted using its keyholes, and two belt hooks let you hang the tool or carry attachment heads.
The DCB2104-2 2-pack adds two 20V MAX XR POWERPACK 4.0Ah batteries, DeWALT's best-performing line of 20V MAX batteries. DeWALT rates the DCB2104 at 50% more power than the DCB240 and a longer lifespan than traditional cylindrical batteries. Each pack has an overmolded base for impact resistance and an LED state-of-charge indicator, and works with DeWALT 20V MAX tools.
A good fit for electricians, cabinet installers, remodelers, trim carpenters, and maintenance techs who work in cramped spaces and need batteries to go with the tool.

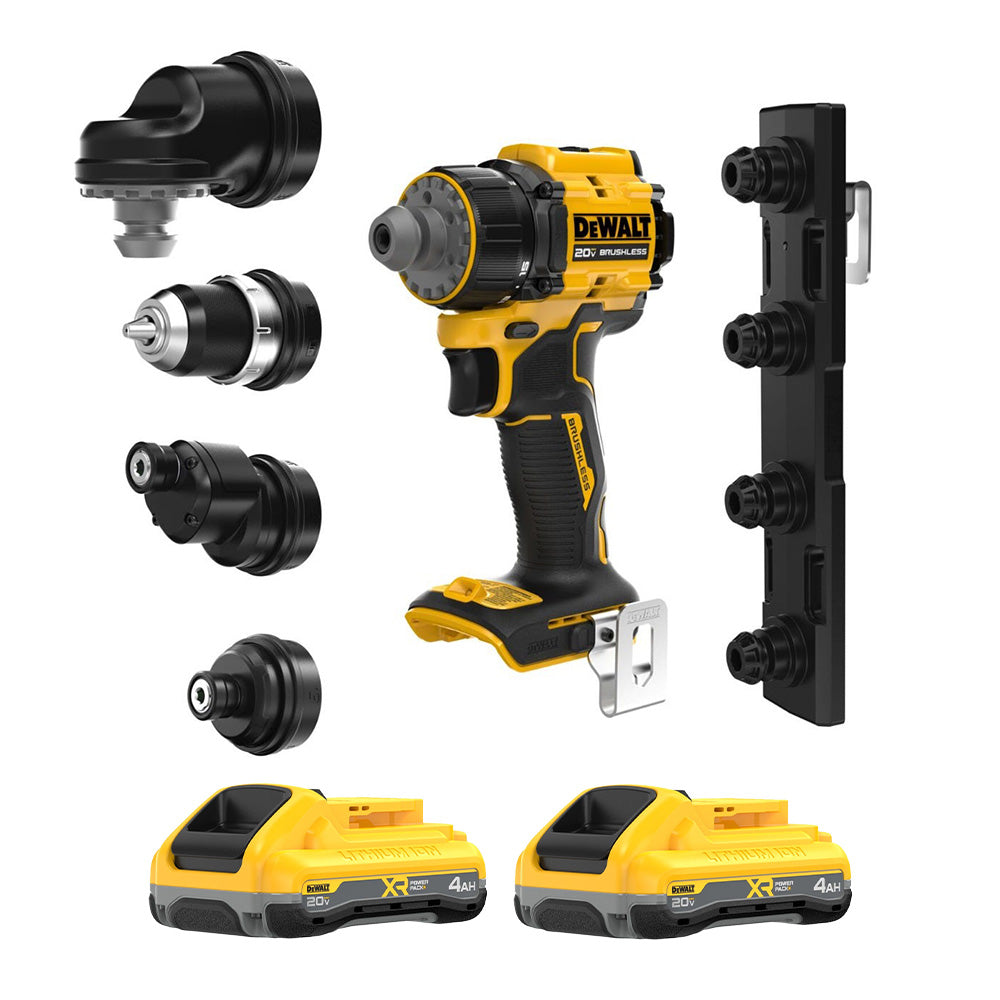

What's in the Box
- (1) DeWALT DCD803 ATOMIC 20V MAX Multi-Head Drill/Driver
- (1) 1/2" Metal Chuck Attachment
- (1) 1/4" Hex Right Angle Attachment
- (1) 1/4" Hex Quick Release Offset Attachment
- (1) 1/4" Hex Quick Release Attachment
- (1) Organizer
- (2) Belt Hooks
- (2) DeWALT DCB2104 20V MAX XR POWERPACK 4.0Ah Batteries
Charger not included.
Key Specifications
| Tool Model | DCD803B |
|---|---|
| Battery Model | DCB2104-2 (2-pack) |
| Voltage | 20V MAX |
| Motor Type | Brushless |
| No-Load Speed | 1,650 RPM |
| Transmission | 2-speed |
| Clutch Settings | 15 |
| Maximum Chuck Size | 1/2 in. |
| Tool Weight | 5.51 lbs |
| Battery Capacity | 4.0Ah (x2) |
| Battery Line | XR POWERPACK |
Compatibility
Built For
Pro Tip
Rotate the two batteries: keep one on the tool and one on the charger, and check the LED state-of-charge before heading into a tight spot so you're not swapping packs mid-install.
Warranty & Support
Tool Nut's Take
Tight-Space Drill/Driver, Batteries Included
Four heads for awkward angles plus two XR POWERPACK batteries to keep it running.
- Who it's for: Electricians, cabinet installers, remodelers, and maintenance techs who work in finished or crowded spaces.
- Why it stands out: One compact brushless tool replaces separate specialty drivers, and two 4.0Ah packs mean less downtime.
- Worth knowing: No charger is included. You'll need a DeWALT 20V MAX charger if you don't already have one.
Common Questions
- Does this bundle include a charger? No. It includes the DCD803B with its four attachments, organizer, and belt hooks, plus two 4.0Ah batteries. A charger is sold separately.
- How many batteries come with it? Two. The DCB2104-2 is a 2-pack of 20V MAX XR POWERPACK 4.0Ah batteries.
- Is this a drill driver or an impact driver? A drill driver, with interchangeable heads for drilling and fastening.
- What attachments are included? A 1/2" metal chuck, 1/4" hex right angle, 1/4" hex quick release offset, and 1/4" hex quick release attachment.
