DeWALT ATOMIC 20V MAX Extended Die Grinder, Tool Only (DCG420XB)
DeWALT ATOMIC 20V MAX Extended Die Grinder, Tool Only (DCG420XB)
Out of Stock - Available to Order - Usually ships in 14-30 days
Product Details
Product Details
Key Features
Overview

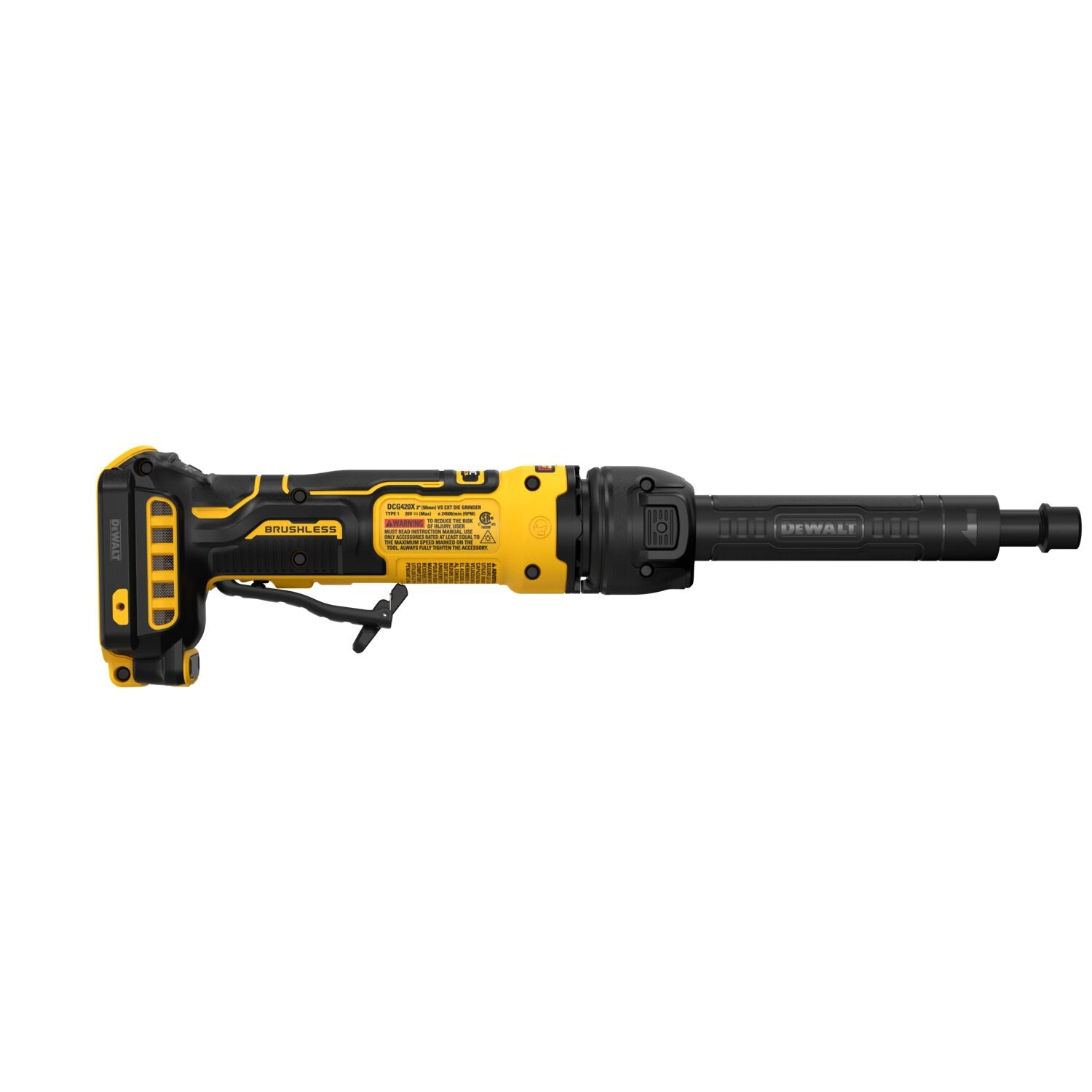

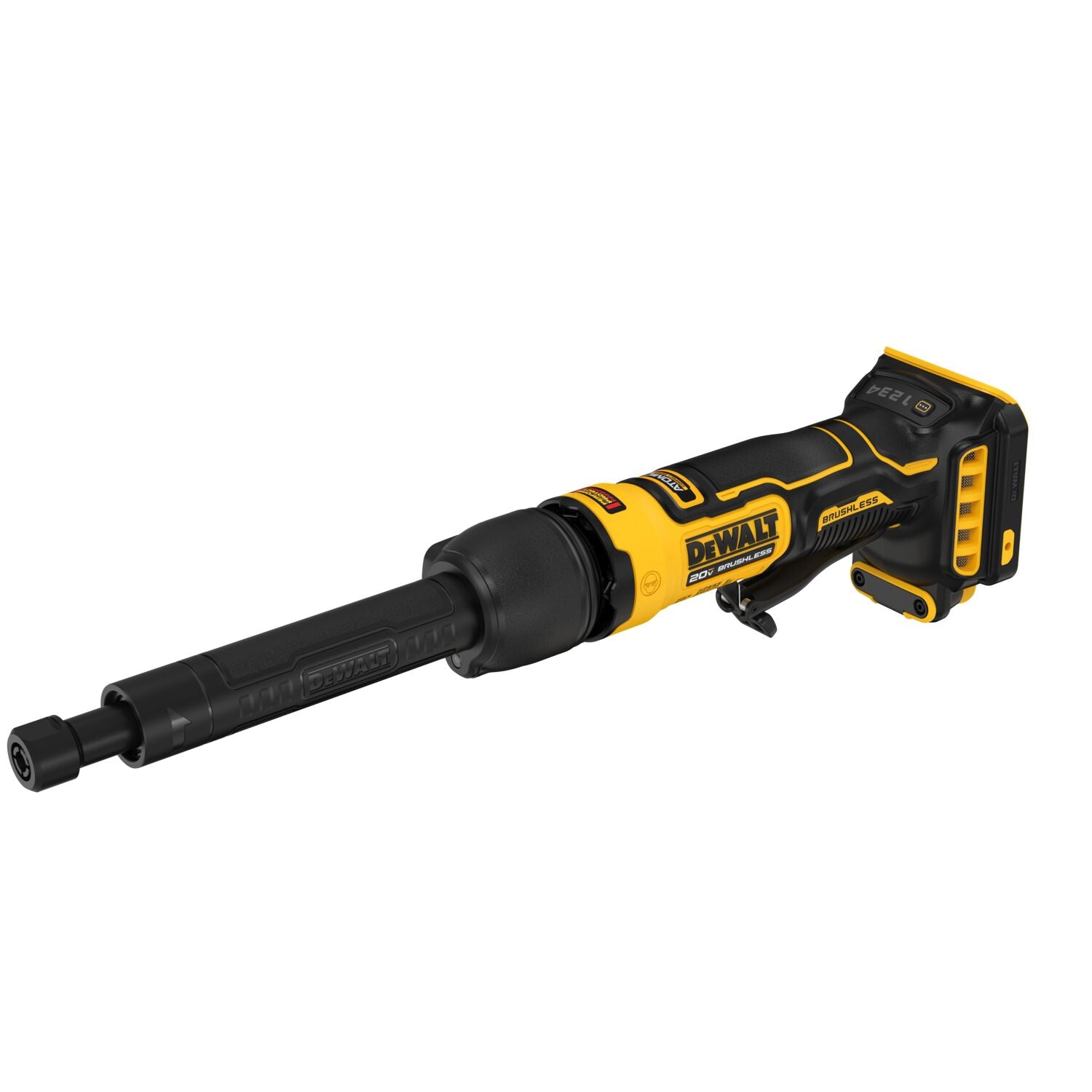

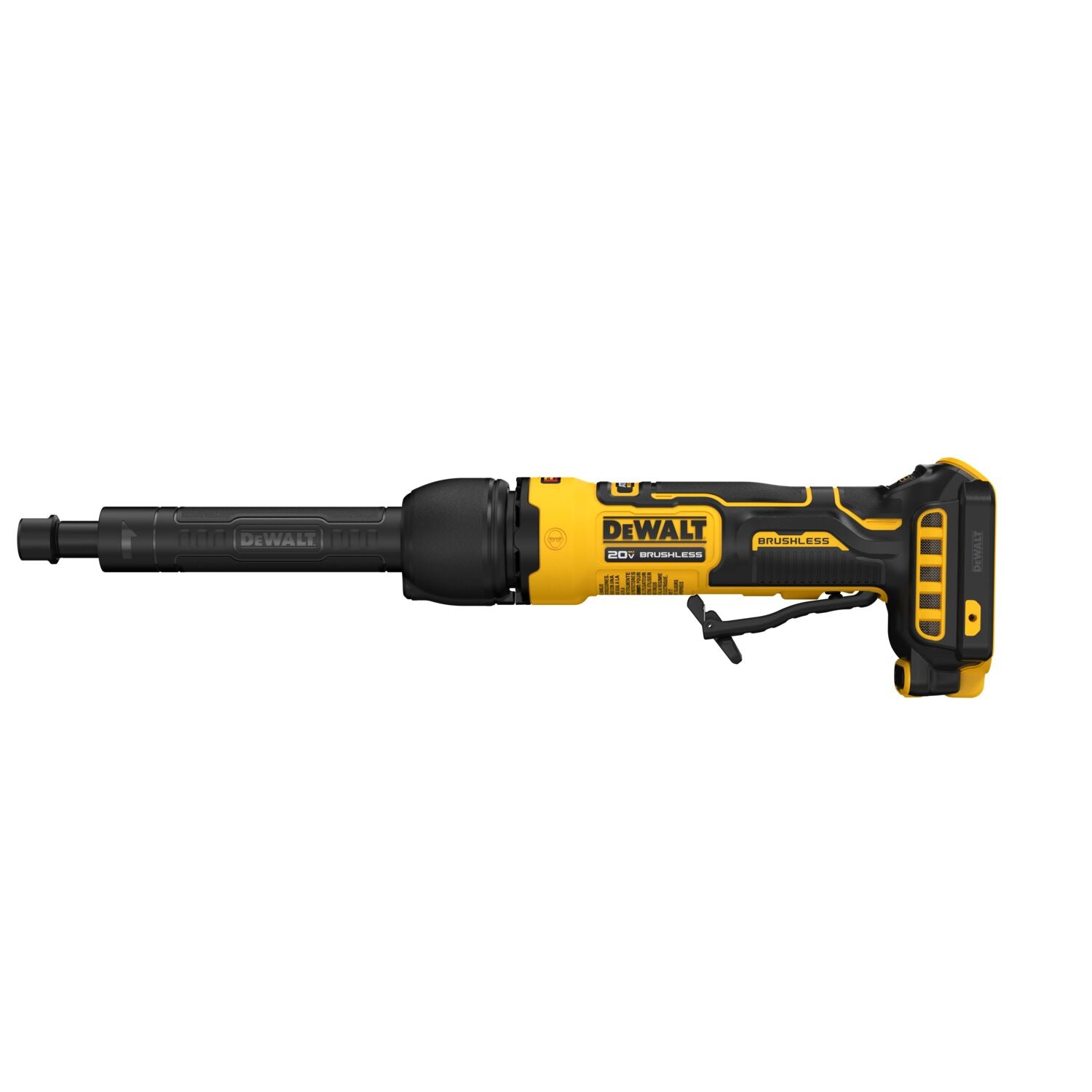

The DeWALT DCG420XB ATOMIC 20V MAX Extended Die Grinder, Tool Only is a cordless extended die grinder for fabricators, welders, mechanics and maintenance crews who need to grind, deburr and port in places a standard die grinder can't reach. This is a die grinder designed for metalworking in tight, narrow and deep spaces. Model Number DCG420XB. DEWALT describes it as the brand's first battery-operated extended die grinder, and it is sold as a bare tool with the battery and charger sold separately.
The extended neck is the reason to buy this tool. The collet sits well forward of the motor and grip, so the burr or wheel reaches inside tubing, around flanges, into engine bays and behind welded brackets while your hand stays outside the work. DEWALT rates the neck 35% slimmer in diameter than its DCG426B die grinder and the tool 30% smaller by volume, which adds up to better sightlines and less tool fighting you in close quarters.

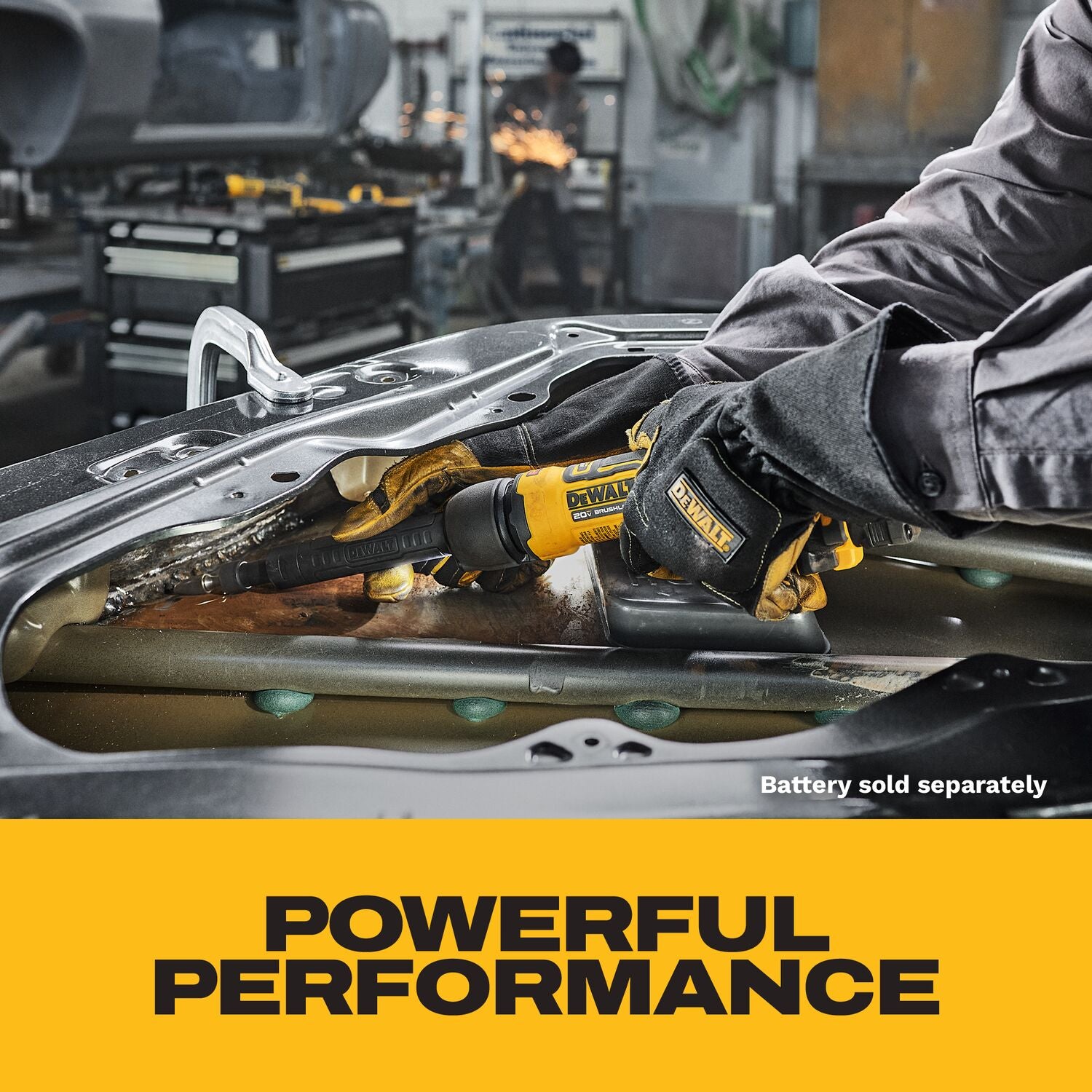

Power is in pneumatic territory. DEWALT rates the DCG420XB at up to 50% more power than 0.4 HP rated pneumatic die grinders and up to 20% more than 0.5 HP rated models, based on its maximum watts out testing. Speed runs up to 24,500 RPM no-load, and the variable speed trigger plus variable speed mode select let you match speed to the job: lower for carbide burrs in aluminum and finish blending, higher for abrasive stones and cutoff work in steel.

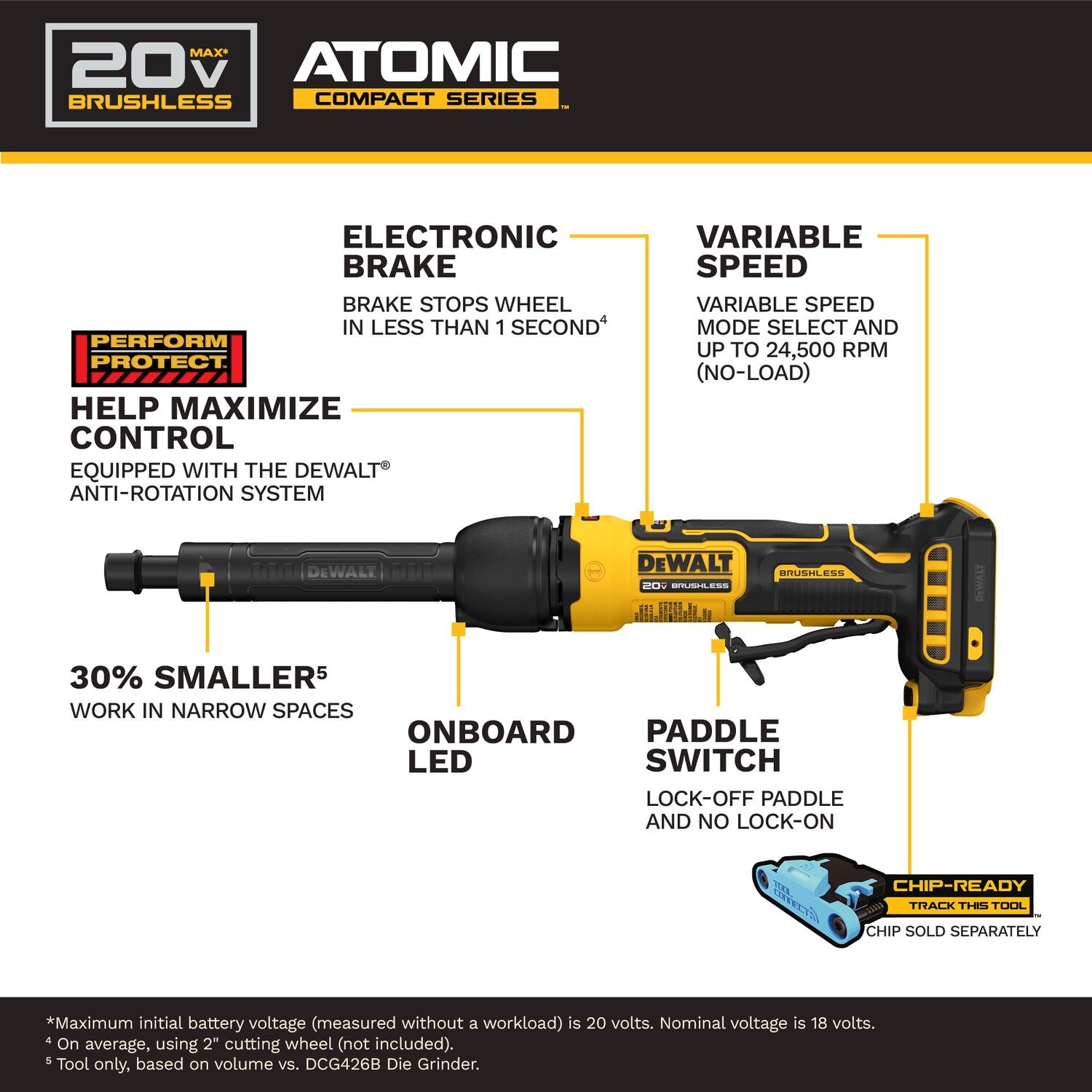

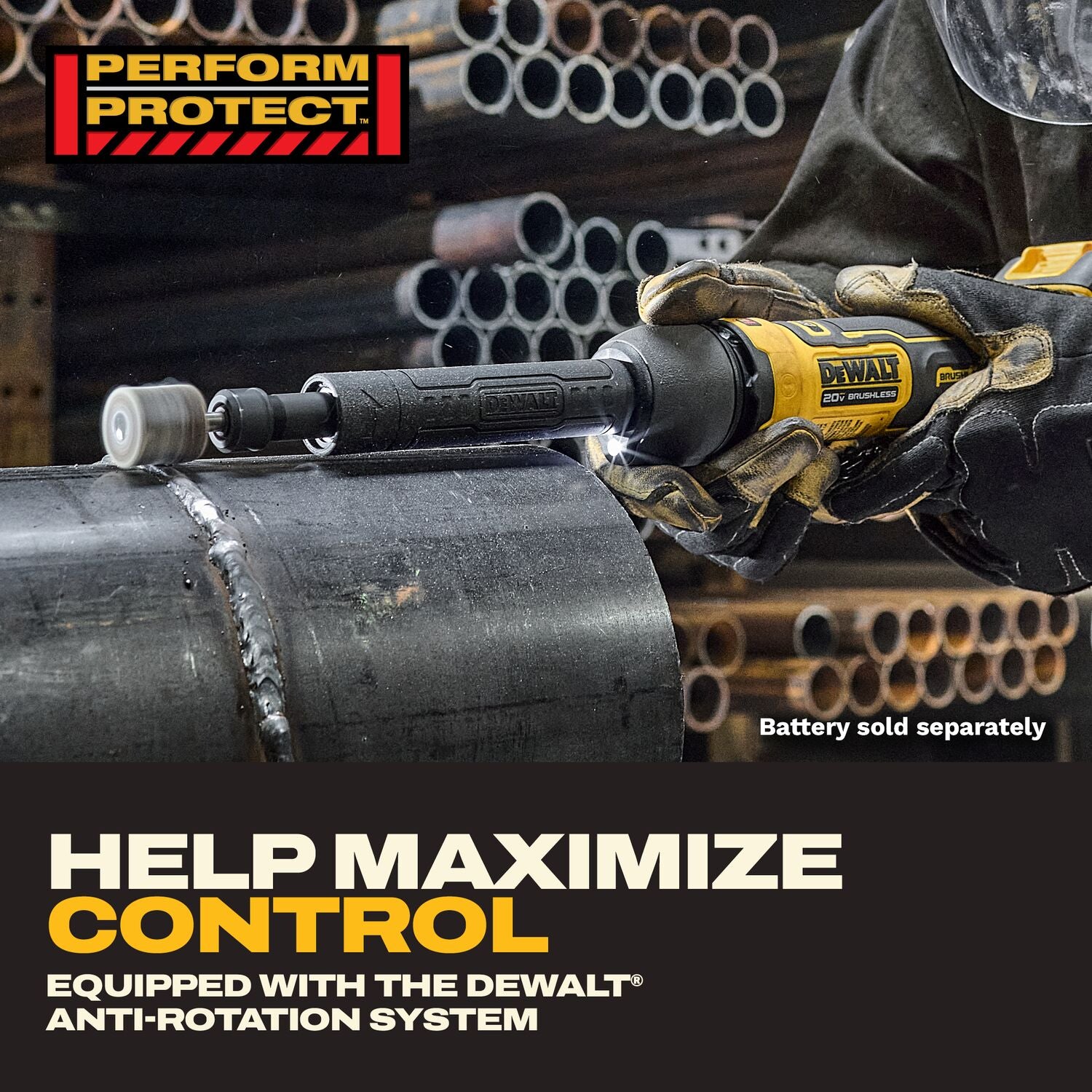

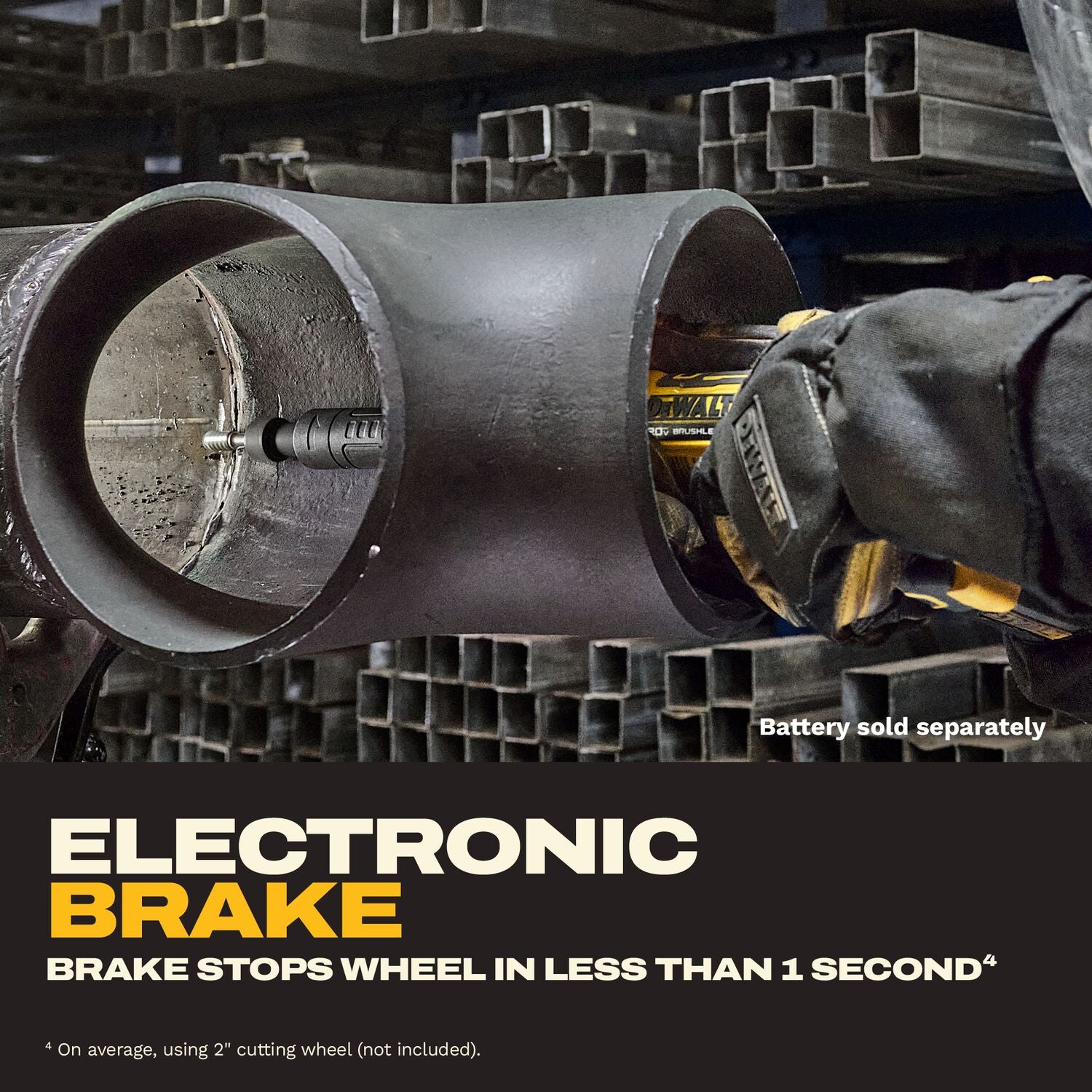

Control is where this one earns its place among DeWALT die grinders. The DEWALT PERFORM & PROTECT ANTI-ROTATION System senses a pinch, stall or bind-up and quickly stops the accessory to reduce reactionary torque; the switch must be cycled off and on to restart. The electronic brake stops the wheel in less than one second on average (DEWALT tested with a 2" cutting wheel, not included) once you let off the trigger, so the tool is stopped before you set it down or move to the next spot.
The ergonomics borrow from air tools on purpose. A lock-off paddle switch with no lock-on feels like a pneumatic die grinder and meets jobsite rules that prohibit locking triggers. The spindle lock means one wrench for accessory changes instead of two. A forward exhaust directs motor air away from your face and helps keep the motor cool, and a bright onboard LED lights the work inside dark pipe and frame cavities.
The grinder runs on DEWALT 20V MAX batteries, so it drops into the platform most shops already own. A compact pack keeps the tool balanced near your hand instead of tail-heavy. It is also TOOL CONNECT Chip Ready; pair it with the TOOL CONNECT chip and software (sold separately, subscription and data charges may apply) for asset tracking on larger crews.
Who should buy it? Fabrication shops, pipe welders, automotive and diesel techs, industrial maintenance and HVAC crews who already run 20V MAX and need reach more than raw size. If your work is open-access grinding, the standard DeWALT DCG420B ATOMIC die grinder is shorter and handier. If you are working inside pipe, behind brackets or deep in an assembly, the extended DCG420XB is the right tool.
Stops When the Accessory Grabs
A burr that catches in a weld seam can twist the tool hard. The ANTI-ROTATION System senses the bind-up and stops the accessory to cut reactionary torque.
- Senses pinch, stall and bind-up events
- Cycle the switch to restart

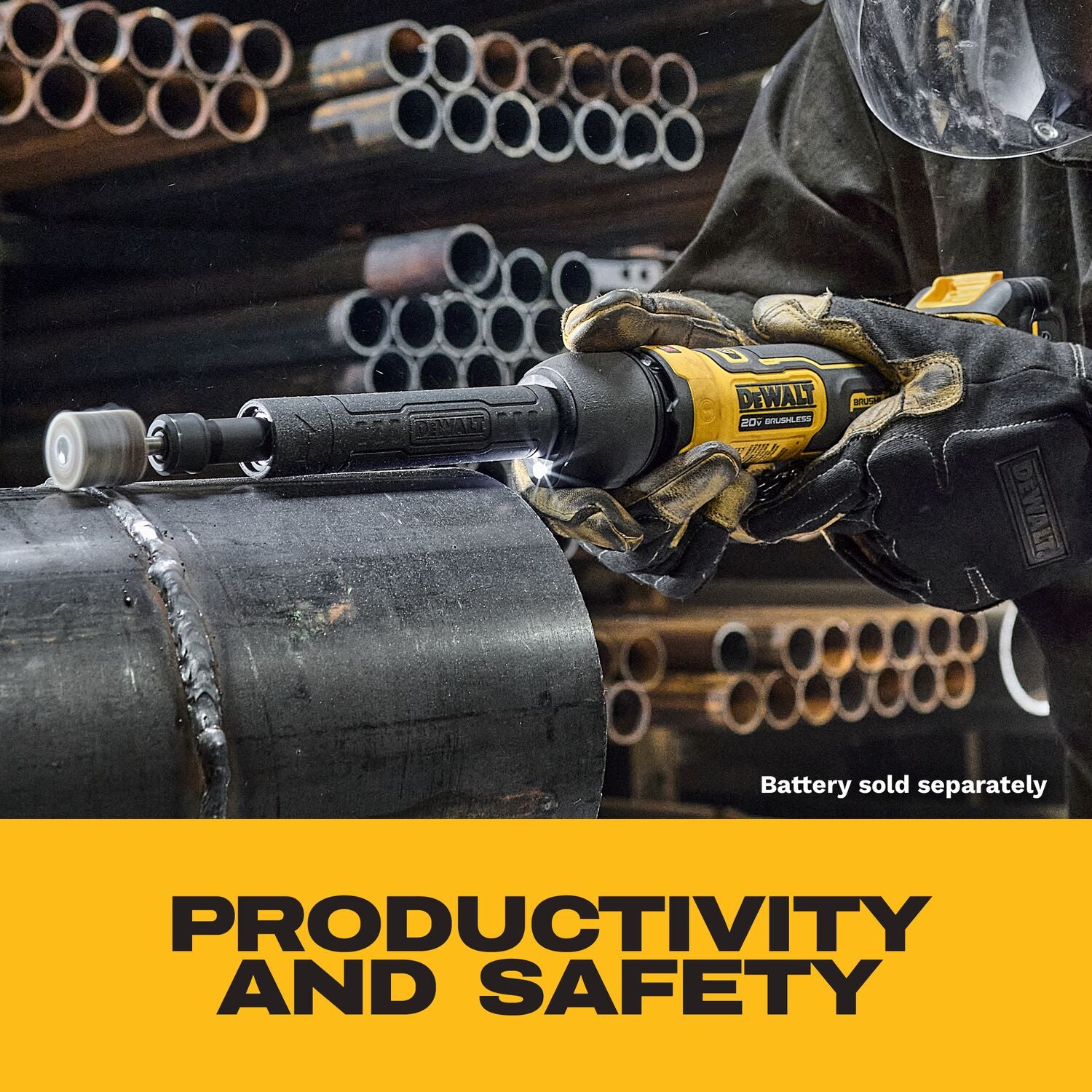

Reach Inside the Work
The long, slim neck carries the accessory deep into fittings and tubing while the motor and your grip stay outside.
- Neck 35% slimmer than the DCG426B
- Electronic brake stops the wheel in under 1 second

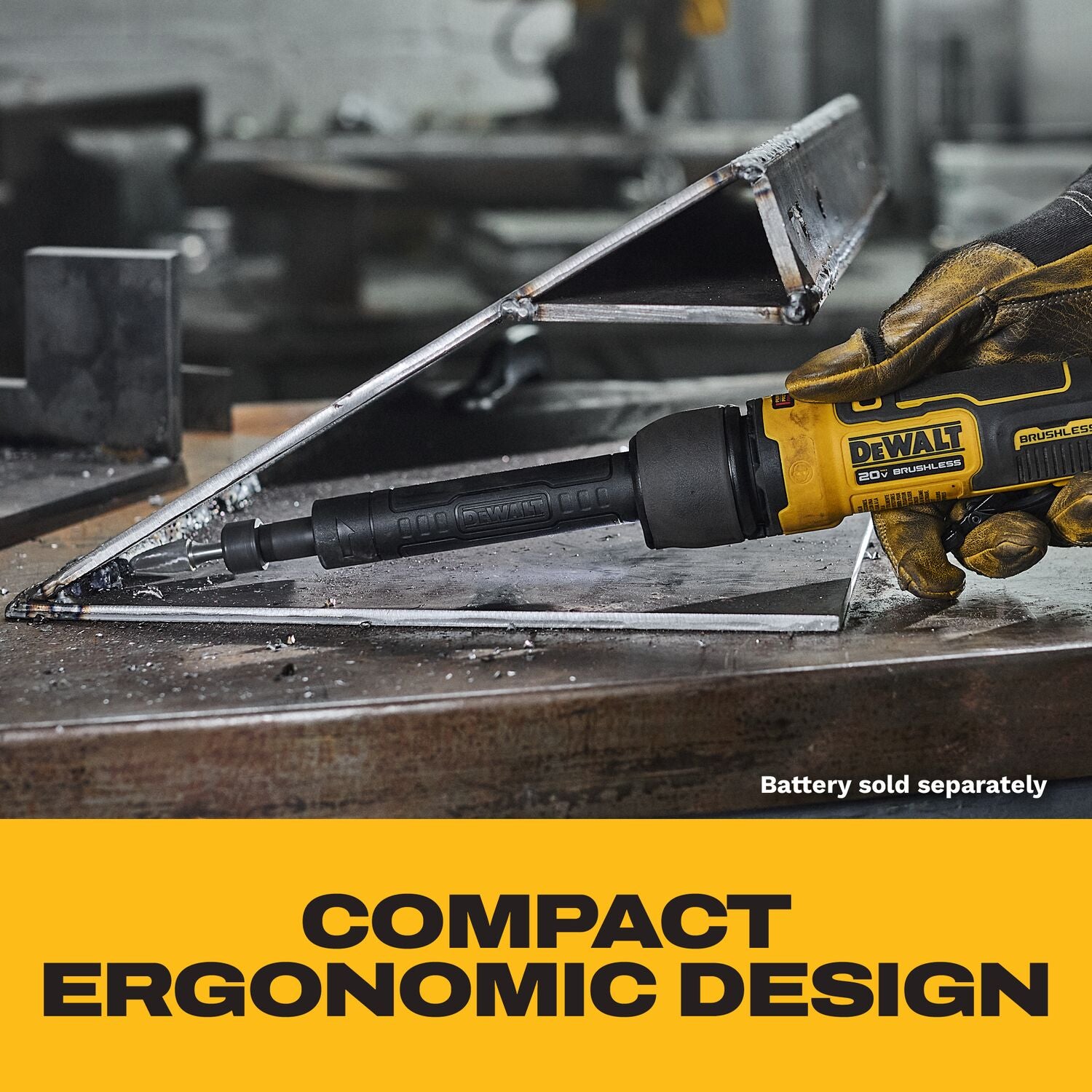

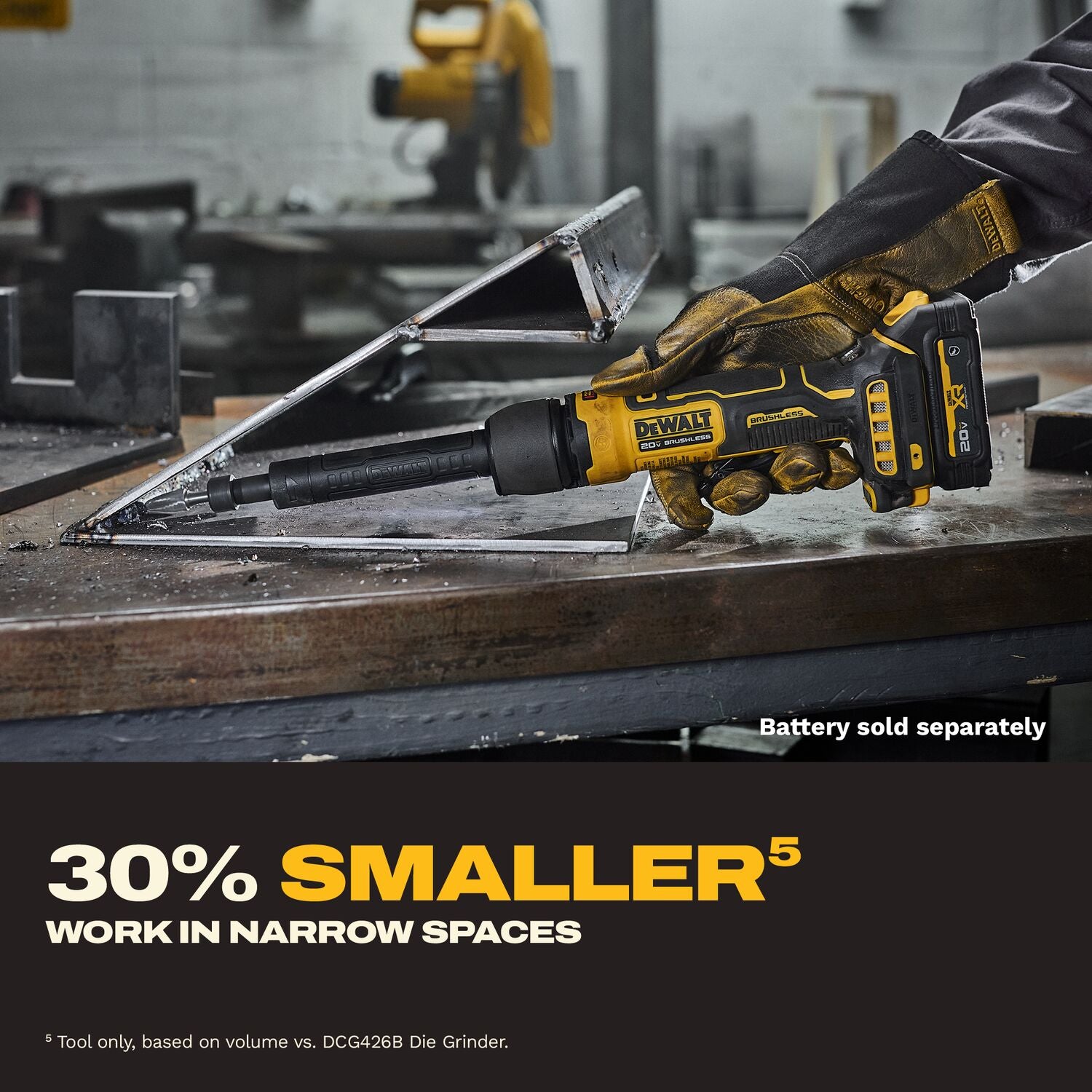

Compact Where It Counts
ATOMIC sizing keeps the body short behind the neck, so the tool fits into inside corners and gussets that a full-size grinder can't get near.
- 30% smaller by volume than the DCG426B
- Onboard LED lights dark cavities
Feels Like an Air Tool
A lock-off paddle, variable speed control and forward exhaust give the familiar feel of a pneumatic die grinder without dragging a hose across the shop.
- Paddle switch with lock-off, no lock-on
- Up to 24,500 RPM with variable speed mode select

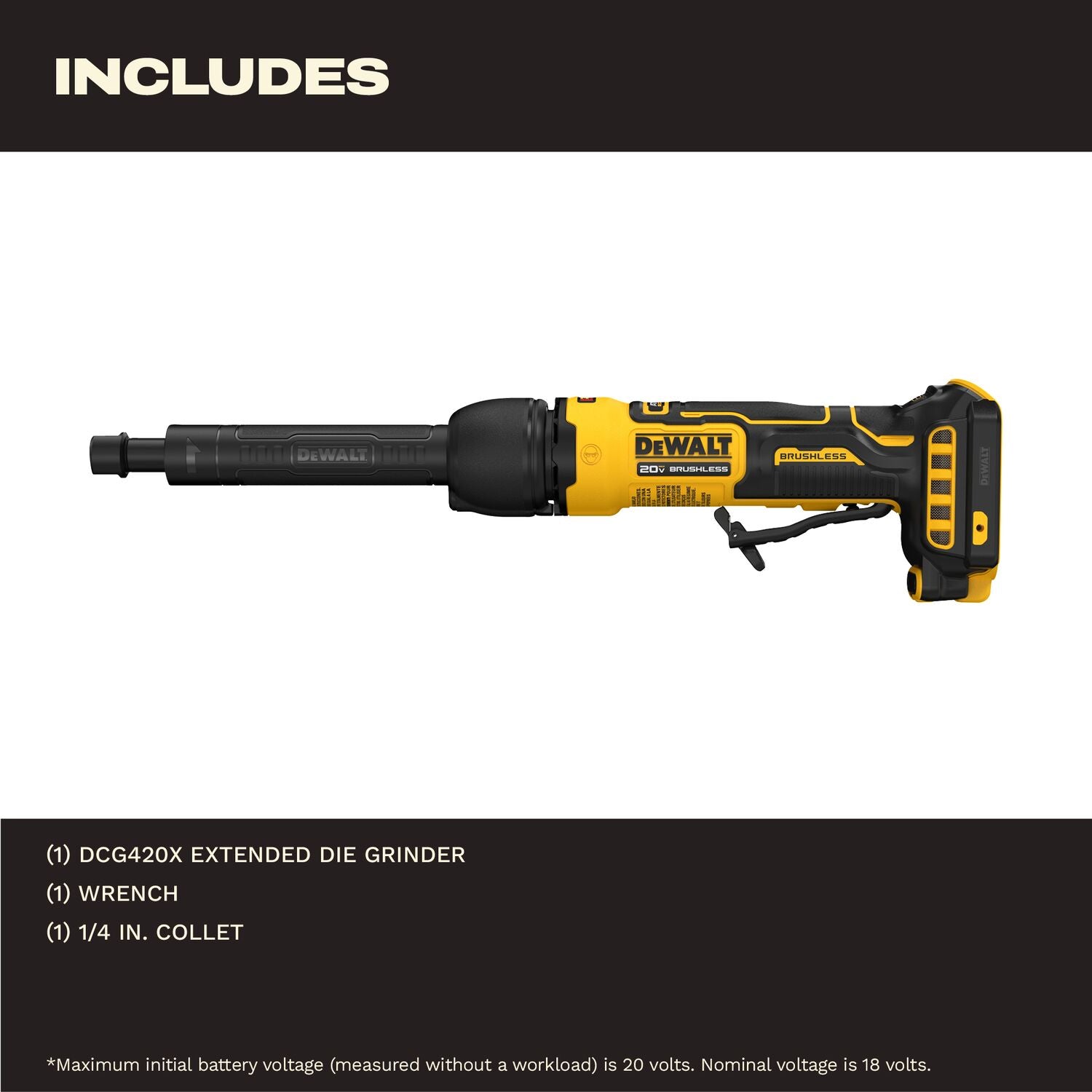

What's in the Box
- (1) ATOMIC 20V MAX Extended Die Grinder
- (1) 1/4" Collet
- (1) Wrench
Battery and charger sold separately. TOOL CONNECT chip sold separately.
Key Specifications
|
|
20V MAX (18V nominal) |
|---|---|
|
|
Up to 24,500 RPM |
|
|
1/4" |
|
|
Variable speed trigger and mode select |
|
|
Yes, under 1 second |
|
|
Paddle, lock-off, no lock-on |
|
|
Yes |
|
|
Yes |
|
|
Chip Ready (chip sold separately) |
|
|
Tool only |
Compatibility
Built For
Pro Tip
With the extra neck length, a long accessory has more leverage to grab. Keep the shank seated deep in the collet, start with the variable speed trigger feathered, and let the ANTI-ROTATION System be the backup, not the plan.
Warranty & Support
Tool Nut's Take
The DeWALT DCG420XB Extended Die Grinder Goes Where Air Tools Used To
Reach was the last good reason to keep a pneumatic extended die grinder on the hose; this one takes that reason away.
- Who it's for: Fabricators, pipe welders, mechanics and maintenance techs on 20V MAX who grind inside pipe, frames and assemblies.
- Why it stands out: Long slim neck, pneumatic-class power, ANTI-ROTATION protection and an electronic brake in a compact ATOMIC body.
- Worth knowing: Bare tool. Bring a 20V MAX battery and charger, and pick the standard-length DCG420B if you don't need the reach.
Common Questions
- What is the difference between the DCG420XB and the DCG420B? The DCG420XB has an extended neck for reaching into deep or narrow spaces; the DCG420B is the standard-length ATOMIC die grinder.
- Does it include a battery? No. It is tool only; battery and charger are sold separately.
- What collet size does it use? It comes with a 1/4" collet.
- Why won't it restart after a bind-up? After the ANTI-ROTATION System trips, cycle the switch off and on to restart.
