DeWALT 20V MAX XR Brushless Cordless Compact Router, Tool Only (DCW600B)
DeWALT 20V MAX XR Brushless Cordless Compact Router, Tool Only (DCW600B)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

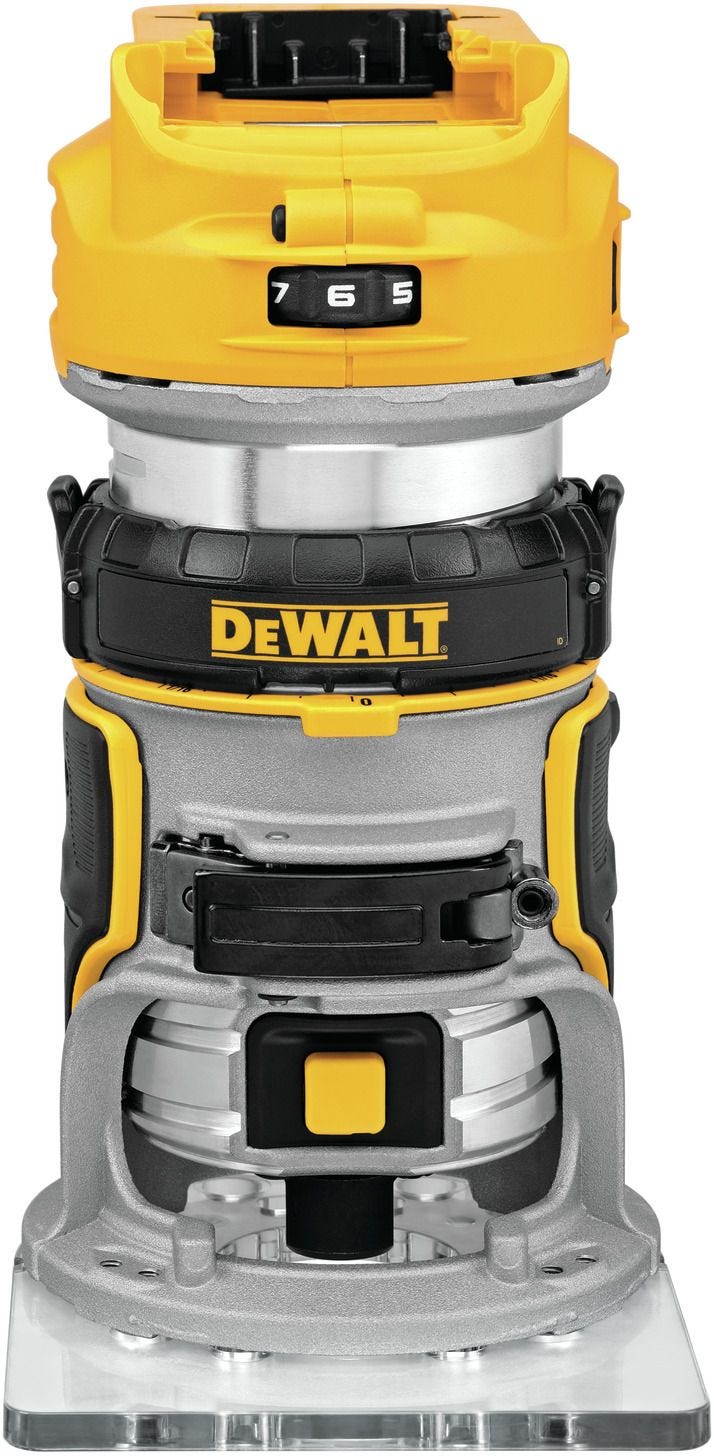

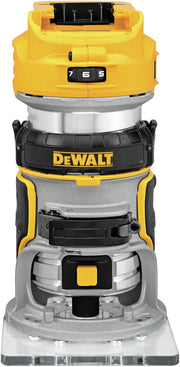

The DeWALT DCW600B 20V MAX XR Brushless Cordless Compact Router, Tool Only is a one-hand router for trim carpenters, cabinet installers, woodworkers, and remodelers. This is a compact router designed for edge profiling, roundovers, chamfers, laminate trimming, inlay, and template routing. Model Number DCW600B ships as a bare tool with a fixed base and wrench. Battery and charger are sold separately.
The brushless motor runs on DeWALT 20V MAX batteries, and the variable-speed dial covers 16,000 to 25,500 RPM. Run the lower end for larger profile bits and the higher end for small bits and clean finish passes. Soft start keeps the router from twisting in your hand at startup, and full-time electronic feedback holds speed as the bit loads up, which helps prevent burn marks in hardwoods.
Depth setting is quick. A depth adjustment ring raises and lowers the motor in the fixed base for fast height changes, and a release clamp opens for bit and base changes. The tool takes 1/4" shank bits in its collet, the standard size for compact router profiles. When the cut is done, the electronic brake stops the bit faster so you can set the router down sooner.
Dual LEDs in the base light up the bit and the work surface. That makes a real difference when you're trimming laminate inside a cabinet, following a pencil line, or routing an edge in a dim corner of a jobsite.

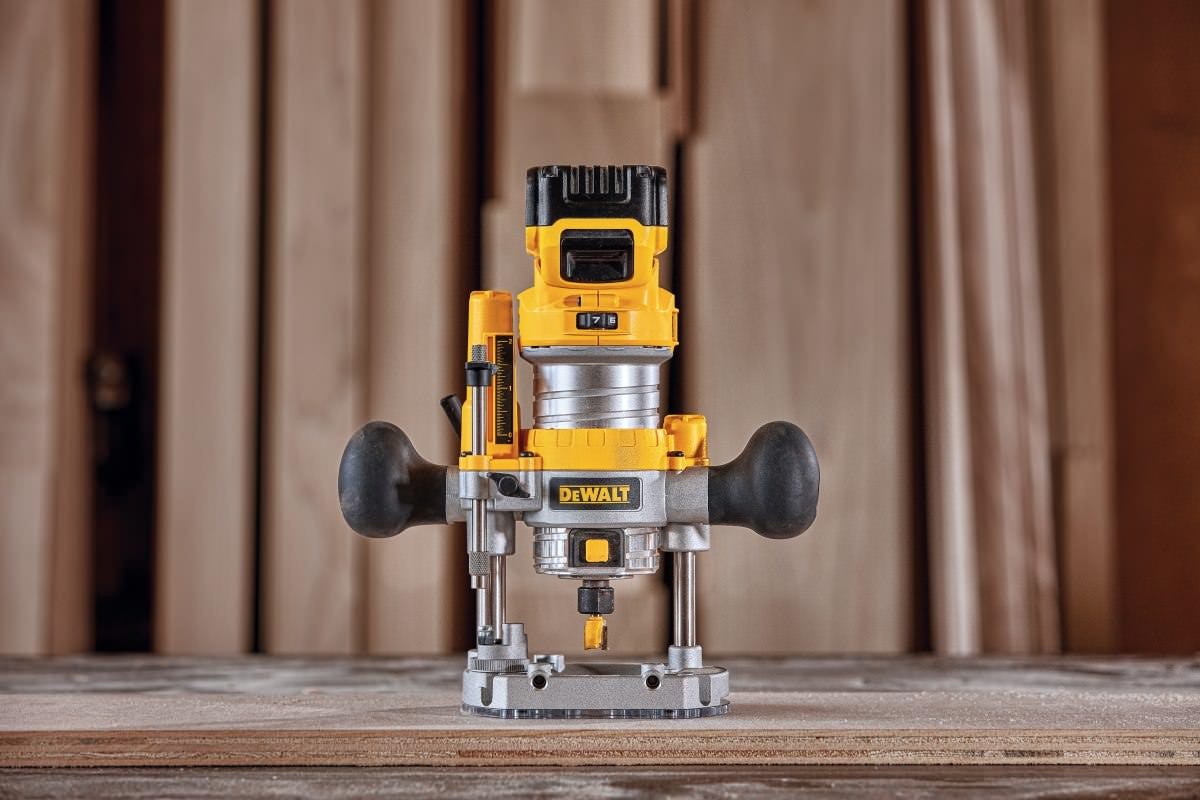

The DCW600B grows with the work. The DeWALT DNP612 plunge base adds plunge routing for stopped dadoes, mortises, and inlays. For straight cuts parallel to an edge, the DeWALT DNP618 edge guide clamps to the fixed base, and the DeWALT DNP613 round sub base gives you a larger footprint for template work.
Who should buy it? Anyone already on DeWALT 20V MAX who wants a trim router that goes wherever the work is, from punch lists and cabinet installs to shop furniture. If you need a router for heavy 1/2" shank bits and deep grooves, look at a full-size router instead.
Edge Work Without the Cord

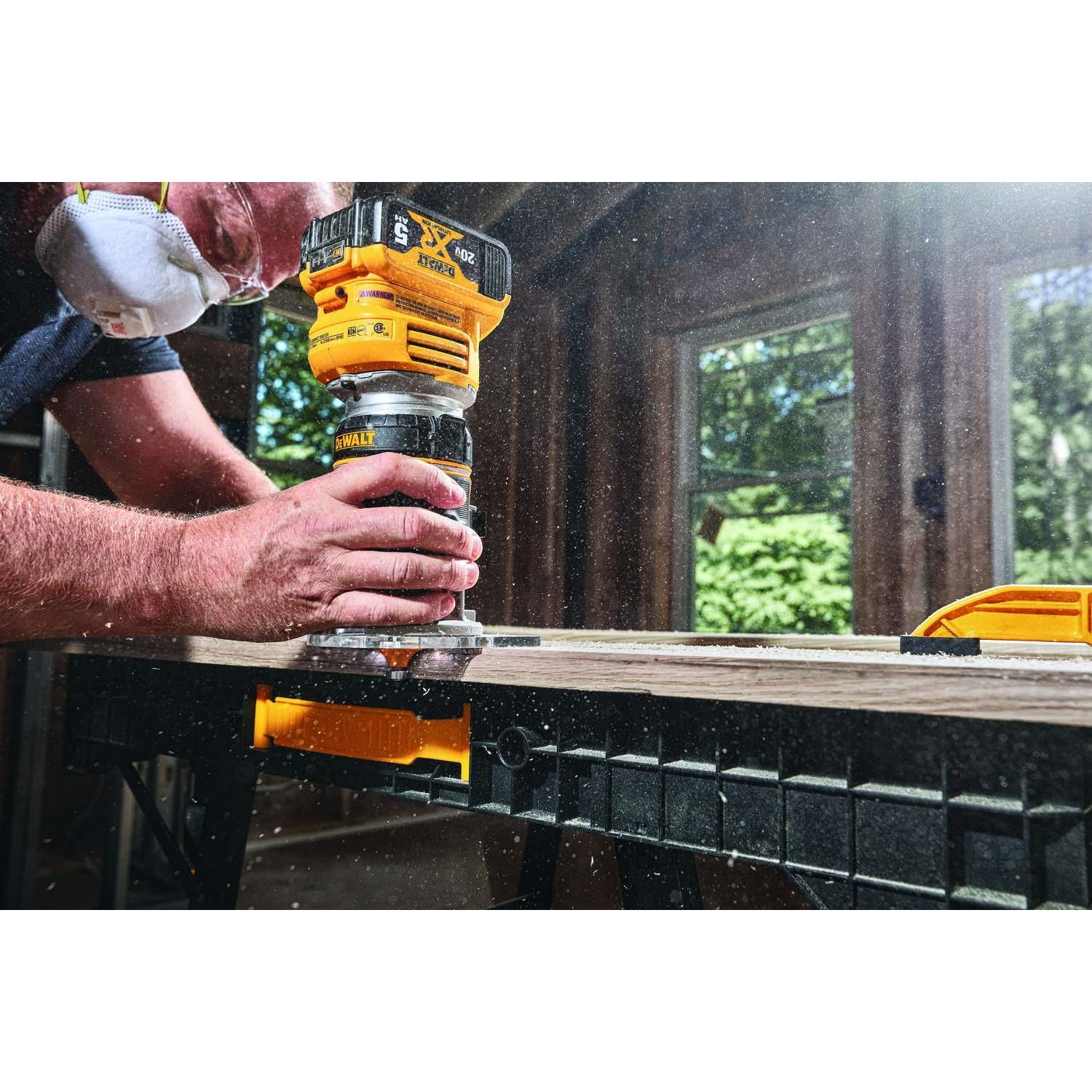

Cordless means no cord catching on the corner of the workpiece halfway through a profile, which is where most wavy edges come from.
- Brushless motor on DeWALT 20V MAX
- Soft start for a smooth, controlled startup
One-Hand Control

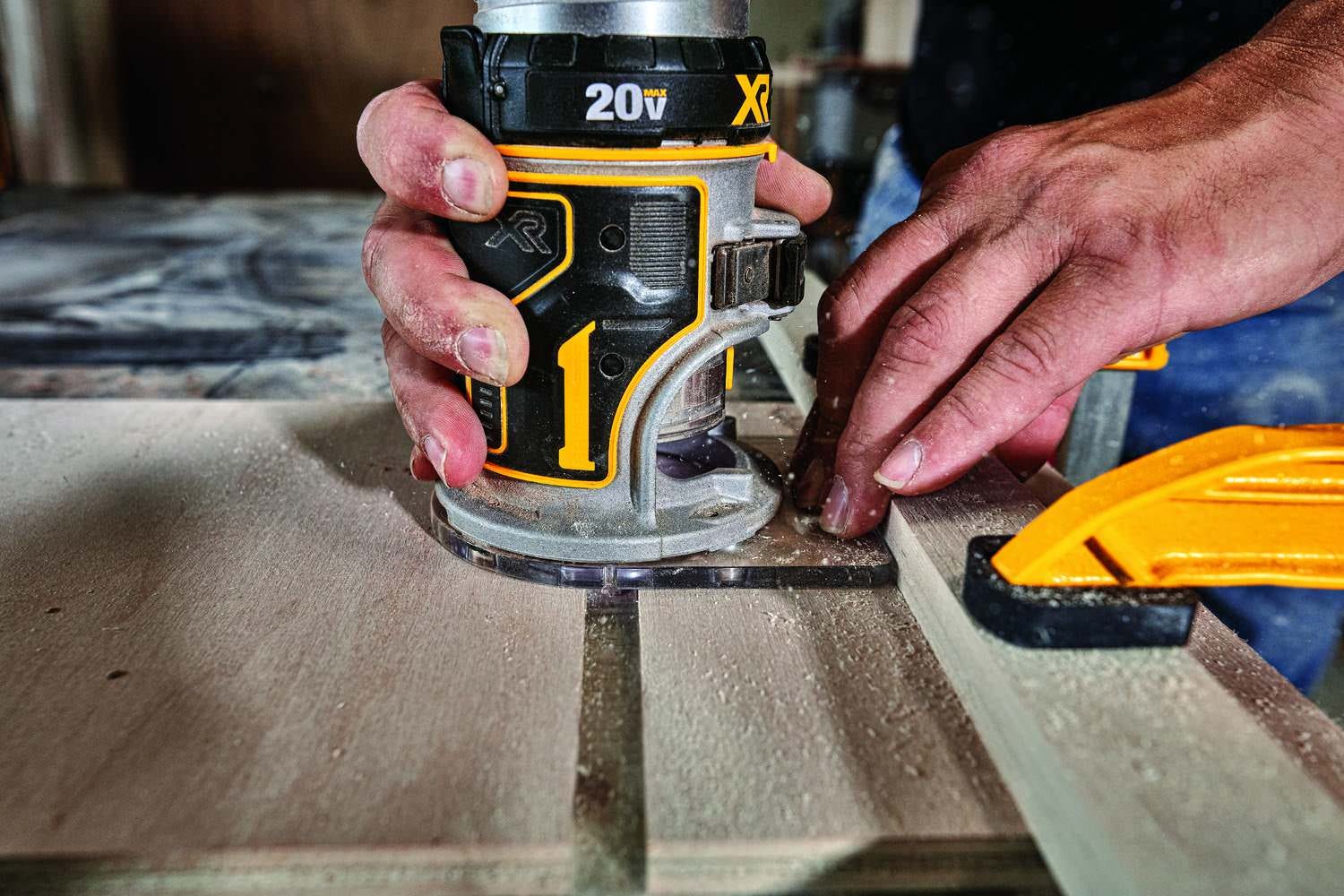

The compact body fits in one hand, so your other hand can steady the work or hold a guide. The variable-speed dial lets you slow down for big bits and speed up for clean finish passes.
- Variable speed 16,000 to 25,500 RPM
- Full-time electronic feedback holds speed under load
Fast Bit and Base Changes

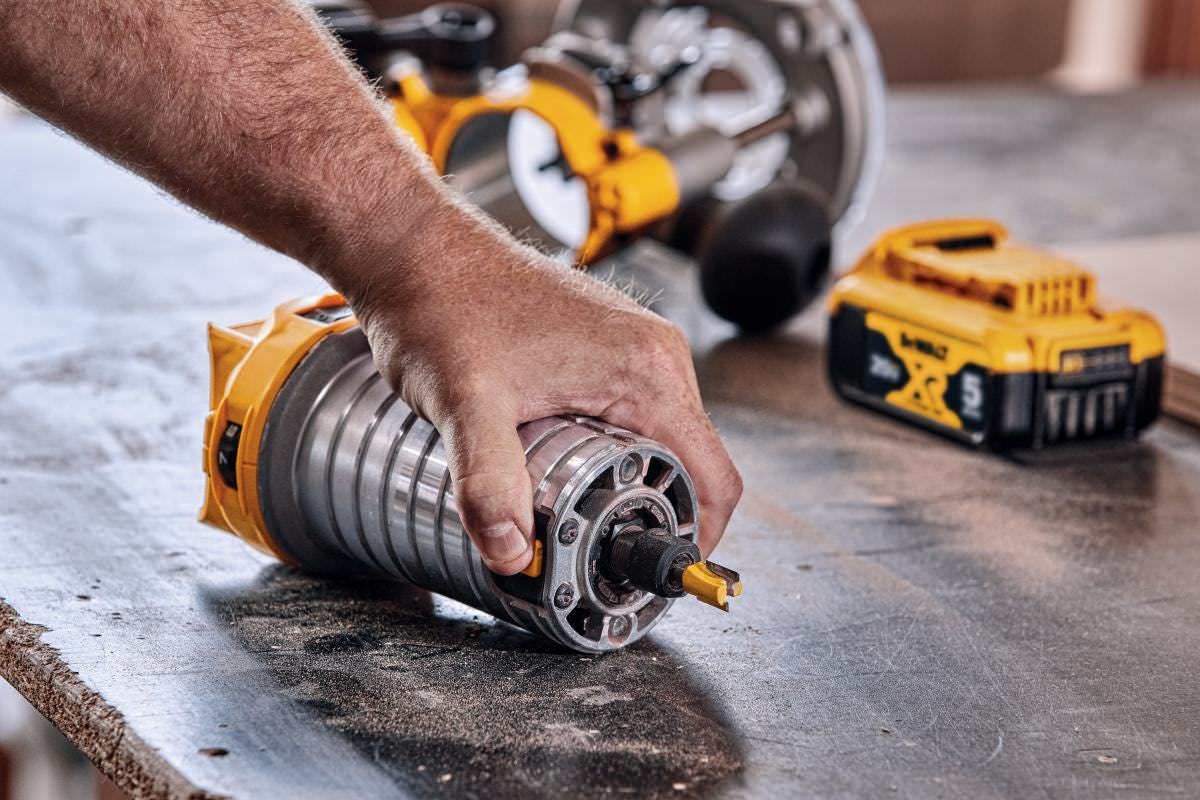

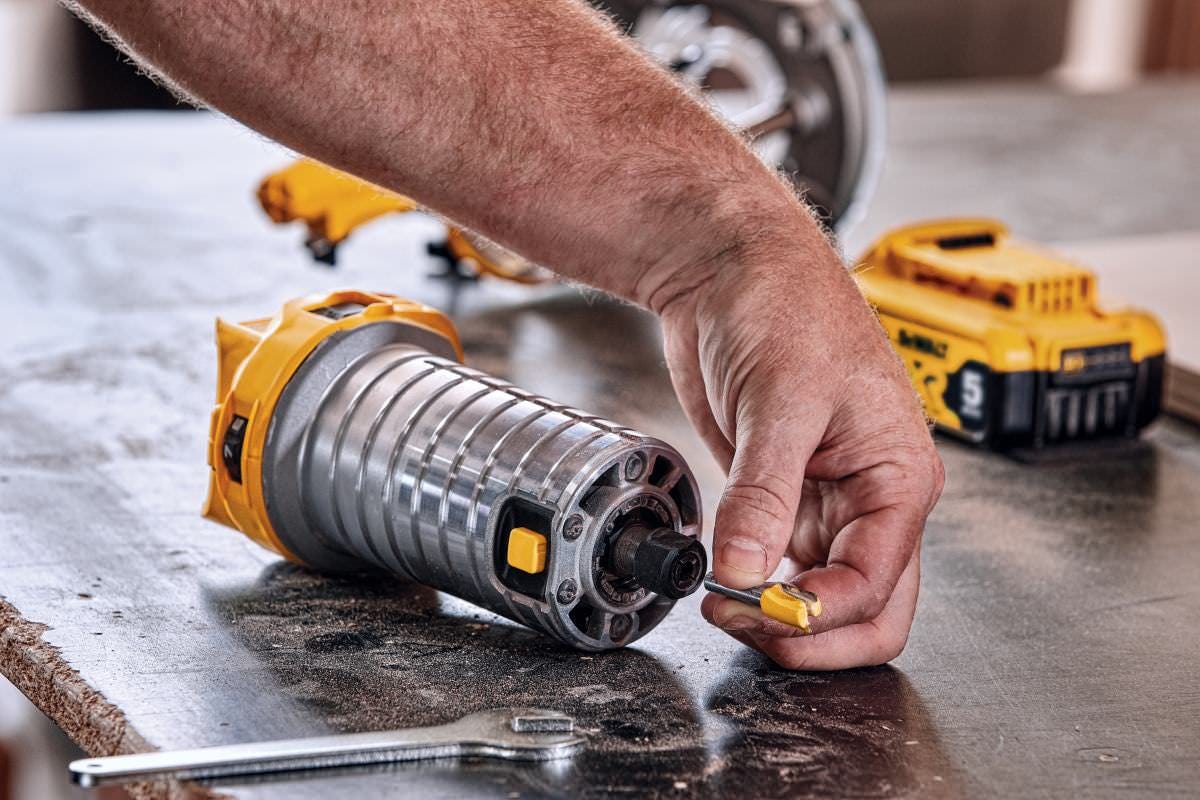

The release clamp lets the motor slide out of the base for quick bit changes. It sits at the compact end of the DeWALT router lineup, sized for 1/4" shank bits.
- 1/4" collet
- Wrench included
Light Where You're Cutting

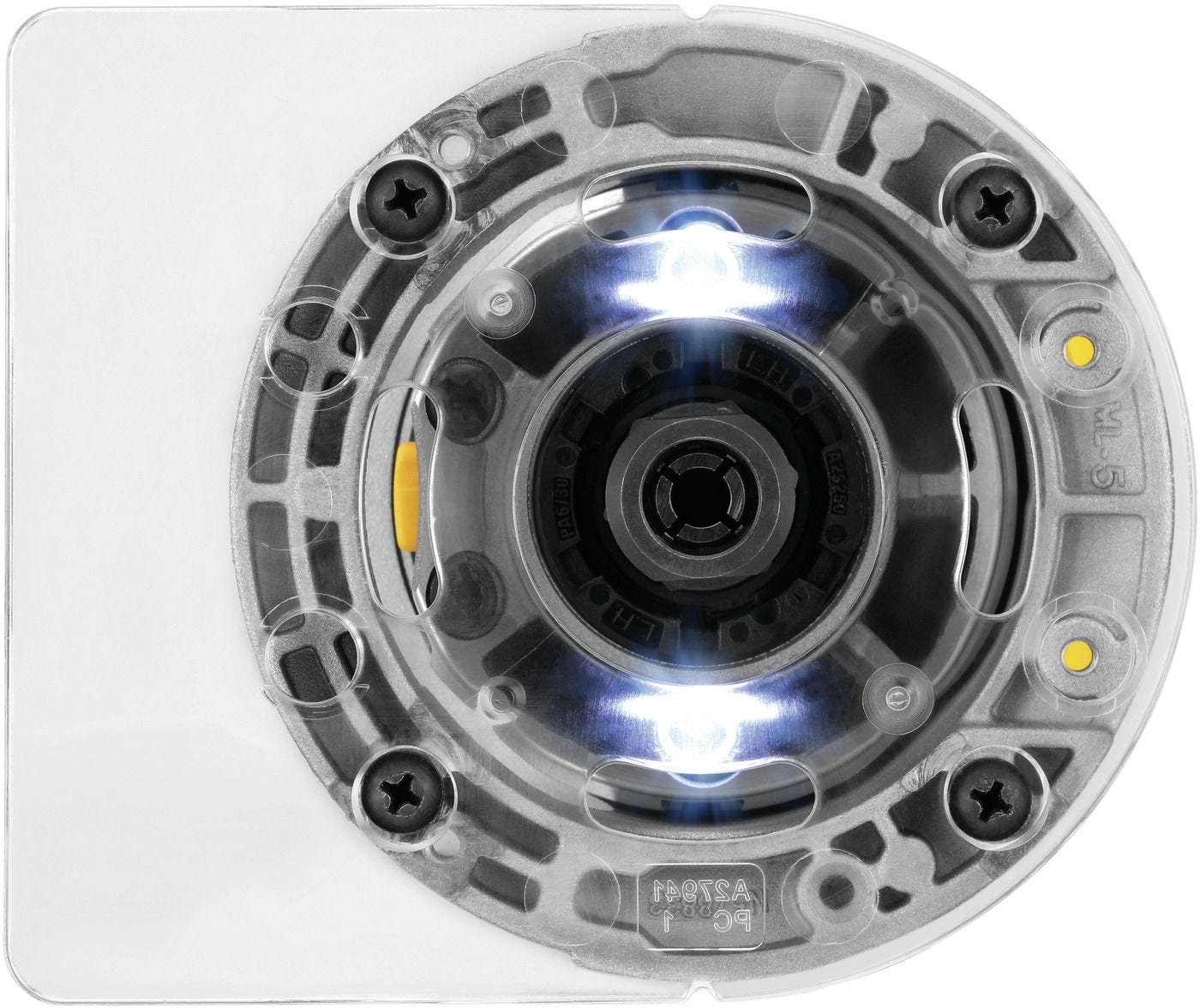

Two LEDs in the base light the bit from both sides, which helps when you're following a line or trimming laminate flush to a cabinet face.
- Dual LED work lights
- Electronic brake stops the bit faster after shutoff
What's in the Box
- (1) DeWALT DCW600B 20V MAX XR Brushless Cordless Compact Router
- (1) Fixed Base
- (1) Wrench
Tool only. Battery, charger, and router bits sold separately.
Key Specifications
 Voltage (V) |
20V MAX |
|---|---|
|
Motor Type |
Brushless |
 No-Load Speed (RPM) |
16,000 to 25,500 RPM |
 Collet Size |
1/4" |
|
Speed Control |
Variable-speed dial |
 Soft Start |
Yes |
 Electronic Brake |
Yes |
|
Work Light |
Dual LEDs |
Compatibility
Built For
Pro Tip
For a big roundover or cove, take two passes instead of one: hog most of it at a lower speed, then drop the bit to full depth and finish at higher speed. The cut is cleaner and the battery lasts longer.
Warranty & Support
Tool Nut's Take
The DeWALT DCW600B 20V MAX XR Brushless Cordless Compact Router Earns a Spot in Every 20V Bag
Once you've used a cordless trim router on a cabinet install, you won't want to run an extension cord for a quick roundover again.
- Who it's for: Trim carpenters, cabinet installers, and woodworkers already on DeWALT 20V MAX.
- Why it stands out: Brushless power, speed that holds under load, soft start, dual LEDs, and an electronic brake in a one-hand package.
- Worth knowing: Tool only with a fixed base. Plunge work needs the separate DNP612 base, and the 1/4" collet limits you to compact-router bits.
Common Questions
- Does it come with a battery? No. It's tool only and runs on DeWALT 20V MAX batteries, sold separately.
- What size bits does it take? It has a 1/4" collet for 1/4" shank router bits.
- Can I use it as a plunge router? Yes, with the DNP612 plunge base, sold separately.
