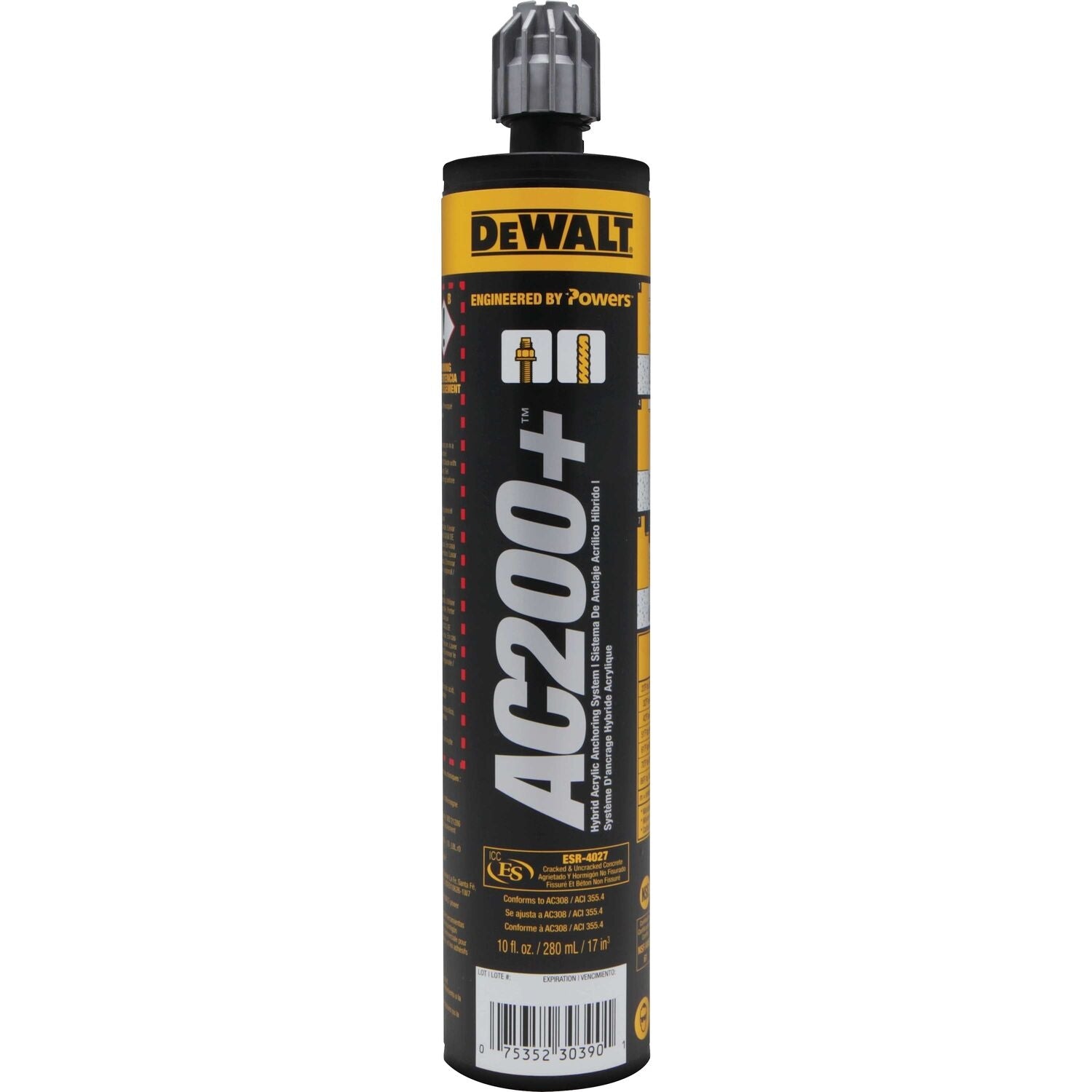

The AC200+ is a two-component, high strength adhesive anchoring system. The system includes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools and hole cleaning equipment. AC200+ is designed for bonding threaded rod and reinforcing bar hardware into drilled holes in concrete base materials and for post-installed reinforcing bar connections (rebar development).

General Applications & Uses

• High strength anchoring: bonding threaded rod and reinforcing bar into hardened concrete
• Evaluated for installation and use in dry and wet concrete (including water-filled holes)
• Oversized hammer-drilled holes in concrete, for short term loading only
• Rebar development length and lap splice connections in concrete up to 60d embedments
• Cracked and uncracked concrete conditions as well as wind and seismic loading (SDC A - F)
• Can also be considered for filling large cracks and abandoned holes in concrete and masonry

Approvals & Listings

• International Code Council, Evaluation Service (ICC-ES) ESR-4027 for cracked and uncracked concrete
• Tested in accordance with ACI 355.4, ASTM E488, and ICC-ES AC308 for use in structural concrete with design according to ACI 318 (-19 & -14), Chapter 17 and ACI 318-11 Appendix D
• Tested and qualified for use in post-installed rebar connections including rebar development and lap splices in accordance with ICC-ES AC308 Table 3.8 and ACI 318 Chapter 12 and Chapter 25
• Florida Building Code, FBC Supplement including HVHZ (within ESR-4027)
• Compliant with NSF/ANSI 61 for drinking water system components - health effects
• Conforms to requirements of ASTM C881 including C882 and AASHTO M235, Types I, II, IV and V, Grade 3, Class A and conforms to requirements of ASTM C881 Types I and IV, Grade 3, Class B
• Code Compliant with the International Building Code/International Residential Code: 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC, and 2012 IBC/IRC
• Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and uncracked concrete including static, wind and seismic loading
• City of Los Angeles, LABC and LARC Supplement (within ESR-4027)
• European Technical Approval, ETA-16/0905 (adhesive anchors), ETA-16/0904 (post-installed rebars)
• Compliant to California DPH for VOC emissions and South Coast AQMD for VOC content (LEED v4.1)
• Department of Transportation listings - see www.DEWALT.com or contact transportation agency

• Fast curing system which can be applied in structural applications as low as 14°F (-10°C)
• Can be used in a wide range of embedments in low and high strength concrete
• Mixing nozzles proportion adhesive and provide simple delivery method into drilled holes
• In-service temperature ratings between -40°F (-40°C) and 320°F (160°C)
• Evaluated and recognized for freeze/thaw performance
• Cartridge design allows for multiple uses using extra mixing nozzles
• Evaluated and recognized for long term and short term loading
