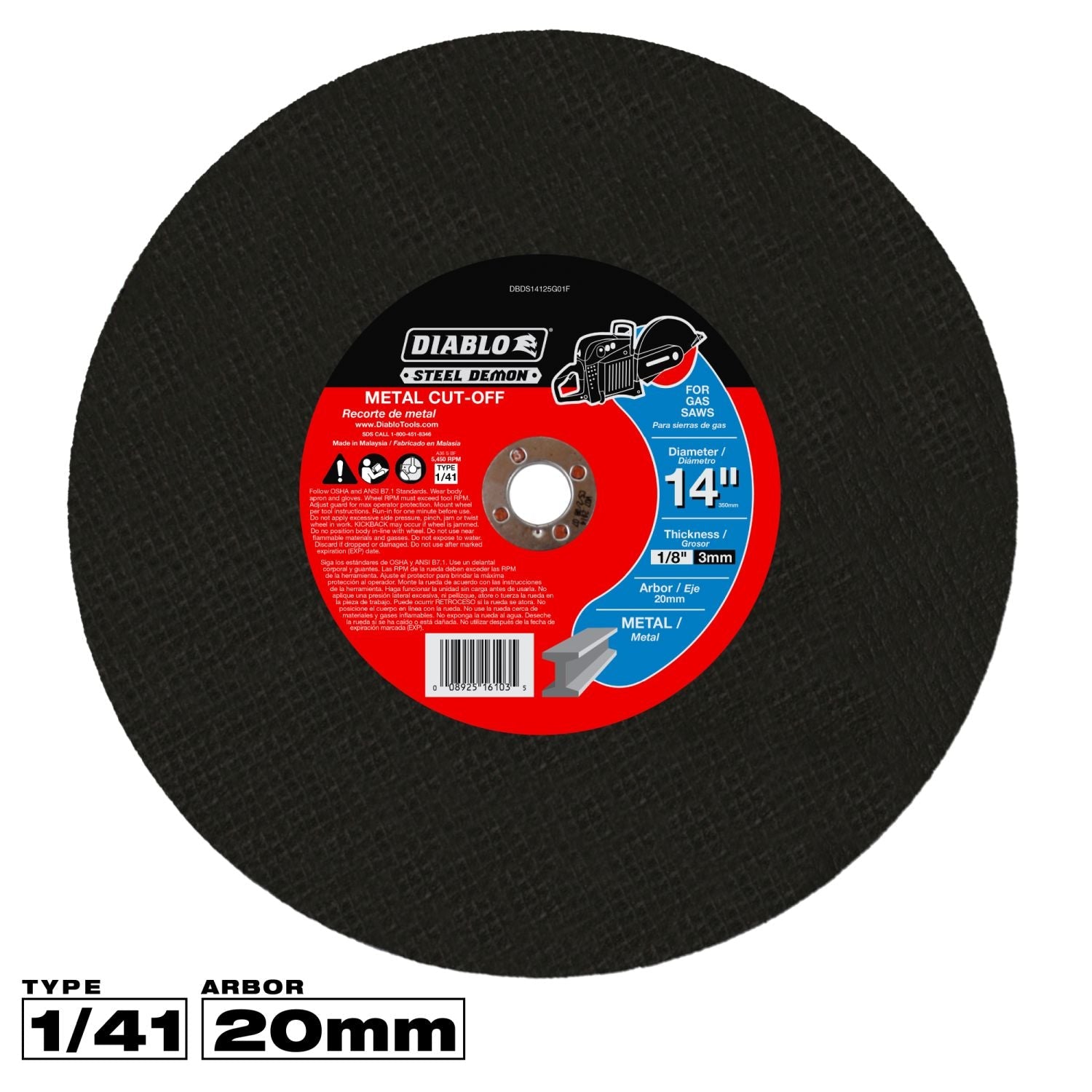

Diablo DBDS14125G01F 14 in. 20mm Steel Demon High Speed Metal Cut-Off Disc
Diablo DBDS14125G01F 14 in. 20mm Steel Demon High Speed Metal Cut-Off Disc
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Diablo DBDS14125G01F 14 in. 20mm Steel Demon High Speed Metal Cut-Off Disc is a metal cut-off wheel built for fast, straight cuts in steel and other metal stock. This is a cut-off disc designed for metal cutting with an angle grinder or gas saw setup that accepts a 14 inch wheel. Model Number: DBDS14125G01F. If you need a wheel for angle iron, steel studs, sheet metal, and similar medium-duty metal cutting work, this one is aimed right at that job.
What matters here is the abrasive mix. Diablo uses a premium ceramic blend, and that is not just a spec to fill a chart. Ceramic abrasive is chosen because it keeps cutting efficiently under heat and load, which helps the disc maintain performance longer than a basic wheel. Diablo claims up to 6 times longer life versus standard cut-off discs, which is the kind of difference you notice when you are burning through metal all day and do not want to stop to swap wheels.
The wheel uses a flat Type 1 design, so it is meant for straight-on cutting rather than grinding or shaping. That makes it a better fit when the goal is a controlled, direct cut through metal stock instead of edge work. On the job, that helps when you are trimming steel stud, slicing angle iron to length, or making repeat cuts where tracking a straight line matters more than versatility.
Diablo also calls out that the disc is fully reinforced for hand-held cutting. That matters because a hand-held cut-off application puts more stress on the wheel than a perfectly fixed setup. Reinforcement helps the wheel handle those real-world conditions with better durability and control, especially when you are working overhead, in a cramped mechanical room, or anywhere the cut is awkward and access is limited.
At 14 inches in diameter with a 20 mm arbor and 1/8 inch thickness, this Steel Demon disc sits in the range for larger metal cutting applications where you want reach and wheel life. The 5,450 max RPM rating is an important matching point. Your tool needs to stay within that limit, so this is the kind of accessory where compatibility is not optional. Get the speed and arbor right, and you have a wheel made to cut metal efficiently without guessing your setup.
Another practical point is platform flexibility. Diablo says this wheel is optimized for both cordless and corded angle grinders. For contractors already working across different grinder setups, that gives you more freedom to keep the same wheel type in rotation instead of carrying separate options for different tools. It is also useful for crews splitting time between shop prep and field install work.
This is a strong fit for metalworking, construction, remodeling, mechanical trades, and serious DIY users who regularly cut ferrous material. If your work is mostly metal cut-off and you want a longer-lasting disc with a straight-cut Type 1 profile, the Diablo DBDS14125G01F makes sense. If you need a wheel for grinding, surface prep, or polishing, this is not that tool. It is built to cut metal, and that focus is exactly why it earns its spot.
Built for Fast, Controlled Metal Cutting
This 14 inch metal cut-off disc is set up for straight, efficient cuts in ferrous material where wheel life and consistency matter. The flat profile and ceramic abrasive make it a practical pick for repeated metal cutting instead of one-off throwaway work.
- Premium ceramic blend for industrial performance and longer life
- Type 1 flat disc design for straight-on cuts
- Fully reinforced for hand-held cutting
- Rated for a maximum of 5,450 RPM
Key Specifications
|
|
14 in. |
|---|---|
|
|
20 mm / 25/32 in. |
|
|
1/8 in. / 3.18 mm |
|
|
5,450 RPM |
|
|
Ceramic |
|
|
Type 1 flat cut-off disc |
|
|
Metal |
|
|
1 |
Compatibility
Built For
Pro Tip
Because this is a Type 1 flat cut-off disc, keep it dedicated to straight cutting and let the wheel do the work. If you start side-loading it like a grinding wheel, you give up the control and clean cut this disc is built for.
Tool Nut's Take
Why the Diablo DBDS14125G01F 14 in. 20mm Steel Demon High Speed Metal Cut-Off Disc earns its keep
This is the kind of metal cut-off wheel you buy when you are tired of cheap discs fading early and slowing the whole job down.
- Who it's for: Contractors, metal fabricators, remodelers, and serious DIY users cutting steel studs, angle iron, and sheet metal with compatible angle grinder setups.
- Why it stands out: The ceramic blend, reinforced build, and Type 1 straight-cut profile give it a clear jobsite purpose: longer wheel life and cleaner metal cutting.
- Worth knowing: This is a dedicated cut-off disc, not a grinding wheel, and your tool setup needs to match the 20 mm arbor and stay under the 5,450 RPM limit.
Common Questions
- What material is this disc designed to cut? It is designed for metal cutting and is specifically positioned for steel, angle iron, steel studs, and sheet metal.
- What type of tool is it compatible with? Source data says it is optimized for cordless and corded angle grinders, as long as the setup accepts a 14 inch wheel with a 20 mm arbor.
- What is the maximum speed rating? The disc is rated for a maximum of 5,450 RPM.
- Is this a grinding wheel or a cut-off wheel? It is a Type 1 flat cut-off disc intended for straight-on cutting, not general grinding.
