Diablo 3/4-in. Diamond Grit Hole Saw (DHS0750DG)
Diablo 3/4-in. Diamond Grit Hole Saw (DHS0750DG)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

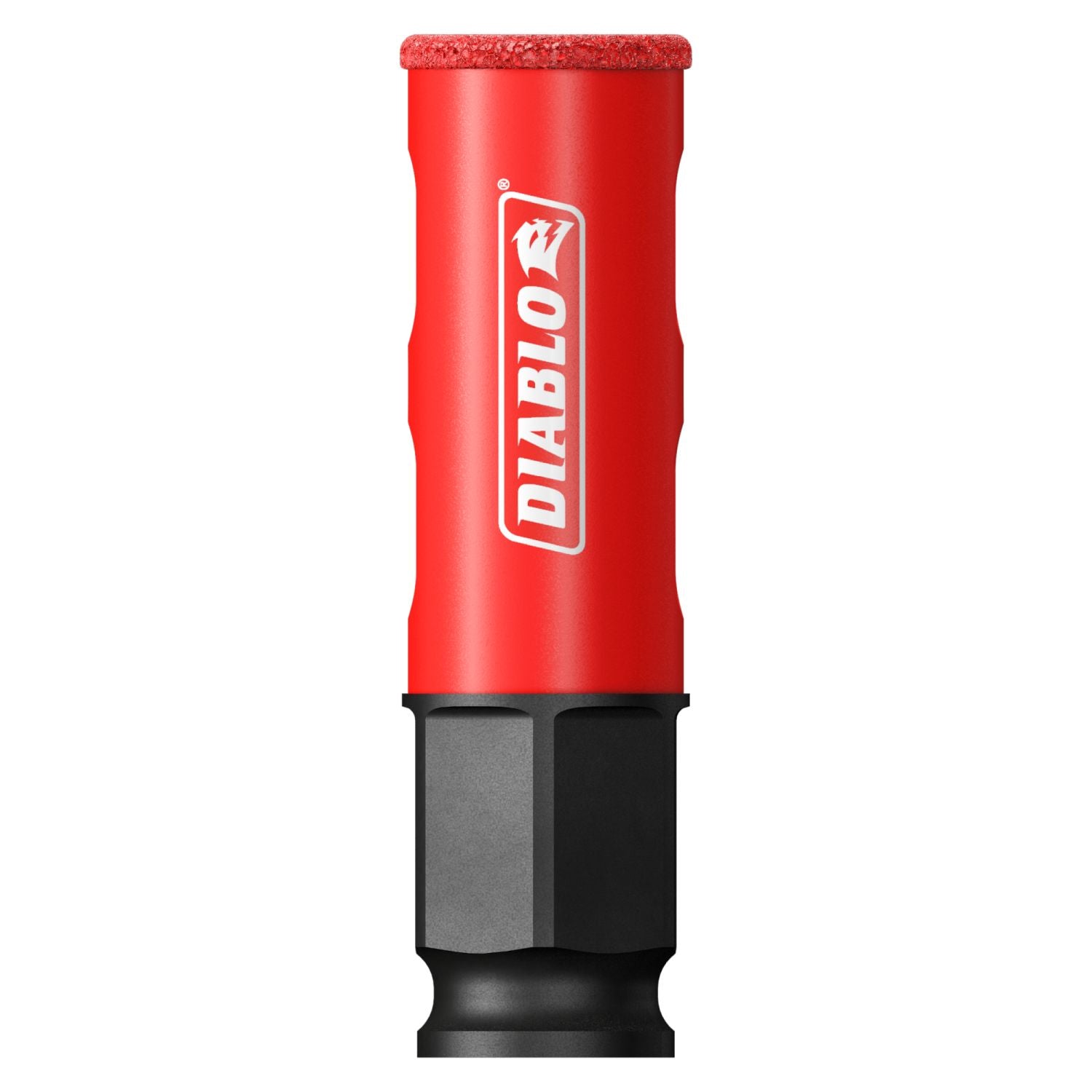

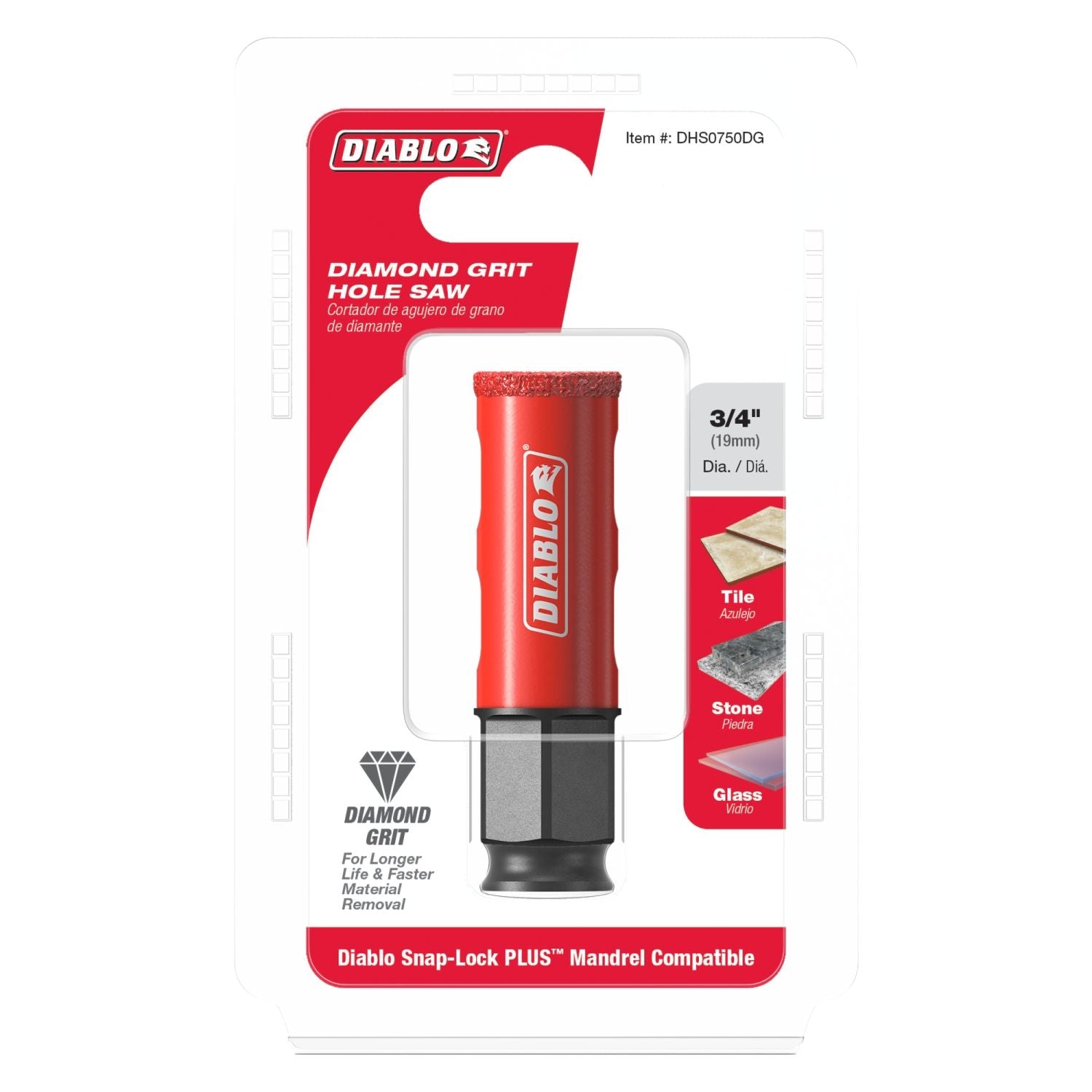

The Diablo DHS0750DG 3/4 in. Diamond Grit Hole Saw is a diamond grit hole saw built for drilling clean holes in tile, stone, and glass. This is a diamond grit hole saw designed for boring small, clean openings in hard brittle materials. Model Number: DHS0750DG. If you are installing plumbing trim, running a small line through tile, or drilling finished stone without beating up the surface, this is the style of cutter you want.
The big story here is the cutting edge. Diablo uses diamond grit rather than conventional teeth, which gives this hole saw longer life and faster material removal in materials that would quickly dull or chip standard hole saws. The continuous rim design matters too. Instead of leaving a rough, chipped edge, it drills with a smoother action that helps protect porcelain tile, ceramic tile, granite, marble, slate, and glass.
On the job, that translates to less drama during the cut. Hard surfaces do not give you much room for error, and a rough-starting cutter can skate, grab, or damage the finish before you are even through the face. Diablo's design is meant to be started at a 45-degree angle or used with a jig, and it does not require a pilot bit. That makes it a practical choice when you need a clean opening in finished material and want to keep the setup simple.
The open slot design is another detail that earns its keep. Once the cut is complete, plug removal is easier, which saves time when you are drilling repeated holes. That sounds like a small thing until you are moving through multiple penetrations in a backsplash, shower surround, countertop, or glass panel and do not want to fight every slug on the way.
Compatibility is straightforward. This hole saw is designed to work with Diablo's Snap-Lock Plus mandrel system for quick cup changes, and it is intended for use with a handheld drill. The minimum chuck size required is 1/4 in., so it fits common drill setups used by tile installers, remodelers, plumbers, and general contractors. If you already run the Snap-Lock Plus system, this size drops right into that workflow.
At 3/4 in. diameter, this size is a good fit for precise penetrations where a larger opening would be overkill. It is especially useful when appearance matters and the finished surface will stay visible. The hole saw is made in Italy and weighs just 0.15 lb, so it is easy to keep in the kit without adding bulk.
This is not a general-purpose wood or metal cutter, and that is exactly the point. The Diablo DHS0750DG 3/4 in. Diamond Grit Hole Saw is for tradespeople and serious DIY users working specifically in tile, stone, and glass who need a cleaner cut, less chipping, and easier changeovers than a basic hole saw can deliver.
Built to Drill Finished Hard Surfaces
This size is built for controlled, finish-conscious drilling where cracking or chipping the surface is not an option. It is a smart fit for tile work, bath hardware installs, countertop drilling, and other detail work in brittle materials.
- 3/4 in. diameter for small, precise hole work
- Continuous rim helps reduce chipping in masonry and tile applications
- Open slot design speeds plug removal between cuts
- No pilot bit needed, with recommended angled starts or jig use
Key Specifications
| Diameter | 3/4 in. |
|---|---|
| Material | Diamond grit |
| Shank / Mandrel System | Diablo Snap-Lock Plus mandrel compatible |
| Minimum Chuck Size Required | 1/4 in. |
| Tool Compatibility | Handheld drill |
| Weight (lbs) | 0.15 |
| Maximum Speed | 2100 RPM |
| Made In | Italy |
Compatibility
Built For
Pro Tip
Start this hole saw at about a 45-degree angle to get the rim to bite, then bring the drill upright once the groove is established. If you are drilling expensive tile or polished stone, a jig makes the start easier and helps prevent skating.
Warranty & Support
Tool Nut's Take
Diablo DHS0750DG 3/4 in. Diamond Grit Hole Saw for clean work in unforgiving material
This is the kind of small hole saw that makes sense when the surface is finished, fragile, and expensive to replace.
- Who it's for: Tile setters, plumbers, remodelers, countertop installers, and DIY users drilling clean openings in tile, stone, or glass.
- Why it stands out: The diamond grit edge, continuous rim, and Snap-Lock Plus compatibility make it faster to work with and easier on finished surfaces than a basic hole saw.
- Worth knowing: This is a specialty cutter, not an all-purpose hole saw. You also need the proper mandrel setup, and the cleanest starts come from using the angled-start method or a jig.
Common Questions
- What materials can this hole saw drill? It is designed for porcelain tile, ceramic tile, granite, marble, slate, and glass.
- Does it need a pilot bit? No. Diablo specifies starting at a 45-degree angle or using a jig instead of a pilot bit.
- What mandrel system does it fit? It is compatible with Diablo's Snap-Lock Plus mandrel system.
- What tool should I use it with? Use it with a handheld drill, and make sure the drill has at least a 1/4 in. chuck.
- Is there a speed limit? Supplementary product information indicates a maximum speed of 2100 RPM.
