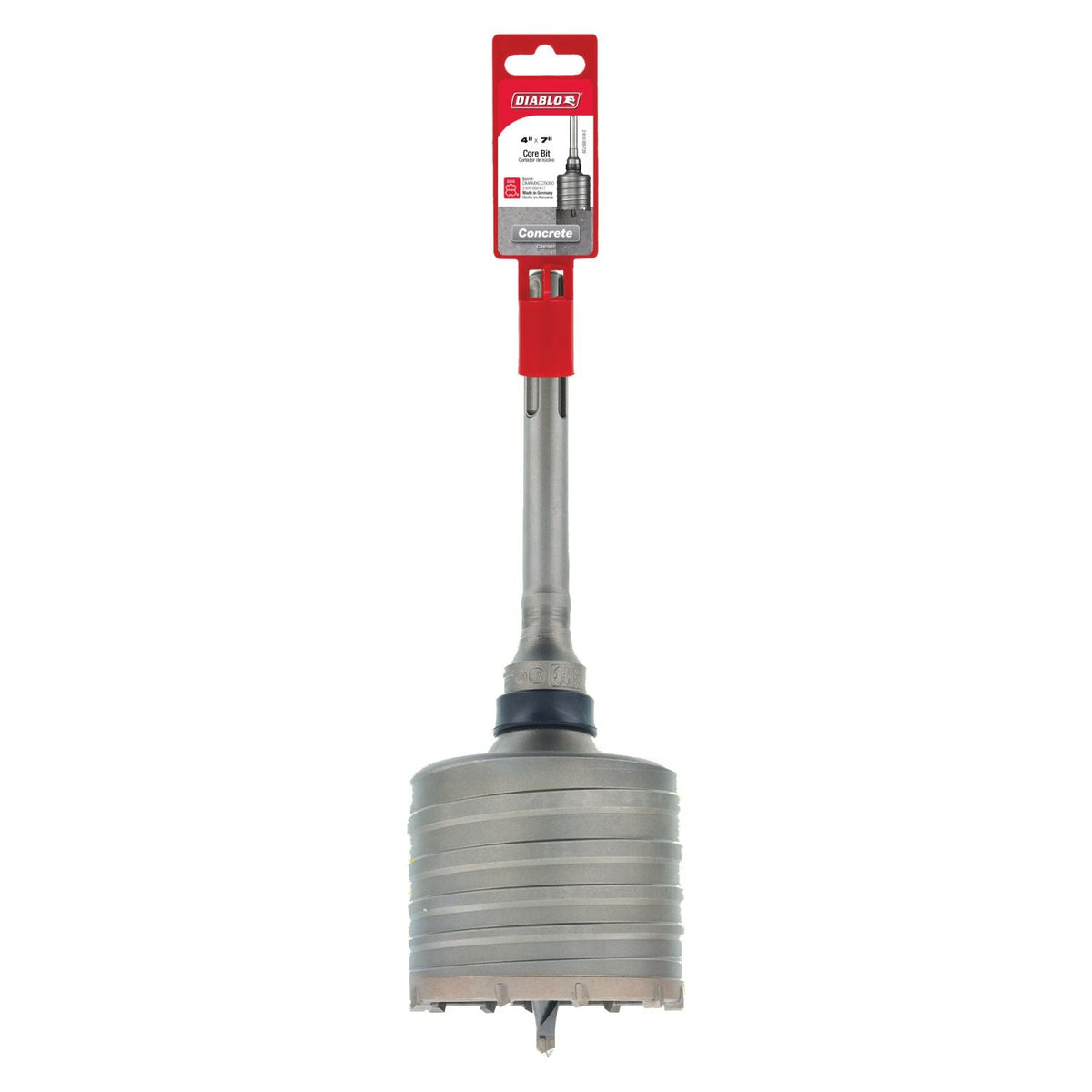

Diablo 4-in. x 7-in. SDS-Max Carbide Tipped Core Bit (DMAMXCC5050)
Diablo 4-in. x 7-in. SDS-Max Carbide Tipped Core Bit (DMAMXCC5050)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Diablo DMAMXCC5050 4 in. x 7 in. SDS-Max Carbide Tipped Coring Bit is a masonry coring bit built for drilling large holes in concrete, brick, and block. This is a coring bit designed for large-diameter hole drilling in masonry materials. Model Number: DMAMXCC5050. If you run an SDS-Max rotary hammer and need a core bit that can handle impact, heat, and repeated use, this is the kind of accessory you buy once instead of replacing after a couple of tough holes.
The big story here is durability under real rotary hammer use. Diablo uses carbide teeth to handle the shock and heat that come with coring in concrete. That matters because large-diameter drilling puts a lot more stress on the cup and cutting edge than a standard masonry bit sees. The carbide teeth are also offset to help the bit produce fast, clean holes instead of chattering its way through the material.
Dust removal is another practical advantage. The spiral flute is designed to move debris out faster, which helps keep the cutting teeth cooler. On the job, that translates into steadier drilling and less heat buildup in the bit during longer runs. For anyone drilling anchor penetrations, pipe openings, or pass-through holes in block and concrete, faster dust clearing is not a small detail. It helps the bit keep cutting instead of fighting packed dust.
Diablo also uses a one-piece design with no connector. That gives the bit more stability and impact resistance from end to end. In plain terms, fewer separate connection points means less chance of the accessory feeling sloppy under load. When you are leaning on a rotary hammer for a 4-inch hole, that added stability is worth paying for.
The Peak Point tip is built for aggressive starts, which helps the bit bite sooner and track better as the hole begins. That is useful when you need a cleaner start on hard masonry surfaces instead of skating around before the cup gets established. Combined with the 4-inch diameter and 7-inch drilling depth, this bit is sized for larger penetrations where accuracy and clean entry matter.
Compatibility is straightforward: this coring bit uses an SDS-Max shank and is intended for SDS-Max rotary hammers, including corded and cordless models. It is an individual accessory, not a general-purpose hole saw and not a standard drill bit. If your tool platform is SDS-Max and your work involves concrete, block, or brick, the fit makes sense. If you are using a standard drill or a smaller hammer drill, this is the wrong accessory.
Who should buy it? Masonry contractors, general contractors, electricians, plumbers, and remodelers who regularly need larger holes in masonry. It also makes sense for serious users who want a dedicated concrete coring bit instead of trying to make a lighter-duty accessory survive a job it was never built for. Bottom line: this is a purpose-built SDS-Max coring bit for pros and advanced users who need hole size, durability, and cleaner starts in tough material.
Built for Large Masonry Openings
This Diablo SDS-Max coring bit is sized for jobs where a regular masonry bit will not cut it. The 4-inch diameter is made for larger penetrations in concrete, brick, and block, while the one-piece construction helps it stay stable under heavy rotary hammer load.
- 4 in. bit diameter for larger pass-through holes
- 7 in. drilling depth for deep masonry penetration
- Carbide-tipped teeth for longer life in impact-heavy applications
What's in the Box
- (1) Diablo DMAMXCC5050 4 in. x 7 in. SDS-Max Carbide Tipped Coring Bit
Key Specifications
| Bit Type | Coring Bit |
|---|---|
| Bit Diameter | 4 in. |
| Bit Length | 7 in. |
| Drilling Depth | 7 in. |
| Shank Style | SDS-Max |
| Shank Diameter | 18 mm |
| Bit Material | Carbide |
| Piece Count | 1 |
| Material Application | Concrete |
| Made In | Switzerland |
| Weight | 6 lbs |
Compatibility
Built For
Pro Tip
When you are starting a 4-inch hole in concrete, let the Peak Point tip establish the cut before leaning hard on the hammer. That gives you a cleaner start and helps the cup stay on line instead of wandering across the surface.
Warranty & Support
Tool Nut's Take
Diablo DMAMXCC5050 4 in. x 7 in. SDS-Max Carbide Tipped Coring Bit means business
This is the kind of coring bit you buy when standard masonry accessories are wasting your time and burning up too fast.
- Who it's for: Pros and serious users drilling large holes in concrete, brick, and block with SDS-Max rotary hammers.
- Why it stands out: The carbide teeth, spiral flute, and one-piece build all work toward the same goal: more life and more stable drilling in hard material.
- Worth knowing: This is a specialized large-diameter masonry coring bit, so make sure your tool is SDS-Max and your job actually calls for a 4-inch hole.
Common Questions
- What tools is this bit compatible with? It is designed for SDS-Max rotary hammers, including corded and cordless models.
- What materials can it drill? It is intended for concrete, brick, and block applications.
- What size hole does it cut? The bit diameter is 4 inches.
- How deep can it drill? The listed drilling depth is 7 inches.
