Diablo Metal Demon Drill Bits Set for Mild, Hardened and Stainless Steels, 29 Pieces (DMD-S29)
Diablo Metal Demon Drill Bits Set for Mild, Hardened and Stainless Steels, 29 Pieces (DMD-S29)
Out of Stock - Available to Order - Usually ships in 5-7 days
Product Details
Product Details
Key Features
Overview
The Diablo DMD-S29 Metal Demon Drill Bits Set is a 29-piece twist drill bit set for drilling metal, with Model Number DMD-S29. This is a twist drill bit set designed for drilling mild steel, hardened steel, stainless steel, cast iron, and sheet metal, while also handling wood and plastic when needed. If you do fabrication, installation, maintenance, or general shop work, this set covers the size range you actually use instead of leaving you short on common increments.
What makes this set matter is the mix of range, material focus, and bit geometry. You get one bit each from 1/16 inch through 1/2 inch in tightly stepped sizes, so you can open holes in stages, match common fastener and anchor sizes, and keep moving without piecing together a mismatched assortment. On the job, that means less downtime and fewer compromises when the exact size matters.
Diablo builds these bits from high speed steel and adds a thermal shield protective coating to help protect the tip from heat. That matters most when you are drilling tougher metals, where heat is what usually kills a bit early. The brand also calls out up to 30 times longer life than standard drill bits, along with an automated precision CNC grinding process intended to reduce wear and keep drilling efficient over more holes.
The 130 degree split point tip is a practical feature, not a throwaway spec. It helps the bit start on location faster and reduces the need to pre-drill in many situations. For anyone drilling stainless, sheet stock, or round surfaces where a bit likes to skate before it bites, a well-executed split point saves time and helps keep the hole where you marked it.
Flute design matters too, especially in metal. Diablo uses an optimized flute design to clear shavings and debris faster, which helps keep the cutting edge cooler. That translates into cleaner drilling, less binding, and less heat buildup during repetitive drilling. Whether you are punching through angle iron, sheet metal, or cast iron, chip evacuation is one of the big reasons a bit either keeps cutting or gives up early.
From a fit and handling standpoint, these bits use a 3-flat shank style. That gives the chuck more to grab than a fully round shank and helps reduce slipping under load, which is especially useful once you move into larger diameters or tougher materials. The set is suited for use in a drill/driver or a drill press, so it works for field drilling as well as more controlled bench work.
Material coverage is one of the strongest points here. The primary focus is metal drilling, including mild steel, hardened steel, stainless steel, cast iron, and sheet metals. That said, the same set can also be used on wood and plastic, which is handy for mixed-material installs and repair work where you are moving from brackets and metal framing to trim pieces, panels, or plastic components without swapping to a different kit.
Who should buy it? This set makes the most sense for contractors, fabricators, maintenance crews, mechanics, installers, and serious DIY users who drill metal often enough to care about tip life and clean starts. If you mostly drill soft wood a few times a year, this is more set than you need. If your work regularly includes steel, stainless, or sheet metal, the Diablo DMD-S29 Metal Demon Drill Bits Set is the kind of complete set that earns a permanent spot in the truck or shop.

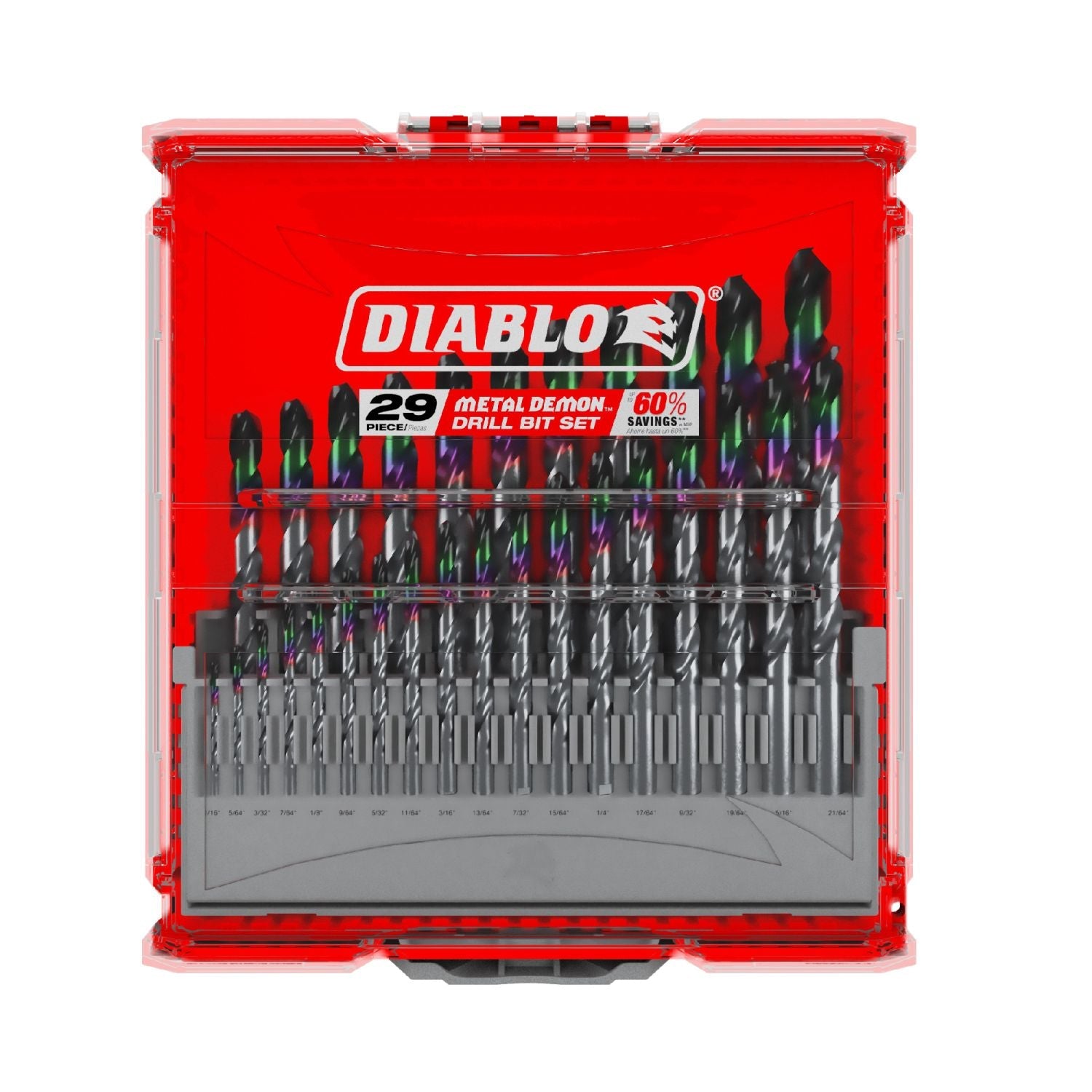

What's in the Box

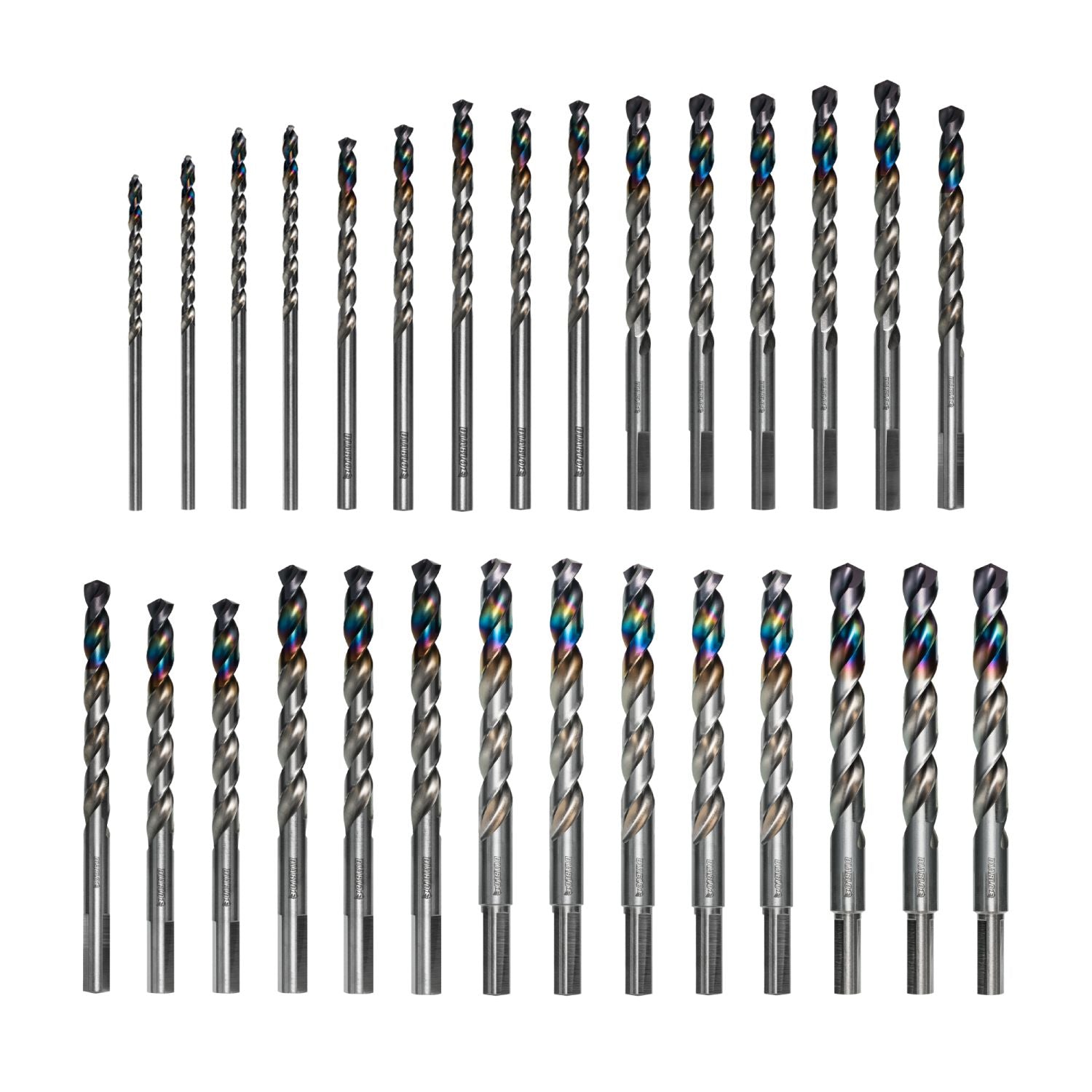

- (1) 1/16 inch drill bit
- (1) 5/64 inch drill bit
- (1) 3/32 inch drill bit
- (1) 7/64 inch drill bit
- (1) 1/8 inch drill bit
- (1) 9/64 inch drill bit
- (1) 5/32 inch drill bit
- (1) 11/64 inch drill bit
- (1) 3/16 inch drill bit
- (1) 13/64 inch drill bit
- (1) 7/32 inch drill bit
- (1) 15/64 inch drill bit
- (1) 1/4 inch drill bit
- (1) 17/64 inch drill bit
- (1) 9/32 inch drill bit
- (1) 19/64 inch drill bit
- (1) 5/16 inch drill bit
- (1) 21/64 inch drill bit
- (1) 11/32 inch drill bit
- (1) 23/64 inch drill bit
- (1) 3/8 inch drill bit
- (1) 25/64 inch drill bit
- (1) 13/32 inch drill bit
- (1) 27/64 inch drill bit
- (1) 7/16 inch drill bit
- (1) 29/64 inch drill bit
- (1) 15/32 inch drill bit
- (1) 31/64 inch drill bit
- (1) 1/2 inch drill bit
Key Specifications
| Bit Type | Twist drill bits |
|---|---|
| Bit Material | High Speed Steel |
| Piece Count | 29 |
| Size Range | 1/16 in to 1/2 in |
| Tip Angle | 130 degrees split point |
| Shank Style | 3-flat |
| Material Application | Aluminum, angle iron, duct and sheet metal, PVC, stainless steel, steel, and wood |
| Set Type | Set |
Compatibility
Built For
Tool Nut's Take
Diablo DMD-S29 Metal Demon Drill Bits Set is the kind of metal set you buy once and actually keep using
This set stands out because it covers the full spread of practical sizes, starts clean with a split point, and is built around metal drilling instead of treating metal like an afterthought.
- Who it's for: Pros and serious DIY users who drill steel, stainless, cast iron, or sheet metal often enough to need a real size range on hand.
- Why it stands out: High speed steel construction, thermal shield coating, optimized flute design, and a 130 degree split point make it more job-ready than the cheap mixed sets that burn up early.
- Worth knowing: This is a bit set, not a grab-bag accessory kit. You're paying for coverage and durability, so it makes the most sense if metal drilling is part of your normal work.
Common Questions
- What materials can this set drill? It is designed for mild steel, hardened steel, stainless steel, cast iron, and sheet metal, and it can also be used on wood and plastic.
- What sizes are covered? The set includes 29 drill bits ranging from 1/16 inch up to 1/2 inch.
- What kind of tip does it use? Each bit uses a 130 degree split point tip for faster starts and better accuracy.
- What type of shank do these bits have? They use a 3-flat shank style to help improve grip in the chuck.
