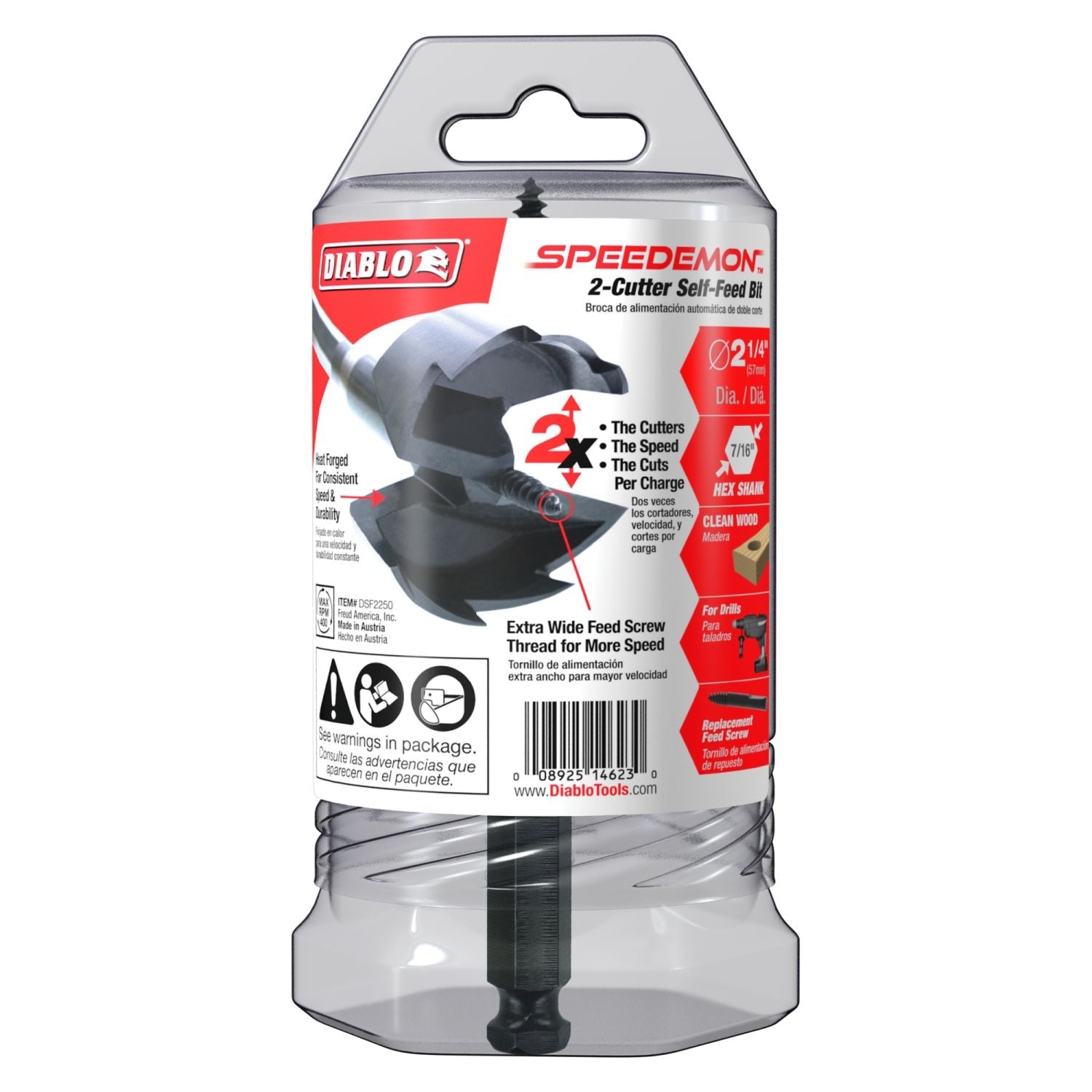

The Diablo DSF2250 2-1/4 Inch Dia. SPEEDemon Self Feed Bit is a self-feed drill bit made for fast, large-diameter hole drilling in wood. This is a self-feed bit designed for boring rough-in holes in soft woods and wood framing members. Model DSF2250 gives plumbers, electricians, HVAC installers, and remodelers a faster way to open up joists and studs when a standard spade bit or auger bit would be slower or less stable.

At the center of this bit is Diablo's 2-cutter head and aggressive feed screw setup. In plain terms, that means the bit starts fast, keeps pulling into the material, and clears a 2-1/4 inch hole with less effort from the drill. Diablo states the low thread count feed screw helps prevent pitch build-up and supports up to 2X faster hole making, which is the kind of thing you notice when you are drilling repeated pass-through holes for pipe, conduit, or duct runs.

The cutter head is precision heat forged from premium steel on fully automated equipment. That matters because consistency at the cutting edge usually shows up as smoother entry, less chatter, and a cleaner hole when you are working overhead or drilling at awkward angles between framing members. Diablo also claims up to 2X longer life and up to 2X more holes per battery charge, which makes this bit a better fit for cordless drilling when runtime matters.

The replaceable feed screw is another practical feature, not just a line on a spec sheet. It uses a pull-out stop design intended to keep the screw from slipping out when the bit is removed from the material. On the job, that helps reduce one of the common annoyances with self-feed bits, especially when you are moving quickly from hole to hole and backing the bit out often.

In terms of size and fit, this Diablo self-feed bit has a 2-1/4 inch diameter, a 5-1/8 inch overall length, and a 7/16 inch hex shank. That shank size is important because it is built for heavy-duty drilling applications where the bit needs a more secure drive connection than a lighter-duty bit. If you are shopping specifically for a wood-boring bit for large hole drilling, the shank and cutter design tell you this is aimed at real rough-in work, not light trim tasks.

This bit is best suited for trades that regularly drill larger holes through joists, studs, and other soft wood framing. It is a strong fit for plumbing, electrical, HVAC, remodeling, and general construction crews that need speed and repeatability. If you want a large self-feed bit that focuses on faster wood drilling, replaceable wear parts, and a heavy-duty hex shank, the Diablo DSF2250 lands right where it should.

Diablo DSF2250 SPEEDemon Self Feed Bit for Fast Wood Rough-Ins

If you drill a lot of big holes in framing, this bit is built to save time where it actually counts: hole after hole, not just the first one.

• Who it's for: Plumbers, electricians, HVAC installers, and remodelers boring larger pass-through holes in joists and studs.
• Why it stands out: The 2-cutter head, aggressive feed screw, and replaceable screw design make it a purpose-built rough-in bit instead of a generic large wood-boring accessory.
• Worth knowing: This is a dedicated self-feed bit for wood drilling with a 7/16 inch hex shank, so make sure your drill setup matches the bit before you head to the job.

• What material is this self-feed bit designed for? Diablo states this bit is ideal for making holes faster in soft woods and wood framing applications.
• What is the shank size? The Diablo DSF2250 uses a 7/16 inch hex shank.
• Does this bit have a replaceable feed screw? Yes. The feed screw is replaceable, and Diablo includes a replacement feed screw and an Allen key.
• How long is the bit? The overall length is 5-1/8 inches.
