Diablo 1-in. x 16-in. Spade Bit for Wood (DSP3060)
Diablo 1-in. x 16-in. Spade Bit for Wood (DSP3060)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Diablo DSP3060 1 in. x 16 in. SPEEDemon High Speed Steel Spade Drill Bit is a long-reach wood boring bit built for fast, clean hole drilling where a standard-length bit will not get you there. Model Number: DSP3060. This is a spade drill bit designed for drilling fast, clean holes in wood. With a 1 inch cutting diameter and 16 inch overall length, it is a practical choice for electricians, plumbers, remodelers, and framers who need to bore through studs, joists, and other wood members without switching to a more expensive specialty bit.
What makes this bit worth a look is the way Diablo set it up for speed. The SPEED-TIP self-feed design helps the tip pull into the material so you do not have to lean on the drill as hard to get the hole started. In real use, that means less effort overhead or between studs and quicker progress when you have a run of holes to make. Diablo also calls out an optimized curved paddle design to move chips out of the cut faster, which helps the bit stay cutting instead of packing up in the hole.
Hole quality is another strong point here. The angled spur cutting edge scores the wood ahead of the main cut, which helps produce a cleaner edge and reduces blowout compared to a basic paddle bit. If you are roughing in pipe, conduit, or cable, cleaner holes make it easier to keep the work neat and avoid splintered exits. That is especially useful when you are boring through visible framing or working in material that tends to tear out.
The long 16 inch length is the other big reason to buy this model. It gives you extra reach for thicker assemblies, deep access points, and awkward boring angles where stubby bits come up short. For rough-in work inside framed walls, that added length can save time because you can reach the target without changing your setup or hunting for an extension.
Diablo builds this bit from high speed steel and pairs it with an Impact Strong shank design for better stability and durability in both corded and cordless tools. The hex shank style helps the bit lock in securely and makes it a better fit for impact drivers and drill drivers than a smooth round shank would be. It is a simple detail, but it matters when you are pushing a large-diameter bit through wood and want solid engagement at the chuck.
Compatibility is straightforward. This wood boring bit is intended for use in corded or cordless impact drivers and drill drivers, with a 10 mm shank diameter and a minimum 1/4 inch chuck size required. The application is clean wood, including common jobsite wood materials such as framing lumber, plywood, hardwoods, and softwoods called out in the available product information.
If you are the kind of user who drills occasional small pilot holes, this is probably more bit than you need. But if you regularly bore larger pass-through holes in wood and want a bit that starts fast, clears chips well, and reaches deeper than standard spade bits, this model makes sense. It is especially well suited for trade users who value speed and straightforward performance over fancy add-ons.
Reach Deeper Into Framing
The 16 inch length is the whole story here. It gives you the reach to bore through studs and framing members where a standard spade bit leaves you short.
- 1 inch diameter for larger wood pass-through holes
- 16 inch length for deeper access in framing and rough-in work
- Made for clean wood drilling with corded or cordless tools
Diablo DSP3060 1 in. x 16 in. SPEEDemon High Speed Steel Spade Drill Bit Starts Fast
Diablo's SPEED-TIP design is there to save effort. Instead of fighting to start the cut, the threaded tip helps pull the bit in and keep the job moving.
- Self-feeding tip for quicker starts than a traditional spade bit
- Curved paddle design helps clear chips during the cut
- Angled spur edge helps reduce blowout for cleaner holes
What's in the Box

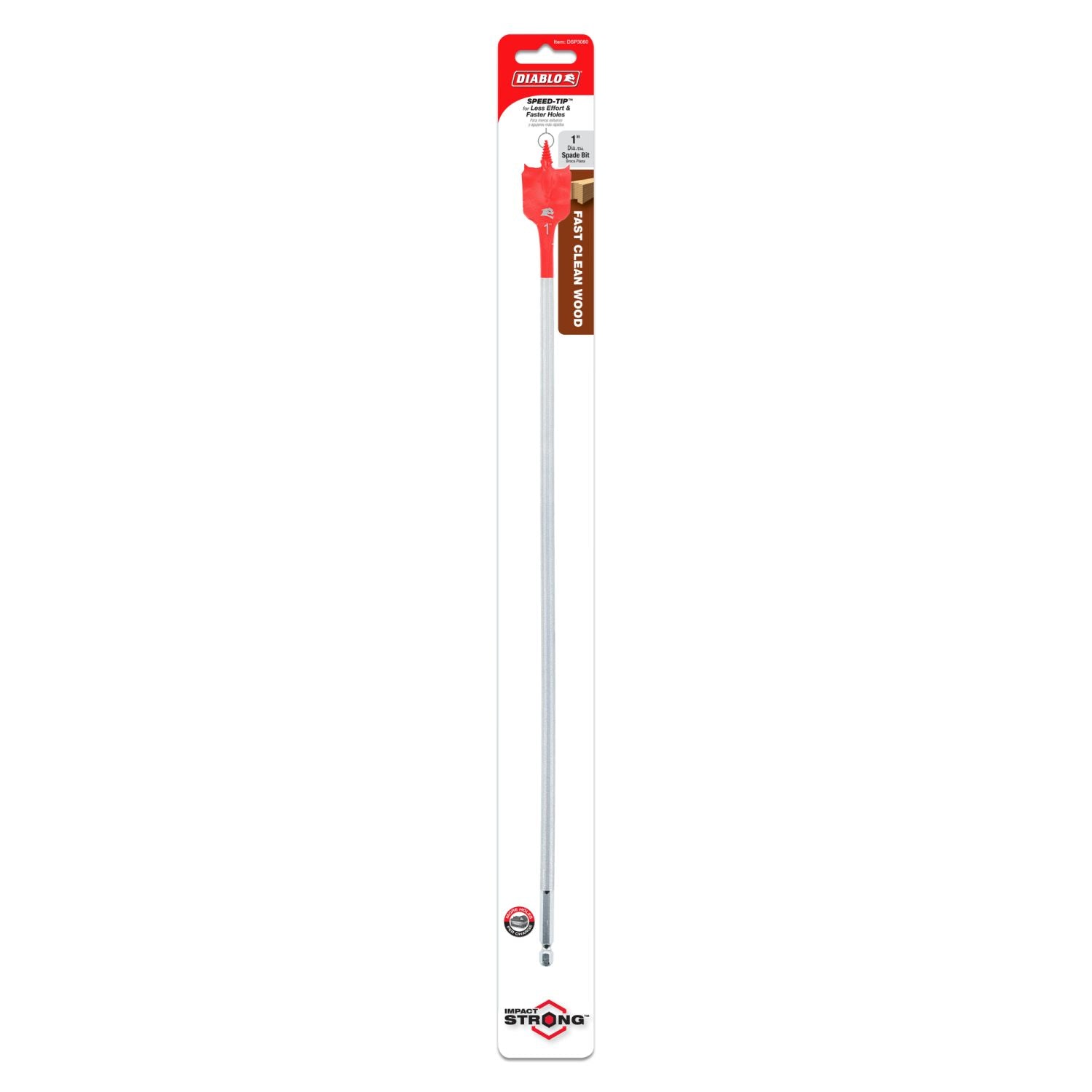

- (1) Diablo DSP3060 1 in. x 16 in. SPEEDemon Spade Drill Bit
Key Specifications
| Bit Type | Spade |
|---|---|
| Bit Material | High Speed Steel |
| Bit Diameter | 1 in. |
| Overall Length | 16 in. |
| Drilling Depth | 16 in. |
| Shank Style | Hex |
| Shank Diameter | 10 mm |
| Number of Pieces | 1 |
Compatibility
Built For
Pro Tip
Let the SPEED-TIP pull the bit into the cut instead of forcing it. On deep holes in framing lumber, backing out once or twice to clear chips will keep the cut cooler and faster.
Warranty & Support
Tool Nut's Take
A Long Spade Bit That Actually Earns Its Spot
The Diablo DSP3060 1 in. x 16 in. SPEEDemon High Speed Steel Spade Drill Bit is the kind of bit you grab when you need reach, speed, and a cleaner hole than a bargain-bin paddle bit usually gives you.
- Who it's for: Pros and serious DIY users boring larger holes through wood framing, studs, joists, and similar stock.
- Why it stands out: The self-feeding SPEED-TIP, chip-clearing paddle shape, and long 16 inch body make it faster and easier to use in real rough-in work.
- Worth knowing: This is a single wood-boring bit, not a kit, and it is built around wood applications rather than mixed-material drilling.
Common Questions
- What material is this bit designed to drill? It is designed for wood drilling, specifically clean wood.
- Can it be used with cordless tools? Yes. It is intended for use in corded or cordless impact drivers and drill drivers.
- What size hole does it drill? This bit has a 1 inch diameter.
- What is the shank style? It uses a hex shank for secure grip in compatible tools.
