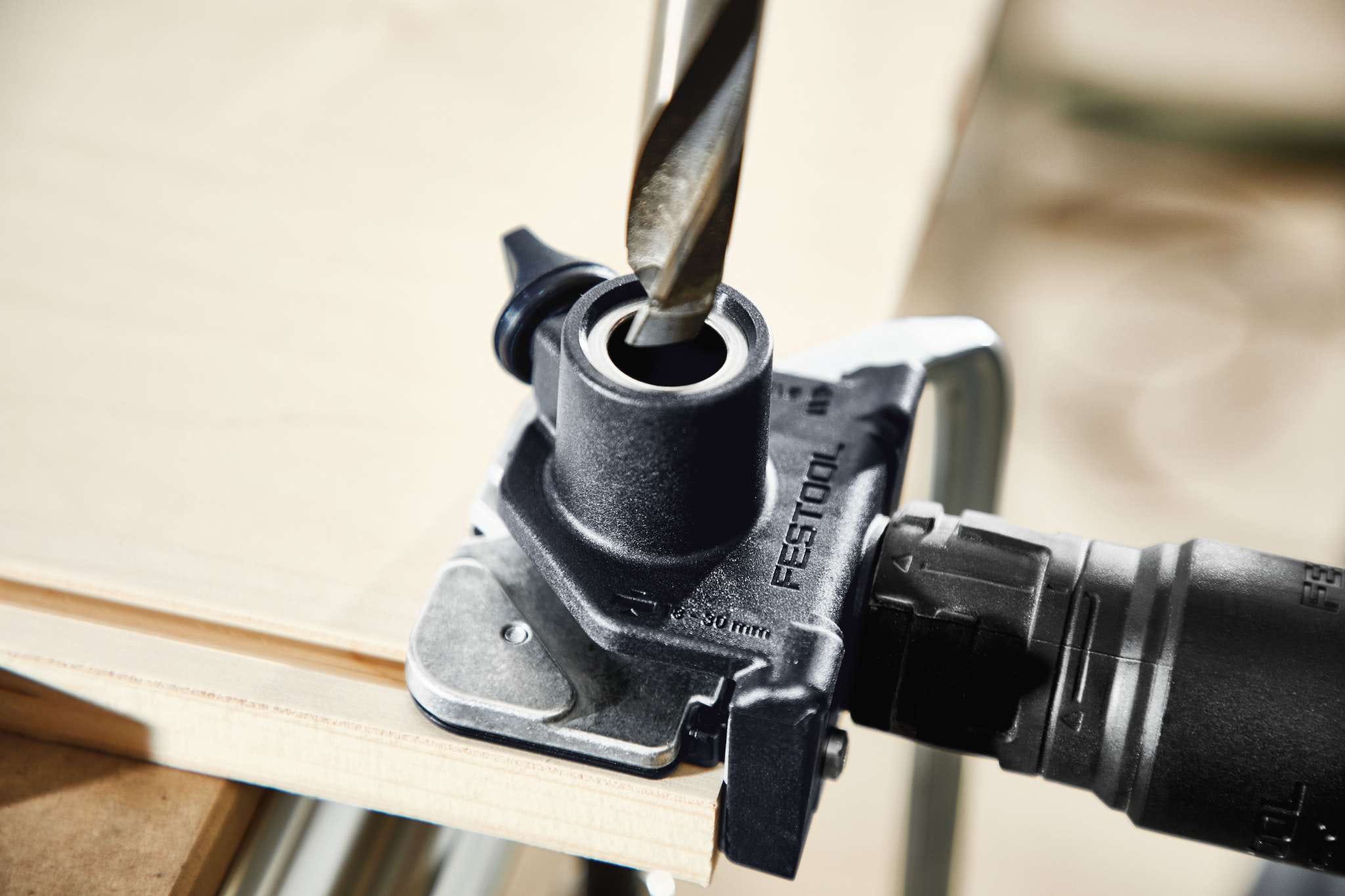

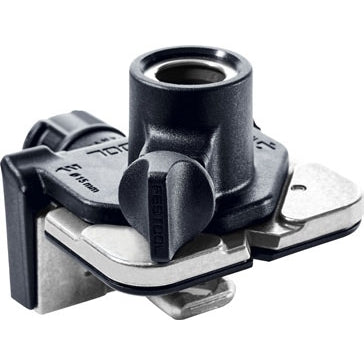

Festool 203164 Domino DF 500 Connector System Drilling Template is a drilling template for the Festool DOMINO connector system. This is a drilling template designed for boring the surface hole required when using DOMINO D 8 mm joint fixtures with the DOMINO DF 500 system. Model Number: 203164. If you build knock-down furniture, cabinets, or panel assemblies and want the joint to go together cleanly without guesswork, this accessory is part of that process.

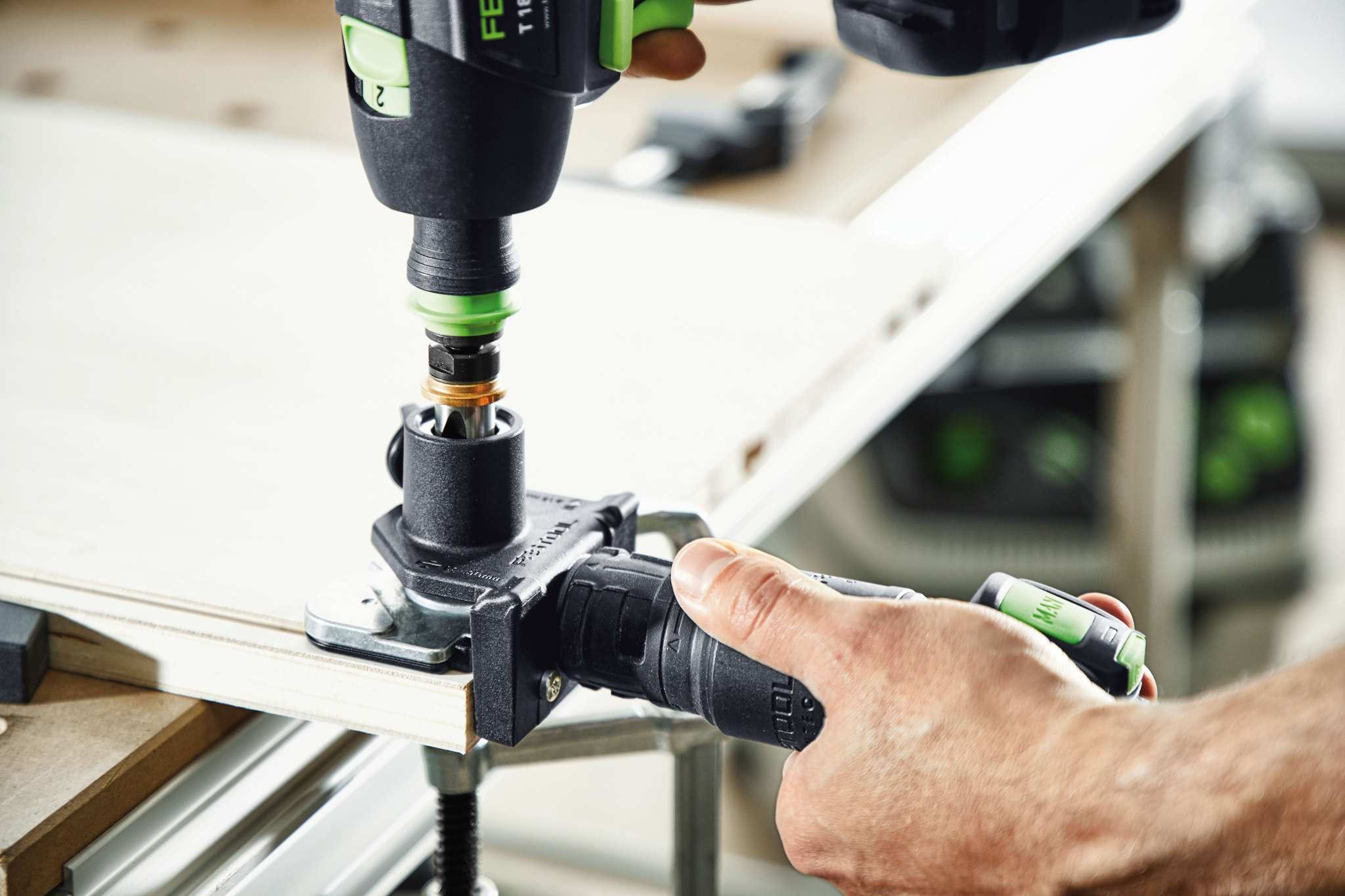

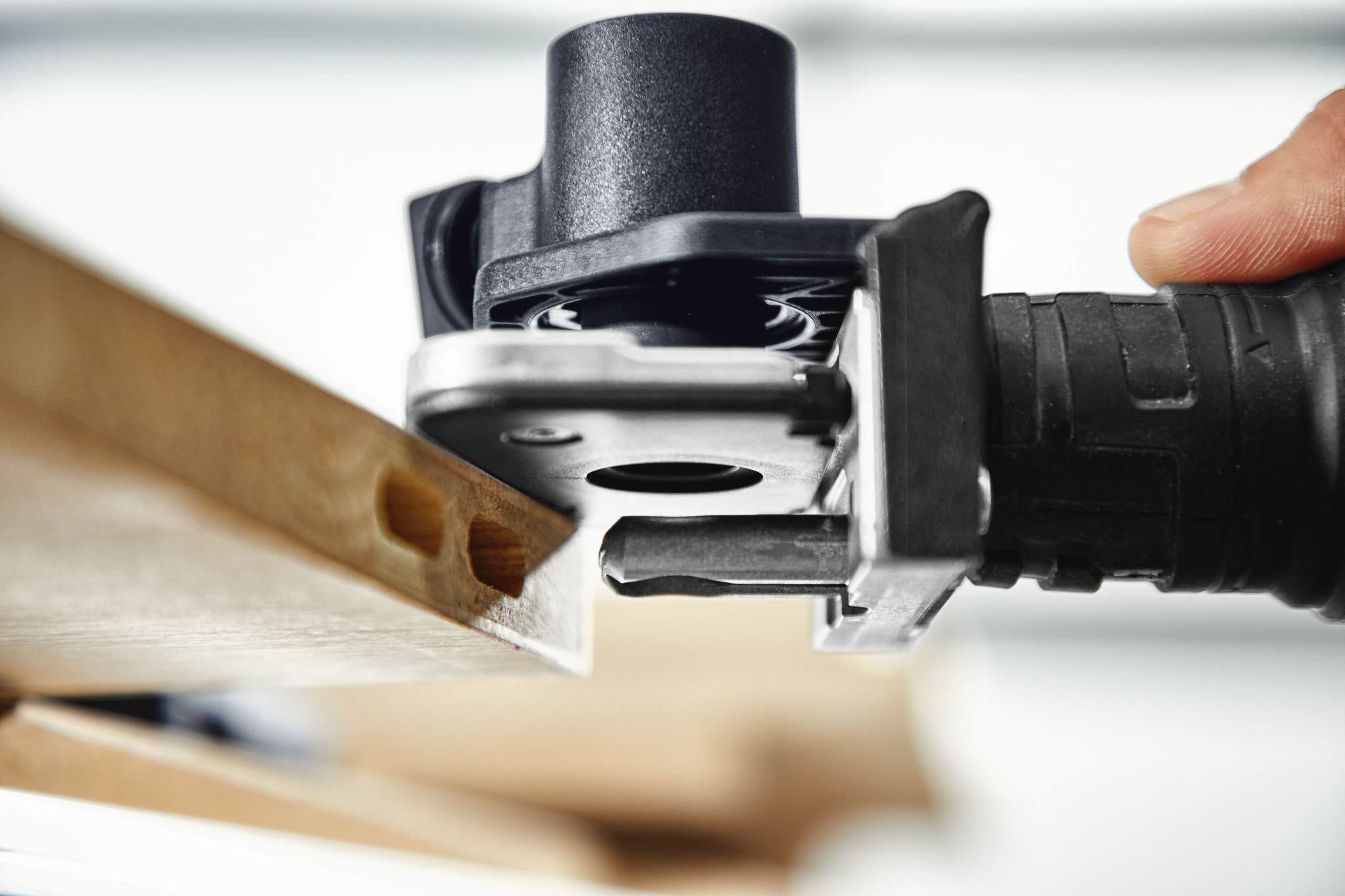

What it does is simple but important. The DOMINO DF 500 handles the routed holes for the connector system, and this template handles the required drilled hole in the surface of the workpiece. That matters because connector hardware only works well when the boring location lines up with the routed mortise. A good template saves measuring time, reduces rework, and helps you keep parts consistent across repeated assemblies.
Festool builds this piece specifically around the DOMINO connector workflow, not as a generic jig. It is adapted to a 15 mm drill guide and is intended to work with the Festool D15 hinge location cutter, part no. 203165. In practical use, that means the template is set up around the exact hole size and placement the connector system expects, which is what gives the joint its clean fit and repeatable assembly.
The supported plate thickness range of 0.7 to 11/16" to 1-1/8" (18 to 28 mm) puts it right in the range of common cabinet, casework, and furniture material. If you are building in sheet goods or solid stock in that thickness band, the template fits the kind of work the DF 500 is already known for. Festool also notes that the DOMINO connector setup can compensate for routing and cutting tolerances up to 1/16" (1.4 mm), which helps when real shop work is not perfectly theoretical.
Another real advantage is workflow. The DOMINO connector system is meant to let you assemble, separate, and reassemble furniture and basic structures without destroying the joint. For shop builds, delivery, or on-site installation, that is a big deal. The drilling template supports that by making one of the key boring operations faster and more predictable, so you can spend less time laying out hardware and more time fitting parts.
This is not a general drilling jig for every shop task. It is a system accessory for woodworkers already using, or planning to use, Festool DOMINO connectors with the DF 500. If that is your platform, this accessory makes sense because it supports accurate connector installation. If you are not in the Festool DOMINO ecosystem, it is too specialized to be a casual add-on.
Best fit here is cabinetmakers, furniture builders, millwork shops, and serious DIY users building knock-down joinery that needs to go together cleanly more than once. The value is not flash. The value is repeatability, cleaner workflow, and fewer chances to ruin a finished panel because a hardware hole landed a little off.
Cleaner Connector Layout With Less Measuring
When you are doing connector joinery, layout mistakes cost time fast. This template helps put the required hole where the connector system needs it, so the assembly step goes smoother and you spend less time double-checking positions.
- Required for drilling holes in the surface of the DOMINO D 8 mm joint fixture
- Designed for the DOMINO DF 500 connector workflow
Built Around the Festool DOMINO System
This accessory is not trying to be universal. It is made for the people already working in Festool's DF 500 ecosystem, which is exactly why it is useful. The fit, guide size, and intended boring operation all line up with the connector system process.
- Suitable for use with the Festool DF 500
- Adapted to Festool D15 hinge location cutter, part no. 203165
Made for Knock-Down Furniture and Panel Joinery
The real payoff here is furniture and casework that can be assembled, taken apart, and put back together without turning the job into a repair project. For shop builds, transport, and final install, that flexibility is hard to ignore.
- Works with material thicknesses from 0.7 to 11/16" to 1-1/8" (18 to 28 mm)
- Supports the DOMINO connector approach for corner joints, center panel joints, and series-hole connections
What's in the Box
- (1) Festool BS-KV D15 Drilling Template
DOMINO DF 500 joiner, connector components, and D15 hinge location cutter are not included.
Key Specifications
| Tool Type | Drilling Template |
|---|---|
| Application | For use with Festool DF 500 connector system |
| Plate Thickness | 0.7 - 11/16" - 1-1/8" (18 - 28 mm) |
| Drill Guide Diameter | 9/16" (15 mm) |
| Material | Plastic and Metal |
| Color | Charcoal |
| Made In | Germany |
| Part Number | 203164 |
Compatibility
Built For
Pro Tip

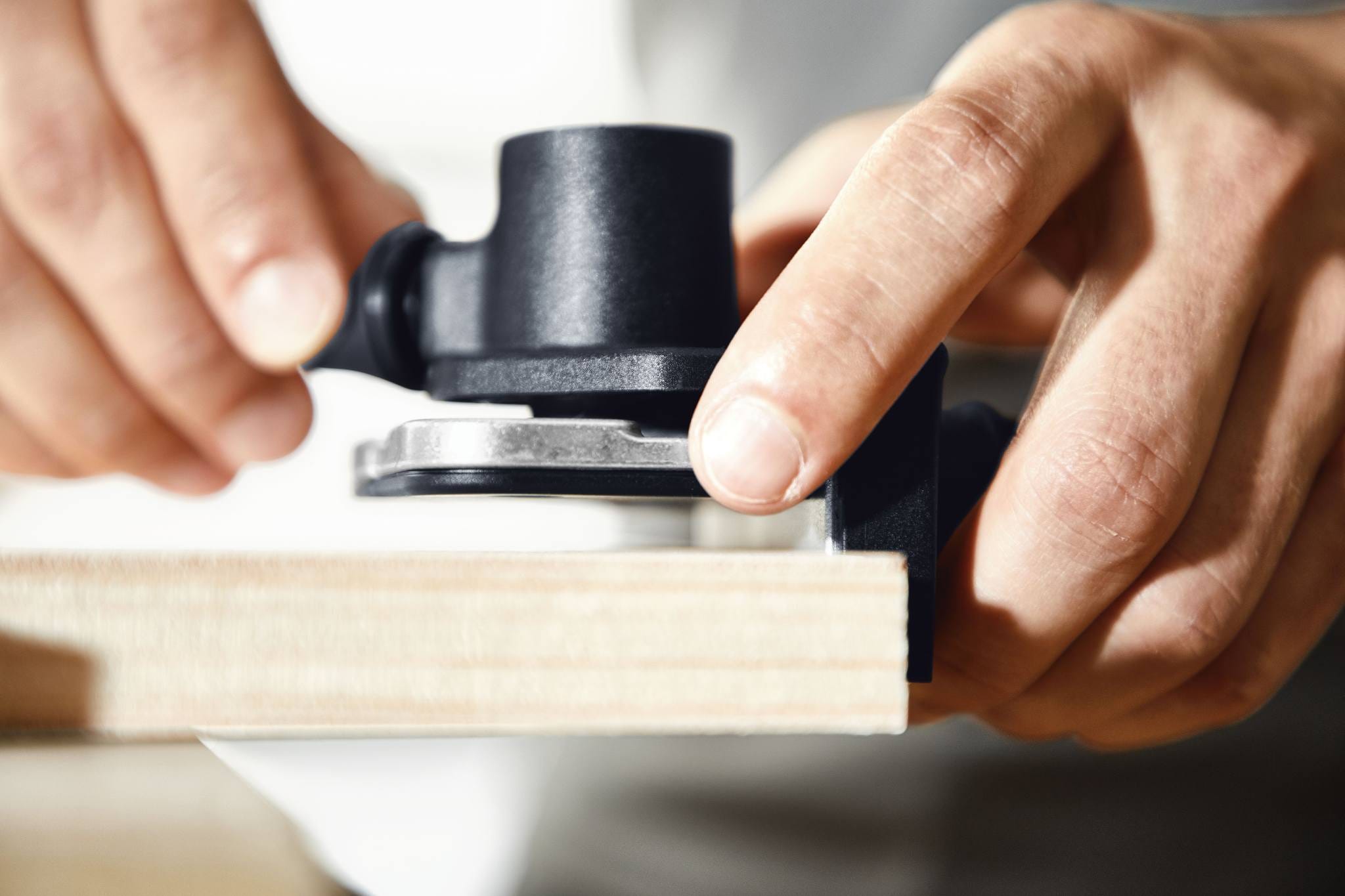

If you are batching cabinet sides or furniture panels, do your DF 500 mortising first and then use the BS-KV D15 template for the required surface boring so each connector location references the same joinery layout. That keeps the hardware aligned and cuts down on fit-up surprises during final assembly.
Warranty & Support
Tool Nut's Take
Festool 203164 Domino DF 500 Connector System Drilling Template Gets the Fussy Part Right
This is the kind of accessory that looks minor until you are trying to make knock-down joinery fit cleanly on finished parts.
- Who it's for: Woodworkers, cabinet shops, and furniture builders using the Festool DOMINO DF 500 for connector-based joinery.
- Why it stands out: It is purpose-built for the DOMINO workflow, sized around the required 9/16" (15 mm) boring operation, and meant to speed up accurate connector installation without extra layout drama.
- Worth knowing: This is a specialized system accessory, not a general shop jig. If you are not working with DF 500 DOMINO connectors, you probably do not need it.
Common Questions
- What is this accessory used for? It is used to drill the surface hole required for the DOMINO D 8 mm joint fixture in the Festool connector system workflow.
- Which Festool machine is it designed to work with? It is suitable for use with the Festool DOMINO DF 500.
- What hole size is it built around? The drill guide diameter is 9/16" (15 mm).
- What material thickness range does it support? Festool lists a plate thickness range of 0.7 to 11/16" to 1-1/8" (18 to 28 mm).
