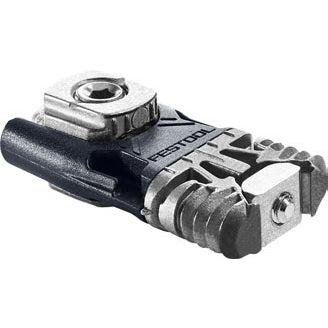

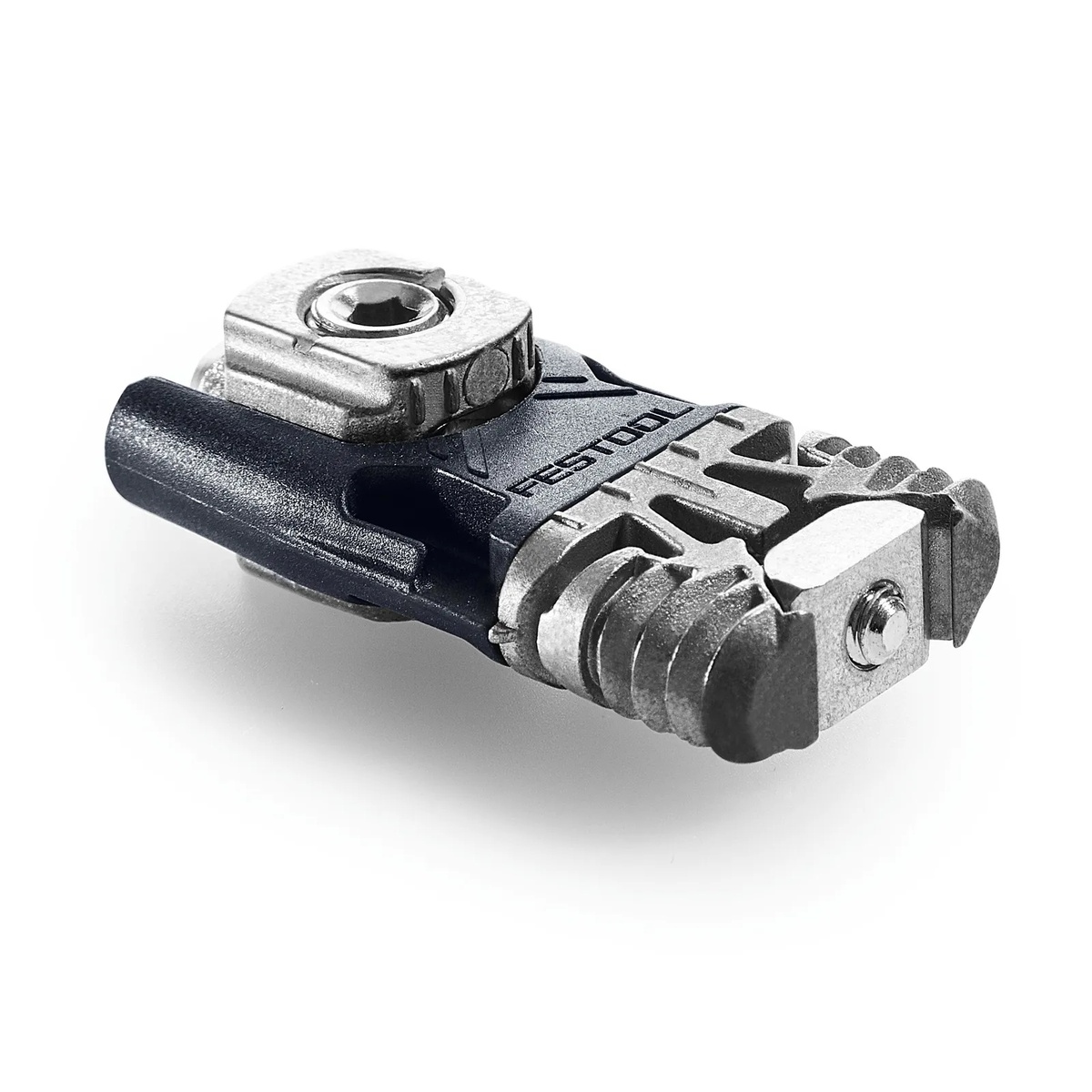

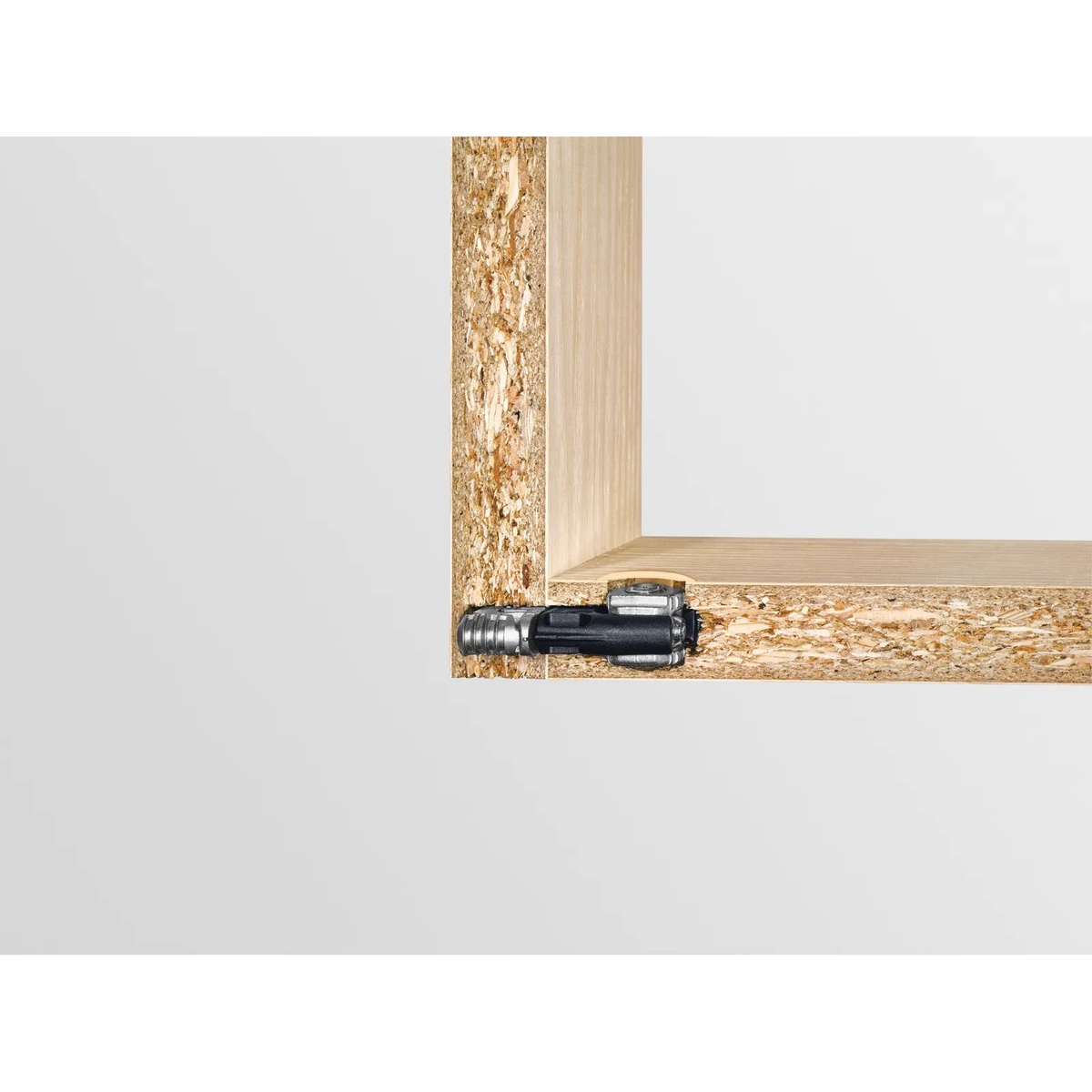

The Festool 203166 Domino DF 500 8mm Panel Connector, 50-Pack is a detachable connector set for knock-down furniture and cabinet assembly. This is a panel connector kit designed for knock-down joinery and corner connections using the Festool DOMINO DF 500 joiner. Model Number: 203166. If you build cabinets, casework, or furniture that has to leave the shop in pieces and go together cleanly on site, this system gives you a faster way to make strong, repeatable joints without switching to a separate connector machine.

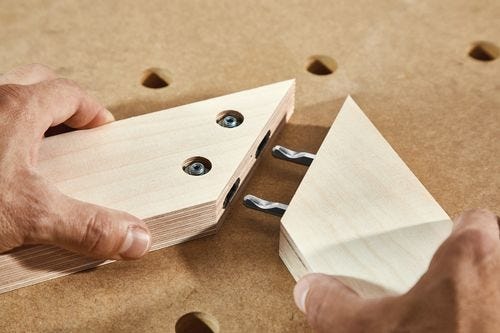

What makes this connector matter is the way it fits into the DOMINO workflow you already know. Festool designed the KV D8/50 so the joint is machined with the DOMINO DF 500 using standard routing operations, plus one drilled hole. That means you can create detachable joints without adding another dedicated setup process. Festool also calls out tolerance compensation up to 1.4 mm, which helps when real-world panel work is not absolutely perfect. In practice, that gives you a little breathing room during assembly instead of fighting every part into place.

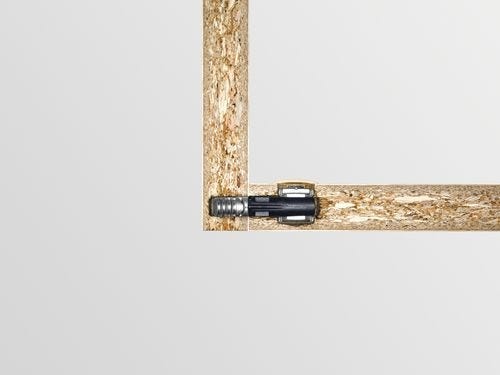

This connector is sized around an 8 mm DOMINO-based fixture and is intended for material thickness from 3/4 inch to 1-1/8 inch, or 18 mm to 28 mm. The side part routing depth is 5/8 inch (15 mm), and the base part routing depth is 1-1/8 inch (28 mm), with a 5/8 inch (15 mm) drilling diameter in the base part. Those numbers matter because they tell you exactly where this hardware fits best: cabinet parts, structural furniture panels, and case components where you want solid alignment with the option to break the piece down later.

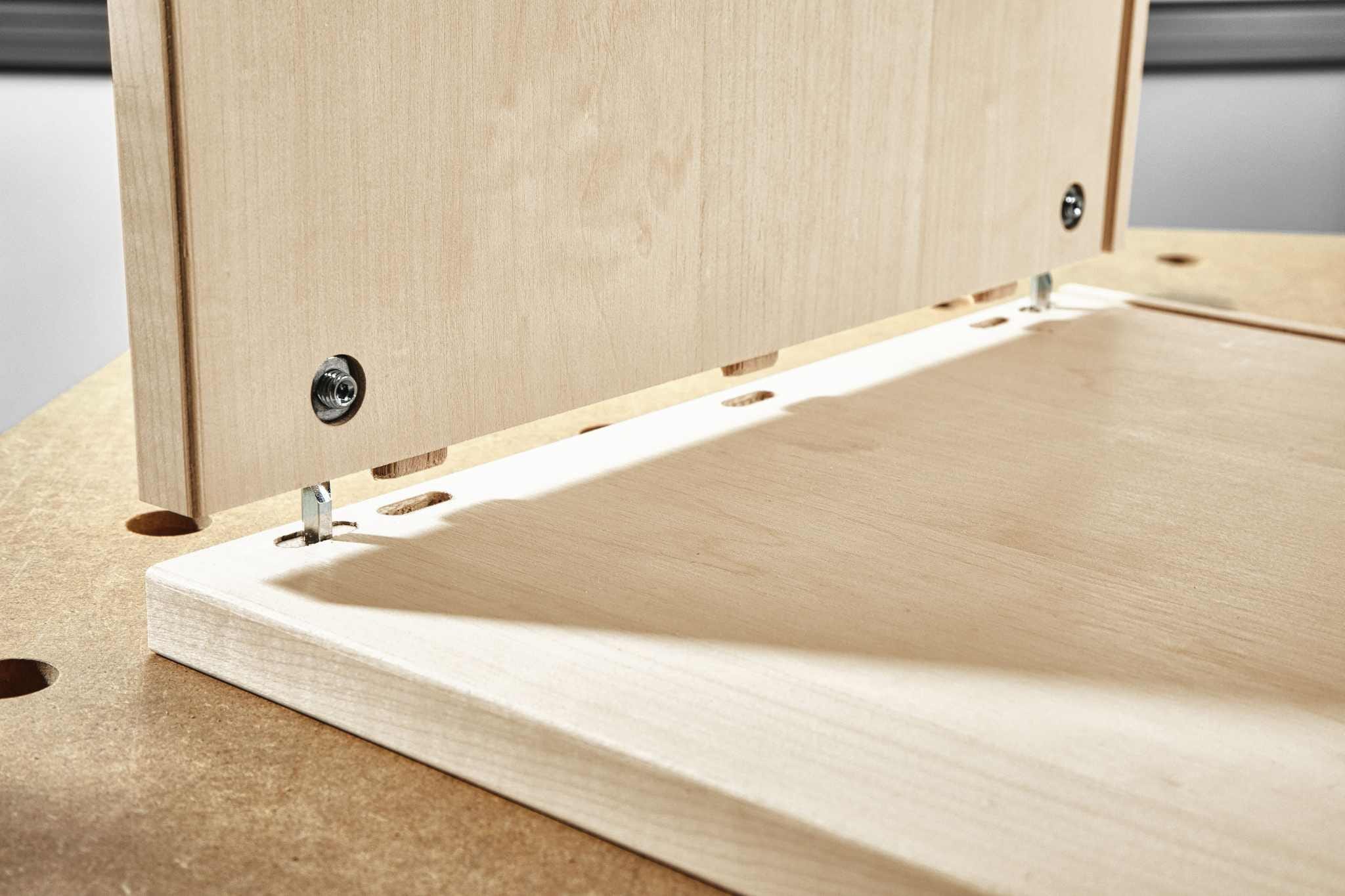

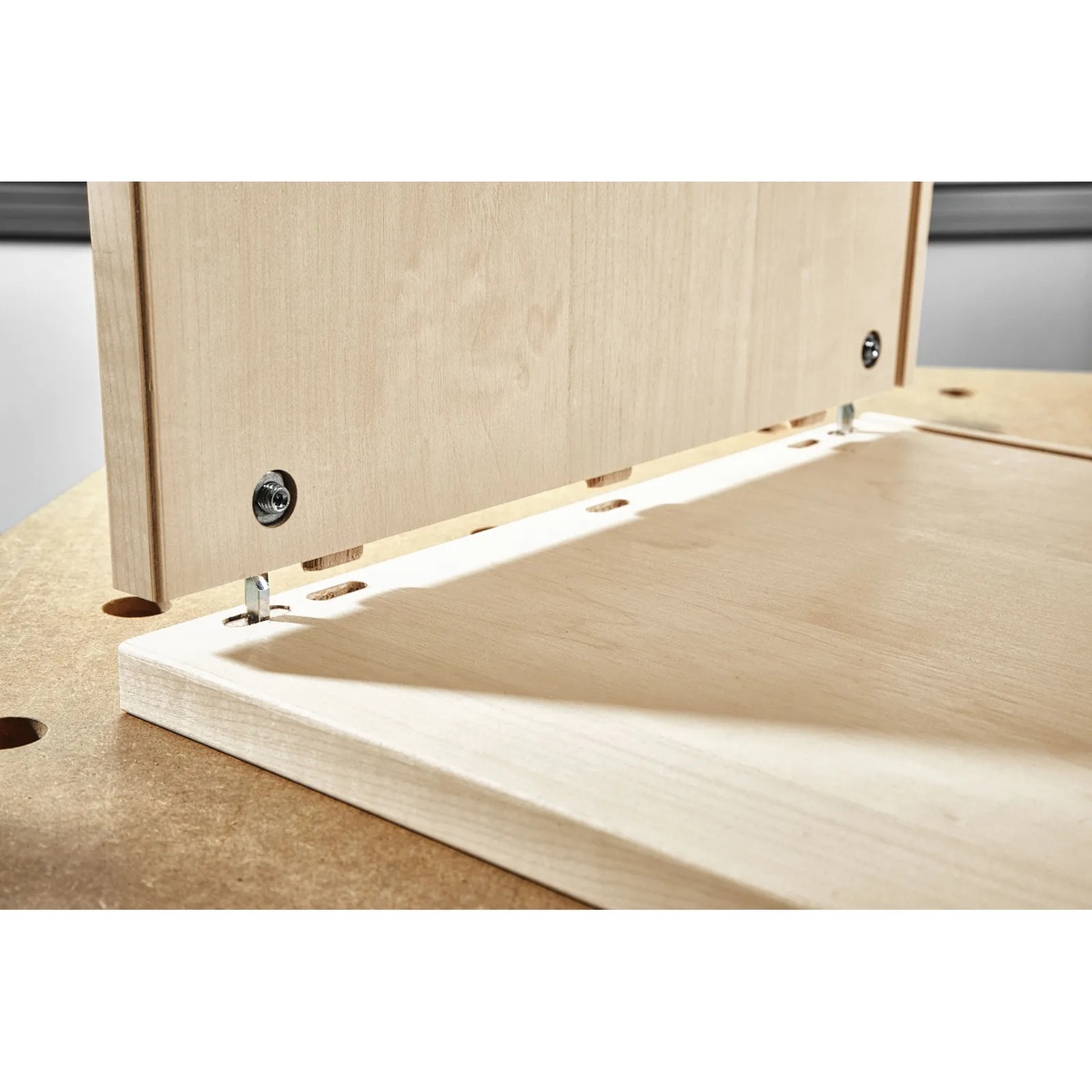

Festool built the system around jobsite practicality. The large tightening distance and long bolts make assembly easier when you are working alone, especially on cupboards and larger furniture parts. That is the real advantage over fixed glue joints in certain applications. You can machine parts in the shop, transport them more efficiently, and then pull everything together at installation with less strain and less chance of damaging finished surfaces during delivery.

Compatibility is straightforward. This connector set is for the Festool DOMINO DF 500. Festool also notes that the system can be used in combination with DOMINO mortises or a series of holes, which opens up more flexibility in cabinet and furniture construction. If you are already invested in the DF 500 platform and want a clean detachable connection for panel-to-panel or corner joinery, this is the kind of accessory that saves time because it works with the machine and workflow you already own.

Who should buy it? Cabinetmakers, furniture builders, millwork shops, and installers who need strong detachable connections and clean final assembly. If you mostly build permanent glued assemblies, this may be more connector than you need. But if you regularly move large casework, install built-ins, or want furniture that can be disassembled without sacrificing precision, this kit makes a lot of sense.

Festool 203166 Domino DF 500 8mm Panel Connector, 50-Pack for smarter cabinet installs

This is the kind of Festool accessory that earns its keep when your work has to travel, fit, and go together cleanly without drama.

• Who it's for: Cabinetmakers, furniture builders, and installers using a DOMINO DF 500 for knock-down assemblies and clean on-site final assembly.
• Why it stands out: It gives you a detachable connection without dragging in another machine or reinventing your workflow. If you already trust the DF 500 for alignment, this keeps that same logic in a connector-based joint.
• Worth knowing: This is a DF 500-specific solution and cover caps are not included. It makes the most sense when the project needs to come apart for transport or installation.

• Which machine is this connector designed for? It is designed for the Festool DOMINO DF 500 joiner.
• What material thickness does it fit? Festool specifies panel thickness from 3/4 inch to 1-1/8 inch, or 18 mm to 28 mm.
• How many joints does this pack make? This set provides hardware for 50 corner joints.
• Are cover caps included? No. Festool specifies that this set is supplied without cover caps.
