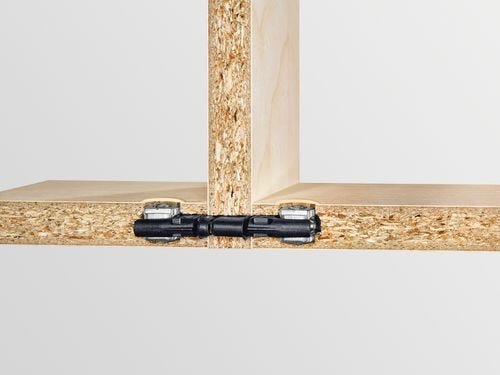

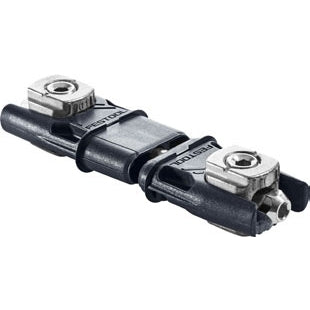

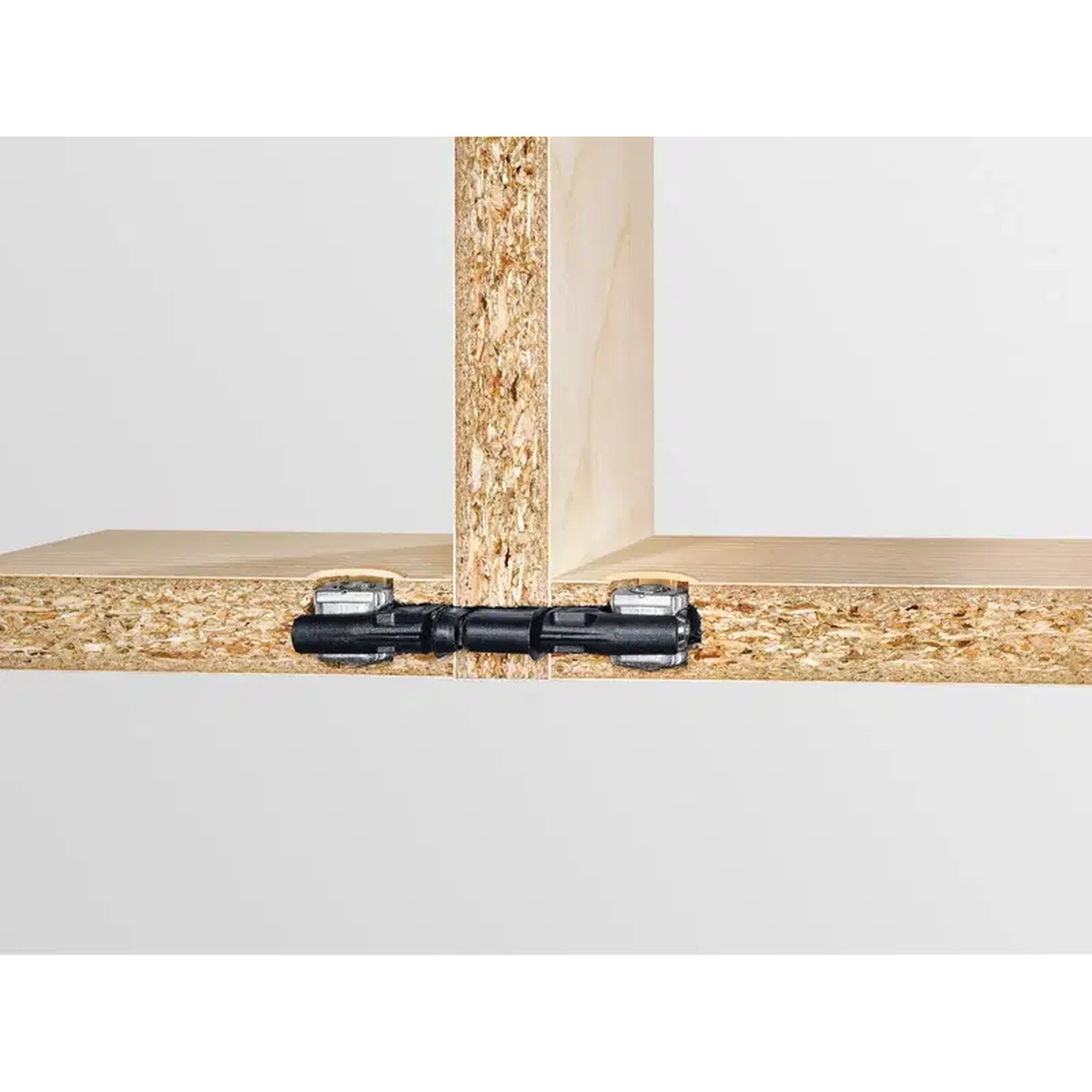

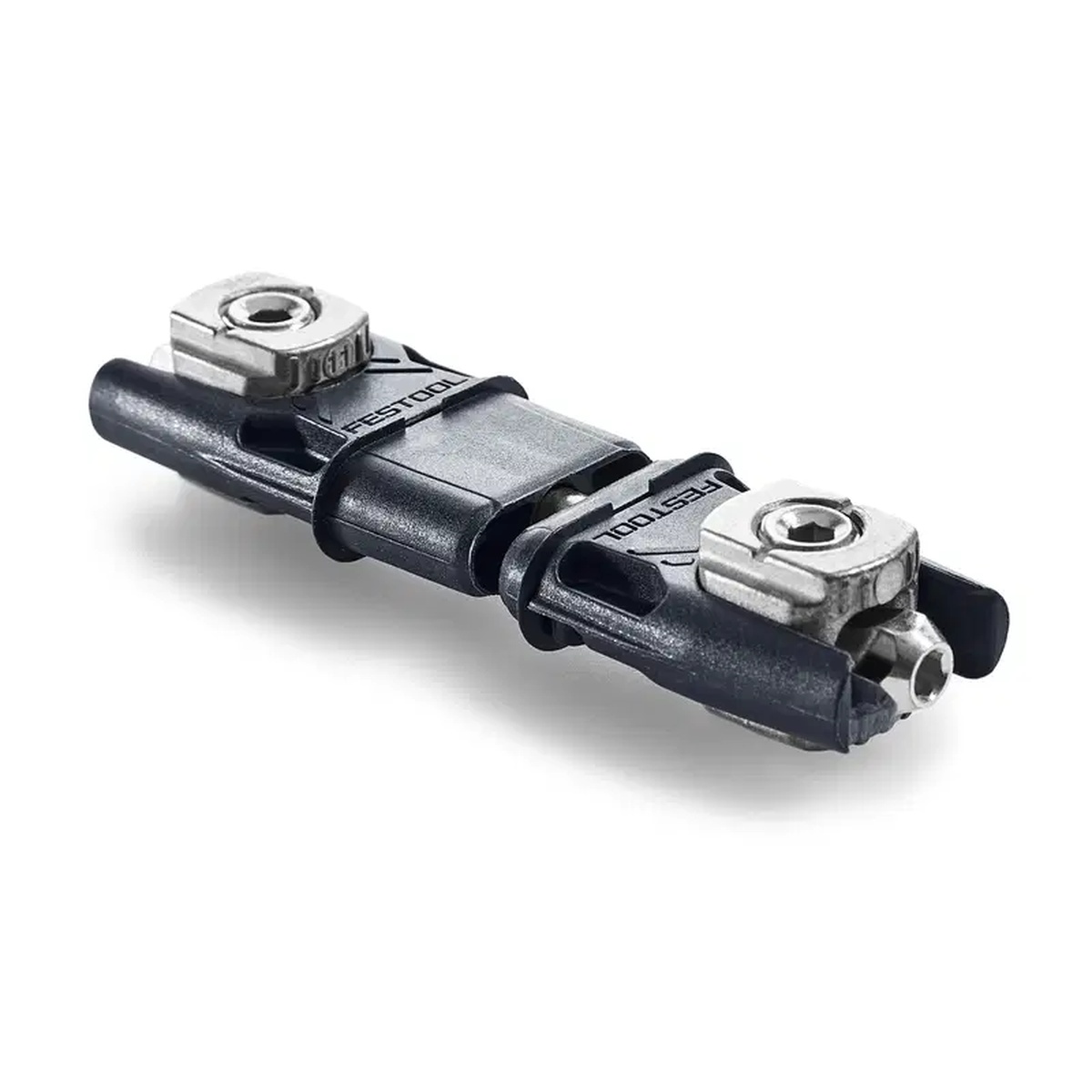

The Festool 203167 Domino DF 500 8mm Center Panel Connector, 25-Pack is a detachable center panel connector set made for knock-down furniture and cabinet construction. This is a center panel connector designed for repeatable panel joinery with the Festool DOMINO DF 500. Model number 203167. If you build cabinets, casework, or furniture that needs to be assembled, taken apart, and assembled again, this connector system gives you a clean, solid way to do it without turning the project into a one-time glue-up.

What makes this connector useful is not just that it joins parts, but that it does it in a way that saves time when the job moves from the bench to delivery and final install. Festool built this system so the joints are machined with the DOMINO DF 500 joiner, which means you can stay inside the same workflow many shops already use for loose tenon joinery. According to the source data, the center panel joint is produced with only two routed holes and one drilled hole, keeping setup simple and making the process easier to repeat across multiple panels.

The connector uses an 8 mm DOMINO joint fixture and is intended for material thickness from 11/16 in. to 1-1/8 in. (18 to 28 mm). That puts it right in the range for common cabinet panels, furniture parts, and built-ins. Festool also notes a 5/8 in. (15 mm) DOMINO routing depth for the side part, a 1-1/8 in. (28 mm) routing depth for the base part, and a 5/8 in. (15 mm) drilling diameter in the base part. Those dimensions matter because they define whether the connector fits your stock and whether your current DF 500 setup is the right match for the job.

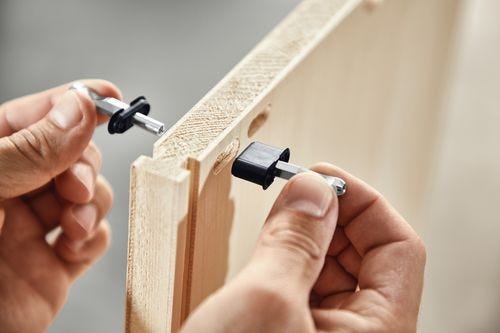

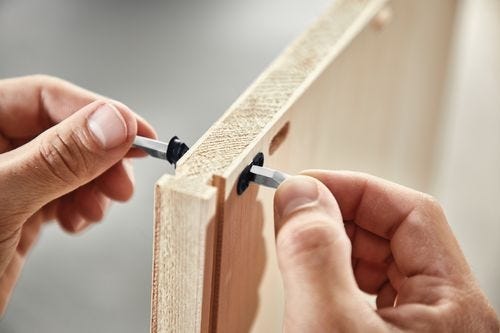

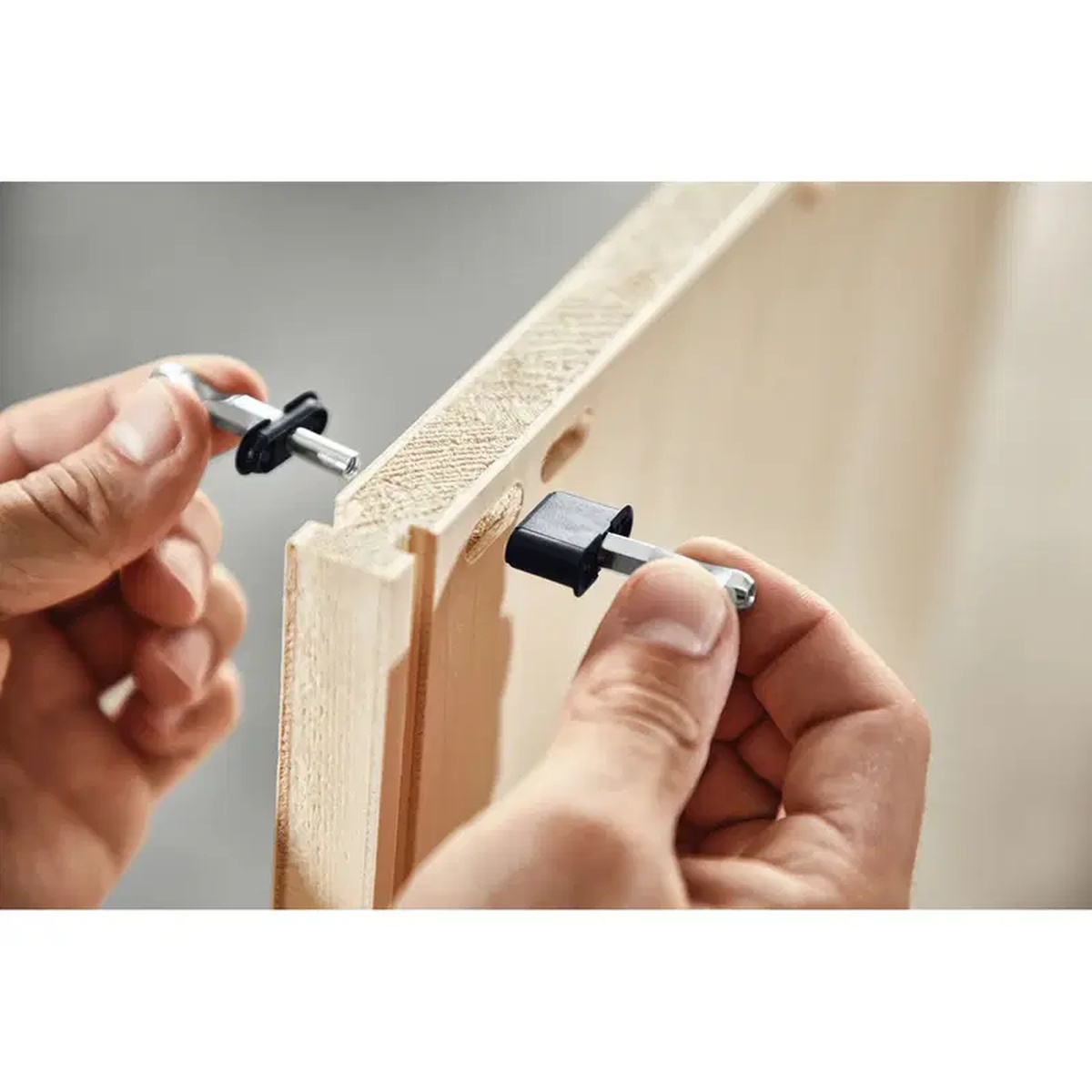

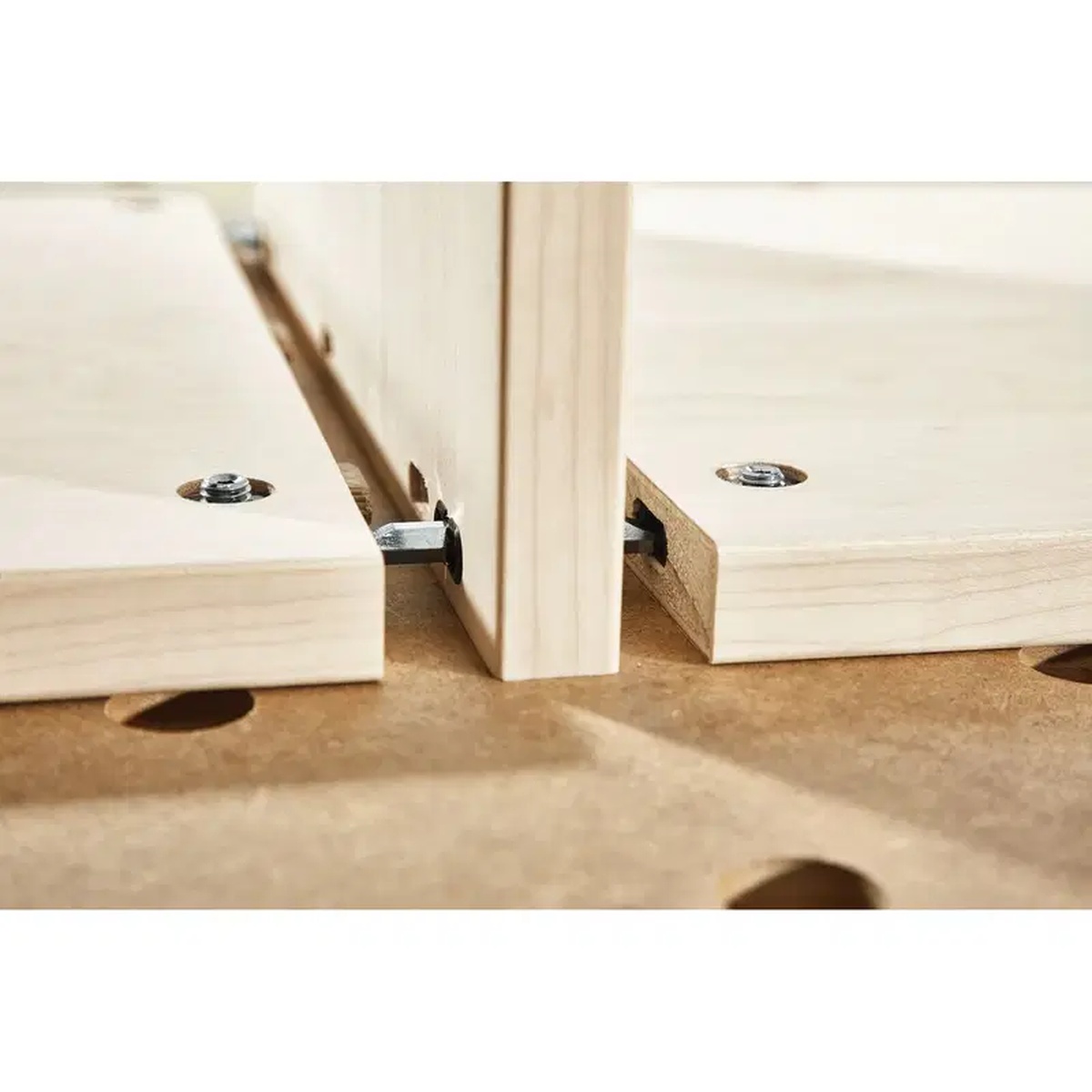

In real shop use, the big advantage is flexibility. The detachable DOMINO connector system is made to let you assemble, separate, and reassemble work without fighting alignment every time. That is a real benefit for larger cabinets, closet components, built-ins, and furniture pieces that are easier to transport flat or in subassemblies. Festool also calls out the large tightening distance and long bolts, which make final assembly easier when you are working alone and trying to pull parts together accurately.

Another practical benefit is tolerance compensation. Source data states the fixture can compensate for routing and cutting tolerances up to 1.4 mm. On paper that sounds small, but in cabinet and furniture work it can be the difference between a joint that pulls together cleanly and one that forces you to rework parts. If you are building to install on site, that kind of forgiveness can save time when panels, cuts, or drilling are close but not absolutely perfect.

This connector is also built around the larger Festool DOMINO approach to positioning. The system is meant to simplify joint placement and reduce the need for extra positioning aids. That is one of the reasons DOMINO-based hardware appeals to professional cabinetmakers and serious woodworkers: it keeps the layout process straightforward while still giving you a joint that can be taken apart later. For this specific connector, the source data notes that a drill template is required for drilling holes in the surface of the DOMINO D 8 mm joint fixture, so plan on using the correct setup instead of treating this like a generic knock-down fastener.

This pack is sized for 25 center panel joints with the DF 500. It is a good fit for cabinetmakers, custom closet installers, furniture builders, millwork shops, and serious DIY users already invested in the Festool DOMINO system. If you do not own a DOMINO DF 500, this is not the place to start. If you do own one and you want detachable joinery that looks cleaner and works more predictably than improvised hardware solutions, this connector kit makes a strong case for itself.

Festool 203167 Domino DF 500 8mm Center Panel Connector That Makes Sense for Real Cabinet Work

If you already run a DOMINO DF 500 and want detachable panel joinery that feels thought-out instead of improvised, this connector kit is the right kind of hardware.

• Who it's for: Cabinetmakers, furniture builders, millwork shops, and serious woodworkers building projects that need to be transported or installed in sections.
• Why it stands out: It stays inside the DOMINO workflow, handles 25 center panel joints, and gives you tolerance compensation up to 1.4 mm so assembly is more forgiving in the real world.
• Worth knowing: This is not a universal connector pack. It is made for the DOMINO DF 500 system, cover caps are not included, and the source data says a drill template is required for proper setup.

• What tool is this connector designed to work with? It is designed for the Festool DOMINO DF 500 joiner.
• What material thickness range does it fit? Source data lists a plate thickness range of 11/16 in. to 1-1/8 in. (18 to 28 mm).
• Is this for permanent or detachable joinery? It is part of Festool's detachable DOMINO connector system, intended for assembly, disassembly, and reassembly.
• How much tolerance can the system compensate for? Festool states the fixture compensates for routing and cutting tolerances up to 1.4 mm.
