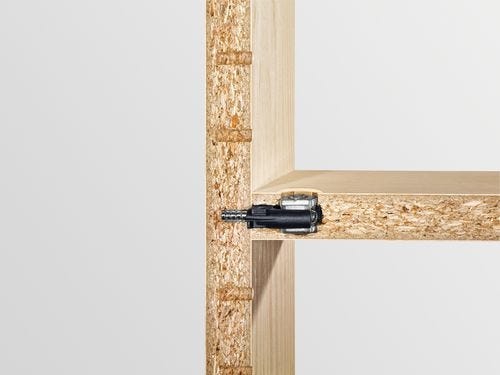

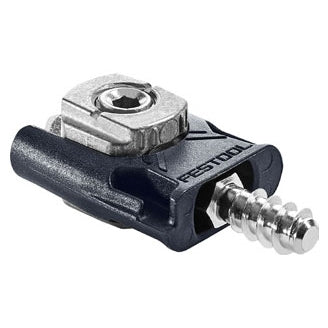

The Festool KV-LR32 D8/50 Corner Connection Assembly is a knock-down corner connector set for cabinet and furniture joinery. This is a corner connection assembly designed for detachable casework and furniture construction using the Festool DOMINO DF 500 and 32 mm hole system layouts. Model 203168 is built for woodworkers, cabinet installers, and shop guys who want clean, repeatable joints that go together fast and can still come apart when the job calls for it.

What makes this connector matter is not just that it joins two panels. It lets you build pieces that are easier to transport, easier to install, and easier to service later. Festool designed this set for knock-down joinery, which means you can assemble, separate, and reassemble furniture or cabinetry without treating the joint like a one-shot operation. For built-ins, shop-made cabinets, and furniture that has to make it through tight stairways or elevators, that is a real advantage.

The KV-LR32 D8/50 works with the DOMINO DF 500 and a drilling series of holes, so it fits naturally into a Festool cabinetmaking workflow. Festool also calls out that no additional special machine is required. If you already use the DF 500 for alignment and structural joinery, this accessory expands what that system can do instead of forcing you into a separate connector platform.

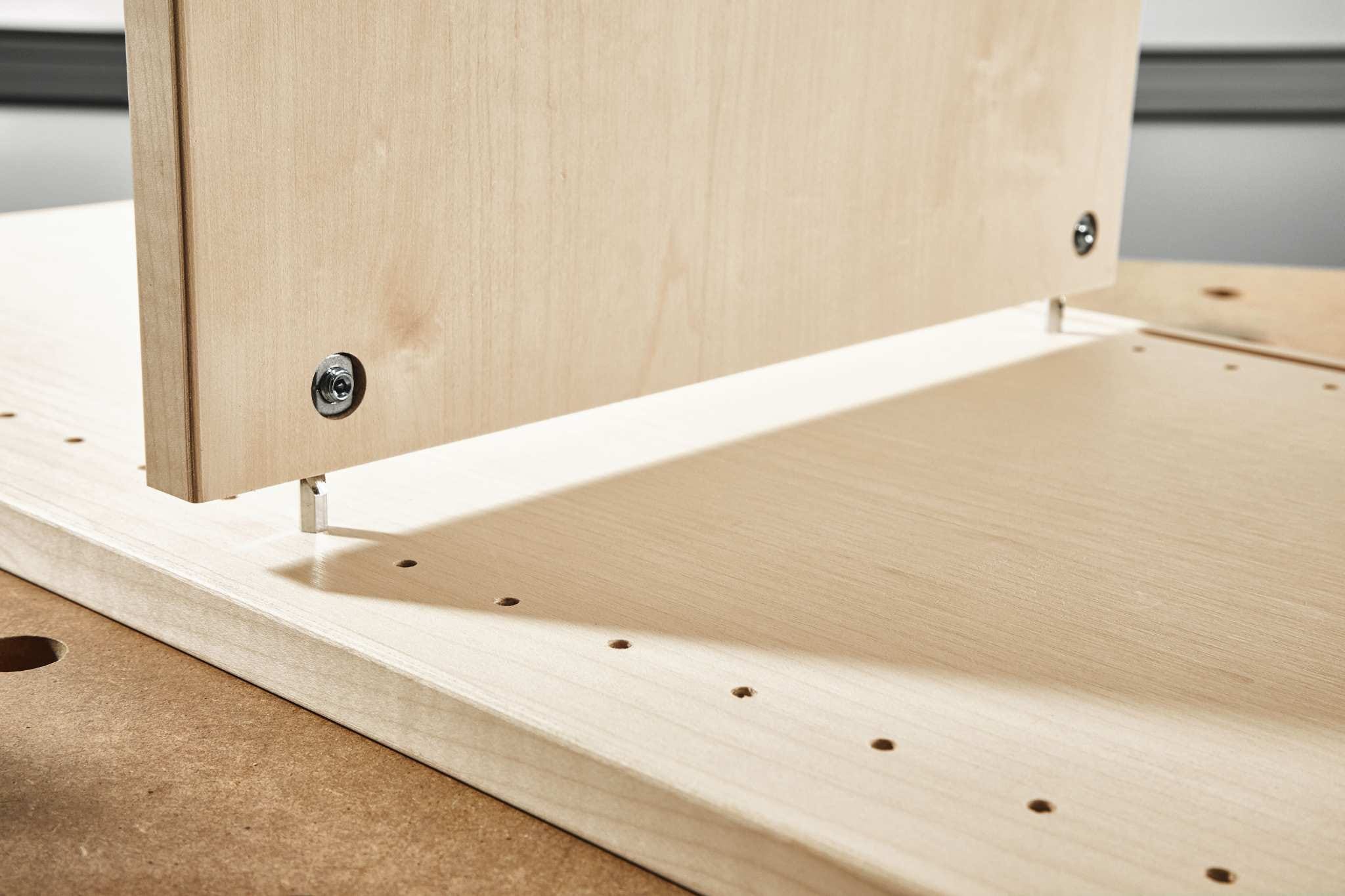

On the practical side, the connector is built around easy positioning and fast assembly. Festool notes that the system can be positioned simply and universally in combination with DOMINO mortises or a row of holes, and that the joint can be produced with only two DOMINO routed holes and one drilled hole. That saves layout time, reduces chances to drift off your marks, and helps keep assembly consistent from one cabinet to the next.

Another big plus is tolerance compensation. Festool states that routing and cutting tolerances up to 1.4 mm are compensated for by the fixture. That is the kind of detail that matters when you are building in sheet goods, especially on larger cabinet runs where tiny variations stack up. Instead of fighting a joint that is too exact to assemble smoothly, you get a system with enough forgiveness to go together without beating the parts into place.

The geometry is aimed at common cabinet stock as well. Festool lists a plate thickness range of 3/4 inch to 1-1/8 inch, which puts it right in the wheelhouse for furniture panels, cabinet sides, and structural case parts. The D8 joint fixture format, 28 mm routing depth for the base part, and dedicated drilling diameters make it a system component, not a generic connector. That is why it appeals most to users who value repeatability over improvising with off-the-shelf hardware.

If you build cabinets, built-ins, modular furniture, or shop fixtures that need clean transport and easier final installation, this accessory earns its keep. It is especially useful for cabinetmakers, custom furniture builders, and installers already working in the Festool DOMINO ecosystem. If you do not own a DF 500 or do not use 32 mm cabinet layouts, this is probably too specialized. If you do, it is a smart way to make your joinery more flexible without giving up speed or accuracy.

Festool KV-LR32 D8/50 Corner Connection Assembly for Cleaner Installs

If you are already in the DOMINO DF 500 world and you build cabinets or furniture that need to move, this connector system makes a lot of sense.

• Who it's for: Cabinetmakers, furniture builders, and installers who want repeatable knock-down joints without giving up alignment or assembly speed.
• Why it stands out: It ties DOMINO joinery into the 32 mm hole system, handles real-world tolerances, and makes transport and final install a whole lot easier.
• Worth knowing: This is a specialized Festool accessory, not universal hardware. You really want the DF 500 workflow for it to pay off.

• What tool is this designed to work with? Festool lists it as suitable for the DOMINO DF 500 joiner.
• Is this for permanent joinery or knock-down assembly? It is designed for detachable joinery, so the furniture or cabinet can be assembled, separated, and reassembled.
• What material thickness does it fit? Festool specifies a plate thickness range of 3/4 inch to 1-1/8 inch, or 18 mm to 28 mm.

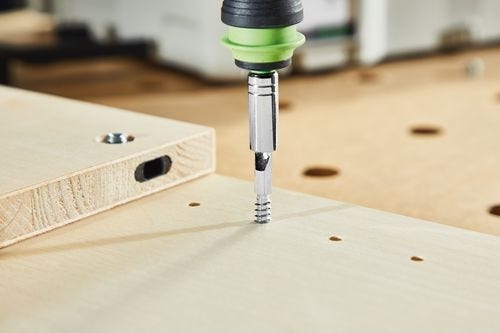

• Can it be used with a series of cabinet holes? Yes. Festool states that the connector is positioned in a 5 mm hole in the drilling series of holes and in the base using the DF 500.
