Festool 493539 Fastfix Depth Stop Chuck
Festool 493539 Fastfix Depth Stop Chuck
Out of Stock - Available to Order - Usually ships in 7-14 days
Product Details
Product Details
Key Features
Overview

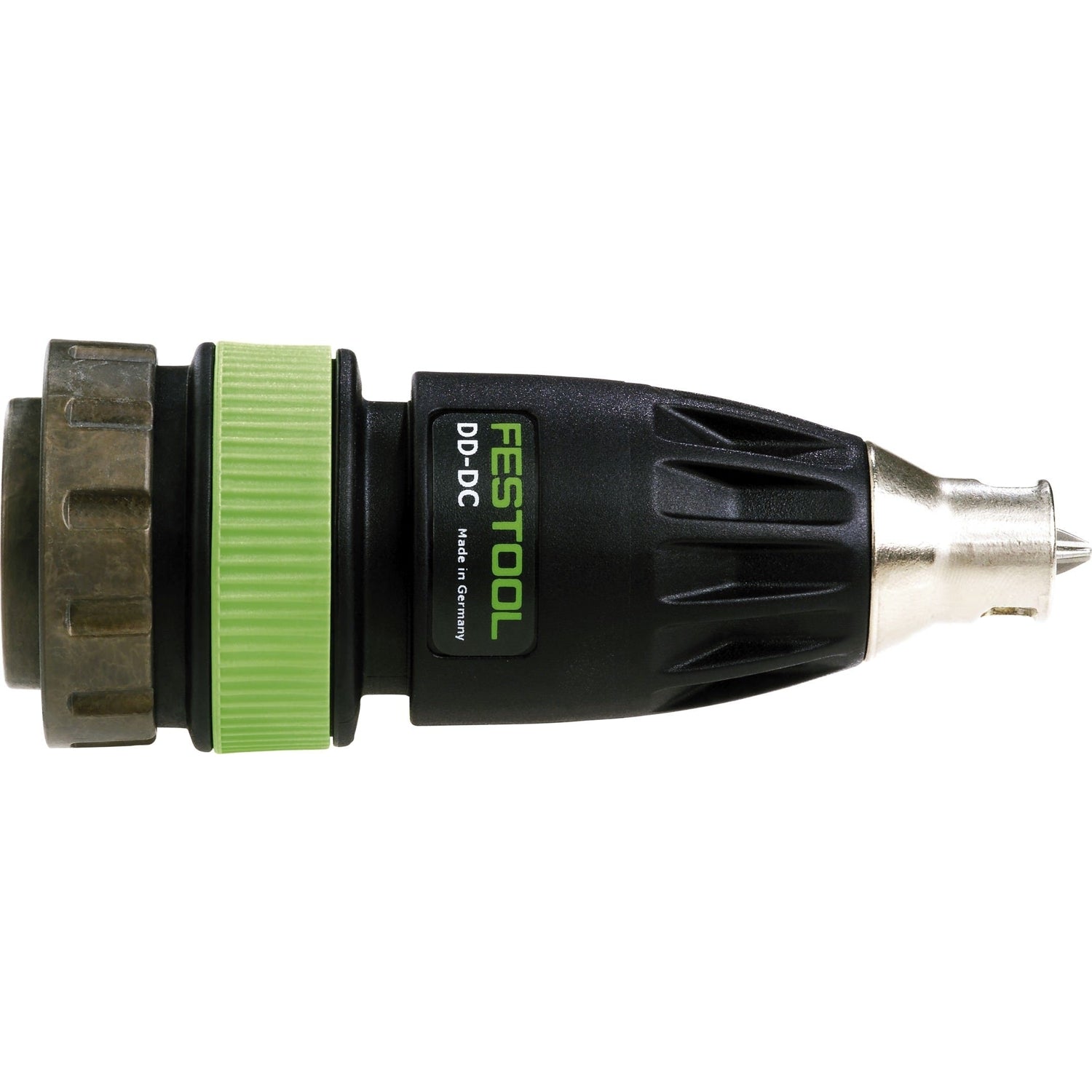

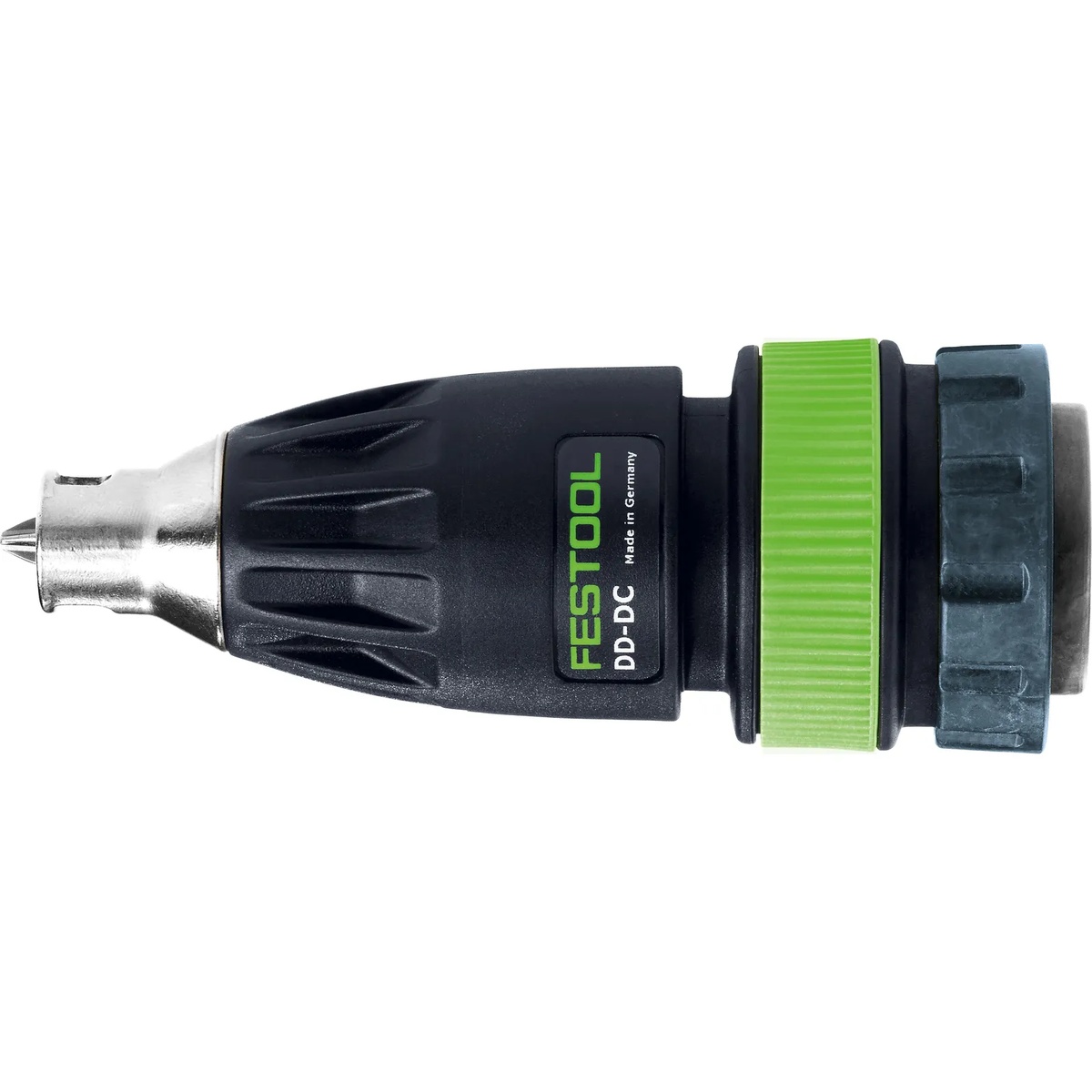

The Festool 493539 FastFix Depth Stop Chuck is a depth stop chuck made for controlled screwdriving with compatible Festool drills. This is a depth stop chuck designed for driving screws to a consistent flush depth in materials like drywall, decking, and cabinet parts. Model Number: 493539. If you want cleaner results without constantly chasing clutch settings, this attachment is the whole point.
What makes this accessory useful is not just that it drives screws, but that it keeps the screw depth consistent regardless of material density. Festool calls out an integrated clutch that maintains fastener placement depth independent of the drill's torque setting. In plain terms, once you dial it in, you can stop babysitting the tool and focus on the run of screws in front of you.

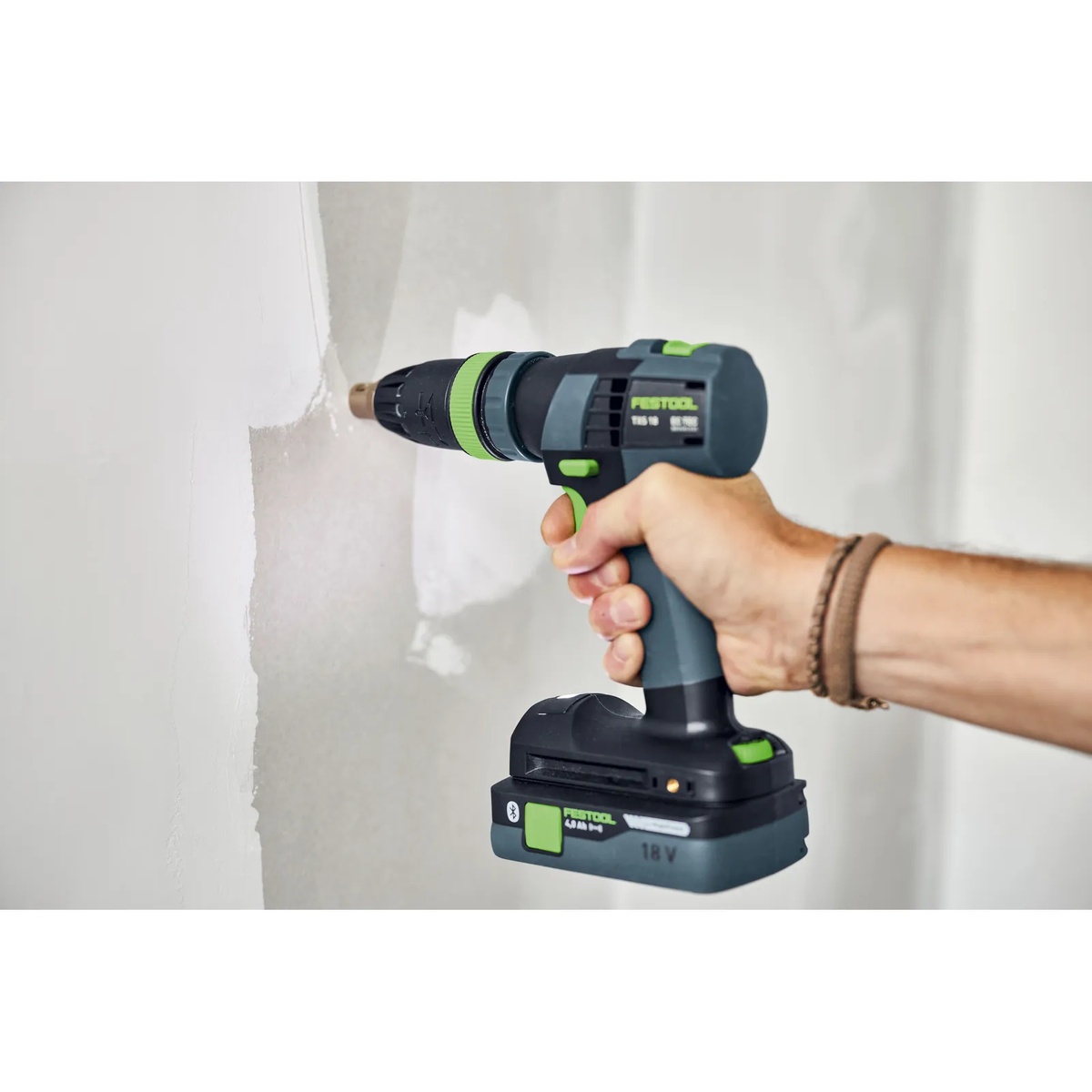

The FastFix interface is the other big reason this accessory matters. Instead of carrying a separate dedicated drywall gun, you can switch from drilling to controlled screwdriving in seconds on compatible Festool drills. That saves time on punch-list work, light drywall jobs, deck work, and cabinet installation where you may be drilling pilot holes one minute and sinking screws the next.

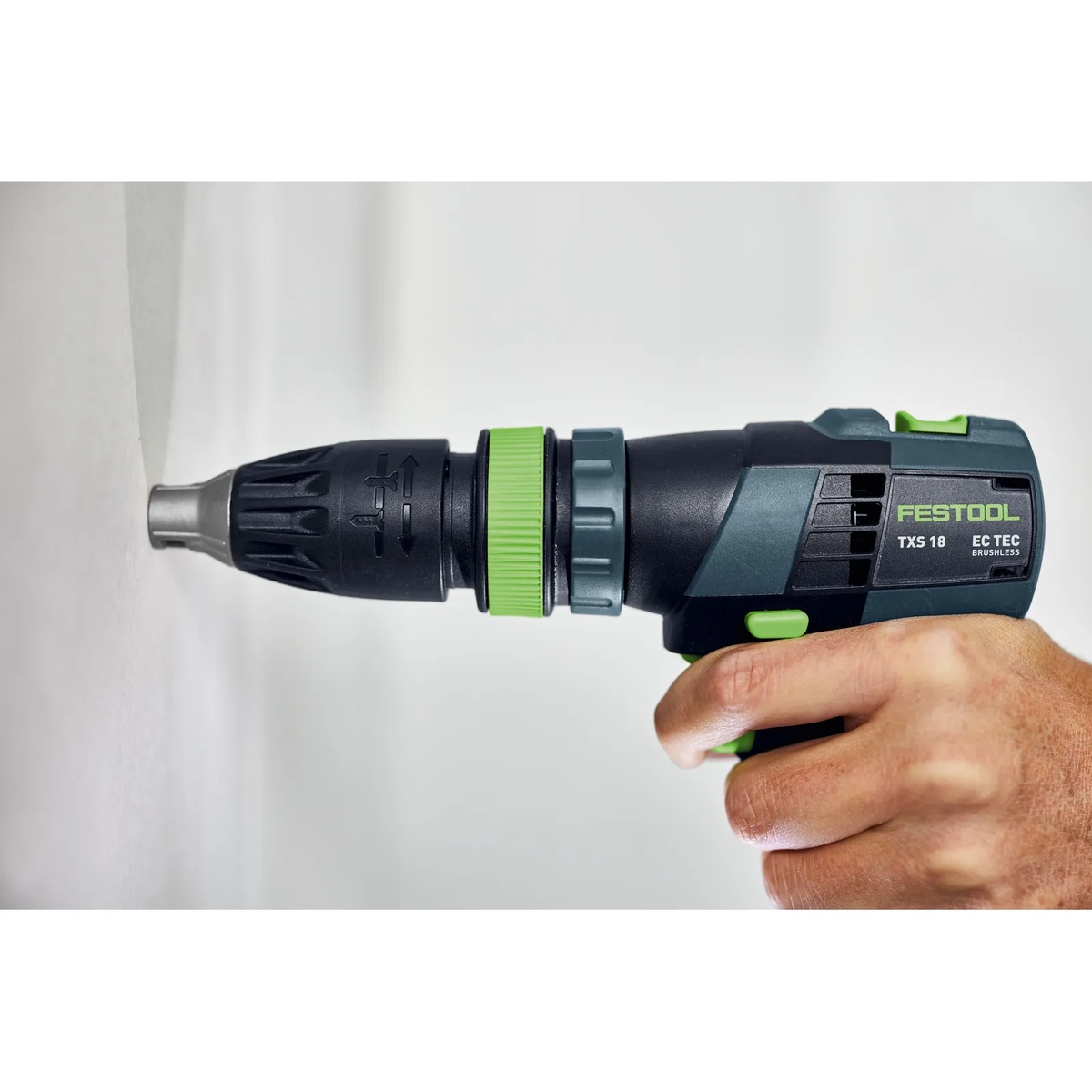

Festool also built this attachment with a narrow tip for a clearer view of the screwdriving area. That sounds simple, but it matters when you are trying to land a fastener cleanly on a line, hit a tight corner, or avoid marring a finished face. Better sightlines usually mean straighter starts and fewer slips.
Another practical detail is the green quick-out ring. If a screw needs to come back out, you can reverse it without losing your depth setting. That is useful when a screw starts off-line, catches a hidden edge, or just needs to be reset. You are not starting from scratch every time you make a correction.
Compatibility is centered around Festool's FastFix system. Source data lists this depth stop chuck for Festool drills with a FastFix holder or interface, including CXS/TXS 12, CXS/TXS 18, TPC 18/4, TDC 18/4, C 18, T 18, plus existing and previous model Festool drills equipped with FastFix such as T+3, C12, TDK, TDD, and CDD models. The main takeaway is simple: if your Festool drill uses the FastFix interface, this attachment is meant to expand what that drill can do.
Who should buy it? Drywall installers, remodelers, finish carpenters, cabinet installers, and deck builders will get the most from it. It also makes sense for serious DIY users already invested in Festool cordless drills who want more precise screw placement without buying a separate drywall screw gun. If you do a lot of repeated fastening where flush depth matters, this is the smarter attachment than relying on feel alone.
Set Screw Depth Once

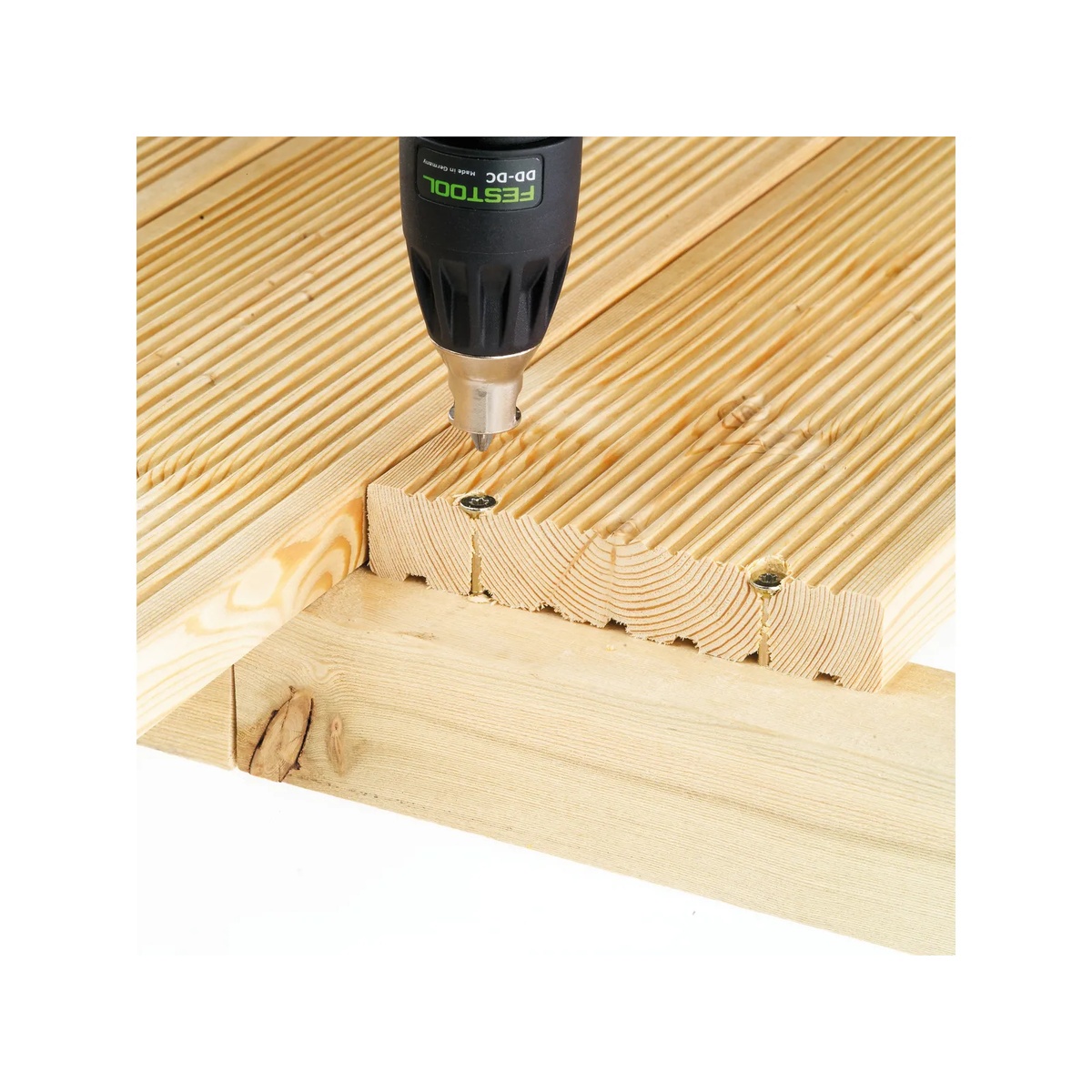

This attachment is made for repeated fastening where you want the screw to land at the same depth every time. On decking and other visible work, that means a cleaner finished surface and less rework.
- Designed for consistent, precise depth setting
- Helps maintain screw placement depth even as material density changes
Work Like a Dedicated Screw Gun Without Carrying One
If you already run a Festool drill with FastFix, this is a compact way to get better screwdriving control without adding another full-size tool to the bag. It is especially handy when the job bounces between drilling and fastening.
- FastFix interface allows quick tool-free chuck changes
- Lighter and more compact than carrying a separate dedicated drywall gun
See the Fastener and Correct It Fast
The narrow tip gives you a clearer line of sight to the screwdriving area, which helps when placement matters. And if you need to back a screw out, the quick-out ring lets you do it without losing the depth setting you already dialed in.
- Narrow tip improves visibility at the point of contact
- Green quick-out ring backs out screws without changing the set depth
Built as a FastFix Drill Accessory
This is not a generic add-on. It is a Festool drill accessory built around the FastFix system, so the value is in fast changeovers and better control for screwdriving jobs that need repeatable results.
- Festool depth stop chuck accessory for FastFix-equipped drills
- Made in Germany marking shown on the product body
Key Specifications
| Product Type | Depth Stop Chuck |
|---|---|
| Accessory Category | Drill Accessory |
| Interface | FastFix holder / FastFix interface |
| Primary Function | Consistent screw depth setting |
| Special Feature | Integrated clutch maintains fastener depth independent of torque setting |
| Adjustment / Removal Feature | Green quick-out ring backs out screws without affecting depth setting |
| Design Detail | Narrow tip for clearer view of the screwdriving area |
| Weight (lbs) | 0.8 lb |
Compatibility
Built For
Pro Tip
Dial in the depth on scrap that matches your actual material before you start the run. Once it is set, use the quick-out ring for corrections instead of readjusting the drill, so your next screw lands at the same depth.
Tool Nut's Take
Festool 493539 FastFix Depth Stop Chuck Makes Repeat Fastening Way Less Annoying
The Festool 493539 FastFix Depth Stop Chuck is the right accessory for anyone who wants clean, repeatable screw depth without dragging a dedicated screw gun onto every job.
- Who it's for: Festool drill users doing drywall, deck work, cabinet installs, and other fastening jobs where flush depth matters.
- Why it stands out: The integrated depth control, FastFix quick-change setup, narrow tip, and quick-out ring all solve real jobsite problems instead of just adding another attachment to the case.
- Worth knowing: This is a FastFix-specific accessory, so the value is best if you already run a compatible Festool drill platform.
Common Questions
- What does this accessory do? It is a depth stop chuck that helps drive screws to a consistent preset depth.
- Does it work like a dedicated drywall gun? It is designed to give your compatible Festool drill more drywall-style screwdriving control while staying lighter and more compact than carrying a separate dedicated drywall gun.
- Can you remove a screw without resetting the depth? Yes. The green quick-out ring is designed to back out screws without affecting the depth setting.
- What drills is it made for? It is made for Festool drills with the FastFix holder or FastFix interface, with listed compatibility covering several current and previous Festool drill models.
