Festool 577280 AB-AS CS/TKS Dust Extraction Hose Set
Festool 577280 AB-AS CS/TKS Dust Extraction Hose Set
Out of Stock - Available to Order - Usually ships in 7-14 days
Product Details
Product Details
Key Features
Overview
The Festool 577280 AB-AS CS/TKS Dust Extraction Hose Set is a dust extraction hose set built to connect both the blade guard and the machine body to a single mobile extractor. This is a dust extraction hose set designed for low-dust cutting on trimming saws and table saws. Model Number 577280. If you are running a Festool saw that throws dust from more than one outlet, this setup solves a real problem: one extractor, two pickup points, and a cleaner work area.
What makes this set useful is the way Festool split the job between two hose sizes instead of asking one hose to handle everything. You get a D 27 x 2.0 m antistatic suction hose, a D 36 x 1.0 m antistatic suction hose, and a Y terminal. That matters because the machine port and the guard port do not always want the same hose size. With this setup, each connection is matched more appropriately, which helps airflow and makes routing around the saw less awkward.

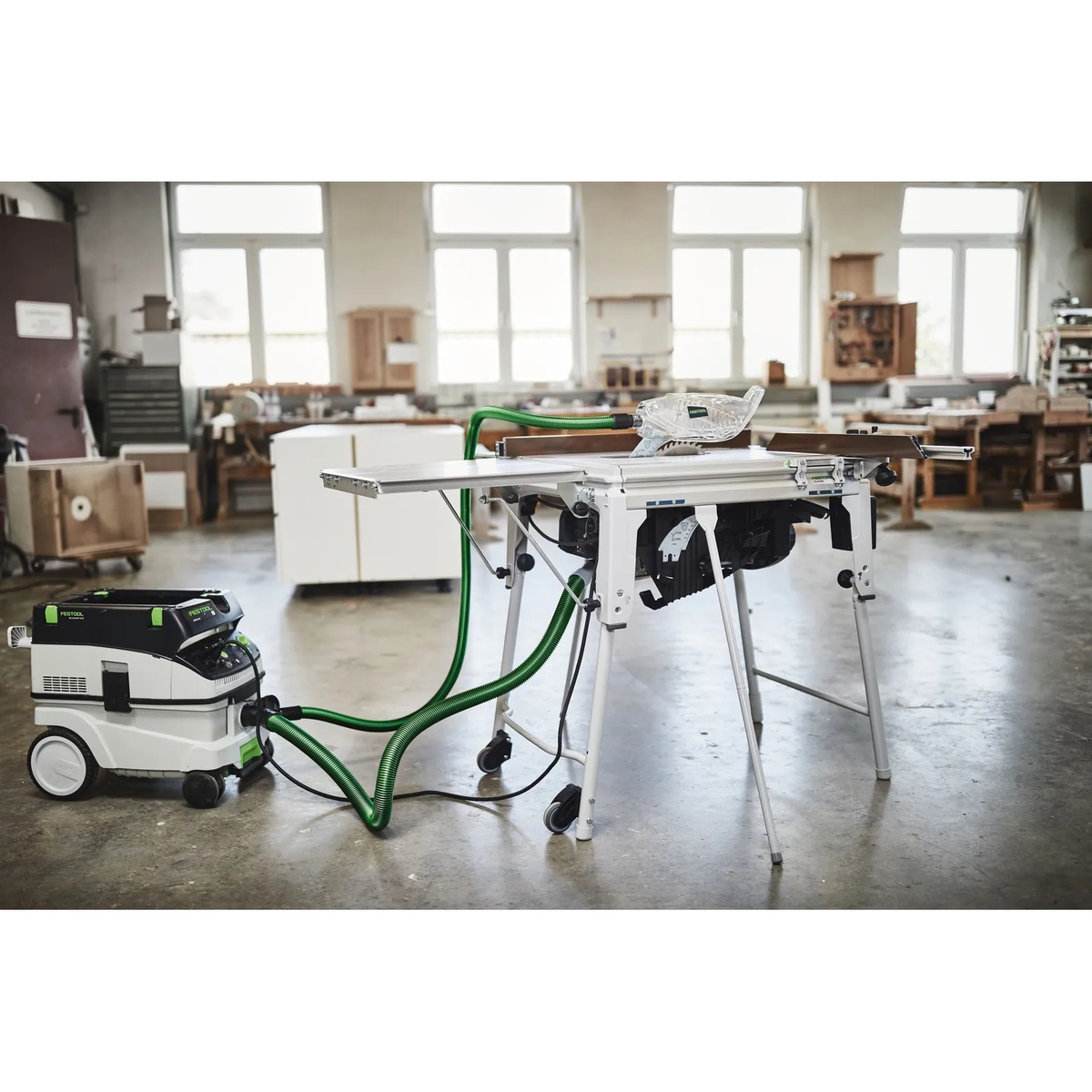

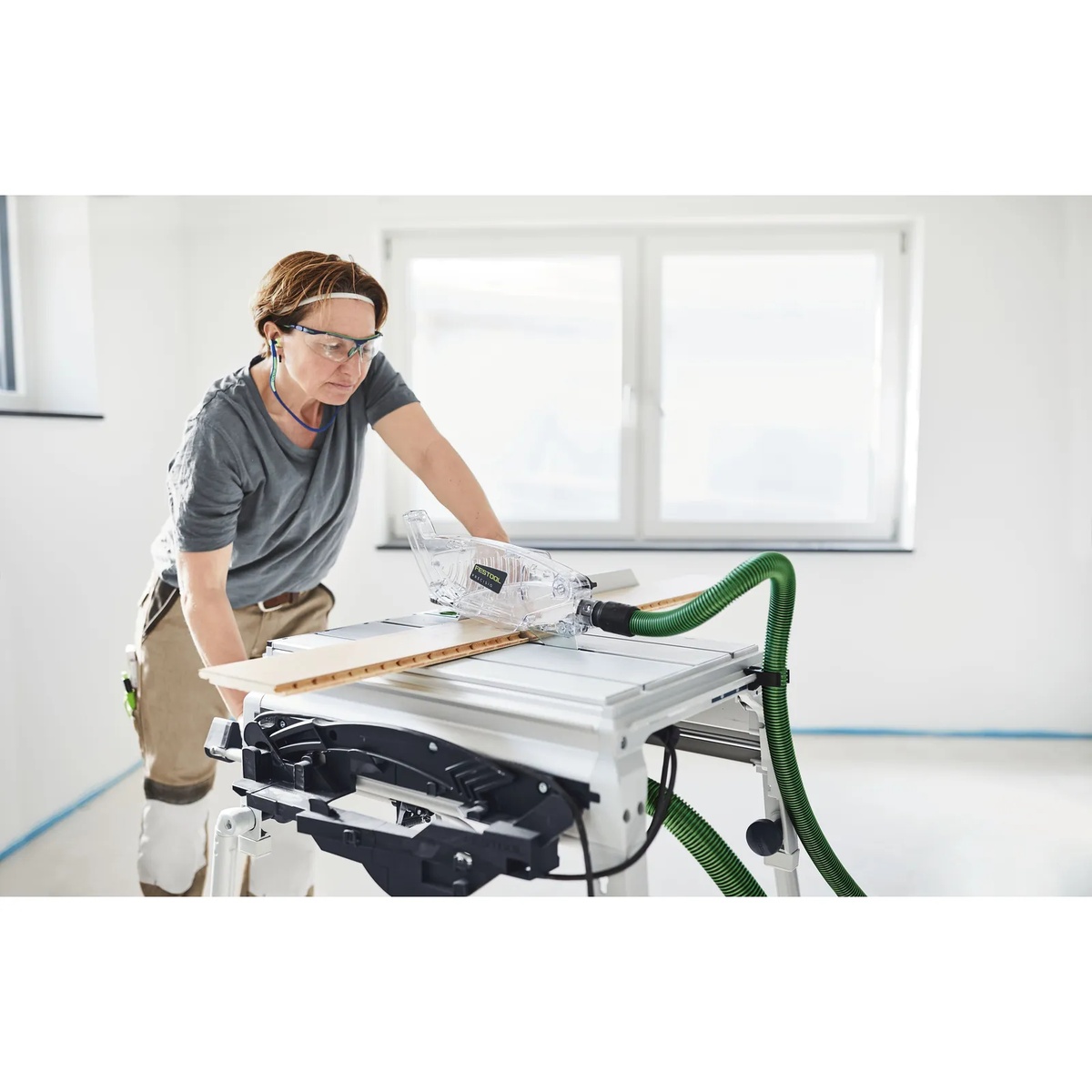

On the job, that means better chip and dust capture both above and below the cut line. On underfloor trimming saws and bench-mounted circular saws, debris does not come from just one place. The guard catches part of it and the lower machine housing throws the rest. The whole point of the AB-AS CS/TKS set is to collect from both points at the same time, so cleanup is lighter and visibility around the cut stays better.
Festool also built this set with an antistatic design. That is not filler. If you have used standard hoses around fine dust, you already know static can make dust cling to the hose and can make the hose itself more annoying to handle. Antistatic construction helps reduce that static charging from dust and chips, which is especially helpful in longer cutting sessions or in cleaner indoor work.
From a design standpoint, this is a purpose-built accessory, not a generic hose bundle. The total hose length is listed as 3 meters, and the diameter range is given as 27 to 36 mm, or about 1-1/16 in to 1-3/8 in. The included Y terminal is what makes the system practical, because it brings the two hose runs back to one extractor connection without needing a homemade workaround. For users already invested in Festool dust extraction, that is the difference between a setup you actually use and one that stays on the shelf.
Compatibility is a big part of the value here. Festool lists this set as suitable for CT mobile dust extractors, and it is intended for saw applications including the CS 50, CS 70, and TKS 80. It can also be used with trimming saws and table saws more broadly where the machine and guard both need extraction. If your saw only has one pickup point, this is probably more kit than you need. If your saw throws dust from two points, this is the right kind of fix.
Who should buy it? This is for woodworkers, finish carpenters, shop users, and serious DIY buyers who care about dust control enough to set the saw up correctly the first time. It is especially useful for indoor cutting, remodeling spaces, cabinet work, and any job where less airborne dust and less cleanup matter. Bottom line: if you are already using a Festool CT extractor with a compatible saw, this hose set makes that extractor system work the way it should.
Cleaner Cutting at Both Dust Ports

This setup is made for saws that throw dust from more than one location. Instead of choosing between the guard port and the machine port, you collect from both and keep the cutting area noticeably cleaner.
- Connects two dust exit points through one mobile dust extractor
- Designed for trimming saws and table saw applications
Matched Hose Sizes Make Setup Easier

The included hose combination is the whole reason this kit works better than piecing something together on your own. You get the right sizes for different connection points and a Y terminal to bring it all back to one extractor.
- Includes D 27 x 2.0 m hose and D 36 x 1.0 m hose
- Diameter range is 27 to 36 mm
Built for Real Dust Control, Not Just Hookup

Dust extraction only helps if the setup is easy enough to keep on the saw full time. The antistatic build and purpose-made hose routing make this a practical everyday accessory for cleaner indoor work.
- Antistatic design helps reduce static charging from dust and chips
- Suitable for Festool CT mobile dust extractors

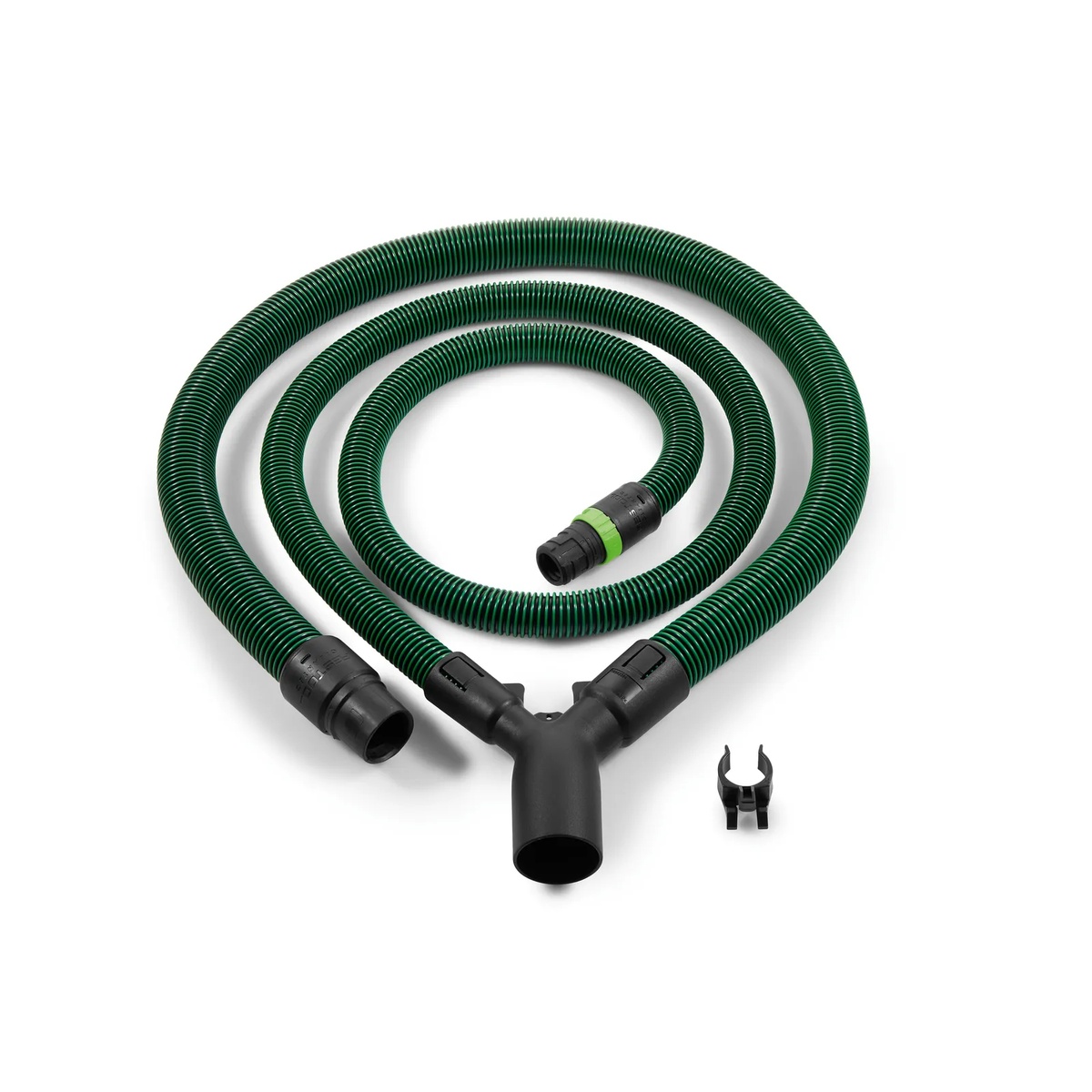

What's in the Box
- (1) D 27 x 2.0 m-AS suction hose
- (1) D 36 x 1.0 m-AS suction hose
- (1) Y terminal
Key Specifications
| Product Type | Dust Extraction Hose Set |
|---|---|
| Diameter | 27 - 36 mm (1-1/16 in - 1-3/8 in) |
| Hose Lengths | 2.0 m and 1.0 m |
| Total Length | 3.0 m |
| Weight | 3.0 lbs (1.35 kg) |
| Material | Plastic |
| Antistatic | Yes |
| Color | Gray |
Compatibility
Built For
Pro Tip
Use the D 27 hose at the guard and the D 36 hose at the machine, the way this kit was designed. That keeps the hose routing more manageable around the saw and gives you better two-point collection than trying to run a same-size hose everywhere.
Tool Nut's Take
Festool 577280 AB-AS CS/TKS Dust Extraction Hose Set for saw users who are done chasing dust
This is the right accessory for anyone running a compatible Festool saw and CT extractor who wants the dust collection setup to work the way it should from both pickup points.
- Who it's for: Woodworkers, trim carpenters, and serious DIY users working with Festool trimming saws or table saws that produce dust at both the guard and the machine.
- Why it stands out: You are getting a purpose-built two-hose setup with antistatic construction and a Y terminal, not a generic hose workaround.
- Worth knowing: This makes the most sense if you already own a compatible Festool CT extractor and a saw with dual dust pickup points.
Common Questions
- What kind of product is this? It is a dust extraction hose set for connecting both the guard and machine dust outlets on compatible saws to one mobile dust extractor.
- Is it antistatic? Yes. Festool lists this hose set as antistatic to help reduce static charging from dust and chips.
- What extractors does it work with? Festool lists it as suitable for CT mobile dust extractors.
- Which saws is it intended for? Festool and Tool Nut reference trimming saws and table saws, including CS 50, CS 70, and TKS 80 setups.
