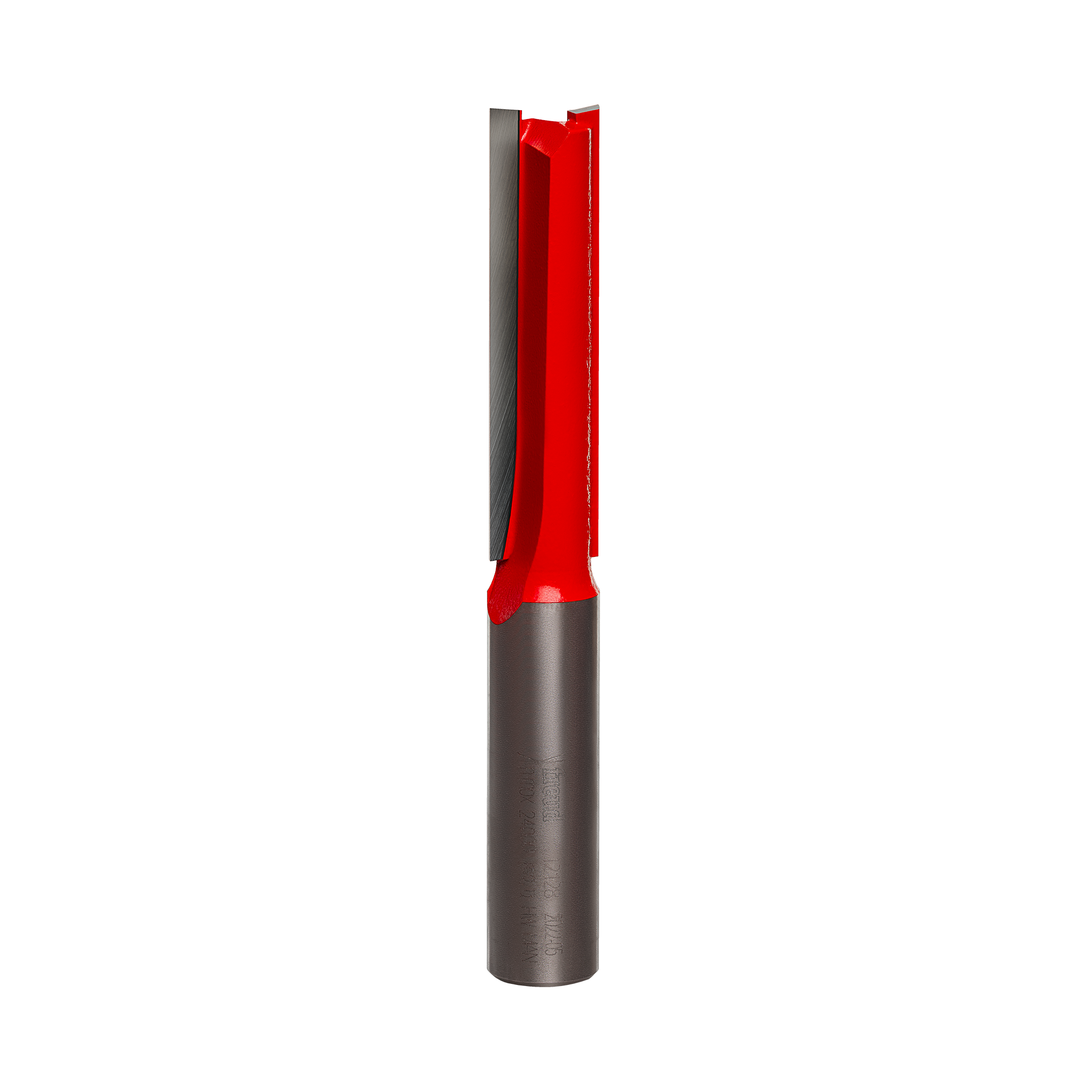

The Freud 12-128 1/2-Inch Double Flute Straight Router Bit (Eclipse Grind) is a carbide-tipped straight router bit built for clean grooving, edge-routing, and general-purpose routing in wood and composite materials. This is a router bit designed for straight cuts, grooves, dados, plunge entries, and edge work in shop or jobsite routing setups. Model 12-128 uses a 1/2 inch cutting diameter, a 2 inch carbide height, a 4-1/8 inch overall length, and a 1/2 inch shank, which makes it a solid fit for users who want clean cuts with better control in larger routers and router tables.

What sets this bit apart is the combination of a double flute cutting pattern and Freud's Tico Hi-Density Carbide. In practical terms, that means the bit is built to cut quickly without leaving a rough, torn-up edge behind. Two cutters help balance speed and finish quality, so whether you are cutting grooves in hardwood, routing plywood dados, or cleaning up edge profiles in composite panels, you get a smoother result than you would expect from a basic general-purpose straight bit.

The Eclipse Grind and relieved tip geometry matter if you do more than simple edge passes. This bit is designed to allow efficient plunge cuts, which is a big deal when you need to start a groove in the middle of a panel, drop into a workpiece for a stopped dado, or make controlled entry cuts on a CNC router. Instead of fighting the bit on entry, the cutting geometry is meant to help it start cleaner and stay more manageable as it works into the material.

The 1/2 inch shank is another part of why this bit makes sense for serious routing work. On a router bit with a 2 inch carbide height and 4-1/8 inch overall length, shank size directly affects stability. A 1/2 inch shank gives the bit a stronger hold in the collet and helps reduce chatter compared with smaller-shank alternatives in demanding cuts. If you are routing deeper grooves, longer passes, or harder materials, that extra rigidity is worth having.

Freud rates this bit for use in CNC, hand-held, and table-mounted routers, so it is not limited to one type of setup. That flexibility matters for woodworkers and cabinet installers who move between machines depending on the job. On a CNC, it gives you a straight-cutting option for programmed grooves and channels. In a hand-held router, it works for edge-routing and controlled straight passes. In a router table, it is well suited to repeatable shop work where consistent depth and clean finish matter.

Material range is broad here, and that is part of the value. The source data specifically calls out solid wood, plywood, composites, MDF, OSB, particle board, laminate, cellular PVC, and composite decking among supported materials and applications. If you are cutting shelving dados in veneered plywood, trimming channels in hardwood, or routing utility grooves in sheet goods, this bit is built for that kind of day-to-day work. It is not a specialty profile bit that only comes out once in a while. It is a practical straight bit you will keep reaching for.

The maximum speed rating of 24,000 RPM gives you a wide operating window across different router platforms, but the real advantage is control. You can match router speed and feed rate to the material instead of forcing the bit to do everything one way. That helps when moving from hardwood to softer sheet goods or when trying to keep laminates and composites cutting clean without overheating or tearing out the top surface.

If you are a cabinetmaker, finish carpenter, shop woodworker, CNC user, or serious DIYer who wants a dependable straight bit for grooves and edge work, this one makes sense. The Freud 12-128 1/2-Inch Double Flute Straight Router Bit (Eclipse Grind) is for users who care about cut quality, stable routing, and broad material compatibility more than just buying the cheapest straight bit on the rack.

Freud 12-128 1/2-Inch Double Flute Straight Router Bit (Eclipse Grind) for everyday routing work that still needs to look clean

This is the kind of straight bit that earns a permanent spot in the drawer because it handles common groove and edge-routing jobs without feeling like a compromise tool.

• Who it's for: Woodworkers, cabinet shops, finish carpenters, and serious DIY users running 1/2 inch shank routers for grooves, dados, and straight edge work.
• Why it stands out: The 2-cutter design, plunge-friendly tip relief, and Tico Hi-Density Carbide give it a solid mix of clean finish, durability, and day-to-day versatility.
• Worth knowing: This is a bare router bit, not a kit, and it requires a router that accepts a 1/2 inch shank. If your router is limited to 1/4 inch shank bits, this is not the one.

• What kind of router is this bit made for? It is designed for CNC, hand-held, and table-mounted routers that accept a 1/2 inch shank.
• What materials can this router bit cut? Source data lists solid wood, plywood, MDF, OSB, particle board, laminate, composites, cellular PVC, and composite decking.
• Can this bit make plunge cuts? Yes. The relieved carbide tip design is intended to allow efficient plunge cuts.
• What is the maximum speed rating? The maximum rated speed is 24,000 RPM.
